0137 - CENTRE TUNNEL AND ACCESSORY UNIT

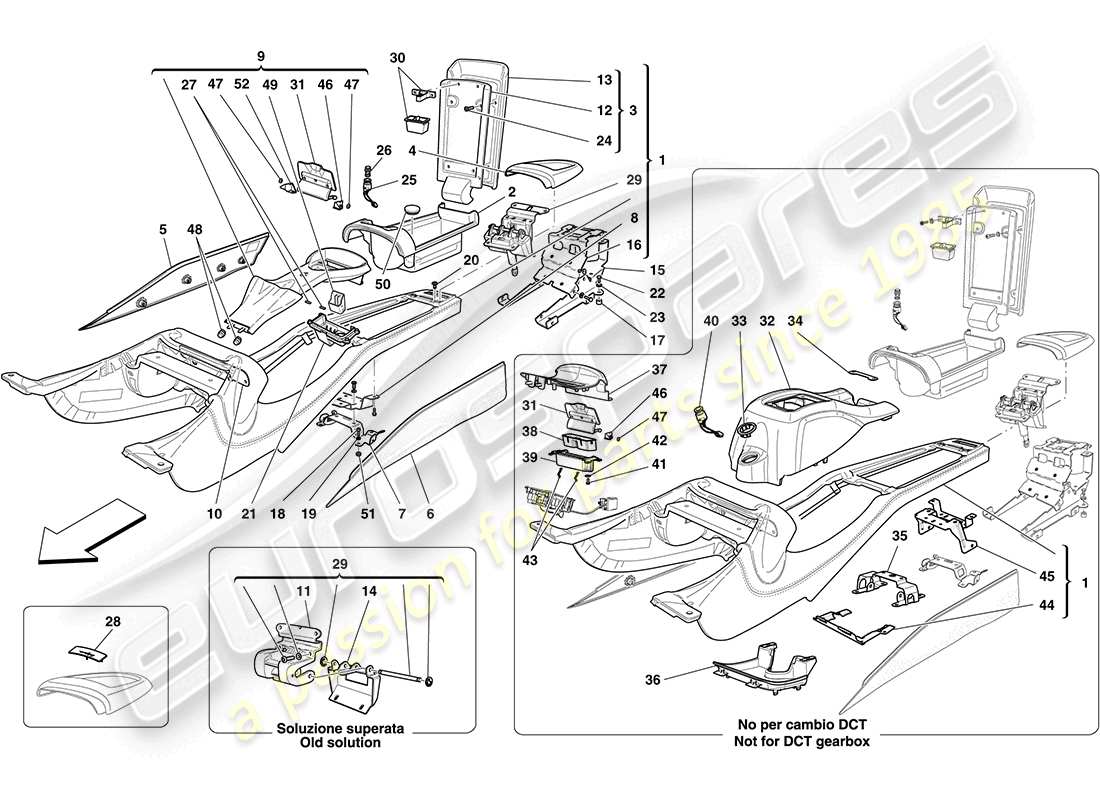

Ferrari California (USA) CENTRE TUNNEL AND ACCESSORY UNIT Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 808038..
TUNNEL STRUCTURE
-STC1- -STC2- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -No longer supplied- -Replaced by 823676..-
Supersession
Supersession
# 001
MPN: 813023..
TUNNEL STRUCTURE
-STC1- -STC2- -Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
# 001
MPN: 823676..
TUNNEL STRUCTURE
-Not for HELE- -Not for Stop & Start- -STC1- -STC2- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)-
from £1,417.50
from £1,417.50
# 001
MPN: 831330..
TUNNEL STRUCTURE
-Applicable for HELE- -Applicable for Stop & Start- -STC1- -STC2- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)-
# 002
MPN: 81077500
ODDMENTS STORAGE COMPARTMENT ON TUNNEL
from £35.37
from £35.37
# 002
MPN: 82272200
ODDMENTS STORAGE COMPARTMENT ON TUNNEL
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)- -No longer supplied- -Replaced by 81077500-
# 003
MPN: 808039..
COMPL. TUNNEL LID
-No longer supplied-
# 004
MPN: 810207..
REAR TUNNEL TRIM
-Applicable until depletion-
Supersession
Supersession
# 004
MPN: 821144..
REAR TUNNEL TRIM
-Applicable after depletion of 810207..-
from £183.75
from £183.75
# 005
MPN: 806794..
RH CARPET
-Standard-
Supersession
Supersession
# 005
MPN: 820671..
RH CARPET
-Alcantara-
Supersession
Supersession
# 006
MPN: 806793..
LH MAT
-Standard-
Supersession
Supersession
# 006
MPN: 820670..
LH MAT
-Alcantara-
Supersession
Supersession
# 007
MPN: 80829400
CENTRAL BRACKET
from £12.76
from £12.76
# 008
MPN: 80700000
UPPER CENTRAL BRACKET
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)-
from £10.97
from £10.97
# 009
MPN: 80804000
UPPER PART OF TUNNEL
-Standard- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Not for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 94155- -Applicable until depletion-
from £909.20
from £909.20
# 009
MPN: 80804000
UPPER PART OF TUNNEL
-Standard- -From Ass. No. 109857, supplied without Cavallino badge- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for GD-
from £909.20
from £909.20
# 009
MPN: 81908800
UPPER PART OF TUNNEL
-Carbon- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Not for USA, CDN, USA LIGHT- -Applicable up to Ass. No. 95815- -Applicable until depletion-
from £4,886.60
from £4,886.60
# 009
MPN: 81908800
UPPER PART OF TUNNEL
-Carbon- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for GD-
from £4,886.60
from £4,886.60
# 009
MPN: 82732700
UPPER PART OF TUNNEL
-Standard- -From Ass. No. 109857, supplied without Cavallino badge- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for USA, CDN, USA LIGHT-
from £1,502.43
from £1,502.43
# 009
MPN: 82732800
UPPER PART OF TUNNEL
-Carbon- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for USA, CDN, USA LIGHT-
from £4,886.60
from £4,886.60
# 009
MPN: 83442600
UPPER PART OF TUNNEL
-Carbon- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Not for USA, CDN, GD, USA LIGHT- -Applicable from Ass. No. 95816- -Applicable after depletion of 81908800-
from £4,790.80
from £4,790.80
# 009
MPN: 83442800
UPPER PART OF TUNNEL
-Standard- -From Ass. No. 109857, supplied without Cavallino badge- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Not for USA, CDN, GD, USA LIGHT- -Applicable from Ass. No. 94156- -Applicable after depletion of 80804000-
from £1,509.93
from £1,509.93
# 010
MPN: 80717100
BRACKET
from £4.69
from £4.69
# 011
MPN: 81525000
HINGE MOUNTING, MOBILE PART
-See ref. 29- -No longer supplied- -Replaced by 82272000-
Supersession
Supersession
# 012
MPN: 69767000
INTERNAL LID
-No longer supplied- -Replaced by 82271800-
Supersession
Supersession
# 012
MPN: 82271800
INTERNAL LID
from £98.58
from £98.58
This part replaces part number 69767000
# 013
MPN: 698285..
GLOVE COMPARTMENT LID
-No longer supplied- -Replaced by 822716..-
Supersession
Supersession
# 013
MPN: 822716..
GLOVE COMPARTMENT LID
Supersession
Supersession
# 014
MPN: 81524900
HINGE MOUNTING
-See ref. 29- -No longer supplied- -Replaced by 82272000-
Supersession
Supersession
# 015
MPN: 81525100
FUSE BOX BRACKET
-Not for HELE- -Not for Stop & Start-
from £33.69
from £33.69
# 015
MPN: 83132900
FUSE BOX BRACKET
-Applicable for HELE- -Applicable for Stop & Start-
from £48.99
from £48.99
# 016
MPN: 81566400
UPPER BRACKET FOR FUSE BOX
-No longer supplied- -Replaced by 82276600-
Supersession
Supersession
# 016
MPN: 82276600
UPPER BRACKET FOR FUSE BOX
-Not for HELE- -Not for Stop & Start-
from £40.83
from £40.83
This part replaces part number 81566400 - and 1 more. Click to view details
# 016
MPN: 83133100
UPPER BRACKET FOR FUSE BOX
-Applicable for HELE- -Applicable for Stop & Start-
from £38.79
from £38.79
# 017
MPN: 81078300
SHIM
from £1.49
from £1.49
# 018
MPN: 14305324
SCREW
from £0.47
from £0.47
This part replaces part number 14305321
# 019
MPN: 12620474
WASHER
from £0.47
from £0.47
This part replaces part number 12620479 - and 1 more. Click to view details
# 020
MPN: 68176500
SCREW
-No longer supplied- -Replaced by 85692300-
from £0.47
from £0.47
# 020
MPN: 85692300
SCREW
from £0.47
from £0.47
This part replaces part number 83914200
# 021
MPN: 80582000
ASHTRAY
-Not for version in carbon fibre- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)-
from £41.65
from £41.65
# 021
MPN: 82465800
ASHTRAY
-Applicable for version in carbon fibre- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)-
from £284.46
from £284.46
# 022
MPN: 14305324
SCREW
from £0.47
from £0.47
This part replaces part number 14305321
# 023
MPN: 12620474
WASHER
from £0.47
from £0.47
This part replaces part number 12620479 - and 1 more. Click to view details
# 024
MPN: 68176200
SCREW
-No longer supplied- -Replaced by 85692000-
from £0.53
from £0.53
This part replaces part number 81911300
# 024
MPN: 85692000
SCREW
from £0.53
from £0.53
# 025
MPN: 183271
CIGARETTE LIGHTER BODY
-Applicable for smoker's kit-
from £19.17
from £19.17

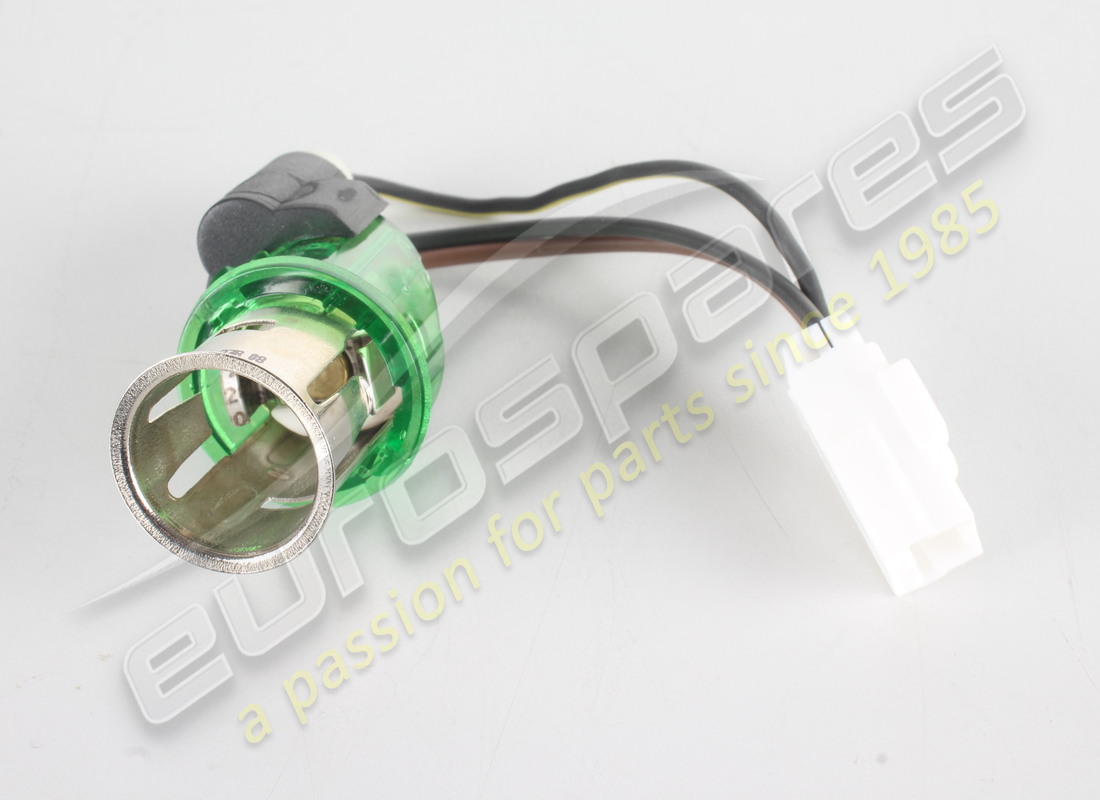

# 025
MPN: 215406
12 VOLT SOCKET
-Not for smoker's kit-
from £24.05
from £24.05
# 026
MPN: 183270
CIGARETTE LIGHTER
Supersession
Supersession
# 027
MPN: 82268900
RUBBER PAD FOR ASHTRAY
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)-
from £2.09
from £2.09
# 028
MPN: 81988510
CENTRE CONSOLE DEDICATION PLAQUE
from £348.31
from £348.31
This part replaces part number 81988500
# 029
MPN: 81967600
COMPLETE HINGE
-No longer supplied- -Replaced by 82272000-
Supersession
Supersession
# 029
MPN: 82272000
COMPLETE HINGE
from £117.82
from £117.82
This part replaces part number 81524900 - and 2 more. Click to view details

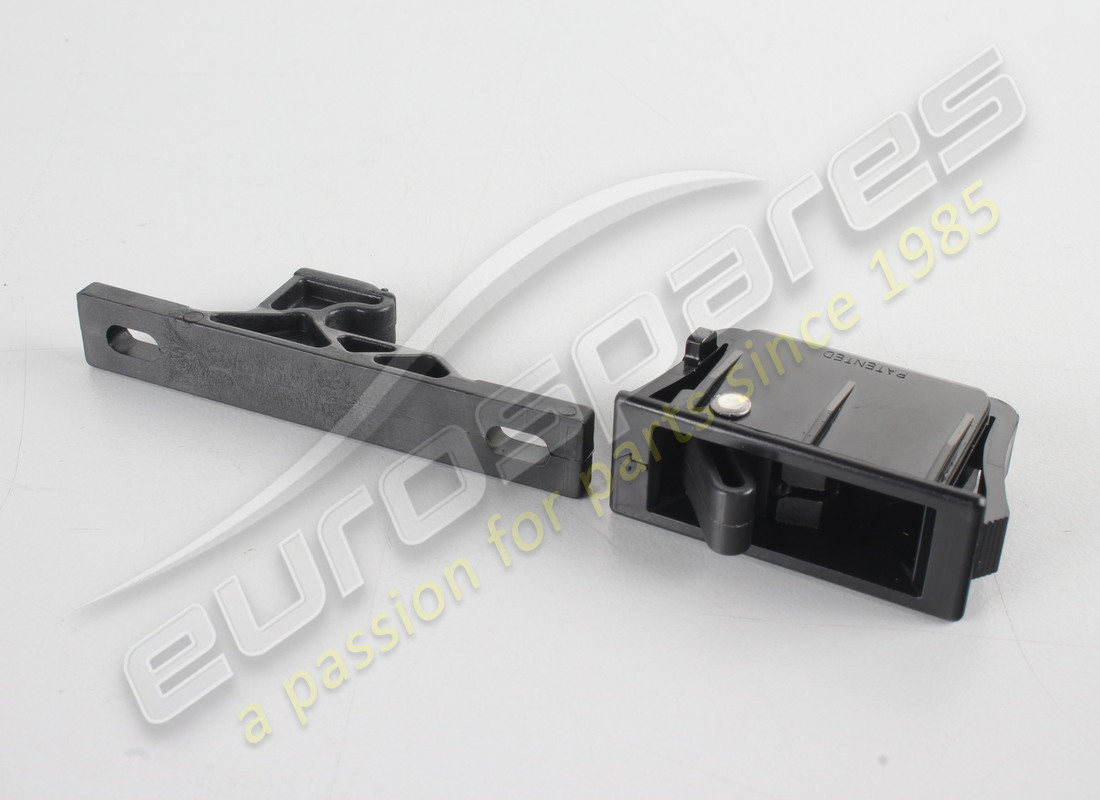

# 030
MPN: 67004800
LID LATCH
from £19.65
from £19.65
# 031
MPN: 81072100
COMPL. ASHTRAY LID
-Standard-
from £136.29
from £136.29
# 031
MPN: 81360100
COMPL. ASHTRAY LID
-Carbon- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)-
from £590.62
from £590.62
# 032
MPN: 813024..
MANUAL GEARBOX TRIM
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
# 033
MPN: 80843600
12 VOLT SOCKET MOUNTING
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
# 034
MPN: 81303000
UPPER BRACKET
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
from £37.12
from £37.12
# 035
MPN: 81579900
BRACKET
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
from £26.57
from £26.57
# 036
MPN: 81302600
OPEN COMPARTMENT ON TUNNEL
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)- -No longer supplied- -Replaced by 83326700-
Supersession
Supersession
# 036
MPN: 83326700
OPEN COMPARTMENT ON TUNNEL
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
This part replaces part number 81302600
# 037
MPN: 81302500
UPPER PART OF TUNNEL
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
# 038
MPN: 82243500
ASHTRAY TRAY
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
from £16.97
from £16.97
# 039
MPN: 80829100
ASHTRAY
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
# 040
MPN: 197158
12 VOLT SOCKET
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
from £27.88
from £27.88
# 041
MPN: 82238700
SCREW
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
from £1.15
from £1.15
# 042
MPN: 14446821
WASHER
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
from £10.07
from £10.07
# 043
MPN: 81072300
FLEXIBLE BRACKET
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
from £14.85
from £14.85
# 044
MPN: 81302900
LOWER BRACKET
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
from £37.12
from £37.12
# 045
MPN: 81580000
TUNNEL BRACKET
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
from £25.24
from £25.24
# 046
MPN: 81070300
LH ASHTRAY HINGE MOUNT
from £22.54
from £22.54
# 047
MPN: 81173400
WASHER
from £2.09
from £2.09
# 048
MPN: 82248200
RUBBER
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)-
from £1.42
from £1.42
# 049
MPN: 68807900
ASHTRAY TRAY
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)-
from £6.19
from £6.19
# 050
MPN: 81077600
CAP
from £11.14
from £11.14
# 051
MPN: 65708600
SHIM
from £3.99
from £3.99
# 052
MPN: 84413200
RH ASHTRAY HINGE MOUNT
from £74.23
from £74.23
