0125 - ELECTRIC ROOF: STRUCTURE

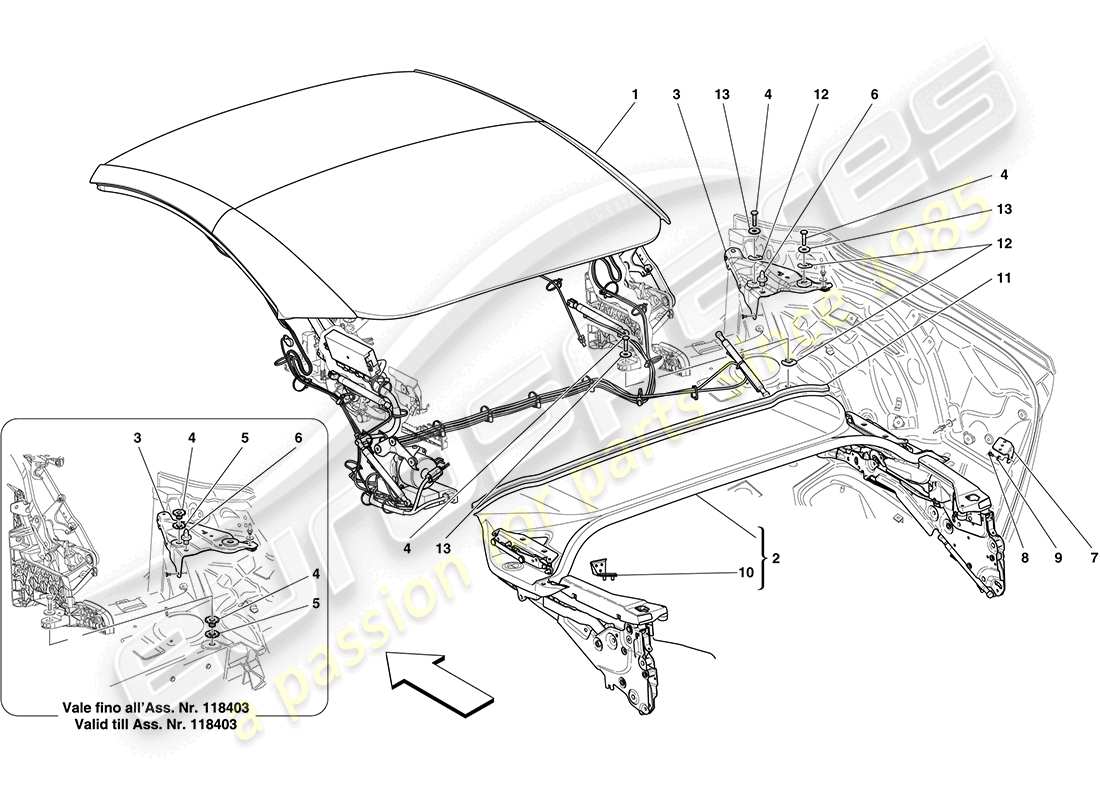

Ferrari California (USA) ELECTRIC ROOF: STRUCTURE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 804136..
CAPOTE SET
-Painted-
Supersession
Supersession
# 001
MPN: 829567
ROOF ASSEMBLY
-Painted- -With leather headliner-
Supersession
Supersession
# 002
MPN: 804133..
TONNEAU COVER ASSEMBLY
-Painted-
from £3,937.50
from £3,937.50
# 003
MPN: 80729100
RH REAR CRASH BRACKET
-Applicable up to Ass. No. 118403-
from £72.64
from £72.64
# 003
MPN: 80729200
LH REAR CRASH BRACKET
-Applicable up to Ass. No. 118403-
from £132.07
from £132.07
# 003
MPN: 85599700
REAR RH CRASH BRACKET
-Applicable from Ass. No. 118404-
from £77.58
from £77.58
# 003
MPN: 85599800
REAR LH CRASH BRACKET
-Applicable from Ass. No. 118404-
from £77.58
from £77.58
# 004
MPN: 263394
SCREW
-Applicable from Ass. No. 118404-
from £0.51
from £0.51
# 004
MPN: 80520600
REGISTRATION SCREW
-Applicable up to Ass. No. 118403-
from £8.83
from £8.83
# 004
MPN: 84908700
ROOF ADJUSTMENT SCREW
-Applicable up to Ass. No. 118403-
from £11.17
from £11.17
# 005
MPN: 80520700
COUNTER NUT
-Applicable up to Ass. No. 118403-
from £11.04
from £11.04
# 006
MPN: 80954900
REGISTRATION SCREW
from £5.63
from £5.63
# 007
MPN: 80553100
LH BRACKET
-Applicable up to Ass. No. 121193-
from £8.03
from £8.03
# 007
MPN: 80553200
RH BRACKET
-Applicable up to Ass. No. 121193-
from £8.76
from £8.76
# 007
MPN: 86142100
LH BRACKET
-Applicable from Ass. No. 121194-
from £4.90
from £4.90
# 007
MPN: 86358900
RH BRACKET
-Applicable from Ass. No. 121194-
from £4.90
from £4.90
# 008
MPN: 10902424
SCREW
-No longer supplied- -Replaced by 11625824-
from £0.51
from £0.51
This part replaces part number 10902324 - and 3 more. Click to view details
# 008
MPN: 11625824
SCREW
from £0.47
from £0.47
# 009
MPN: 13550224
WASHER
-No longer supplied-
from £0.68
from £0.68
# 010
MPN: 70001635
LEVER ALIGNMENT KIT
from £53.50
from £53.50
# 011
MPN: 81727700
GASKET
from £95.23
from £95.23
# 012
MPN: 86090900
ROOF SPACER
-Th. 0.5 mm- -Applicable from Ass. No. 118404-
from £1.33
from £1.33
# 012
MPN: 86091000
ROOF SPACER
-Th. 1 mm- -Applicable from Ass. No. 118404-
from £1.33
from £1.33
# 012
MPN: 86091100
ROOF SPACER
-Th. 2 mm- -Applicable from Ass. No. 118404-
from £1.33
from £1.33
# 013
MPN: 12644364
WASHER
-Applicable from Ass. No. 118404-
from £0.47
from £0.47
This part replaces part number 12644301
