0007 - fuel pump and connector pipes
Ferrari California (USA) FUEL PUMP AND CONNECTOR PIPES Parts Diagram

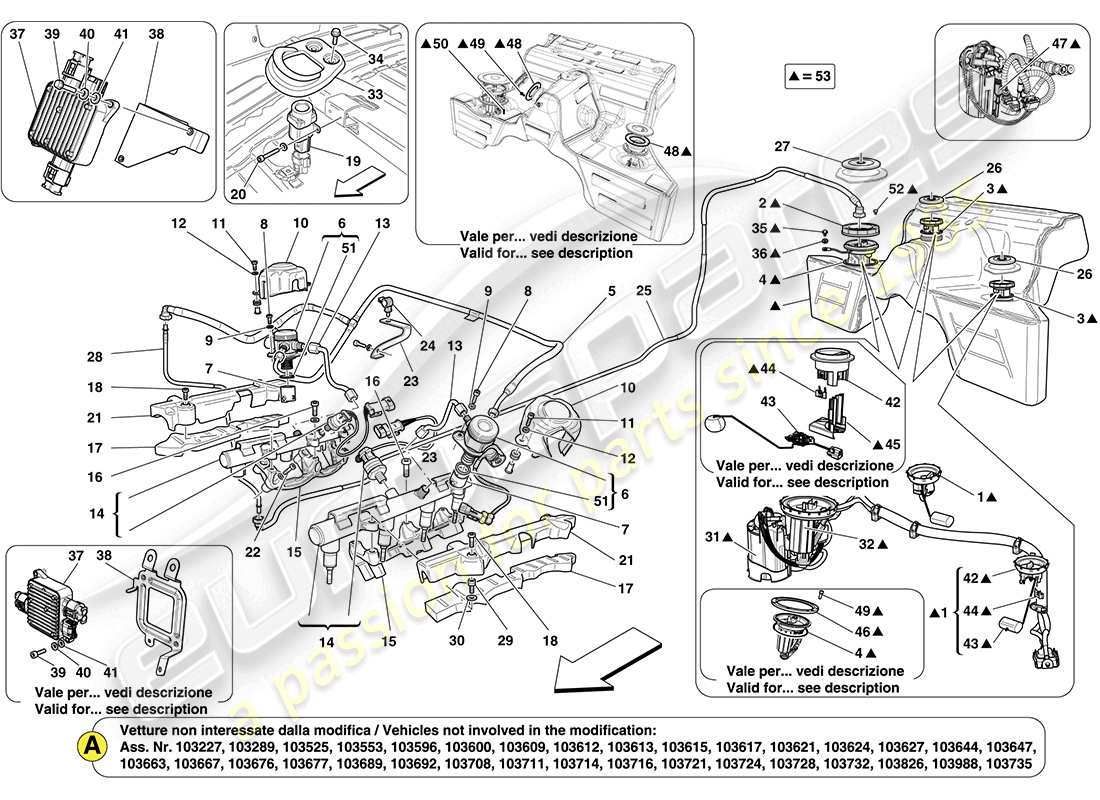

View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 252074
COMPLETE LEVEL SENSOR
-Applicable until depletion-
Supersession
Supersession
# 001
MPN: 259409
COMPL. LEVEL SENSOR
-Applicable after depletion of 252074- -No longer supplied-
This part replaces part number 252074
# 002
MPN: 239497
FASTENER RING
-Applicable up to Ass. No. 103178-
from £19.77
from £19.77
# 003
MPN: 239413
O-RING
from £2.75
from £2.75
# 004
MPN: 239412
O-RING
-No longer supplied- -Replaced by 275314-
from £6.15
from £6.15
# 004
MPN: 239412
O-RING
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £6.15
from £6.15
# 004
MPN: 275314
O-RING
-Applicable up to Ass. No. 103178-
from £3.71
from £3.71
# 005
MPN: 254770
COMPL. PUMP FEED PIPE
-Applicable up to engine No. 156040-
from £170.74
from £170.74
This part replaces part number 250259
# 005
MPN: 260617
COMPL. PUMP FEED PIPE
-Applicable from engine No. 156041-
from £180.02
from £180.02
This part replaces part number 259535
# 006
MPN: 249655
fuel pump
-Applicable until depletion-
Supersession
Supersession
# 006
MPN: 252704
fuel pump
-Applicable after depletion of 267235- -No longer supplied- -Replaced by 290030-
Supersession
Supersession
This part replaces part number 267235
# 006
MPN: 267235
fuel pump
-Applicable after depletion of 249655- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 249655
# 006
MPN: 290030
fuel pump
from £431.52
from £431.52
This part replaces part number 252704
# 007
MPN: 212797
CUP
from £21.30
from £21.30
# 008
MPN: 14305334
SCREW
from £0.47
from £0.47
# 009
MPN: 12639724
WASHER
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 010
MPN: 247537
SOUNDPROOFING COVER
from £28.58
from £28.58
# 011
MPN: 231621
SCREW
from £0.47
from £0.47
This part replaces part number 216568
# 012
MPN: 12647701
WASHER
from £0.47
from £0.47
# 013
MPN: 247674
PIPE
from £134.75
from £134.75
# 014
MPN: 247581
COMPL. INJECTOR PIPE
from £1,116.23
from £1,116.23
This part replaces part number 238183
# 015
MPN: 239946
FUEL RAIL MOUNTING
from £48.99
from £48.99
# 016
MPN: 231620
SCREW
-M6 X 25-
from £0.47
from £0.47
# 017
MPN: 247872
FUEL RAIL SOUNDPROOFING COVER
-Applicable until depletion-
Supersession
Supersession
# 017
MPN: 256322
INJECTOR COVER
-Applicable for alternator 250365, table 50 pos. 11- -Applicable up to engine No. 169911- -Applicable after depletion of 247872-
from £24.50
from £24.50
This part replaces part number 247872 - and 7 more. Click to view details
# 017
MPN: 266337
RAIL SOUNDPROOFING COVER
-Applicable for alternator 263829, table 50 pos. 11- -Applicable from engine No. 169912-
Supersession
Supersession
# 018
MPN: 231618
SCREW
-M6 X 20- -Applicable with fuel rail cover ref.17-
from £0.47
from £0.47
# 018
MPN: 231620
SCREW
-M6 X 25- -Applicable without fuel rail cover ref.17-
from £0.47
from £0.47
# 019
MPN: 163675
INERTIA SWITCH
from £12.99
from £12.99
# 020
MPN: 16285127
SCREW
from £0.47
from £0.47
# 021
MPN: 251015
INJECTOR COVER
from £70.53
from £70.53
# 022
MPN: 231624
SCREW
from £0.47
from £0.47
# 023
MPN: 247117
FUEL PIPE FIXING BRACKET
from £36.37
from £36.37
# 024
MPN: 67885100
CLIP
from £0.73
from £0.73
# 025
MPN: 244445
FUEL DELIVERY PIPE
-Not for USA, CDN, GD, USA LIGHT- -No longer supplied- -Replaced by 248968-
Supersession
Supersession
# 025
MPN: 248968
FUEL DELIVERY PIPE
-Not for USA, CDN, GD, USA LIGHT- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 244445
# 025
MPN: 257294
FUEL DELIVERY PIPE
-Applicable for USA, CDN, GD, USA LIGHT- -Applicable for Mechanical gearbox-
from £77.84
from £77.84
This part replaces part number 248968
# 025
MPN: 257294
FUEL DELIVERY PIPE
-Not for USA, CDN, GD, USA LIGHT- -Applicable for Mechanical gearbox- -Applicable after depletion of 248968-
from £77.84
from £77.84
This part replaces part number 248968
# 025
MPN: 257294
FUEL DELIVERY PIPE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Not for CINA, USA, CDN, J, GD, USA LIGHT- -Applicable up to Ass. No. 89388-
from £77.84
from £77.84
This part replaces part number 248968
# 025
MPN: 257294
FUEL DELIVERY PIPE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for CINA, USA, CDN, J, USA LIGHT- -Applicable up to Ass. No. 90608-
from £77.84
from £77.84
This part replaces part number 248968
# 025
MPN: 257294
FUEL DELIVERY PIPE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for GD- -Applicable up to Ass. No. 91552-
from £77.84
from £77.84
This part replaces part number 248968
# 025
MPN: 262058
FUEL DELIVERY PIPE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Not for CINA, USA, CDN, J, GD, USA LIGHT- -Applicable from Ass. No. 89389 up to Ass. No. 103178-
from £50.86
from £50.86
# 025
MPN: 262058
FUEL DELIVERY PIPE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for CINA, USA, CDN, J, USA LIGHT- -Applicable from Ass. No. 90609-
from £50.86
from £50.86
# 025
MPN: 262058
FUEL DELIVERY PIPE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for GD- -Applicable from Ass. No. 91553-
from £50.86
from £50.86
# 025
MPN: 278773
FUEL DELIVERY PIPE
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £38.02
from £38.02
# 026
MPN: 250480
INSPECTION CAP
from £8.82
from £8.82
# 027
MPN: 250481
INSPECTION CAP
from £14.87
from £14.87
# 028
MPN: 244382
PIPE FROM UNDERFLOOR PIPE TO SHIELD
-Not for USA, CDN, USA LIGHT- -Applicable until depletion-
Supersession
Supersession
# 028
MPN: 257295
PIPE FROM UNDERFLOOR PIPE TO SHIELD
-Applicable for Mechanical gearbox- -No longer supplied- -Replaced by 262682-
from £49.27
from £49.27
This part replaces part number 244382
# 028
MPN: 257295
PIPE FROM UNDERFLOOR PIPE TO SHIELD
-Not for USA, CDN, USA LIGHT- -Applicable after depletion of 244382-
from £49.27
from £49.27
This part replaces part number 244382
# 028
MPN: 257295
PIPE FROM UNDERFLOOR PIPE TO SHIELD
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Not for CINA, USA, CDN, J, GD, USA LIGHT- -Applicable up to Ass. No. 89388-
from £49.27
from £49.27
This part replaces part number 244382
# 028
MPN: 257295
PIPE FROM UNDERFLOOR PIPE TO SHIELD
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for CINA, USA, CDN, J, USA LIGHT- -Applicable up to Ass. No. 90608-
from £49.27
from £49.27
This part replaces part number 244382
# 028
MPN: 257295
PIPE FROM UNDERFLOOR PIPE TO SHIELD
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for GD- -Applicable up to Ass. No. 91552-
from £49.27
from £49.27
This part replaces part number 244382
# 028
MPN: 262060
PIPE FROM UNDERFLOOR PIPE TO SHIELD
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Not for CINA, USA, CDN, J, GD, USA LIGHT- -Applicable from Ass. No. 89389 up to Ass. No. 103178-
from £30.36
from £30.36
# 028
MPN: 262060
PIPE FROM UNDERFLOOR PIPE TO SHIELD
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for CINA, USA, CDN, J, USA LIGHT- -Applicable from Ass. No. 90609-
from £30.36
from £30.36
# 028
MPN: 262060
PIPE FROM UNDERFLOOR PIPE TO SHIELD
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for GD- -Applicable from Ass. No. 91553-
from £30.36
from £30.36
# 028
MPN: 262682
PIPE FROM UNDERFLOOR PIPE TO SHIELD
-Applicable for Mechanical gearbox-
# 028
MPN: 280877
PIPE FROM UNDERBODY PIPE TO FIREWALL
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £36.60
from £36.60
# 029
MPN: 214412
STUD BOLT
-No longer supplied-
from £6.96
from £6.96
# 030
MPN: 11194374
WASHER
-No longer supplied-
from £0.47
from £0.47
# 031
MPN: 237260
fuel pump
-Not for HELE- -Not for Stop & Start- -Also order filter 282783 ref. 32-
from £635.93
from £635.93
# 031
MPN: 270125
fuel pump
-Applicable for HELE- -Applicable for Stop & Start- -Also order filter 282783 ref. 32-
from £475.77
from £475.77

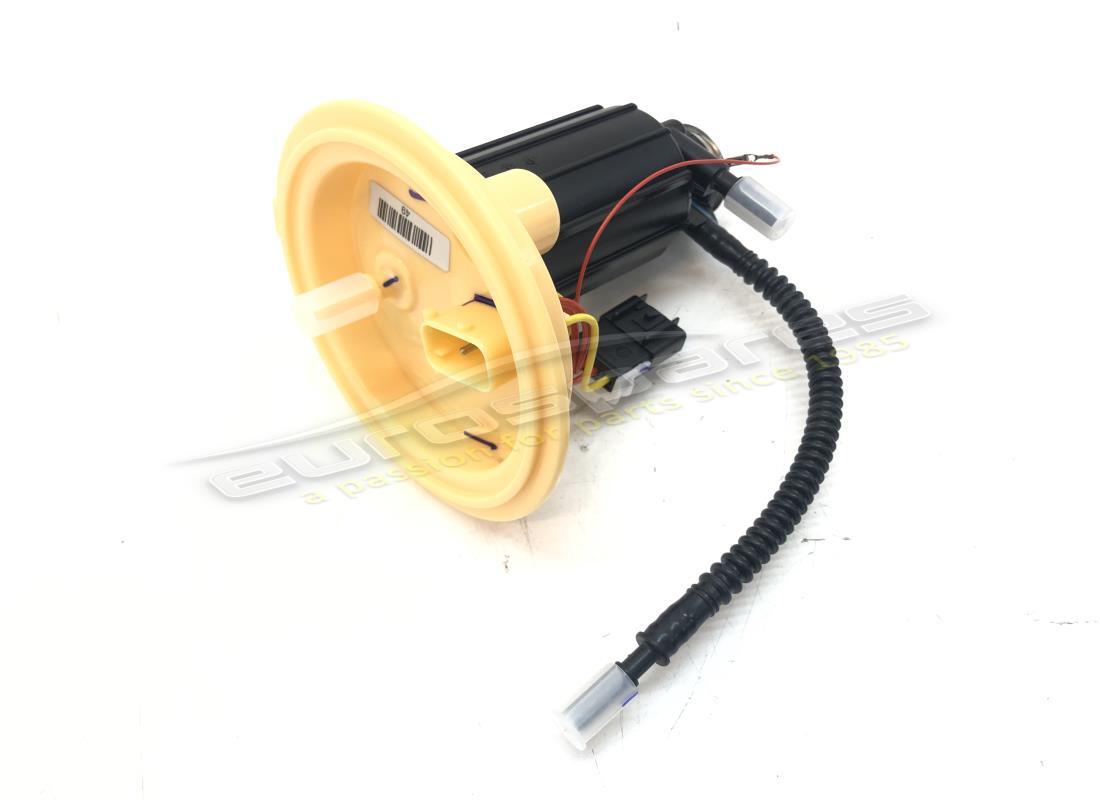

# 032
MPN: 237262
FUEL PUMP WITH FILTER
-Also order pump 237260 or 270125 ref. 31- -No longer supplied- -Replaced by 282783-
Supersession
Supersession
# 032
MPN: 282783
FUEL PUMP WITH FILTER
-Also order pump 237260 or 270125 ref. 31-
from £428.16
from £428.16
This part replaces part number 237262 - and 3 more. Click to view details
# 033
MPN: 82128500
PROTECTION
from £2.01
from £2.01
# 034
MPN: 16285127
SCREW
from £0.47
from £0.47
# 035
MPN: 16284914
SCREW
from £0.47
from £0.47
# 036
MPN: 272290
WASHER
from £9.49
from £9.49

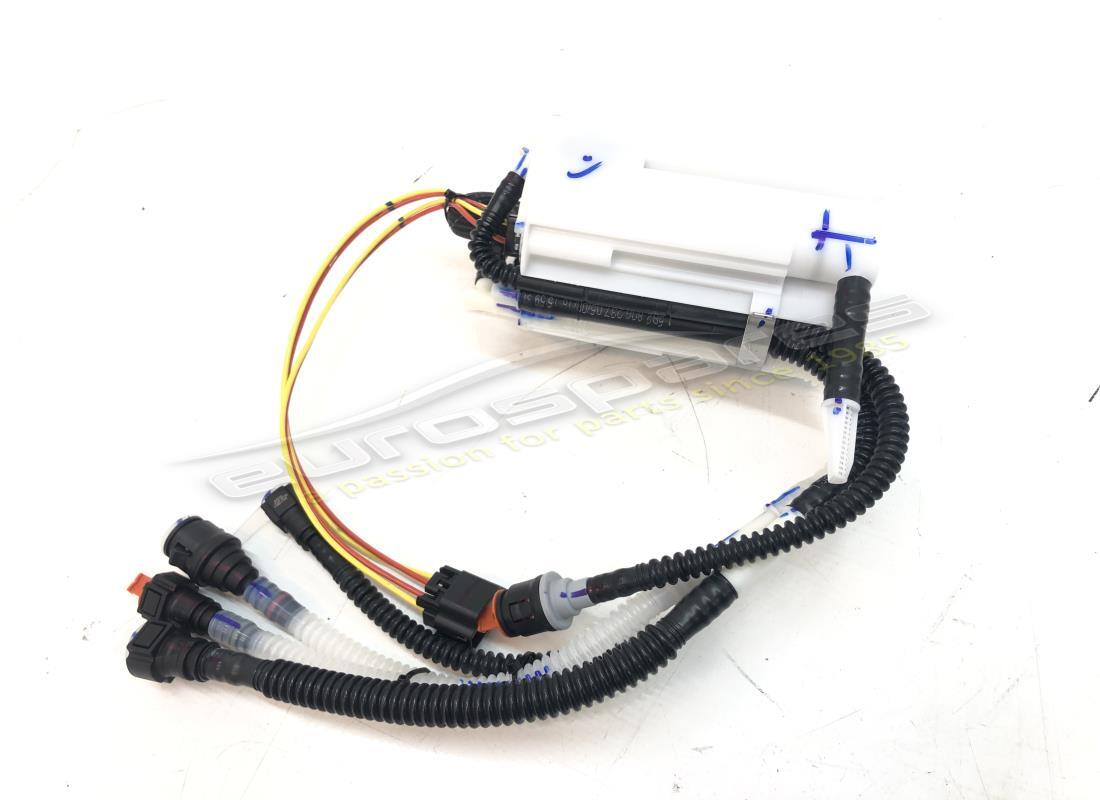

# 037
MPN: 264935
PWM COMMAND SIGNAL FOR FUEL PUMPS
-Applicable for HELE- -Applicable for Stop & Start-
from £132.70
from £132.70
# 038
MPN: 270837
BRACKET
-Applicable for HELE- -Applicable for Stop & Start- -Applicable up to Ass. No. 103178-
from £66.34
from £66.34
# 038
MPN: 276043
BRACKET
-Applicable for HELE- -Applicable for Stop & Start- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £27.47
from £27.47
# 039
MPN: 14304324
SCREW
-Applicable for HELE- -Applicable for Stop & Start- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £0.57
from £0.57
# 039
MPN: 14304524
SCREW
-Applicable for HELE- -Applicable for Stop & Start- -Applicable up to Ass. No. 103178-
from £0.47
from £0.47
# 040
MPN: 13579101
WASHER
-Applicable for HELE- -Applicable for Stop & Start-
from £0.53
from £0.53
# 041
MPN: 11199274
WASHER
-Applicable for HELE- -Applicable for Stop & Start-
from £0.54
from £0.54
# 042
MPN: 252073
FUEL LEVEL SENSOR MOUNT
-Applicable up to Ass. No. 103178-
from £90.20
from £90.20
# 042
MPN: 273479
FUEL LEVEL SENSOR MOUNT
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £36.75
from £36.75
# 043
MPN: 239218
FUEL LEVEL SENSOR
from £72.92
from £72.92
# 043
MPN: 239218
FUEL LEVEL SENSOR
from £72.92
from £72.92
# 043
MPN: 253598
FUEL LEVEL SENSOR
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £73.49
from £73.49
# 044
MPN: 238688
CONNECTOR
from £29.63
from £29.63
# 045
MPN: 254311
ANGLE ADAPTOR
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £3.19
from £3.19
# 046
MPN: 275998
FASTENER RING
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £22.55
from £22.55
# 047
MPN: 237598

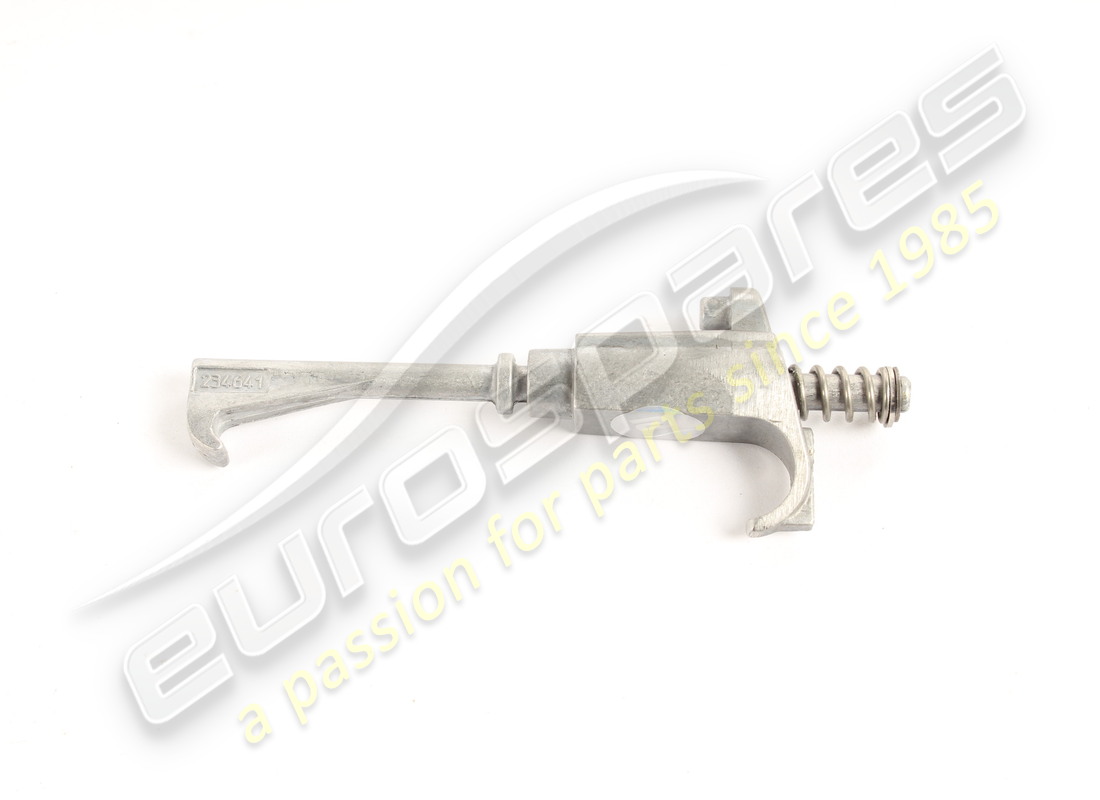

FLEXIBLE HOOK
from £19.98
from £19.98
# 048
MPN: 276001
LEVEL SENSOR FASTENER RING
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £90.31
from £90.31
# 049
MPN: 256323
SCREW
-M5 X 16- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £0.47
from £0.47
# 050
MPN: 11001124
STUD BOLT
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £39.16
from £39.16
This part replaces part number 11001324
# 051
MPN: 291377
FUEL PUMP SEAL
from £18.20
from £18.20
# 052
MPN: 239456
SECONDARY LOCK
-Applicable up to Ass. No. 103178-
from £20.27
from £20.27
# 053
MPN: 262936

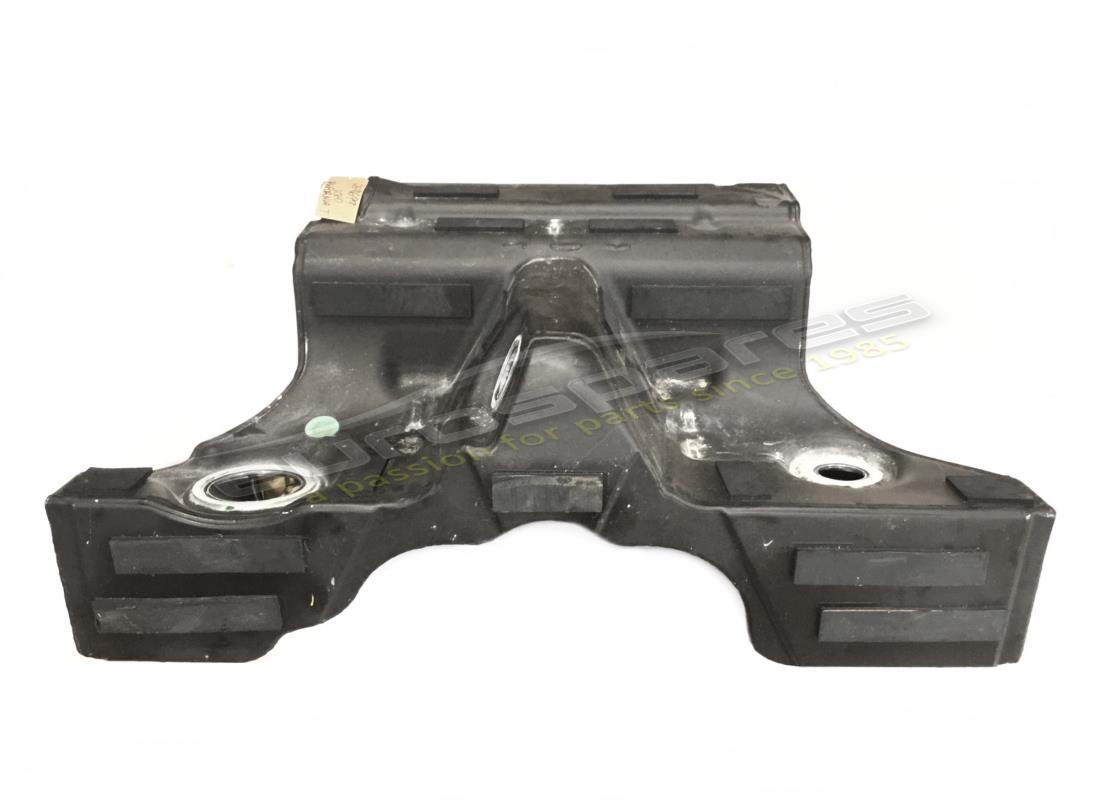

COMPL. FUEL TANK
-Not for HELE- -Not for Stop & Start- -Applicable up to Ass. No. 103178-
from £4,023.38
from £4,023.38
This part replaces part number 262943 which we have in stock
# 053
MPN: 269699

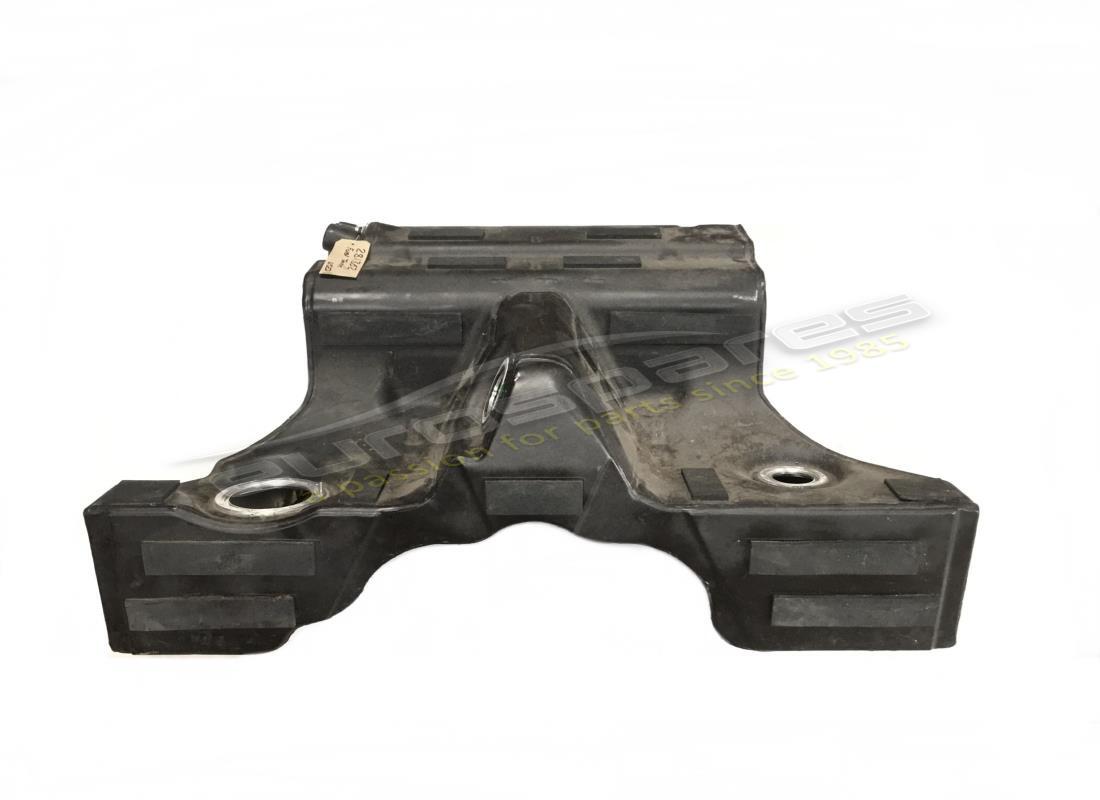

COMPL. FUEL TANK
-Applicable for HELE- -Applicable for Stop & Start- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £2,205.07
from £2,205.07
# 053
MPN: 270916
COMPL. FUEL TANK
-Applicable for HELE- -Applicable for Stop & Start- -Applicable up to Ass. No. 103178-
from £3,786.87
from £3,786.87
# 053
MPN: 281362
COMPL. FUEL TANK
-Not for HELE- -Not for Stop & Start- -See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £2,205.07
from £2,205.07
