0003 - right hand cylinder head

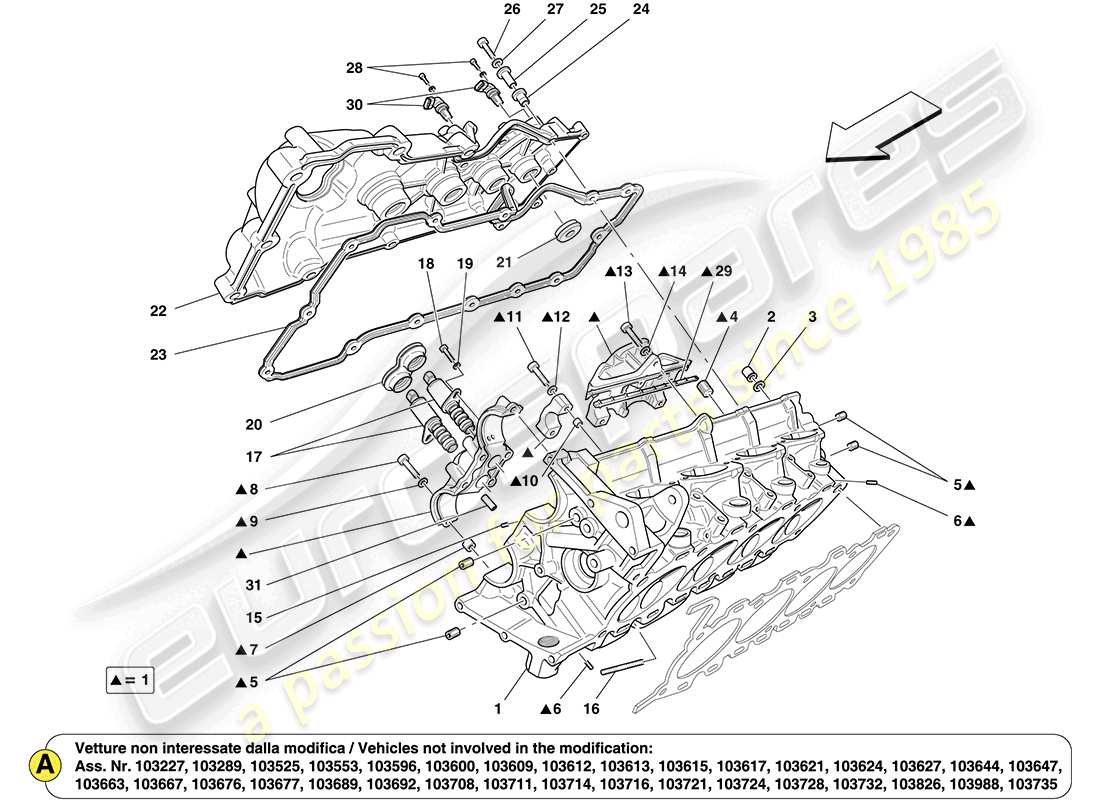

Ferrari California (USA) RIGHT HAND CYLINDER HEAD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 252772
COMPLETE RH HEAD
-Applicable up to engine No. 149383- -Applicable until depletion-
Supersession
Supersession
# 001
MPN: 256825
COMPLETE RH HEAD
-Applicable from engine No. 149384- -Applicable after depletion of 252772- -No longer supplied- -Replaced by 272044-
Supersession
Supersession
This part replaces part number 252772
# 001
MPN: 272044
COMPLETE RH HEAD
-For vehicles up to engine No. 189672 also order LH cylinder head 272045, bush 257217 tab.51 pos.18, bush 257220 tab.51 pos.17, bush 247088 tab. 50 pos.16 and screw 14308324 tab.51 ref.13-
from £1,026.48
from £1,026.48
This part replaces part number 256825
# 002
MPN: 183524
NUT
from £0.98
from £0.98
# 003
MPN: 151117
WASHER
from £0.32
from £0.32
# 004
MPN: 14325140
THREADED PLUG
-No longer supplied- -Replaced by 282756-
from £0.96
from £0.96
# 004
MPN: 282756
THREADED PLUG
from £1.56
from £1.56
# 005
MPN: 14326001
THREADED PLUG
-No longer supplied- -Replaced by 282755-
from £0.47
from £0.47
This part replaces part number 194495
# 005
MPN: 282755
THREADED PLUG
from £1.13
from £1.13
# 006
MPN: 199760
THREADED PLUG
from £0.47
from £0.47
# 007
MPN: 102725
CENTERING DOWEL
from £0.58
from £0.58
# 008
MPN: 14305921
SCREW
-Applicable up to engine No. 153468-
from £0.47
from £0.47
# 008
MPN: 243721
SCREW WITH WASHER
-Applicable from engine No. 153469-
from £0.47
from £0.47
# 009
MPN: 11197774
WASHER
from £0.53
from £0.53
This part replaces part number 11197770 - and 3 more. Click to view details
# 010
MPN: 102725
CENTERING DOWEL
from £0.58
from £0.58
# 011
MPN: 14305621
SCREW
-Applicable up to engine No. 153468-
from £0.71
from £0.71
# 011
MPN: 243719
SCREW WITH WASHER
-Applicable from engine No. 153469-
from £0.47
from £0.47
# 012
MPN: 11197774
WASHER
from £0.52
from £0.52
This part replaces part number 11197770 - and 3 more. Click to view details
# 013
MPN: 14305621
SCREW
-Applicable up to engine No. 153468-
from £0.71
from £0.71
# 013
MPN: 243719
SCREW WITH WASHER
-Applicable from engine No. 153469-
from £0.47
from £0.47
# 014
MPN: 11197774
WASHER
from £0.53
from £0.53
This part replaces part number 11197770 - and 3 more. Click to view details
# 015
MPN: 226415
DOWEL
-Applicable up to engine No. 149383-
from £2.84
from £2.84
# 015
MPN: 256827
DOWEL
-Applicable from engine No. 149384-
from £3.07
from £3.07
# 016
MPN: 13543424
STUD BOLT
from £1.03
from £1.03
This part replaces part number 13543421
# 017
MPN: 227866
PRESSURE REGULATOR VALVE
-Without grease on connector- -Applicable until depletion-
Supersession
Supersession
# 017
MPN: 253283
PRESSURE REGULATOR VALVE
-With grease on connector- -Applicable after depletion of 227866- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 227866
# 017
MPN: 269226
PRESSURE REGULATOR VALVE
-With grease on connector- -Applicable after depletion of 253283- -No longer supplied- -Replaced by 296016-
Supersession
Supersession
This part replaces part number 249277 - and 1 more. Click to view details
# 017
MPN: 296016
PRESSURE REGULATOR VALVE
-With grease on connector-
from £102.90
from £102.90
This part replaces part number 269226
# 018
MPN: 14304224
SCREW
from £0.47
from £0.47
# 019
MPN: 11181574
WASHER
from £0.54
from £0.54
# 020
MPN: 229353
SOLENOID VALVE GASKET
from £9.62
from £9.62
# 021
MPN: 223982
SPARK PLUG TUBE SEAL
from £1.36
from £1.36
# 022
MPN: 246814
RH HEAD COVER
-No longer supplied- -Replaced by 249635-
from £326.55
from £326.55
# 022
MPN: 249635
RH HEAD COVER
-No longer supplied- -Replaced by 259946-
from £266.38
from £266.38
# 022
MPN: 259946
RH HEAD COVER
-For vehicles up to engine No. 146192, also order: RH camshaft 250173 tab.5 pos.6, RH head cover 264094 pos. 23 and screw 156830 pos. 26-
from £353.89
from £353.89
# 022
MPN: 259946
RH HEAD COVER
-For vehicles up to engine No. 185627, also order: RH head cover 264094 pos.23 and screw 156830 pos.26-
from £353.89
from £353.89
# 023
MPN: 239179
RH HEAD COVER GASKET
-Applicable up to engine No. 185627-
from £25.23
from £25.23
# 023
MPN: 264094
RH HEAD COVER GASKET
-Applicable from engine No. 185628-
from £47.52
from £47.52
# 024
MPN: 203102
RUBBER BUSHING
-Applicable up to engine No. 185627-
from £2.69
from £2.69
# 024
MPN: 239748
RUBBER BUSHING
-Applicable up to engine No. 185627-
from £1.19
from £1.19
# 025
MPN: 228598
BUSHING
-Applicable up to engine No. 152969-
from £1.77
from £1.77
# 025
MPN: 239405
BUSHING
-Applicable up to engine No. 152969-
Supersession
Supersession
# 025
MPN: 261543
BUSHING
-Applicable from engine No. 152970 up to engine No. 185627-
from £7.95
from £7.95
# 025
MPN: 261544
BUSHING
-Applicable from engine No. 152970 up to engine No. 185627-
from £18.64
from £18.64
This part replaces part number 239405
# 026
MPN: 156830
SCREW
-Applicable from engine No. 185628-
from £0.47
from £0.47
# 026
MPN: 213129
SCREW
-Applicable up to engine No. 185627-
from £0.47
from £0.47
# 026
MPN: 239501
SCREW
from £0.47
from £0.47
# 026
MPN: 239501
SCREW
-Replaces 250383- -Applicable for DCT-F1 gearbox (Not for mechanical gearbox)-
from £0.47
from £0.47
# 026
MPN: 250383
STUD BOLT
-Not for DCT-F1 gearbox (Applicable for mechanical gearbox)-
from £8.09
from £8.09
# 026
MPN: 250383
STUD BOLT
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -No longer supplied- -Replaced by 239501-
from £8.09
from £8.09
# 027
MPN: 11197774
WASHER
from £0.52
from £0.52
This part replaces part number 11197770 - and 3 more. Click to view details
# 028
MPN: 231616
SCREW
-M6 X 14-
from £0.47
from £0.47
This part replaces part number 14305724 which we have in stock
# 029
MPN: 239614
GASKET
from £3.61
from £3.61
# 030
MPN: 224573
TIMING SENSOR
from £11.13
from £11.13
# 031
MPN: 200458
CHECK VALVE
from £5.32
from £5.32
