ferrari 575 superamerica windscreen wiper, windscreen washer and horns parts diagram

141 - Windscreen Wiper, Windscreen Washer and Horns

Ferrari 575 Superamerica Windscreen Wiper, Windscreen Washer and Horns Parts Diagram

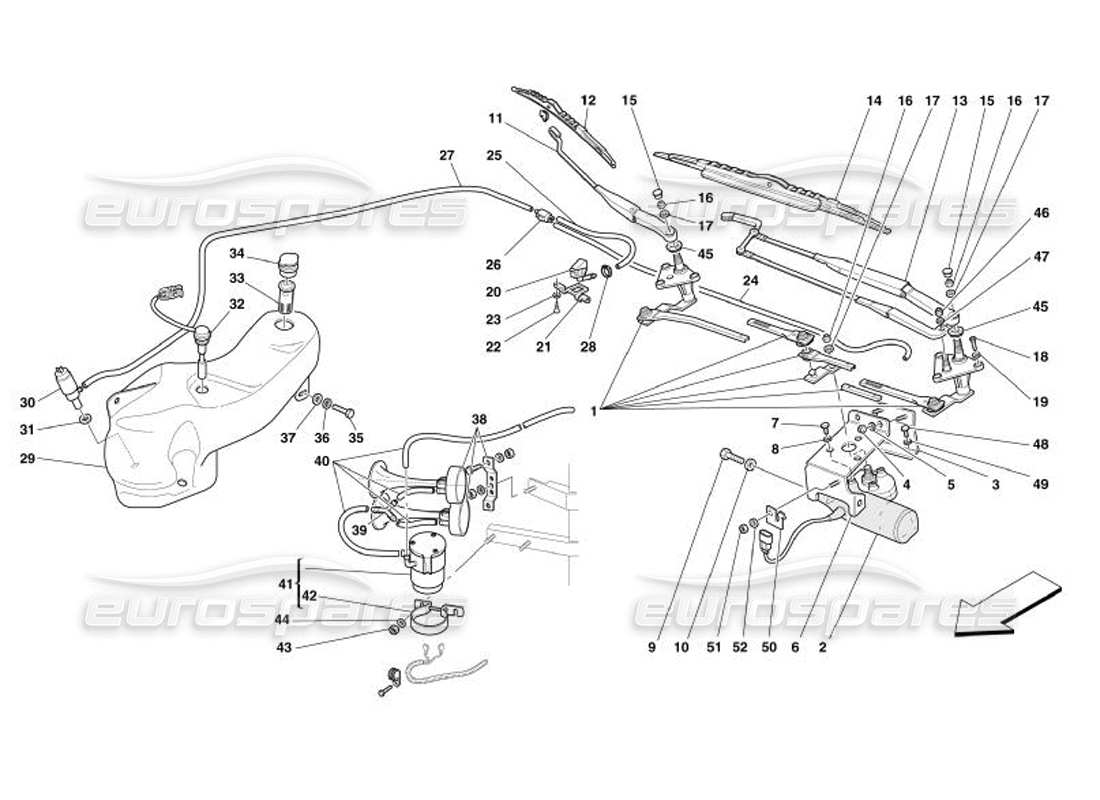

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 001
                                                                                    MPN: 65081300
                                                                                    COMPLETE WINDSHIELD WIPER LEVERAGE
                                                                                    Not for GD
                                                                                    from £317.77
                                                                                    from £317.77
                                                                                    # 001
                                                                                    MPN: 65202600
                                                                                    COMPLETE WINDSHIELD WIPER LEVERAGE
                                                                                    Valid for GD
                                                                                    from £510.21
                                                                                    from £510.21
                                                                                    # 002
                                                                                    MPN: 63780200
                                                                                    LHD WINDSHIELD WIPER MOTOR
                                                                                    - Not for GD
                                                                                    from £293.08
                                                                                    from £293.08
                                                                                    # 002
                                                                                    MPN: 64275500
                                                                                    WINDSHIELD WIPER MOTOR
                                                                                    Valid for GD
                                                                                    from £173.42
                                                                                    from £173.42
                                                                                    # 003
                                                                                    MPN: 63878800
                                                                                    WINDSHIELD WIPER MOTOR REAR BRACKET
                                                                                    Not for GD
                                                                                    from £42.00
                                                                                    from £42.00
                                                                                    # 003
                                                                                    MPN: 65206000
                                                                                    WINDSHIELD WIPER MOTOR REAR BRACKET
                                                                                    Valid for GD
                                                                                    from £282.95
                                                                                    from £282.95
                                                                                    # 004
                                                                                    MPN: 104030
                                                                                    NUT
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 16104125
                                                                                    # 005
                                                                                    MPN: 14499401
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 006
                                                                                    MPN: 65098800
                                                                                    WINDSHIELD WIPER MOTOR FRONT BRACKET
                                                                                    Not for GD
                                                                                    from £36.97
                                                                                    from £36.97
                                                                                    # 006
                                                                                    MPN: 65454400
                                                                                    WINDSHIELD WIPER MOTOR FRONT BRACKET
                                                                                    Valid for GD
                                                                                    from £68.45
                                                                                    from £68.45
                                                                                    # 007
                                                                                    MPN: 10902224
                                                                                    SCREW
                                                                                    from £0.52
                                                                                    from £0.52
                                                                                    # 008
                                                                                    MPN: 127494
                                                                                    WASHER
                                                                                    (minimum order quantity = 20)
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                    # 009
                                                                                    MPN: 16043324
                                                                                    SCREW
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 16043321
                                                                                    # 010
                                                                                    MPN: 127496
                                                                                    WASHER
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                    # 011
                                                                                    MPN: 65081400
                                                                                    PASSENGER SIDE WINDSHIELD WIPER ARM
                                                                                    Not for GD
                                                                                    from £86.37
                                                                                    from £86.37
                                                                                    # 011
                                                                                    MPN: 65202800
                                                                                    PASSENGER SIDE WINDSHIELD WIPER ARM
                                                                                    Valid for GD
                                                                                    from £187.69
                                                                                    from £187.69
                                                                                    # 012
                                                                                    MPN: 65081600
                                                                                    PASSENGER SIDE WIPER BRUSH
                                                                                    from £62.73
                                                                                    from £62.73
                                                                                    This part replaces part number 63756100 - and 1 more. Click to view details
                                                                                    # 013
                                                                                    MPN: 65081500
                                                                                    DRIVER SIDE WINDSHIELD WIPER ARM
                                                                                    Not for GD
                                                                                    from £232.81
                                                                                    from £232.81
                                                                                    # 013
                                                                                    MPN: 65849400
                                                                                    DRIVER SIDE WINDSHIELD WIPER ARM
                                                                                    valid for GB
                                                                                    from £249.27
                                                                                    from £249.27
                                                                                    # 015
                                                                                    MPN: 65081700
                                                                                    SMALL COVER
                                                                                    Valid for GD
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    # 015
                                                                                    MPN: 65190900
                                                                                    SMALL COVER
                                                                                    Not for GD
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    # 016
                                                                                    MPN: 147985
                                                                                    NUT
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    # 017
                                                                                    MPN: 12601374
                                                                                    WASHER
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                    # 018
                                                                                    MPN: 13312970
                                                                                    SCREW
                                                                                    from £0.50
                                                                                    from £0.50
                                                                                    # 019
                                                                                    MPN: 62794700
                                                                                    WASHER
                                                                                    from £0.69
                                                                                    from £0.69
                                                                                    # 020
                                                                                    MPN: 65191000
                                                                                    JET FOR WINDOW WASHING
                                                                                    from £1.03
                                                                                    from £1.03
                                                                                    This part replaces part number 80131500 - and 3 more. Click to view details
                                                                                    # 021
                                                                                    MPN: 65191700
                                                                                    BRACKET
                                                                                    from £3.93
                                                                                    from £3.93
                                                                                    # 022
                                                                                    MPN: 15957077
                                                                                    SCREW
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    # 023
                                                                                    MPN: 10519278
                                                                                    WASHER
                                                                                    from £0.48
                                                                                    from £0.48
                                                                                    This part replaces part number 10519206 - and 1 more. Click to view details
                                                                                    # 024
                                                                                    MPN: 65191400
                                                                                    PIPE FROM VALVE TO LH JET
                                                                                    from £3.39
                                                                                    from £3.39
                                                                                    # 025
                                                                                    MPN: 65191500
                                                                                    PIPE FROM VALVE TO RH JET
                                                                                    from £3.30
                                                                                    from £3.30
                                                                                    # 027
                                                                                    MPN: 65191600
                                                                                    PIPE FROM PUMP TO VALVE
                                                                                    from £1.69
                                                                                    from £1.69
                                                                                    # 028
                                                                                    MPN: 157990
                                                                                    SCREW COLLAR
                                                                                    from £1.02
                                                                                    from £1.02
                                                                                    This part replaces part number 12179090
                                                                                    # 029
                                                                                    MPN: 66285600
                                                                                    WINDSHIELD WIPER AND HEAD LIGHT WASHER CONTAINER
                                                                                    Not for USA and CDN
                                                                                    from £205.44
                                                                                    from £205.44
                                                                                    # 029
                                                                                    MPN: 66533600
                                                                                    WINDSHIELD WIPER CONTAINER
                                                                                    Valid for USA and CDN
                                                                                    from £350.30
                                                                                    from £350.30
                                                                                    # 031
                                                                                    MPN: 66645000
                                                                                    GASKET
                                                                                    from £3.93
                                                                                    from £3.93
                                                                                    # 032
                                                                                    MPN: 65758700
                                                                                    LIQUID SENSOR
                                                                                    from £32.26
                                                                                    from £32.26
                                                                                    # 033
                                                                                    MPN: 66645100
                                                                                    FILTER
                                                                                    from £5.50
                                                                                    from £5.50
                                                                                    # 034
                                                                                    MPN: 65374000
                                                                                    PLUG FOR LIQUID
                                                                                    from £5.10
                                                                                    from £5.10
                                                                                    # 035
                                                                                    MPN: 10902324
                                                                                    SCREW
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                    # 036
                                                                                    MPN: 12640624
                                                                                    WASHER
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 12640601 - and 1 more. Click to view details
                                                                                    # 037
                                                                                    MPN: 127494
                                                                                    WASHER
                                                                                    (minimum order quantity = 20)
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                    # 038
                                                                                    MPN: 189428
                                                                                    ELECTRO-PNEUMATIC HORN
                                                                                    from £33.58
                                                                                    from £33.58
                                                                                    This part replaces part number 10665500 which we have in stock - and 3 more. Click to view details
                                                                                    # 039
                                                                                    MPN: 60741100
                                                                                    3-WAY UNION
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    This part replaces part number 61741100
                                                                                    # 040
                                                                                    MPN: 183273
                                                                                    PIPE FOR COMPRESSOR
                                                                                    from £11.99
                                                                                    from £11.99
                                                                                    # 041
                                                                                    MPN: 225757
                                                                                    ELECTRO-COMPRESSOR
                                                                                    from £134.90
                                                                                    from £134.90
                                                                                    This part replaces part number 139920
                                                                                    # 042
                                                                                    MPN: 60741200
                                                                                    BRACKET
                                                                                    from £0.70
                                                                                    from £0.70
                                                                                    # 043
                                                                                    MPN: 102741
                                                                                    NUT
                                                                                    from £0.52
                                                                                    from £0.52
                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                    # 044
                                                                                    MPN: 12644424
                                                                                    WASHER
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                    # 045
                                                                                    MPN: 65504100
                                                                                    GASKET
                                                                                    from £1.33
                                                                                    from £1.33
                                                                                    # 046
                                                                                    MPN: 15896472
                                                                                    NUT
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 15896416 which we have in stock
                                                                                    # 047
                                                                                    MPN: 12601176
                                                                                    WASHER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 048
                                                                                    MPN: 10902224
                                                                                    SCREW
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    # 049
                                                                                    MPN: 127494
                                                                                    WASHER
                                                                                    (minimum order quantity = 20)
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                    # 050
                                                                                    MPN: 156198
                                                                                    CLIP
                                                                                    from £10.41
                                                                                    from £10.41
                                                                                    # 051
                                                                                    MPN: 113647
                                                                                    NUT
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    # 052
                                                                                    MPN: 12637824
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
