ferrari 575 superamerica front and rear lights parts diagram

132 - Front and Rear Lights

Ferrari 575 Superamerica Front and Rear Lights Parts Diagram

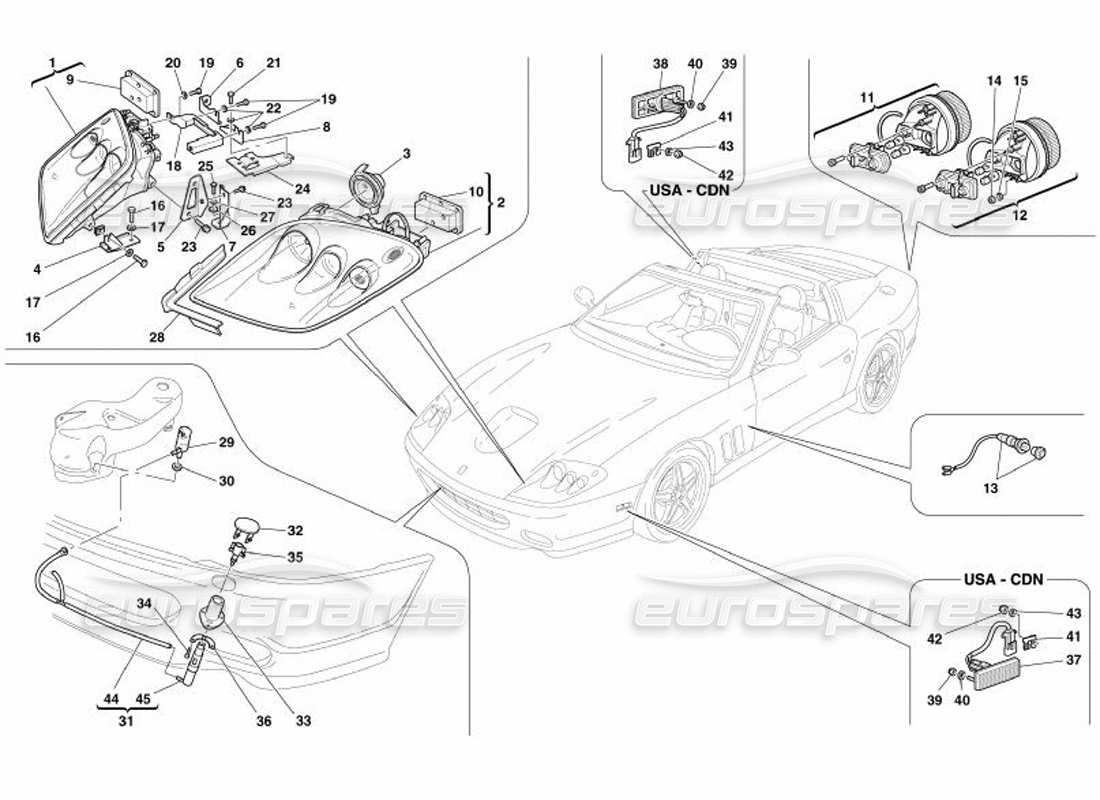

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price

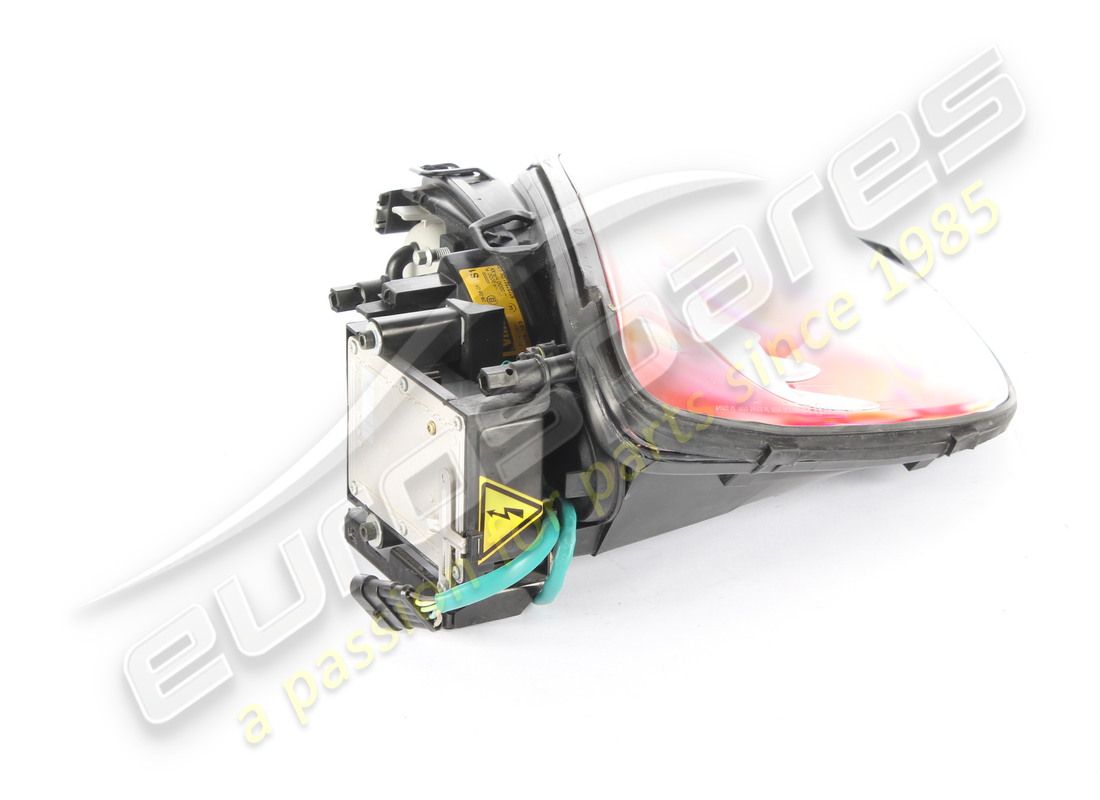

                                                # 001
                                                MPN: 69181699

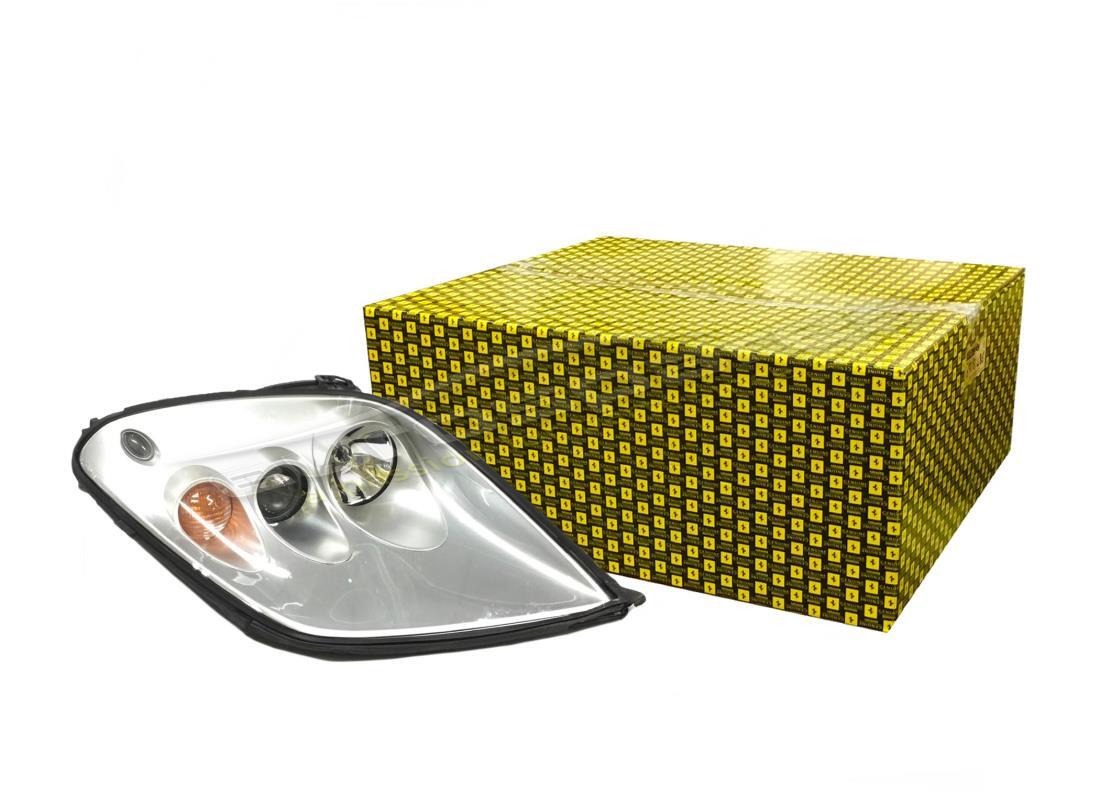

                                                RH HEADLIGHT ASSY
                                                (Rosso Corsa Red) Valid for GD & Japan
                                                from £892.50
                                                from £892.50
                                                # 001
                                                MPN: 69384973

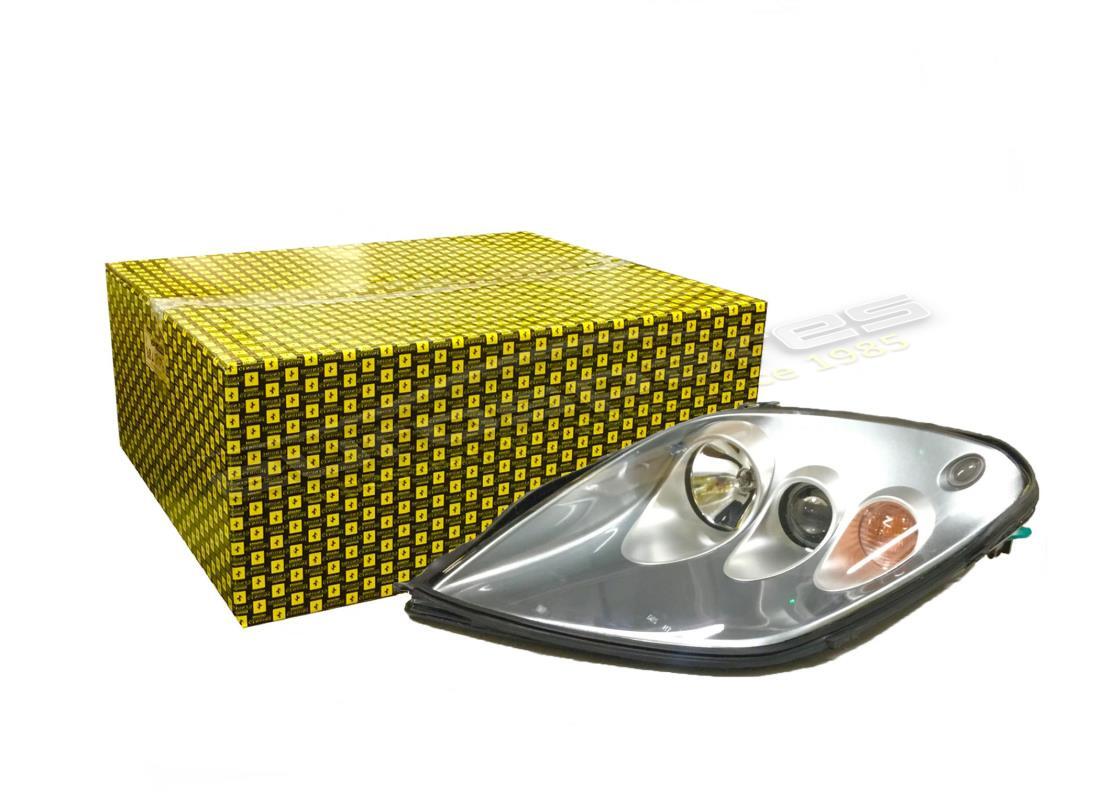

                                                LH HEADLIGHT ASSY
                                                Valid for LHD - (Nurburgring Silver)
                                                from £1,839.31
                                                from £1,839.31

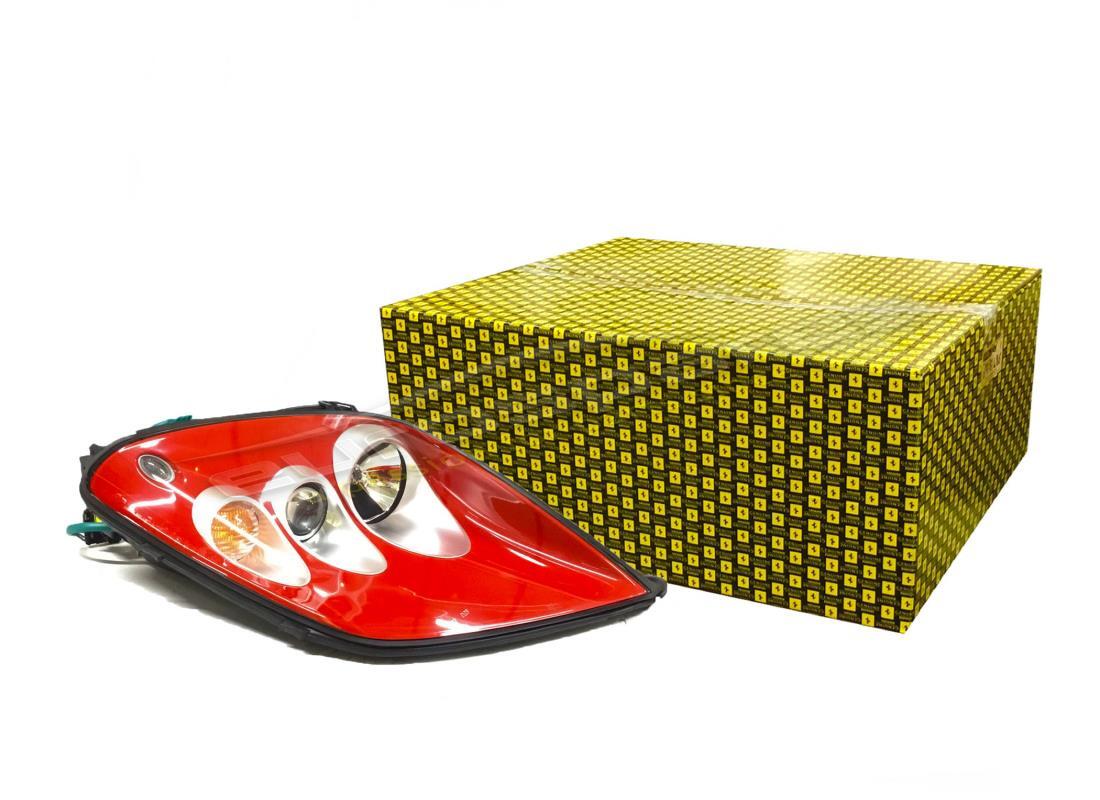

                                                # 001
                                                MPN: 69387969

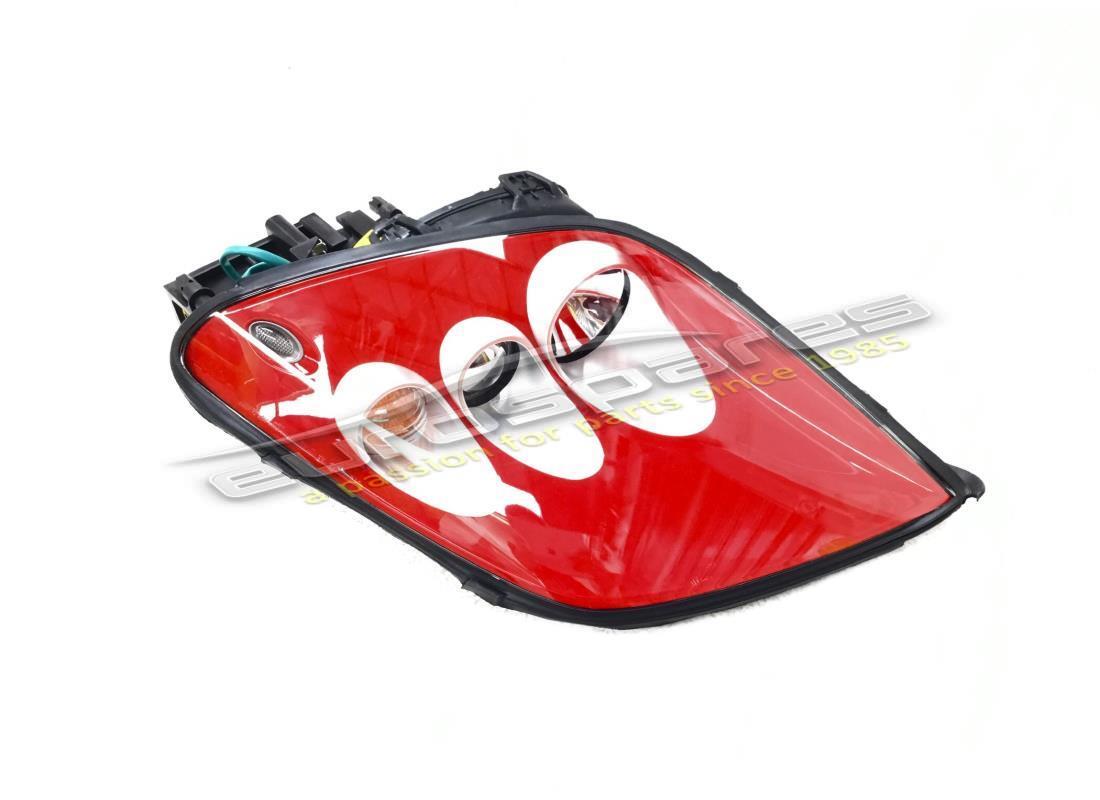

                                                RH HEADLIGHT ASSY
                                                Not for USA, CDN, GD and J - Rosso Corsa-
                                                from £2,095.36
                                                from £2,095.36

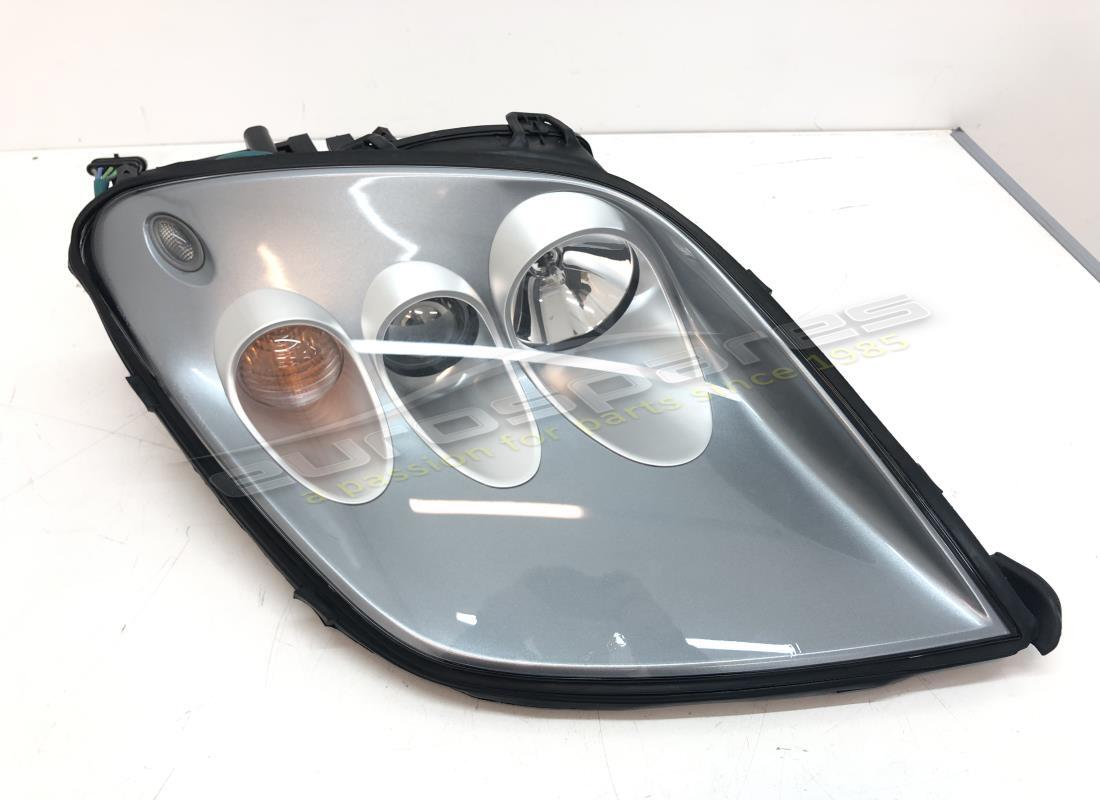

                                                # 001
                                                MPN: 69387973
                                                RH HEADLIGHT ASSY
                                                Not for USA, CDN, GD and J - Nurburgring Silver -
                                                from £1,839.31
                                                from £1,839.31

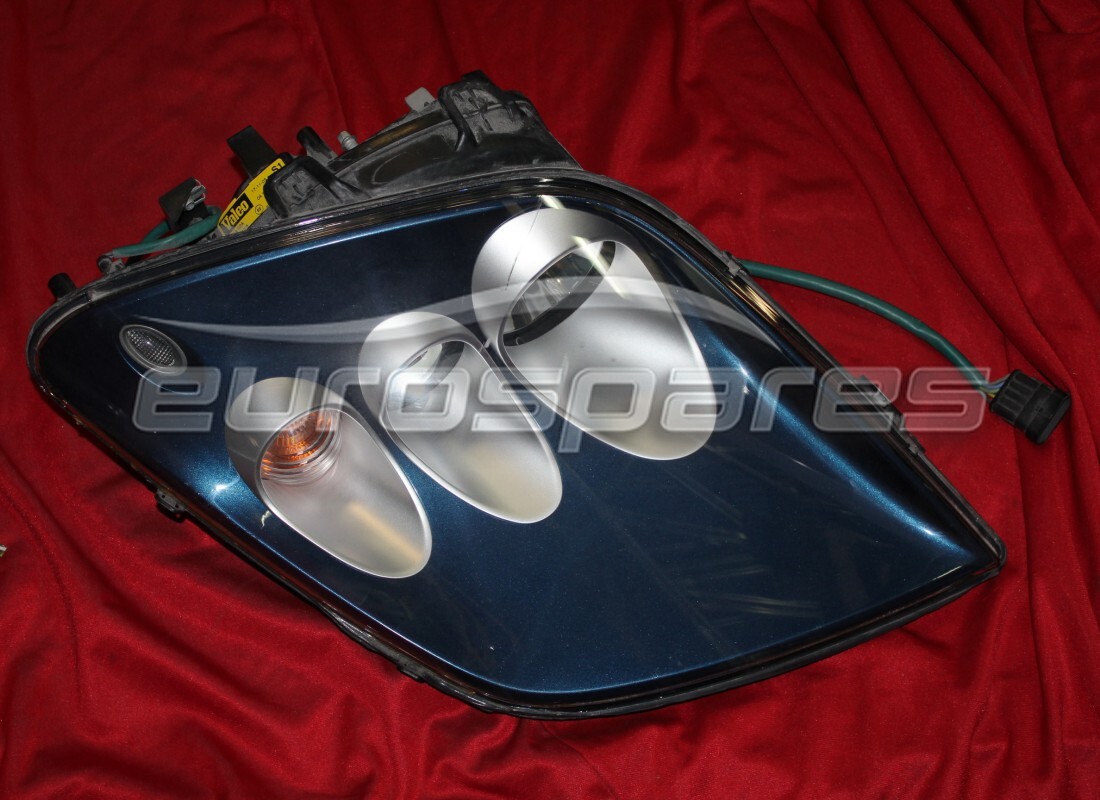

                                                # 001
                                                MPN: 69387977
                                                RH HEADLIGHT ASSY
                                                Valid for LHD - (Blue)
                                                from £1,152.45
                                                from £1,152.45
                                                # 001
                                                MPN: 69388275
                                                RH HEADLIGHT ASSY
                                                Valid for LHD (Rosso Corsa Red)
                                                from £1,959.66
                                                from £1,959.66
                                                # 001
                                                MPN: 69388300
                                                RH HEADLIGHT ASSY
                                                Not for USA and CDN - ( Titanium Grey)
                                                from £1,989.75
                                                from £1,989.75
                                                # 002
                                                MPN: 69388200
                                                LH HEADLIGHT ASSY
                                                Not for USA, CDN, GD and J
                                                # 002
                                                MPN: 69388269
                                                LH HEADLIGHT ASSY
                                                (Rosso Corsa Red)
                                                from £1,985.55
                                                from £1,985.55
                                                # 002
                                                MPN: 69388473
                                                LH HEADLIGHT ASSY
                                                Valid for GD and J - Nurburgring Silver
                                                from £2,095.36
                                                from £2,095.36
                                                # 002
                                                MPN: 69388487
                                                LH HEADLIGHT ASSY
                                                (Rosso Corsa Red) Valid for GD & Japan
                                                from £2,095.36
                                                from £2,095.36
                                                # 003
                                                MPN: 65898400

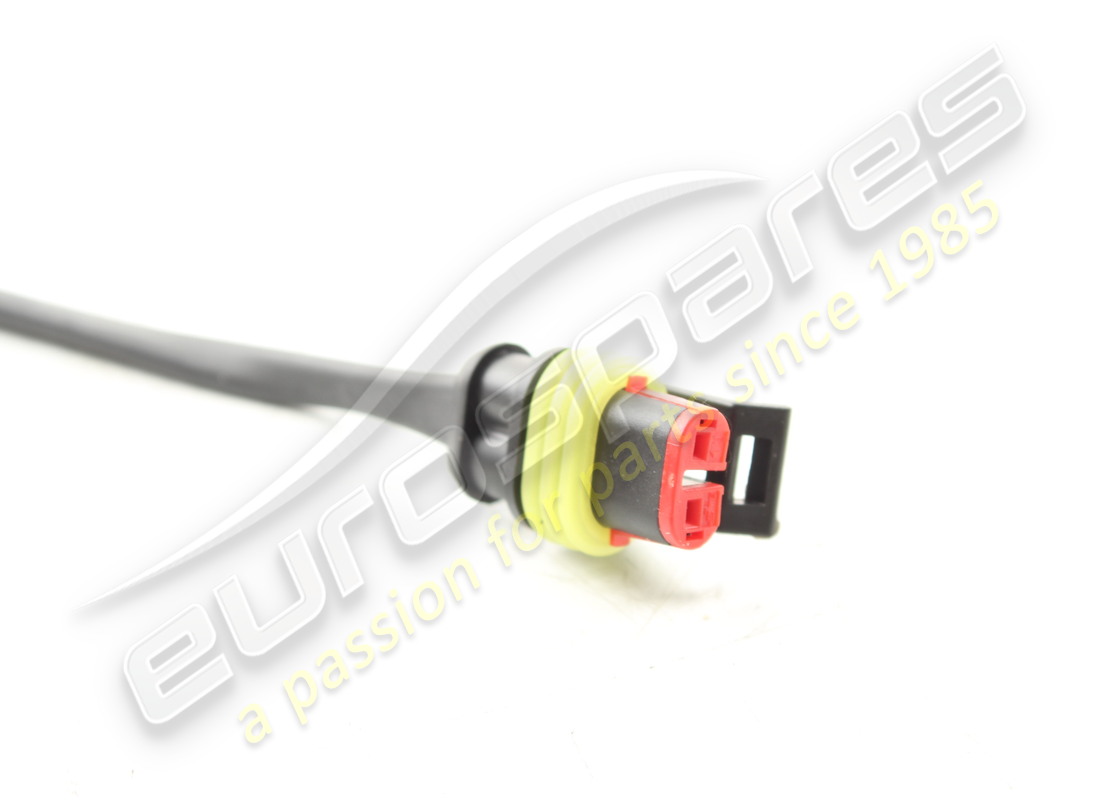

                                                PLUG FOR LIGHTS
                                                from £10.27
                                                from £10.27
                                                # 004
                                                MPN: 64559600

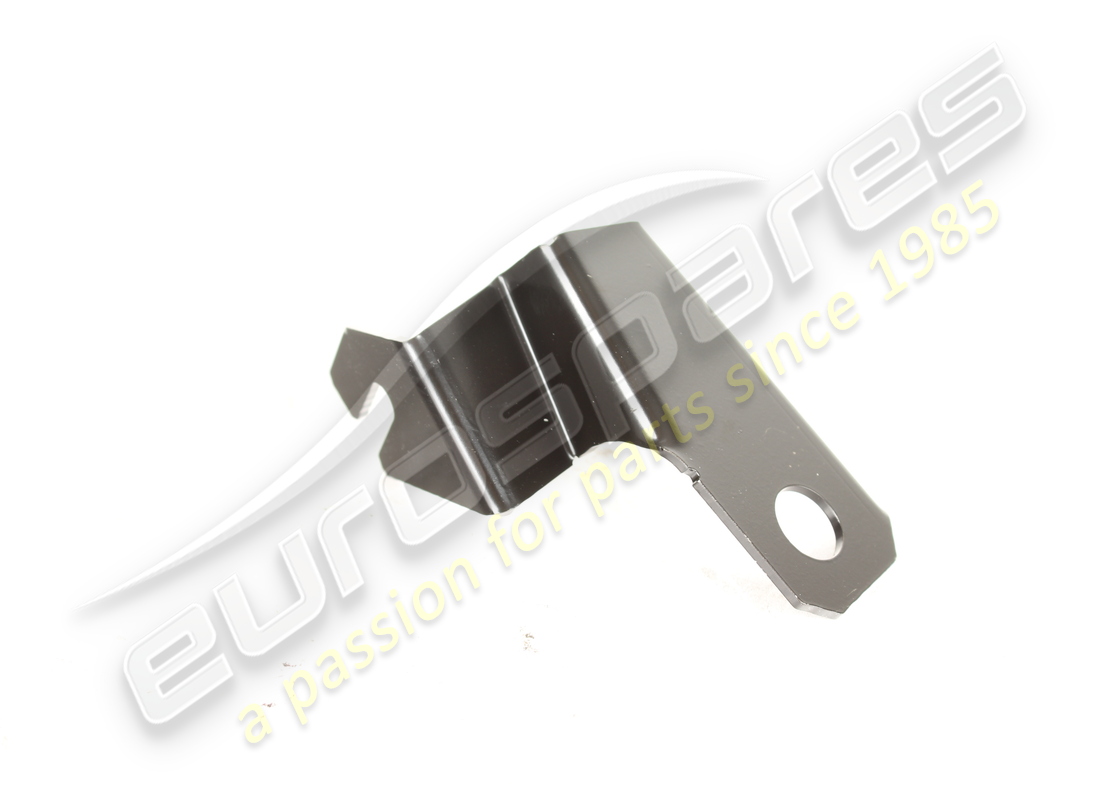

                                                LH FRONT BRACKET
                                                from £42.30
                                                from £42.30
                                                # 004
                                                MPN: 64559700
                                                RH FRONT BRACKET
                                                from £74.55
                                                from £74.55
                                                # 005
                                                MPN: 64559000
                                                LH BRACKET
                                                from £69.79
                                                from £69.79
                                                # 005
                                                MPN: 64559100
                                                RH BRACKET
                                                from £69.79
                                                from £69.79
                                                # 006
                                                MPN: 66672600
                                                RH OUTER BRACKET
                                                from £22.55
                                                from £22.55
                                                # 006
                                                MPN: 66672700
                                                LH OUTER BRACKET
                                                from £34.47
                                                from £34.47
                                                # 007
                                                MPN: 64786500
                                                LH INNER REAR BRACKET
                                                from £42.22
                                                from £42.22
                                                # 007
                                                MPN: 64786600
                                                RH INNER REAR BRACKET
                                                from £42.22
                                                from £42.22
                                                # 008
                                                MPN: 66672800
                                                RH INNER BRACKET
                                                from £31.73
                                                from £31.73
                                                # 008
                                                MPN: 66672900
                                                LH INNER BRACKET
                                                from £31.73
                                                from £31.73
                                                # 009
                                                MPN: 220442
                                                BALLAST RH CONTROL STATION
                                                from £429.95
                                                from £429.95
                                                # 010
                                                MPN: 220475
                                                BALLAST LH CONTROL STATION
                                                from £429.95
                                                from £429.95

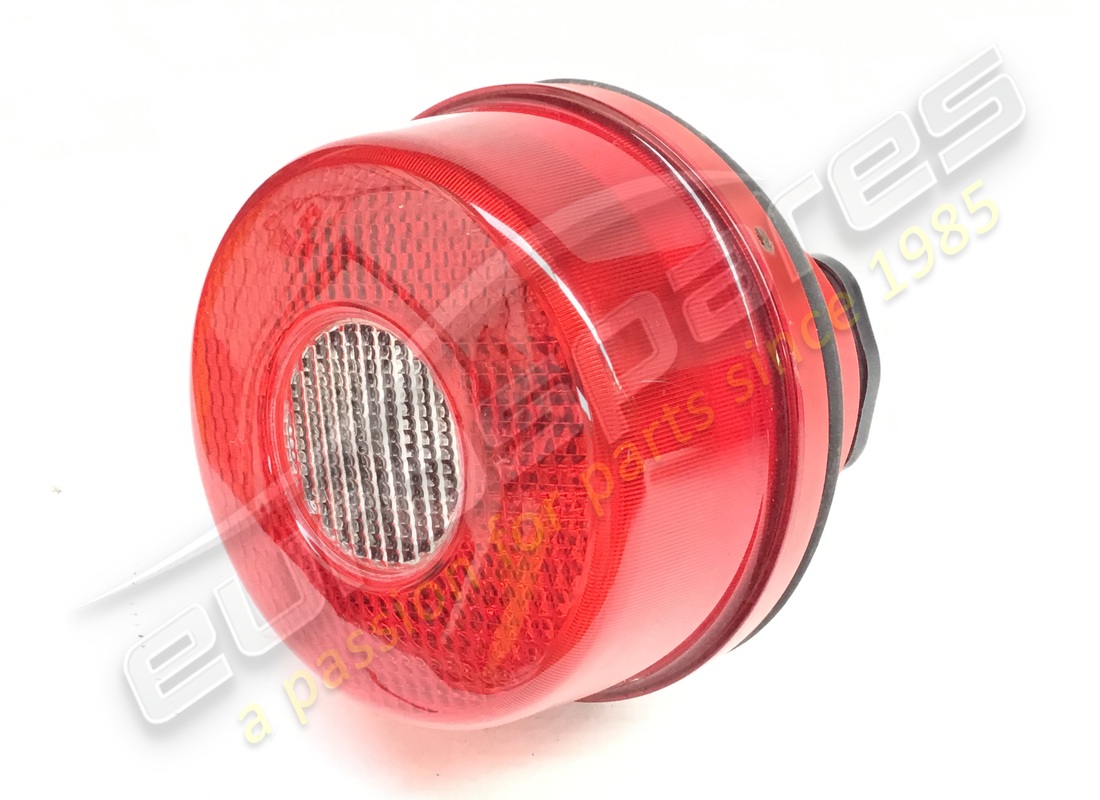

                                                # 011
                                                MPN: 157513

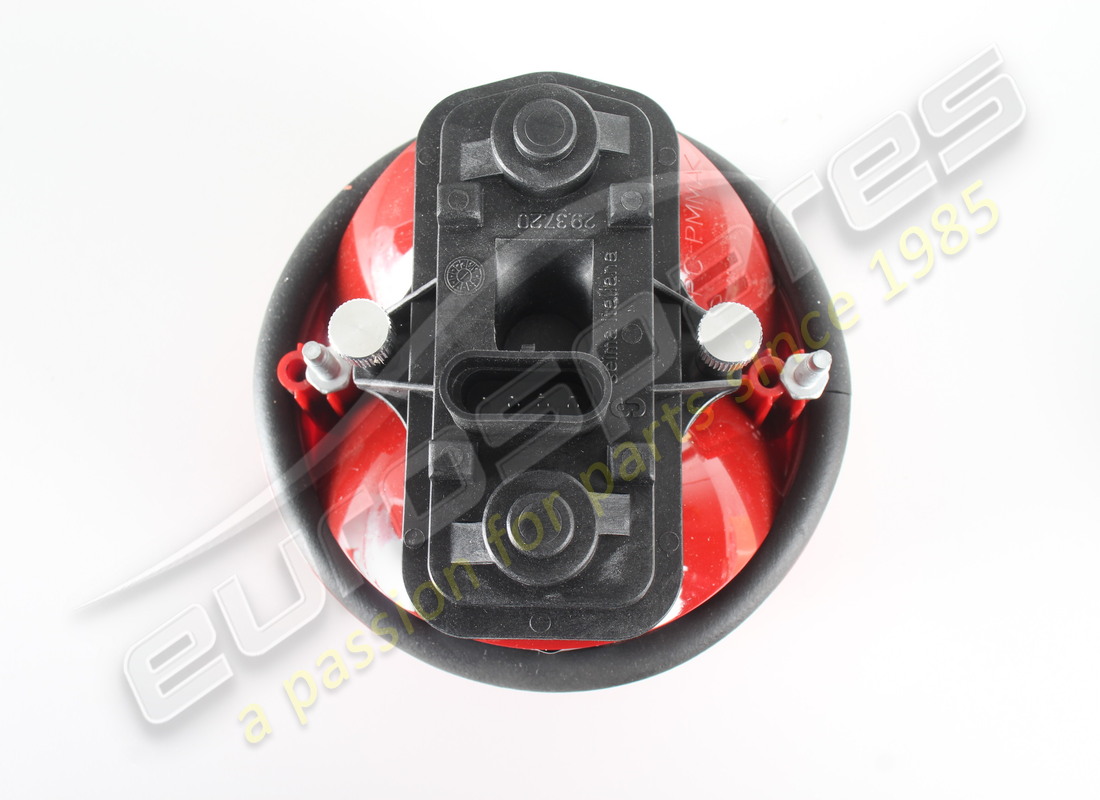

                                                RH INNER REAR LIGHT
                                                Not for USA and CDN
                                                from £250.00
                                                from £250.00

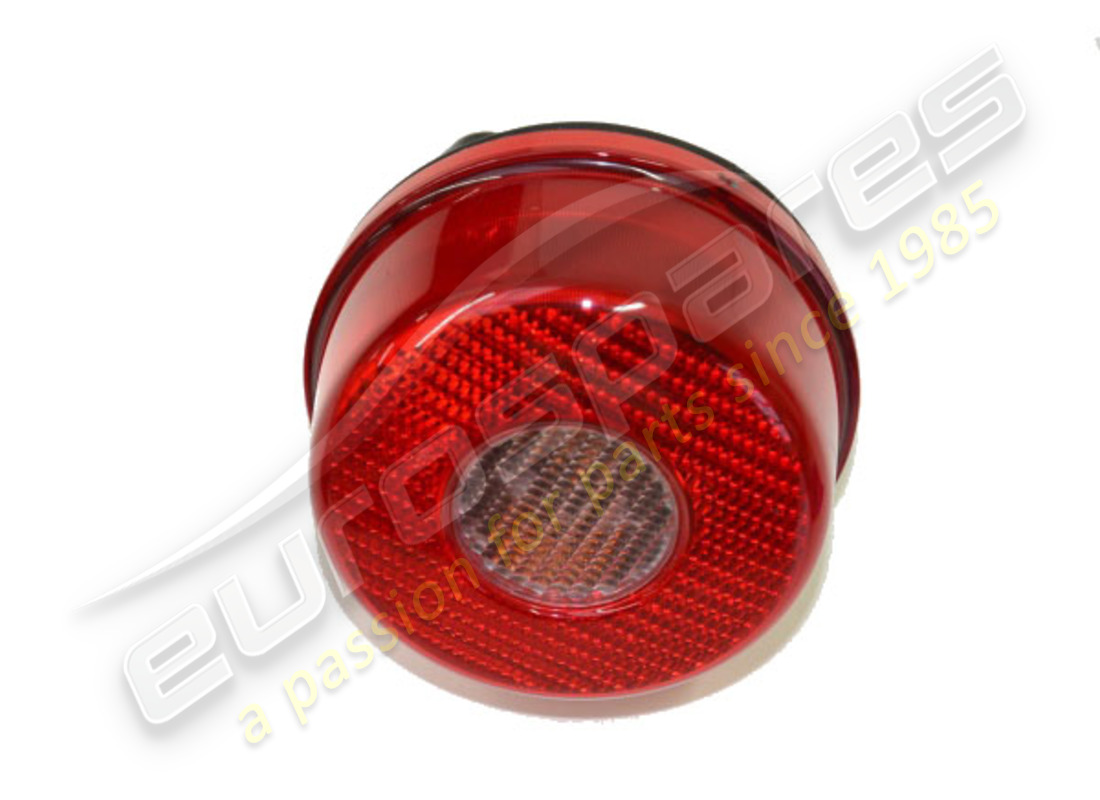

                                                # 011
                                                MPN: 157514
                                                LH INNER REAR LIGHT
                                                Not for USA and CDN
                                                from £177.90
                                                from £177.90
                                                # 011
                                                MPN: 157524
                                                RH INNER REAR LIGHT
                                                Valid for USA and CDN
                                                from £267.57
                                                from £267.57
                                                # 011
                                                MPN: 157525
                                                LH INNER REAR LIGHT
                                                Valid for USA and CDN
                                                from £267.57
                                                from £267.57

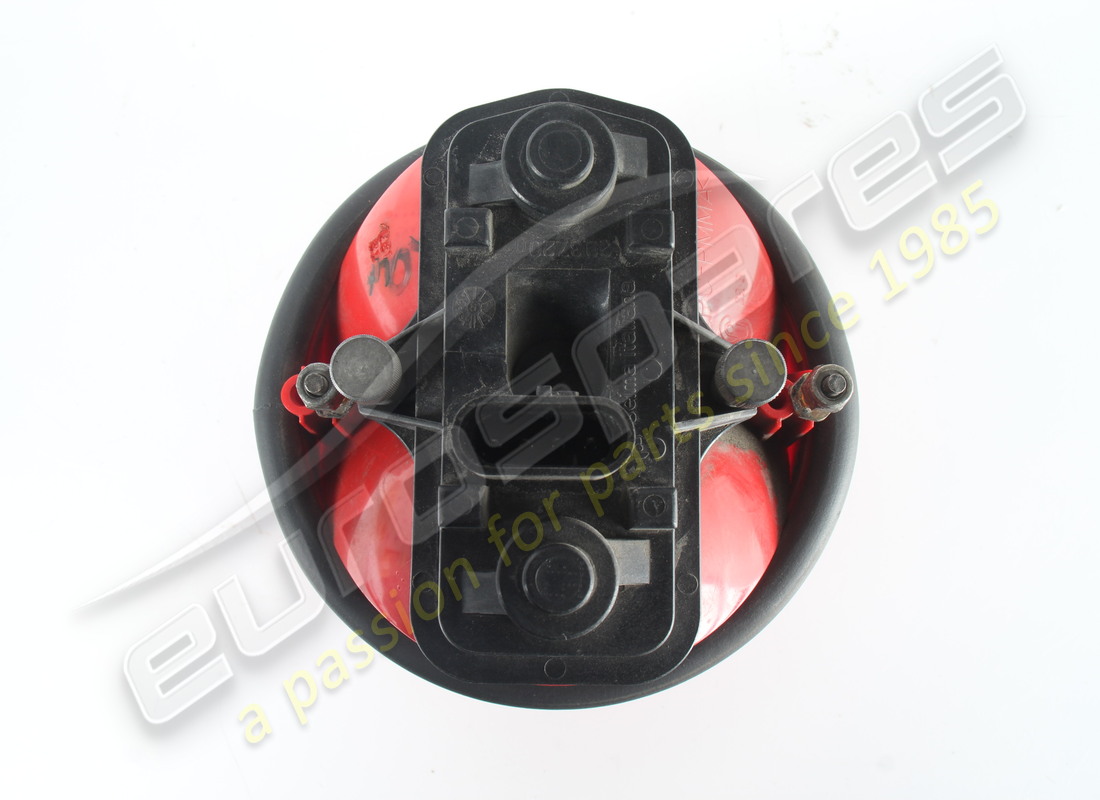

                                                # 012
                                                MPN: 157515
                                                RH OUTER REAR LIGHT
                                                Not for USA and CDN
                                                from £297.19
                                                from £297.19
                                                # 012
                                                MPN: 157516
                                                LH OUTER REAR LIGHT
                                                Not for USA and CDN
                                                from £282.33
                                                from £282.33
                                                # 012
                                                MPN: 157522
                                                RH OUTER REAR LIGHT
                                                Valid for USA and CDN
                                                from £103.95
                                                from £103.95
                                                # 012
                                                MPN: 157523
                                                LH OUTER REAR LIGHT
                                                Valid for USA and CDN
                                                from £261.36
                                                from £261.36
                                                # 013
                                                MPN: 165558
                                                FRONT SIDE DIRECTION LIGHT
                                                Not for USA and CDN
                                                from £9.34
                                                from £9.34
                                                This part replaces part number 180415 - and 1 more. Click to view details
                                                # 014
                                                MPN: 102741
                                                NUT
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 12575411 - and 1 more. Click to view details
                                                # 015
                                                MPN: 10519424
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 10519401 - and 3 more. Click to view details

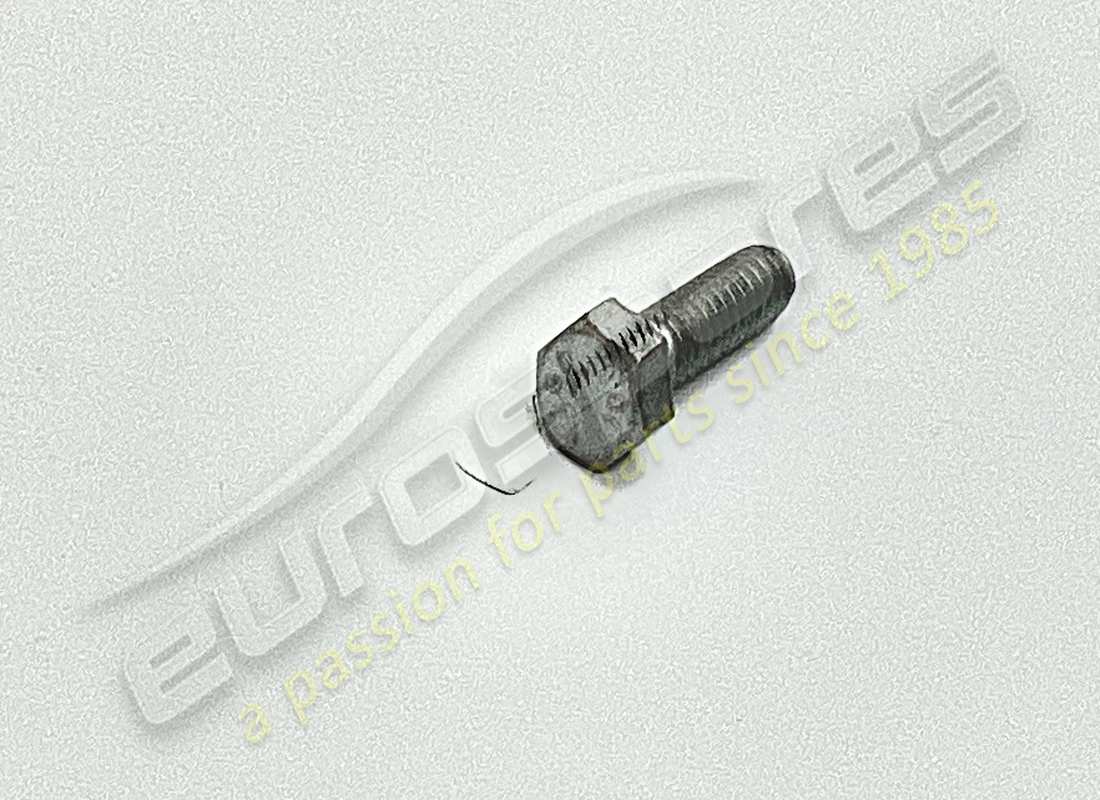

                                                # 016
                                                MPN: 11612524
                                                SCREW
                                                from £0.47
                                                from £0.47
                                                # 017
                                                MPN: 12640624
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 12640601 - and 1 more. Click to view details
                                                # 018
                                                MPN: 66672400
                                                RH UPPER BRACKET
                                                from £563.10
                                                from £563.10
                                                # 018
                                                MPN: 66672500
                                                LH UPPER BRACKET
                                                from £335.53
                                                from £335.53
                                                # 019
                                                MPN: 11612524
                                                NUT
                                                from £0.47
                                                from £0.47
                                                # 020
                                                MPN: 12643724
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 109684 - and 4 more. Click to view details
                                                # 021
                                                MPN: 11612424
                                                SCREW
                                                from £0.86
                                                from £0.86
                                                # 022
                                                MPN: 12640624
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 12640601 - and 1 more. Click to view details
                                                # 023
                                                MPN: 16296924
                                                SCREW
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 289834
                                                # 024
                                                MPN: 66672200
                                                RH LOWER BRACKET
                                                from £111.93
                                                from £111.93
                                                # 024
                                                MPN: 66672300
                                                LH LOWER BRACKET
                                                from £111.93
                                                from £111.93
                                                # 025
                                                MPN: 16043434
                                                SCREW
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 13825824 - and 1 more. Click to view details
                                                # 026
                                                MPN: 12646724
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 12601571 - and 3 more. Click to view details
                                                # 027
                                                MPN: 127496
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                # 028
                                                MPN: 65515200

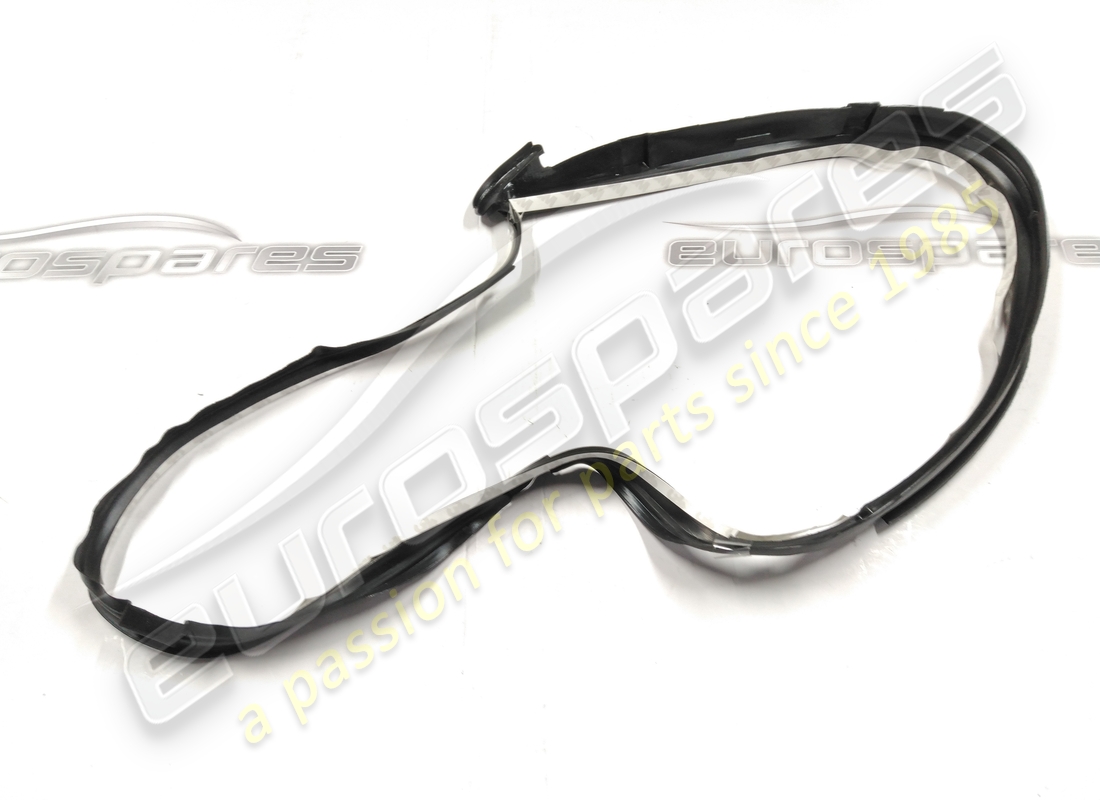

                                                RH GASKET
                                                from £100.87
                                                from £100.87
                                                # 028
                                                MPN: 65515300

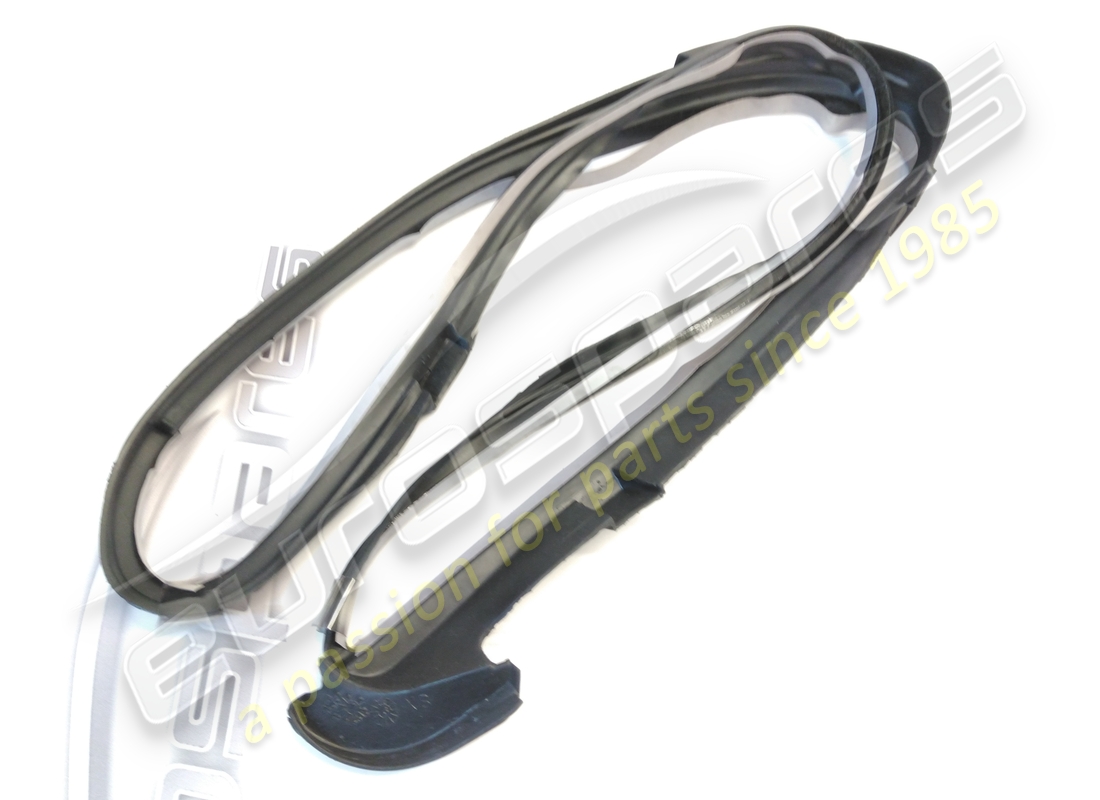

                                                LH GASKET
                                                from £100.87
                                                from £100.87
                                                # 029
                                                MPN: 68740000
                                                HEADLIGHTS WASHER PUMP
                                                Not for USA and CDN
                                                from £75.64
                                                from £75.64
                                                This part replaces part number 66285700 - and 1 more. Click to view details
                                                # 030
                                                MPN: 65511700
                                                GASKET
                                                Not for USA and CDN
                                                from £3.34
                                                from £3.34
                                                # 031
                                                MPN: 66223900
                                                TELESCOPIC SYSTEM WITH PIPES
                                                Not for USA and CDN
                                                from £400.04
                                                from £400.04
                                                # 032
                                                MPN: 66224000
                                                RH PLUG
                                                Not for USA and CDN
                                                from £31.67
                                                from £31.67
                                                # 032
                                                MPN: 66224100
                                                LH PLUG
                                                Not for USA and CDN
                                                from £31.67
                                                from £31.67

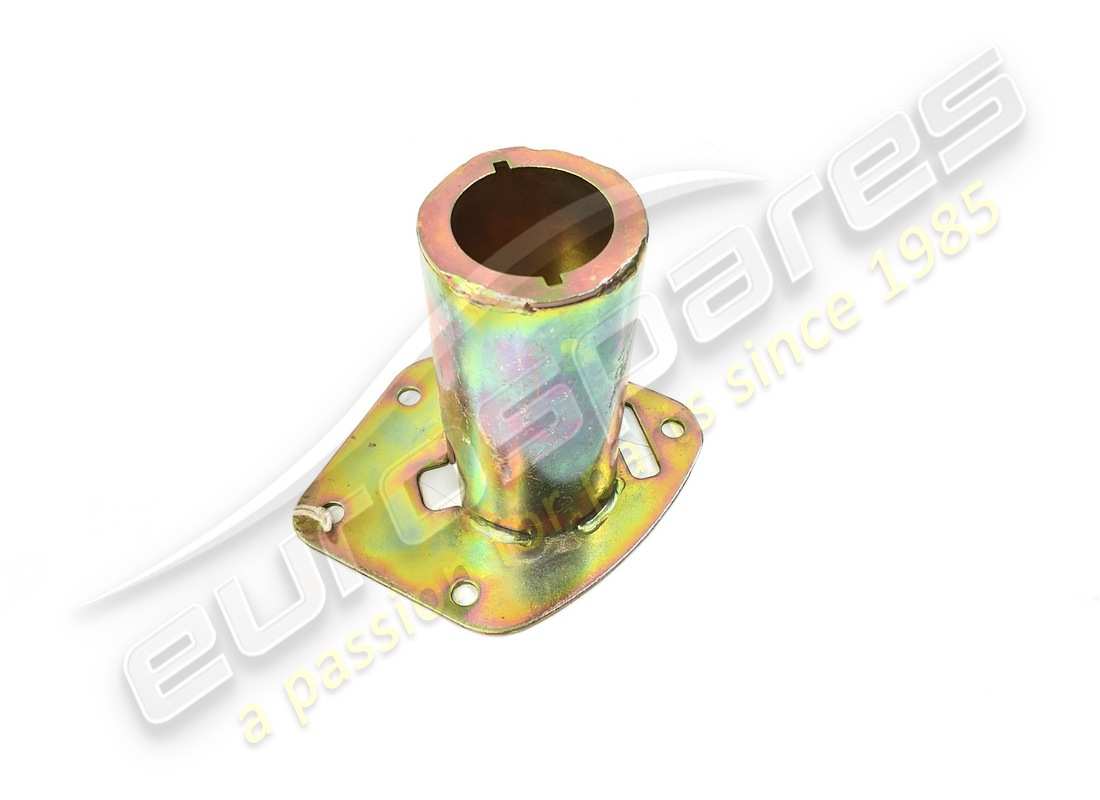

                                                # 033
                                                MPN: 66223700
                                                BUSHING FIXING HEADLIGHTS WASHER
                                                Not for USA and CDN
                                                from £115.91
                                                from £115.91
                                                # 034
                                                MPN: 16285127
                                                SCREW
                                                Not for USA and CDN - (minimum order quantity = 10)
                                                from £0.47
                                                from £0.47
                                                # 035
                                                MPN: 67495600

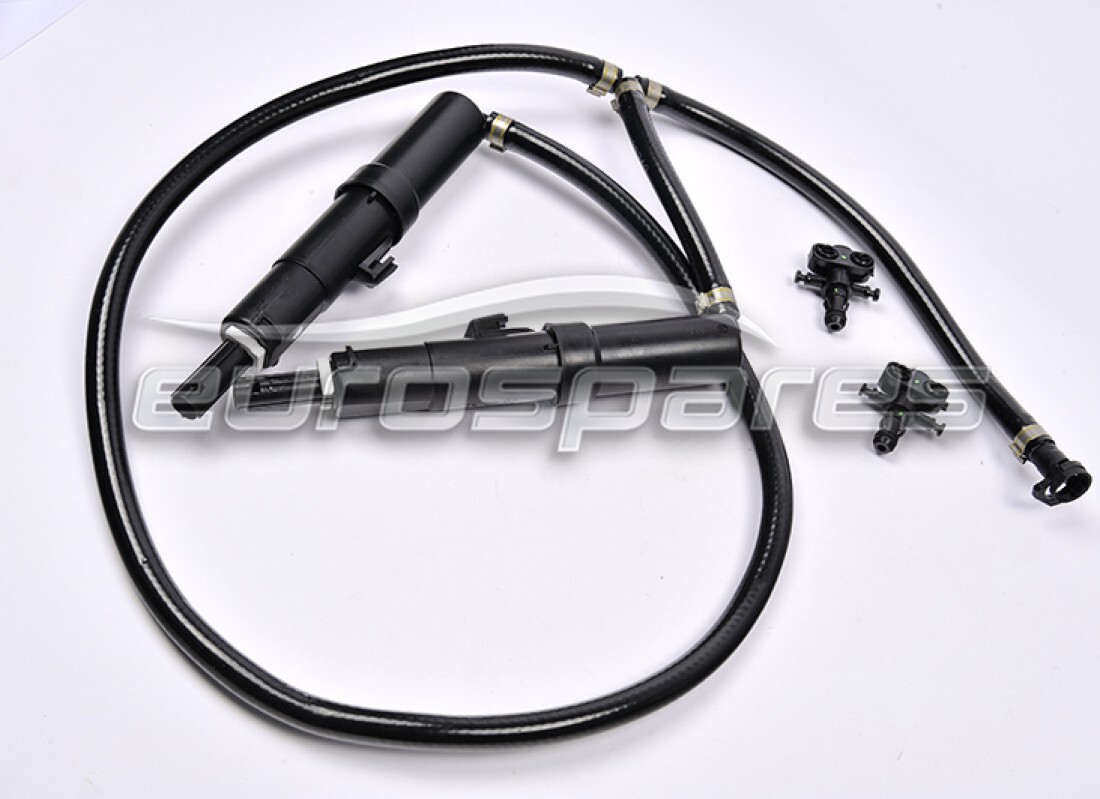

                                                JETS SET FOR WINDOW WASHING
                                                Not for USA and CDN
                                                from £90.33
                                                from £90.33
                                                This part replaces part number 66286200 - and 1 more. Click to view details
                                                # 036
                                                MPN: 66223800
                                                SMALL KEY FOR BUSHING
                                                Not for USA and CDN
                                                from £35.39
                                                from £35.39
                                                # 037
                                                MPN: 147563

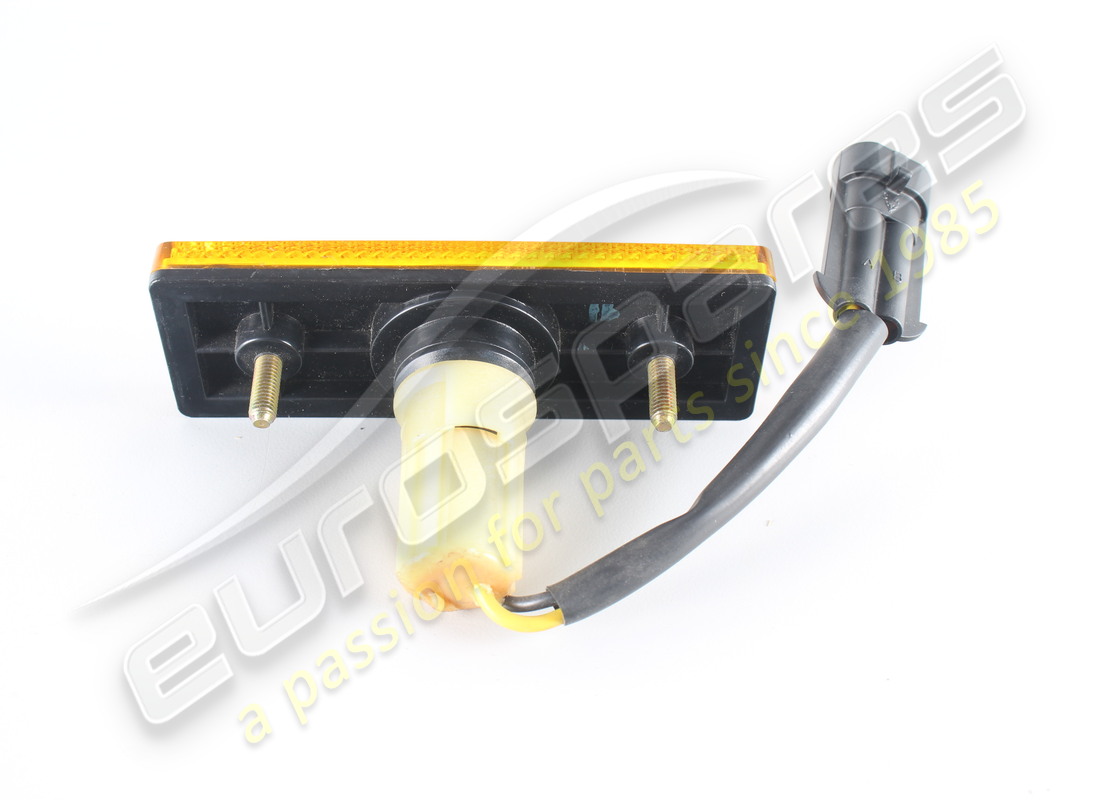

                                                FRONT SIDE-MARKER LAMP
                                                Valid for USA and CDN
                                                from £12.36
                                                from £12.36
                                                # 038
                                                MPN: 140594
                                                REAR SIDE-MARKER LIGHT
                                                Valid for USA and CDN
                                                from £12.36
                                                from £12.36
                                                # 039
                                                MPN: 14084111
                                                NUT
                                                Valid for USA and CDN
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 14084100
                                                # 040
                                                MPN: 12638124
                                                WASHER
                                                Valid for USA and CDN
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 12638101 - and 1 more. Click to view details
                                                # 041
                                                MPN: 156198
                                                CLIP
                                                Valid for USA and CDN
                                                from £8.53
                                                from £8.53
                                                # 042
                                                MPN: 113647
                                                NUT
                                                Valid for USA and CDN
                                                from £0.47
                                                from £0.47
                                                # 043
                                                MPN: 12637824
                                                WASHER
                                                Valid for USA and CDN
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 12637801 - and 1 more. Click to view details
                                                # 044
                                                MPN: 67741200
                                                COMPLETE TUBE
                                                Not for USA and CDN
                                                from £86.62
                                                from £86.62
                                                # 045
                                                MPN: 67255800
                                                TELESCOPIC
                                                Not for USA and CDN
                                                from £131.09
                                                from £131.09
                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
