ferrari 575 superamerica air-bags parts diagram

130 - Air-Bags

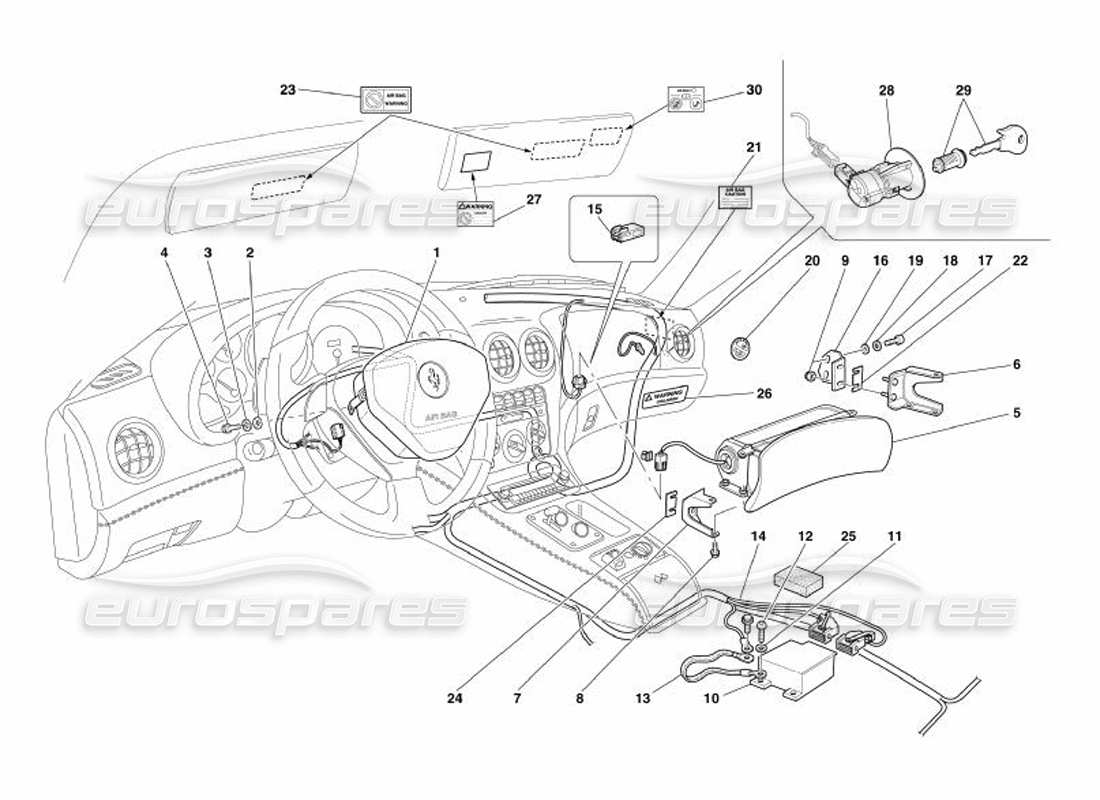

Ferrari 575 Superamerica Air-Bags Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 662040..
                                DRIVER SIDE AIR-BAG
                                Use 72021100 for Black
                                Supersession
                                Supersession
                                # 001
                                MPN: 72021100
                                DRIVER SIDE AIR-BAG
                                Black
                                from £3,758.29
                                from £3,758.29
                                This part replaces part number 175334 - and 1 more. Click to view details
                                # 002
                                MPN: 127494
                                WASHER
                                (minimum order quantity = 20)
                                from £0.53
                                from £0.53
                                This part replaces part number 10516470 - and 4 more. Click to view details
                                # 003
                                MPN: 14499324
                                WASHER
                                from £0.47
                                from £0.47
                                This part replaces part number 14499301 which we have in stock

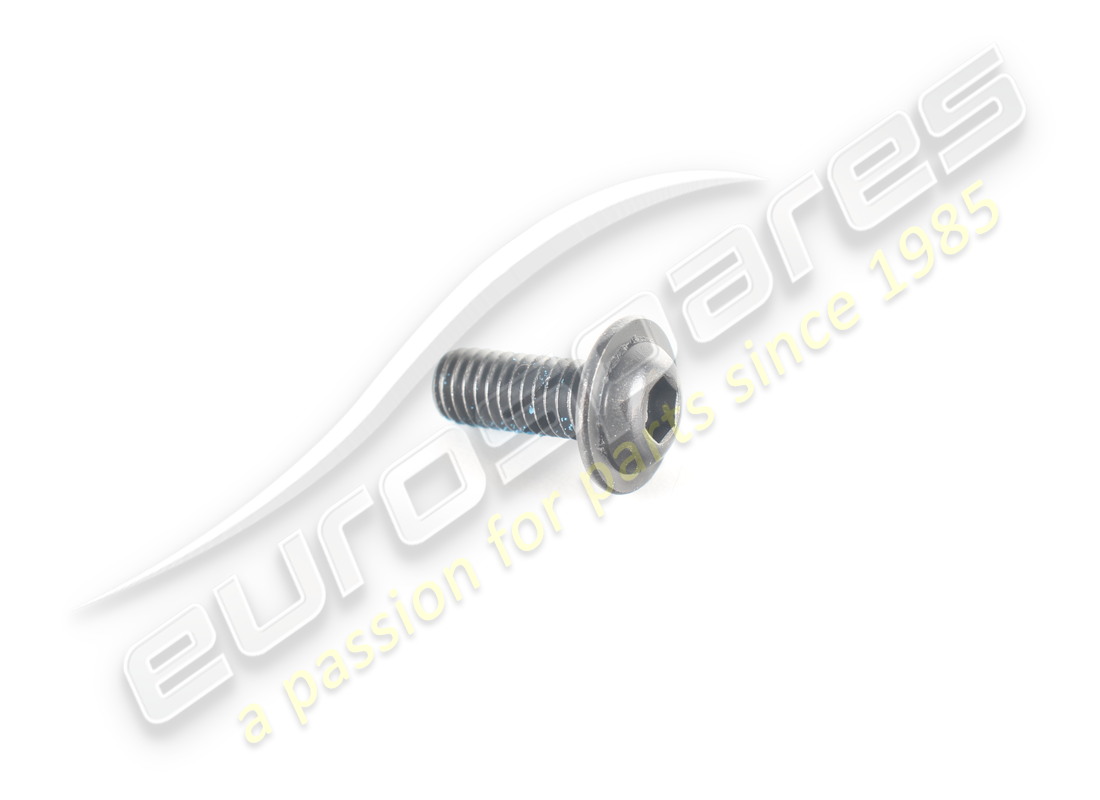

                                # 004
                                MPN: 64882800
                                SCREW
                                from £0.61
                                from £0.61
                                This part replaces part number 64470000
                                # 005
                                MPN: 664034..
                                PASSENGER SIDE AIR-BAG
                                Not for GD
                                Supersession
                                Supersession
                                # 005
                                MPN: 666325..
                                PASSENGER SIDE AIR-BAG
                                Valid for GD - (Collection or Delivery by road within Europe)
                                Supersession
                                Supersession

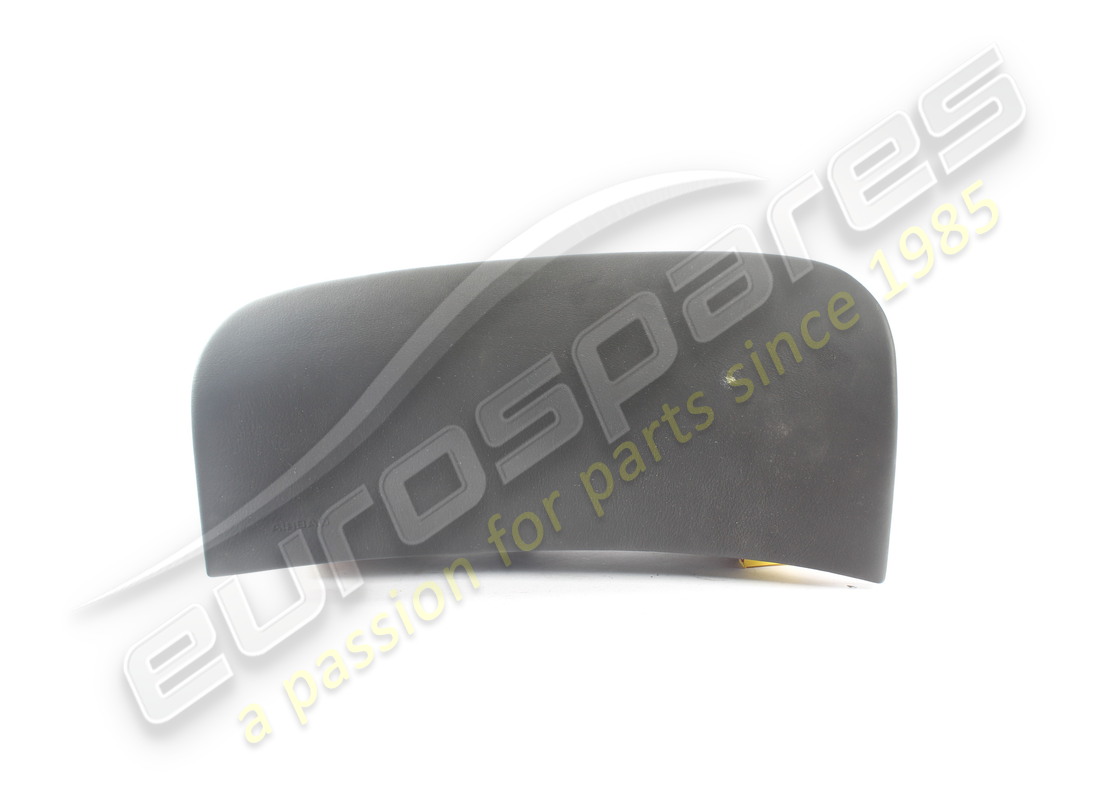

                                # 005
                                MPN: 66632500
                                PASSENGER SIDE AIR BAG IN BLACK
                                Valid for GD - (Collection or Delivery by road within Europe)
                                from £630.00
                                from £630.00
                                This part replaces part number 666325.. - and 1 more. Click to view details

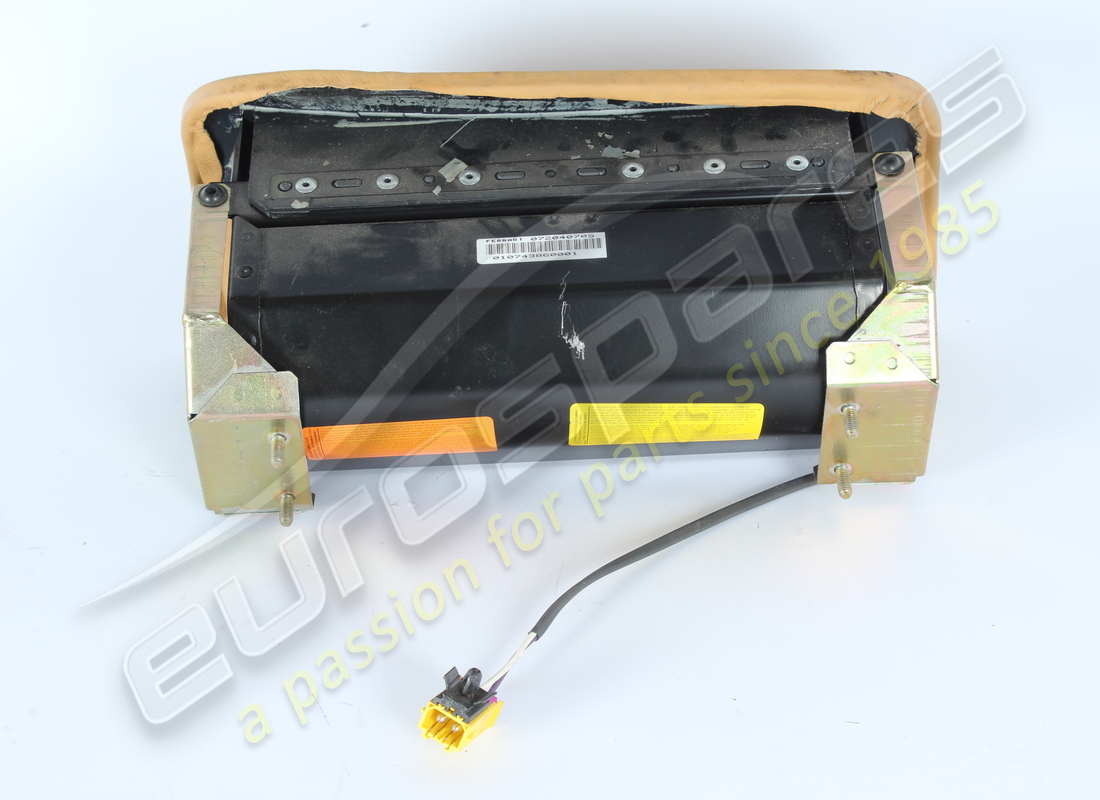

                                # 005
                                MPN: 66632505
                                PASSENGER SIDE AIR BAG IN BEIGE
                                Valid for GD - (Collection or Delivery by road within Europe)
                                from £630.00
                                from £630.00
                                This part replaces part number 666325.. - and 1 more. Click to view details
                                # 006
                                MPN: 65174600
                                RH BRACKET
                                from £14.64
                                from £14.64
                                # 007
                                MPN: 65174800
                                LH BRACKET
                                from £14.64
                                from £14.64
                                # 008
                                MPN: 62940900
                                SCREW
                                from £0.73
                                from £0.73
                                This part replaces part number 67352400
                                # 009
                                MPN: 14039614
                                NUT
                                from £0.53
                                from £0.53

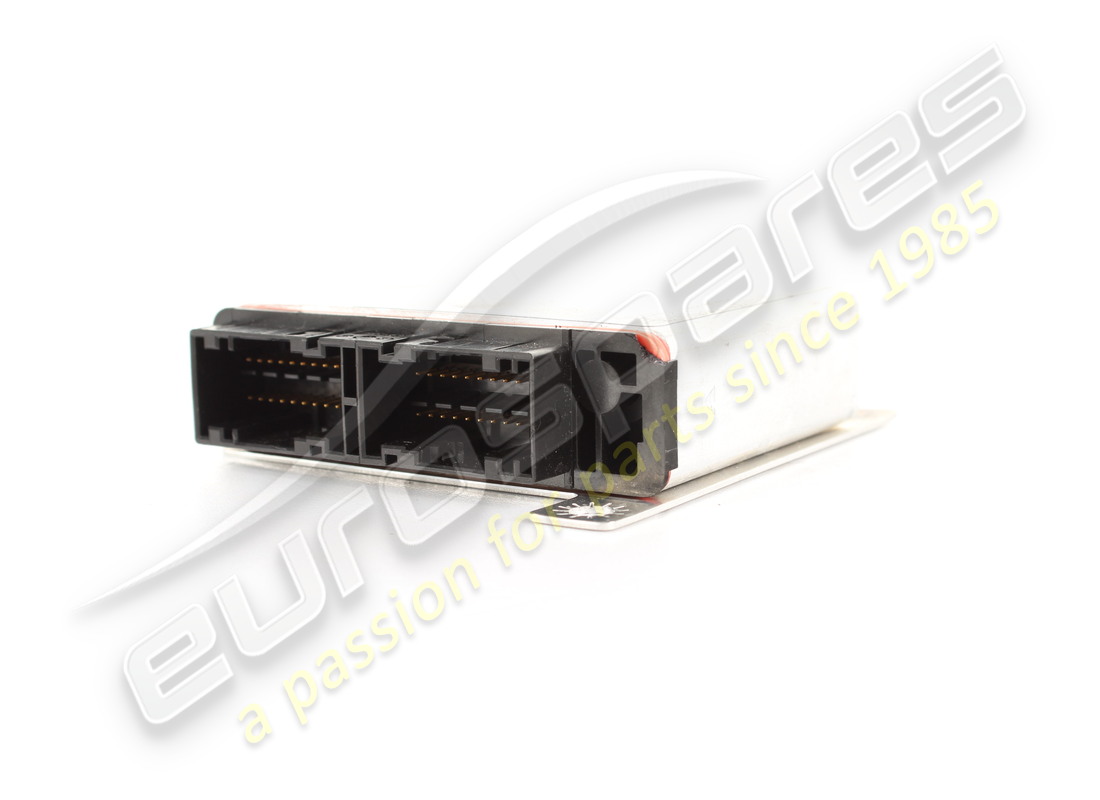

                                # 010
                                MPN: 198672
                                AIR-BAG CONTROL UNIT
                                from £335.24
                                from £335.24
                                This part replaces part number 193199
                                # 010
                                MPN: 198673
                                AIR-BAG CONTROL UNIT
                                Valid for cars With Passenger air-bagexclusion - Optional
                                from £188.47
                                from £188.47
                                This part replaces part number 193200 - and 1 more. Click to view details
                                # 011
                                MPN: 127494
                                WASHER
                                (minimum order quantity = 20)
                                from £0.53
                                from £0.53
                                This part replaces part number 10516470 - and 4 more. Click to view details
                                # 012
                                MPN: 64882800
                                SCREW
                                from £0.61
                                from £0.61
                                This part replaces part number 64470000
                                # 013
                                MPN: 160855
                                GROUND CABLE
                                from £6.77
                                from £6.77
                                # 014
                                MPN: 211326
                                AIR BAG-DASHBOARD CONNECTION CABLES
                                Not for GD
                                from £2,816.64
                                from £2,816.64
                                # 014
                                MPN: 214562
                                AIR BAG-DASHBOARD CONNECTION CABLES
                                Valid for GD
                                from £636.69
                                from £636.69
                                # 015
                                MPN: 163826
                                PASSENGER SIDE AIR-BAG RESISTOR
                                from £38.01
                                from £38.01
                                # 016
                                MPN: 65025700
                                BRACKET
                                Valid for GD
                                from £7.67
                                from £7.67
                                # 016
                                MPN: 65321700
                                BRACKET
                                Not for GD
                                from £6.35
                                from £6.35
                                # 017
                                MPN: 64882800
                                SCREW
                                from £0.61
                                from £0.61
                                This part replaces part number 64470000
                                # 018
                                MPN: 10615474
                                WASHER
                                Supersession
                                Supersession
                                This part replaces part number 10615470 - and 3 more. Click to view details
                                # 019
                                MPN: 12640624
                                WASHER
                                from £0.47
                                from £0.47
                                This part replaces part number 12640601 - and 1 more. Click to view details
                                # 020
                                MPN: 65142000
                                AIRBAG/CHILDREN SEAT INCOMPATIBILITY PLATE
                                Not for USA and CDN
                                from £2.33
                                from £2.33
                                # 021
                                MPN: 64499400
                                AIR-BAG MAINTENANCE AUTO-ADHESIVE PLATE
                                Valid for USA and AUS
                                from £4.62
                                from £4.62
                                # 021
                                MPN: 64541700
                                AIR-BAG MAINTENANCE AUTO-ADHESIVE PLATE
                                Valid for CDN
                                from £6.06
                                from £6.06
                                # 021
                                MPN: 65910700
                                AIR-BAG MAINTENANCE AUTO-ADHESIVE PLATE
                                Not for USA and CDN
                                from £2.20
                                from £2.20
                                # 022
                                MPN: 64630800
                                THICKNESS FOR RH BRACKET
                                from £0.50
                                from £0.50
                                # 023
                                MPN: 64764500
                                AIR-BAG USE AUTO-ADHESIVE PLATE
                                Not for USA and CDN
                                from £3.18
                                from £3.18
                                # 023
                                MPN: 65423700
                                AIR-BAG PRESENCE PLATE
                                Valid for USA and AUS
                                from £4.04
                                from £4.04
                                # 024
                                MPN: 64630900
                                THICKNESS FOR LH BRACKET
                                from £0.50
                                from £0.50
                                # 025
                                MPN: 66766500
                                RUBBER THICKNESS
                                from £1.77
                                from £1.77
                                # 026
                                MPN: 65424000
                                AIR-BAG SYSTEM PRESENCE PLATE
                                Valid for USA, CDN, AUS and J
                                from £3.39
                                from £3.39
                                # 027
                                MPN: 64541500
                                AIR-BAG USING AUTO-ADHESIVE PLATE
                                Valid for CDN
                                from £5.42
                                from £5.42
                                # 027
                                MPN: 65423800
                                AIR-BAG USING AUTO-ADHESIVE PLATE
                                Valid for USA and AUS
                                from £3.99
                                from £3.99
                                # 028
                                MPN: 183234
                                SWITCH FOR
                                Valid for cars With Passenger air-bagexclusion - Optional
                                Supersession
                                Supersession
                                # 029
                                MPN: 185309
                                PAWL-KEY ASSEMBLY
                                Valid for cars With Passenger air-bagexclusion - Optional
                                from £120.79
                                from £120.79
                                # 030
                                MPN: 66830800
                                EXCLUSION AIR-BAG AUTO-ADHESIVE PLATE
                                Valid for cars With Passenger air-bagexclusion - Optional
                                from £7.19
                                from £7.19
