Ferrari 575 Superamerica Dashboard Drawer Parts Diagram

129 - Dashboard Drawer

Ferrari 575 Superamerica Dashboard Drawer Parts Diagram

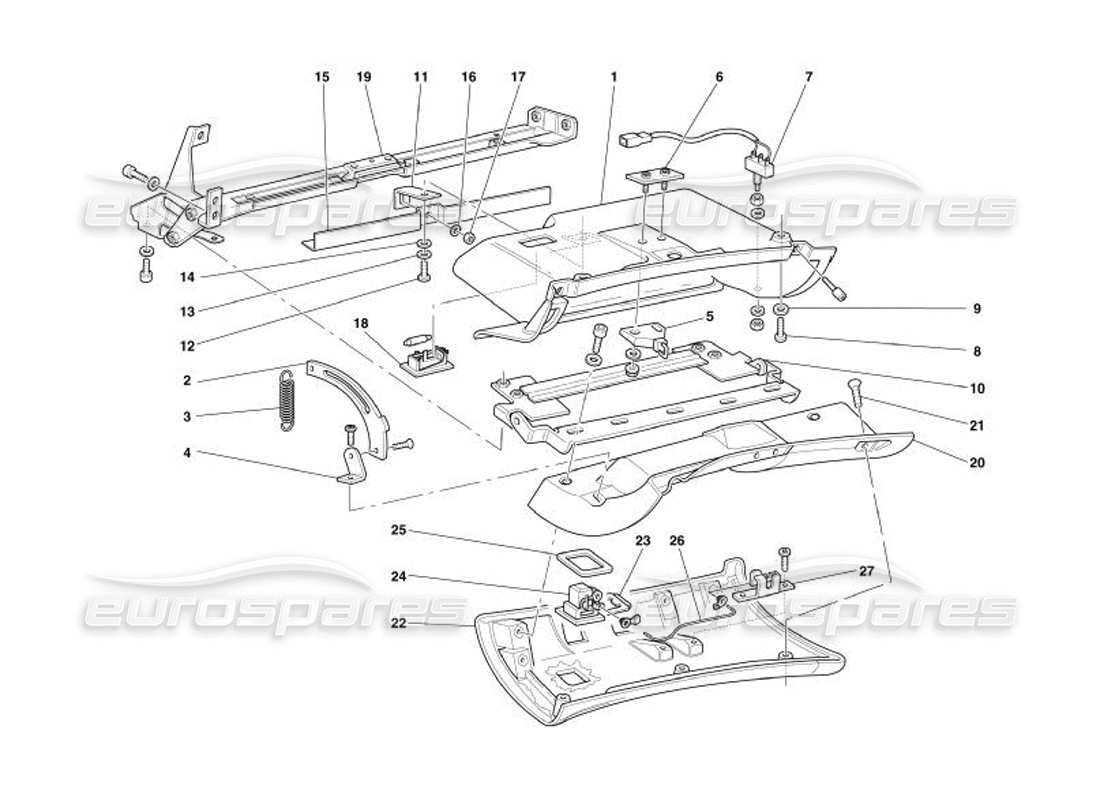

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 66283100
                                          Dashboard Drawer
                                          Valid for cars With Passenger air-bagexclusion - Optional - Not for GD
                                          from £173.53
                                          from £173.53
                                          # 001
                                          MPN: 66617500
                                          Dashboard Drawer
                                          Not for GD
                                          from £214.77
                                          from £214.77
                                          # 001
                                          MPN: 66632200
                                          Dashboard Drawer
                                          Valid for cars With Passenger air-bagexclusion- -Optional - Valid for GD
                                          from £883.29
                                          from £883.29
                                          # 001
                                          MPN: 66638600
                                          Dashboard Drawer
                                          Vale for GD
                                          from £140.23
                                          from £140.23
                                          This part replaces part number 66638700 - and 1 more. Click to view details
                                          # 002
                                          MPN: 63765700
                                          LEVER
                                          from £8.56
                                          from £8.56
                                          # 003
                                          MPN: 63876700
                                          DOOR SPRING
                                          from £3.54
                                          from £3.54
                                          # 004
                                          MPN: 64580800
                                          BRACKET
                                          Not for GD
                                          from £46.29
                                          from £46.29
                                          # 004
                                          MPN: 65024600
                                          BRACKET
                                          Valid for GD
                                          from £26.52
                                          from £26.52
                                          # 005
                                          MPN: 65258900
                                          STRIKER
                                          from £29.94
                                          from £29.94
                                          # 006
                                          MPN: 63765300
                                          STRIKER FIXING PLATE
                                          from £2.60
                                          from £2.60
                                          # 007
                                          MPN: 184403
                                          MICRO-SWITCH WITH CABLE
                                          from £35.46
                                          from £35.46
                                          # 008
                                          MPN: 13275977
                                          SCREW
                                          from £1.06
                                          from £1.06
                                          # 009
                                          MPN: 10519478
                                          WASHER
                                          from £1.10
                                          from £1.10
                                          This part replaces part number 14496478
                                          # 010
                                          MPN: 65026800
                                          BOX HINGE
                                          Valid for GD
                                          from £112.83
                                          from £112.83
                                          # 010
                                          MPN: 66839700
                                          BOX HINGE
                                          Not for GD
                                          from £69.89
                                          from £69.89
                                          # 011
                                          MPN: 65115900
                                          BRACKET
                                          from £6.26
                                          from £6.26
                                          # 012
                                          MPN: 13272272
                                          SCREW
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 13272216
                                          # 013
                                          MPN: 12599076
                                          WASHER
                                          # 014
                                          MPN: 12643724
                                          WASHER
                                          from £0.53
                                          from £0.53
                                          This part replaces part number 109684 - and 4 more. Click to view details
                                          # 015
                                          MPN: 65366000
                                          ANGLE PIECE
                                          from £9.19
                                          from £9.19
                                          # 016
                                          MPN: 12638178
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 10519578 - and 3 more. Click to view details
                                          # 017
                                          MPN: 113647
                                          NUT
                                          from £0.54
                                          from £0.54
                                          # 018
                                          MPN: 139517
                                          ROOF LIGHT
                                          from £13.67
                                          from £13.67
                                          # 019
                                          MPN: 66831800
                                          RH SIDE BRACKET
                                          Valid for GD
                                          from £122.99
                                          from £122.99
                                          # 019
                                          MPN: 66839400
                                          LH SIDE BRACKET
                                          Not for GD
                                          from £127.95
                                          from £127.95
                                          # 020
                                          MPN: 65024900
                                          Door Frame
                                          Valid for GD
                                          from £64.20
                                          from £64.20
                                          # 020
                                          MPN: 67292300
                                          Door Frame
                                          Not for GD
                                          from £85.90
                                          from £85.90
                                          # 021
                                          MPN: 65212000
                                          SCREW
                                          from £0.78
                                          from £0.78
                                          # 022
                                          MPN: 692334..
                                          GLOVE BOX SHUTTER
                                          Not for GD
                                          # 022
                                          MPN: 692337..
                                          GLOVE BOX SHUTTER
                                          Valid for GD
                                          # 023
                                          MPN: 63769000
                                          FORK
                                          from £3.54
                                          from £3.54
                                          # 024
                                          MPN: 64926500
                                          PUSH BUTTON
                                          from £84.00
                                          from £84.00
                                          # 025
                                          MPN: 63768900
                                          PLATE
                                          from £0.43
                                          from £0.43
                                          # 026
                                          MPN: 64653900
                                          TIE ROD
                                          Not for GD
                                          from £7.77
                                          from £7.77
                                          # 026
                                          MPN: 65166800
                                          TIE ROD
                                          Valid for GD
                                          from £16.53
                                          from £16.53
                                          # 027
                                          MPN: 63768800
                                          GLOVE BOX LOCK
                                          from £137.38
                                          from £137.38
                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
