127 - Tunnel - Framework and Accessories

Ferrari 575 Superamerica Tunnel - Framework and Accessories Parts Diagram

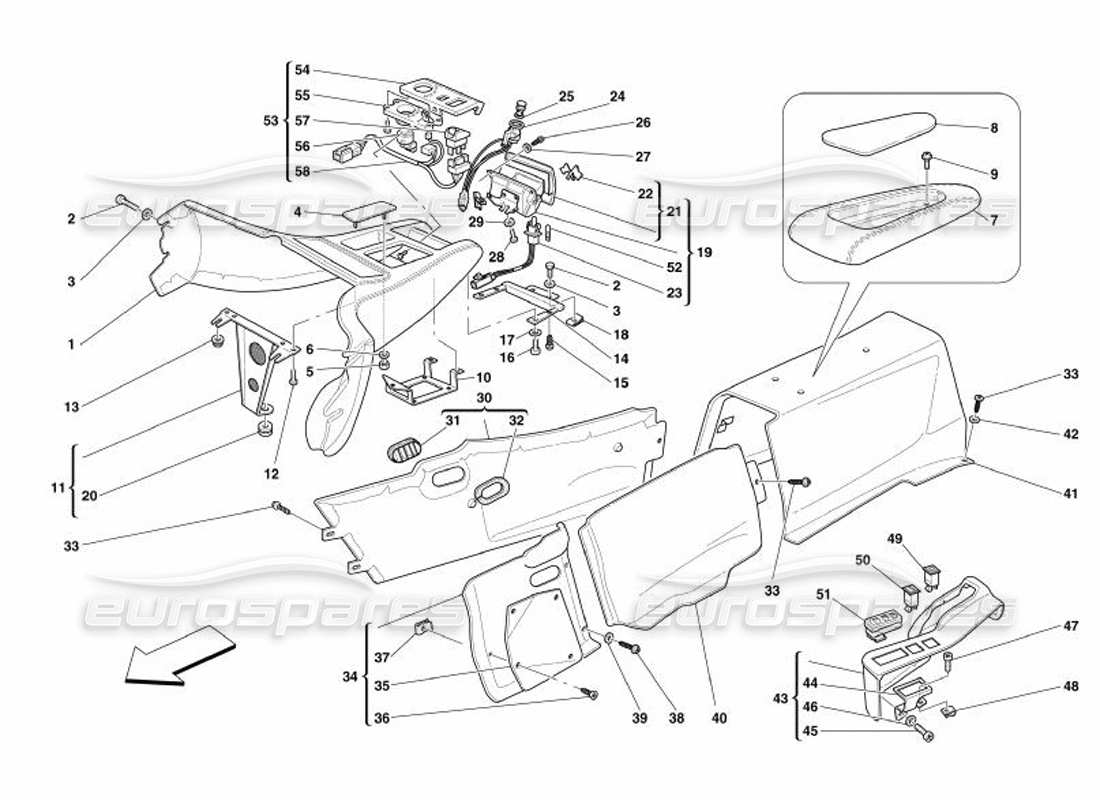

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 66787300
                                                                                      LINING
                                                                                      Valid for GD - Valid for F1
                                                                                      # 001
                                                                                      MPN: 685909..
                                                                                      TUNNEL CONSOLE
                                                                                      Not for GD
                                                                                      # 001
                                                                                      MPN: 690528..
                                                                                      TUNNEL CONSOLE
                                                                                      Valid for GD - Not for F1
                                                                                      # 001
                                                                                      MPN: 69100100
                                                                                      LINING
                                                                                      Not for GD
                                                                                      # 001
                                                                                      MPN: 69200100
                                                                                      LINING
                                                                                      Valid for GD - Not for F1
                                                                                      from £534.68
                                                                                      from £534.68
                                                                                      # 001
                                                                                      MPN: 692721..
                                                                                      TUNNEL CONSOLE
                                                                                      Valid for GD - Valid for F1
                                                                                      # 002
                                                                                      MPN: 16297024
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 003
                                                                                      MPN: 12643724
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                                                      # 004
                                                                                      MPN: 662271..
                                                                                      FRONT COMPARTMENT CARPET SHIELD
                                                                                      Not for GD not F1
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 005
                                                                                      MPN: 13046011
                                                                                      NUT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 006
                                                                                      MPN: 14446901
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 007
                                                                                      MPN: 688368..
                                                                                      REAR GLOVE COMPARTMENT
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 008
                                                                                      MPN: 688371..
                                                                                      END PLATE
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 009
                                                                                      MPN: 13273811
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 010
                                                                                      MPN: 65046200
                                                                                      BRACKET
                                                                                      Valid for F1
                                                                                      from £44.03
                                                                                      from £44.03
                                                                                      # 011
                                                                                      MPN: 66400600
                                                                                      BRACKET
                                                                                      from £21.13
                                                                                      from £21.13
                                                                                      # 012
                                                                                      MPN: 15688875
                                                                                      SCREW
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 15688814
                                                                                      # 013
                                                                                      MPN: 14039614
                                                                                      NUT
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 014
                                                                                      MPN: 66228000
                                                                                      REAR BRACKET
                                                                                      from £193.03
                                                                                      from £193.03
                                                                                      # 015
                                                                                      MPN: 15781977
                                                                                      SCREW
                                                                                      # 016
                                                                                      MPN: 13273811
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 017
                                                                                      MPN: 12637878
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 12637806
                                                                                      # 018
                                                                                      MPN: 62766300
                                                                                      CLIP FOR SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 019
                                                                                      MPN: 66226400
                                                                                      COMPLETE ASH TRAY
                                                                                      Not for GD
                                                                                      # 019
                                                                                      MPN: 66831200
                                                                                      COMPLETE ASH TRAY
                                                                                      Valid for GD
                                                                                      from £802.49
                                                                                      from £802.49
                                                                                      # 020
                                                                                      MPN: 10396380
                                                                                      CABLE GROMMET
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 021
                                                                                      MPN: 662265..
                                                                                      ASH TRAY DOOR
                                                                                      from £148.05
                                                                                      from £148.05
                                                                                      # 022
                                                                                      MPN: 64460400
                                                                                      Ferrari-PININFARINA MARK
                                                                                      from £56.51
                                                                                      from £56.51
                                                                                      # 023
                                                                                      MPN: 188731
                                                                                      YELLOW LIGHT LINK CABLE
                                                                                      from £32.90
                                                                                      from £32.90
                                                                                      # 024
                                                                                      MPN: 188730
                                                                                      CIGAR LIGHTER BODY
                                                                                      from £26.50
                                                                                      from £26.50
                                                                                      # 025
                                                                                      MPN: 183270
                                                                                      CIGAR LIGHTER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 026
                                                                                      MPN: 15690678
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 027
                                                                                      MPN: 13337347
                                                                                      WASHER
                                                                                      from £1.44
                                                                                      from £1.44
                                                                                      # 028
                                                                                      MPN: 13273811
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 029
                                                                                      MPN: 12637878
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 12637806
                                                                                      # 030
                                                                                      MPN: 660878..
                                                                                      RH LATERAL COVER
                                                                                      Not for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 030
                                                                                      MPN: 693124..
                                                                                      RH LATERAL COVER
                                                                                      Valid for GD
                                                                                      # 031
                                                                                      MPN: 63783700
                                                                                      AIR OPENING
                                                                                      from £33.09
                                                                                      from £33.09
                                                                                      # 032
                                                                                      MPN: 63783800
                                                                                      GASKET
                                                                                      from £8.76
                                                                                      from £8.76
                                                                                      # 033
                                                                                      MPN: 62771900
                                                                                      SCREW
                                                                                      from £0.52
                                                                                      from £0.52
                                                                                      This part replaces part number 68391900
                                                                                      # 034
                                                                                      MPN: 645852..
                                                                                      LH FRONT LATERAL COVER
                                                                                      Not for GD
                                                                                      from £131.25
                                                                                      from £131.25
                                                                                      # 034
                                                                                      MPN: 693122..
                                                                                      LH FRONT LATERAL COVER
                                                                                      Valid for GD
                                                                                      # 035
                                                                                      MPN: 63784900
                                                                                      PROTECTION PLATE
                                                                                      Not for GD
                                                                                      from £13.72
                                                                                      from £13.72
                                                                                      # 036
                                                                                      MPN: 15909377
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 037
                                                                                      MPN: 61142100
                                                                                      BRACKET
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 038
                                                                                      MPN: 15692577
                                                                                      SCREW
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 039
                                                                                      MPN: 12611307
                                                                                      WASHER
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      # 040
                                                                                      MPN: 660877..
                                                                                      LH CENTRAL LATERAL COVER
                                                                                      Not for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 040
                                                                                      MPN: 693120..
                                                                                      LH CENTRAL LATERAL COVER
                                                                                      Valid for GD
                                                                                      # 041
                                                                                      MPN: 666581..
                                                                                      TUNNEL REAR COVER
                                                                                      Valid for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 041
                                                                                      MPN: 688364..
                                                                                      TUNNEL REAR COVER
                                                                                      Not for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 042
                                                                                      MPN: 12638178
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                      # 043
                                                                                      MPN: 660873..
                                                                                      MOULDING FOR HAND-BRAKE LEVER
                                                                                      Not for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 043
                                                                                      MPN: 666339..
                                                                                      MOULDING FOR HAND-BRAKE LEVER
                                                                                      Valid for GD
                                                                                      # 043
                                                                                      MPN: 668327..
                                                                                      MOULDING FOR HAND-BRAKE LEVER
                                                                                      Optional - Valid for sport seat - Not for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 043
                                                                                      MPN: 668332..
                                                                                      MOULDING FOR HAND-BRAKE LEVER
                                                                                      Optional - Valid for sport seat - Valid for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 043
                                                                                      MPN: 66835700
                                                                                      MOULDING FOR HAND-BRAKE LEVER
                                                                                      Valid for sport seat - Carbon - Optional - Not for GD
                                                                                      from £1,110.89
                                                                                      from £1,110.89
                                                                                      # 043
                                                                                      MPN: 66835800
                                                                                      MOULDING FOR HAND-BRAKE LEVER
                                                                                      Carbon - Optional - Not for GD
                                                                                      from £1,518.93
                                                                                      from £1,518.93
                                                                                      # 043
                                                                                      MPN: 66837700
                                                                                      MOULDING FOR HAND-BRAKE LEVER
                                                                                      Valid for sport seat - Carbon - Optional - Valid for GD
                                                                                      from £1,575.92
                                                                                      from £1,575.92
                                                                                      # 043
                                                                                      MPN: 66837800
                                                                                      MOULDING FOR HAND-BRAKE LEVER
                                                                                      Carbon - Optional - Valid for GD
                                                                                      from £1,772.91
                                                                                      from £1,772.91
                                                                                      # 044
                                                                                      MPN: 66176200
                                                                                      BRACKET
                                                                                      Not for sport seat - Not for GD
                                                                                      from £43.54
                                                                                      from £43.54
                                                                                      # 044
                                                                                      MPN: 66764000
                                                                                      BRACKET
                                                                                      Not for sport seat - Valid for GD
                                                                                      from £43.54
                                                                                      from £43.54
                                                                                      # 045
                                                                                      MPN: 13273811
                                                                                      SCREW
                                                                                      Not for sport seat
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 046
                                                                                      MPN: 12638104
                                                                                      WASHER
                                                                                      Not for sport seat
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 047
                                                                                      MPN: 15689601
                                                                                      SCREW
                                                                                      Not for sport seat
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 048
                                                                                      MPN: 14371971
                                                                                      CLIP
                                                                                      Not for sport seat
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 049
                                                                                      MPN: 188725
                                                                                      FUEL DOOR CONTROL PUSH-BUTTON
                                                                                      from £69.71
                                                                                      from £69.71
                                                                                      # 050
                                                                                      MPN: 188724
                                                                                      REAR HOOD OPENING PUSH BUTTON
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 051
                                                                                      MPN: 174766
                                                                                      SEAT MEMORIES CONTROL SWITCH PANEL
                                                                                      Not for sport seat
                                                                                      from £67.78
                                                                                      from £67.78
                                                                                      # 052
                                                                                      MPN: 194307
                                                                                      BULB
                                                                                      from £1.25
                                                                                      from £1.25
                                                                                      # 053
                                                                                      MPN: 68993400
                                                                                      COMPLETE ROOF CONTROLS PLATE
                                                                                      from £1,341.09
                                                                                      from £1,341.09
                                                                                      # 054
                                                                                      MPN: 68993500
                                                                                      ROOF CONTROLS PLATE
                                                                                      from £1,100.10
                                                                                      from £1,100.10
                                                                                      # 055
                                                                                      MPN: 68993600
                                                                                      ELETTROCROMIA CONTROL SUPPORT
                                                                                      from £312.12
                                                                                      from £312.12
                                                                                      # 056
                                                                                      MPN: 218796
                                                                                      KNOB
                                                                                      from £50.18
                                                                                      from £50.18
                                                                                      # 057
                                                                                      MPN: 180709
                                                                                      CAPOTE BUTTON
                                                                                      from £76.08
                                                                                      from £76.08
                                                                                      # 058
                                                                                      MPN: 216389
                                                                                      CABLE FOR CABLE
                                                                                      from £115.51
                                                                                      from £115.51
                                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
