Ferrari 575 Superamerica Roof Panel Upholstery and Accessories Parts Diagram

114 - Roof Panel Upholstery and Accessories

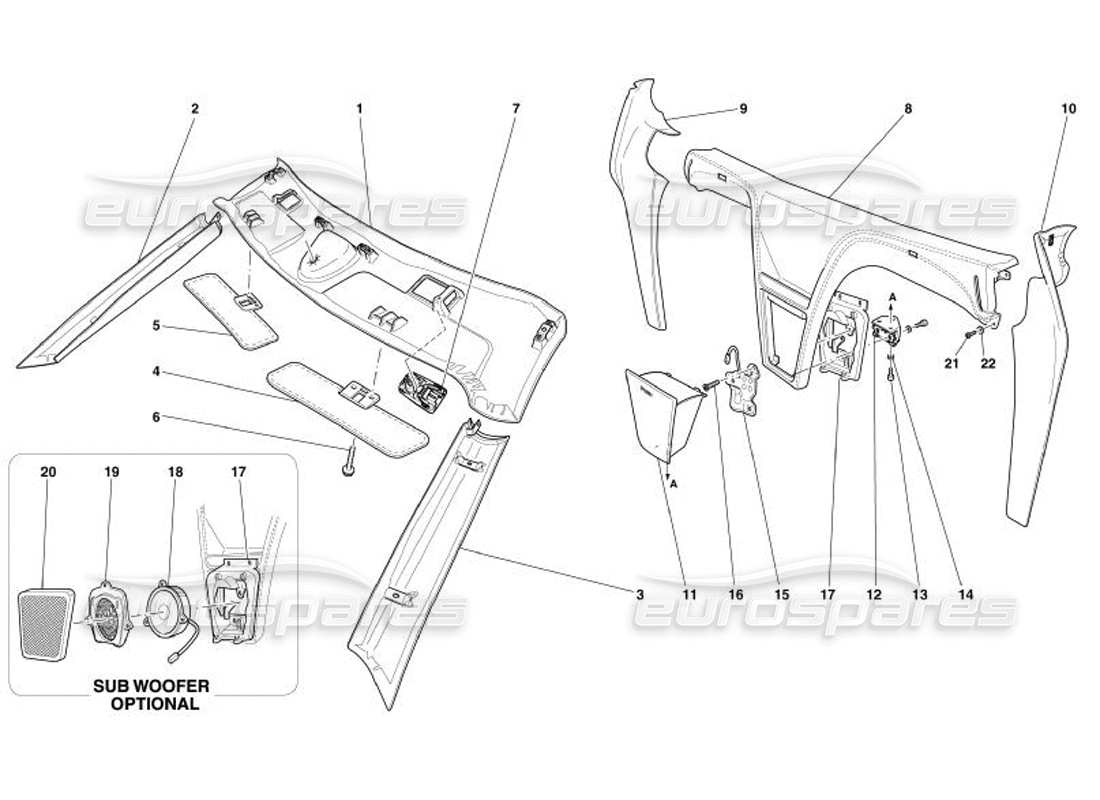

Ferrari 575 Superamerica Roof Panel Upholstery and Accessories Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 685469..
                                      WINDSHIELD UPPER CROSSPIECE TRIM
                                      Supersession
                                      Supersession
                                      # 002
                                      MPN: 668445..
                                      FRONT RH POST COVERING
                                      Supersession
                                      Supersession
                                      # 003
                                      MPN: 668448..
                                      FRONT LH POST COVERING
                                      Supersession
                                      Supersession
                                      # 004
                                      MPN: 685473..
                                      DRIVER SUN VISOR
                                      Supersession
                                      Supersession
                                      # 005
                                      MPN: 685472..
                                      PASSENGER SUN VISOR
                                      Supersession
                                      Supersession
                                      # 006
                                      MPN: 13309277
                                      SCREW
                                      from £0.51
                                      from £0.51
                                      This part replaces part number 13309211
                                      # 007
                                      MPN: 184098
                                      FRONT DOME LAMP
                                      from £110.25
                                      from £110.25
                                      This part replaces part number 66617000
                                      # 008
                                      MPN: 685474..
                                      UNDER REAR WINDOW COVER
                                      Valid for 3 point belts + drawer + electric seat
                                      Supersession
                                      Supersession
                                      # 008
                                      MPN: 688514..
                                      UNDER REAR WINDOW COVER
                                      Valid for 3 point belts + sub woofer + electric seat
                                      # 008
                                      MPN: 688515..
                                      UNDER REAR WINDOW COVER
                                      Valid for 4 point belts + drawer + electric seat
                                      # 008
                                      MPN: 688516..
                                      UNDER REAR WINDOW COVER
                                      Valid for 4 point belts + sub woofer + electric seat
                                      # 008
                                      MPN: 692691..
                                      UNDER REAR WINDOW COVER
                                      Valid for 3 point belts + drawer + manual seat
                                      # 008
                                      MPN: 692692..
                                      UNDER REAR WINDOW COVER
                                      Valid for 3 point belts + sub woofer + manual seat
                                      # 009
                                      MPN: 688503..
                                      RH ENCLOSURE PILLAR
                                      Supersession
                                      Supersession
                                      # 010
                                      MPN: 688652..
                                      LH ENCLOSURE PILLAR
                                      Supersession
                                      Supersession
                                      # 011
                                      MPN: 69075905
                                      DRAWER
                                      from £309.75
                                      from £309.75
                                      # 012
                                      MPN: 68995900
                                      BOX HINGE
                                      from £147.69
                                      from £147.69
                                      # 013
                                      MPN: 13274011
                                      SCREW
                                      from £1.10
                                      from £1.10
                                      # 014
                                      MPN: 12637878
                                      WASHER
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 12637806
                                      # 015
                                      MPN: 69339300
                                      lock
                                      from £191.18
                                      from £191.18
                                      # 017
                                      MPN: 68870800
                                      COMPARTMENT HOLDER
                                      from £69.62
                                      from £69.62
                                      # 018
                                      MPN: 211337
                                      LOUD SPEAKER SUBWOOFER
                                      Valid for high power HI FI - Optional
                                      from £136.84
                                      from £136.84
                                      # 019
                                      MPN: 215186
                                      SUBWOOFER CONVEYOR
                                      Valid for high power HI FI - Optional
                                      from £41.81
                                      from £41.81
                                      # 020
                                      MPN: 68833100
                                      GRILL FOR SUBWOOFER
                                      Valid for high power HI FI - Optional
                                      from £56.78
                                      from £56.78
                                      # 021
                                      MPN: 13273911
                                      SCREW
                                      from £0.51
                                      from £0.51
                                      # 022
                                      MPN: 12637878
                                      WASHER
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 12637806
