110 - Passengers Compartment Insulations -Not for GD-

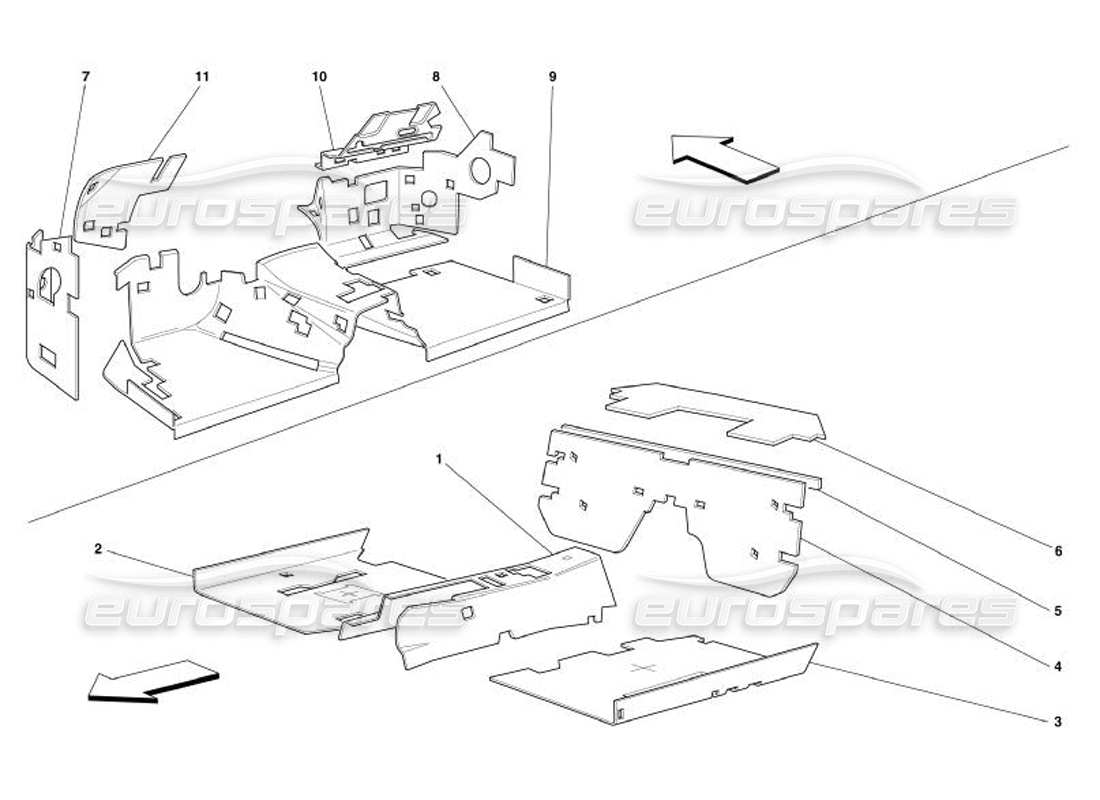

Ferrari 575 Superamerica Passengers Compartment Insulations -Not for GD- Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 66082100
                        REAR INSULATION FOR TUNNEL
                        from £106.39
                        from £106.39
                        # 002
                        MPN: 68545600
                        RH REAR INSULATION FOR PLATFORM
                        from £147.69
                        from £147.69
                        # 003
                        MPN: 68545700
                        LH REAR INSULATION FOR PLATFORM
                        from £147.69
                        from £147.69
                        # 004
                        MPN: 69062200
                        INSULATION FOR BACK SEAT
                        from £178.52
                        from £178.52
                        # 005
                        MPN: 65376500
                        ANTI-VIBRATIONS
                        from £1.52
                        from £1.52
                        # 006
                        MPN: 68545400
                        INSULATION UNDER REAR WINDOW
                        from £59.83
                        from £59.83
                        # 007
                        MPN: 66403200
                        LOWER FRONT LH INSULATION
                        from £19.62
                        from £19.62
                        # 008
                        MPN: 66403000
                        LOWER FRONT RH INSULATION
                        from £57.89
                        from £57.89
                        # 009
                        MPN: 66081700
                        PLATFORM FRONT INSULATION
                        from £436.77
                        from £436.77
                        # 010
                        MPN: 64824900
                        UPPER RH INSULATION
                        from £48.12
                        from £48.12
                        # 011
                        MPN: 66404400
                        UPPER LH INSULATION
                        from £32.23
                        from £32.23
