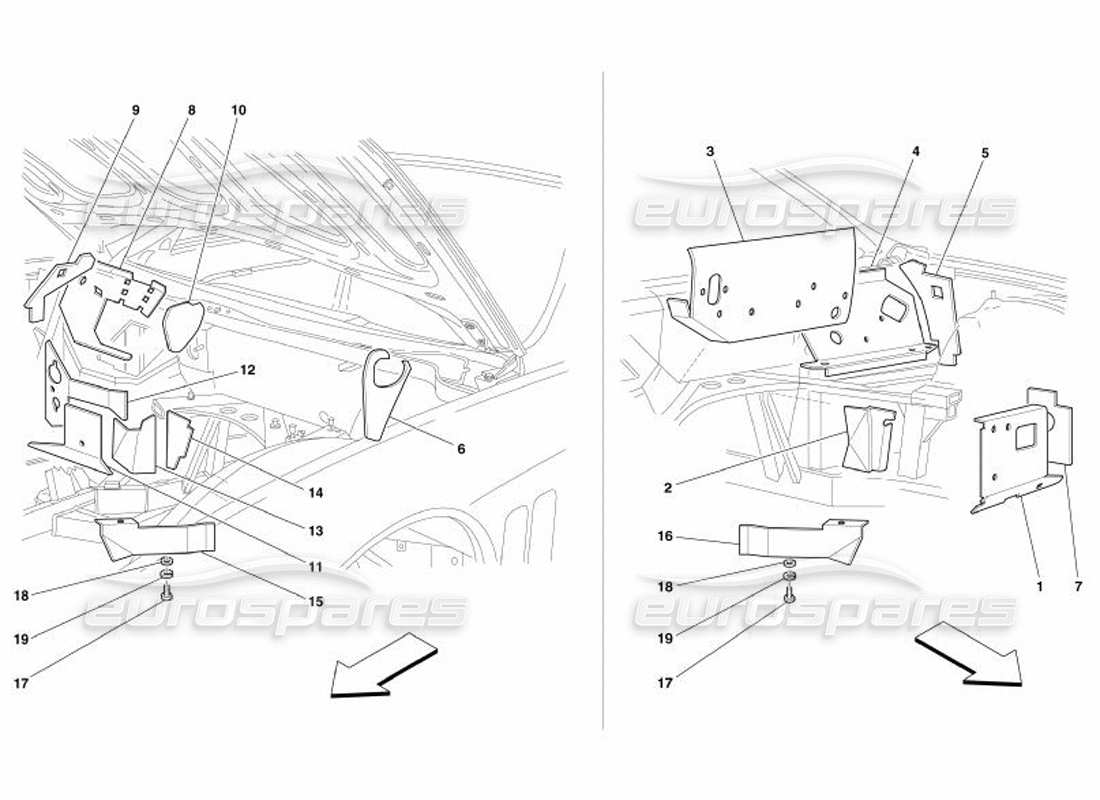

109 - Engine Compartment Fire-Proof Insulations -Valid for GD-

Ferrari 575 Superamerica Engine Compartment Fire-Proof Insulations -Valid for GD- Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 000
                                        MPN: 66927000
                                        SERIES OF OUTER FIRE-PROOF INSULATION
                                        from £684.04
                                        from £684.04
                                        SERIES OF OUTER FIRE-PROOFIN Genuine Ferrari Part - New (to order)
                                        # 001
                                        MPN: 67086900
                                        LH FIRE-PROOF LOWER FRONT INSULATION
                                        LH FIRE-PROOF LOWER FRONT INSULATION Genuine Ferrari Part - New (to order)
                                        # 002
                                        MPN: 67087200
                                        TUNNEL LH LATERAL INSULATION
                                        LH TUNNEL LATERAL INSULATION Genuine Ferrari Part - New (to order)
                                        # 003
                                        MPN: 67085900
                                        OUTER WALL CENTRAL INSULATION FOR A.C. UNIT
                                        OUTER WALL CENTRAL INSULATION Genuine Ferrari Part - New (to order)
                                        # 004
                                        MPN: 67086800
                                        UPPER LH FRONT ANTI-HEAT INSULATION
                                        LH UPPER FRONT ANTI-HEAT INSULATION Genuine Ferrari Part - New (to order)
                                        # 005
                                        MPN: 67086700
                                        LH OUTER FRONT FIRE-PROOF INSULATION
                                        LH OUTER FRONT FIRE-PROOF INSULATION Genuine Ferrari Part - New (to order)
                                        # 006
                                        MPN: 67086000
                                        LH OUTER FIRE-PROOF INSULATION FOR A.C. UNIT
                                        LH OUTER FIRE-PROOF INSULATION FOR AC UNIT Genuine Ferrari Part - New (to order)
                                        # 007
                                        MPN: 67087000
                                        LH LATERAL FIRE-PROOF INSULATION
                                        LH LATERAL FIRE-PROOF INSULATION Genuine Ferrari Part - New (to order)
                                        # 008
                                        MPN: 67086200
                                        RH UPPER FIRE-PROOF INSULATION
                                        RH UPPER FIRE-PROOF INSULATION Genuine Ferrari Part - New (to order)
                                        # 009
                                        MPN: 67086600
                                        RH OUTER FRONT FIRE-PROOF INSULATION
                                        RH OUTER FRONT FIRE-PROOF INSULATION Genuine Ferrari Part - New (to order)
                                        # 010
                                        MPN: 67086100
                                        A.C. UNIT RH INSULATION
                                        RH AC UNIT INSULATION Genuine Ferrari Part - New (to order)
                                        # 011
                                        MPN: 67086400
                                        LOWER RH FIRE-PROOF FRONT INSULATION
                                        RH LOWER FRONT FIRE-PROOF INSULATION Genuine Ferrari Part - New (to order)
                                        # 012
                                        MPN: 67086300
                                        UPPER RH FRONT FIRE-PROOF INSULATION
                                        RH UPPER FRONT FIRE-PROOF INSULATION Genuine Ferrari Part - New (to order)
                                        # 013
                                        MPN: 67086500
                                        RH FIRE-PROOF LOWER LATERAL INSULATION
                                        RH FIRE-PROOF LOWER LATERAL INSULATION Genuine Ferrari Part - New (to order)
                                        # 014
                                        MPN: 67087100
                                        TUNNEL RH LATERAL INSULATION
                                        RH TUNNEL LATERAL INSULATION Genuine Ferrari Part - New (to order)
                                        # 015
                                        MPN: 66084300
                                        RH HEAT PROTECTION SHIELD
                                        from £55.93
                                        from £55.93
                                        RH HEAT PROTECTION SHIELD. Genuine Ferrari Part - New (to order)
                                        # 016
                                        MPN: 66084400
                                        LH HEAT PROTECTION SHIELD
                                        from £55.93
                                        from £55.93
                                        LH HEAT PROTECTION SHIELD. Genuine Ferrari Part - New (to order)
                                        # 017
                                        MPN: 10902170
                                        SCREW
                                        from £0.50
                                        from £0.50
                                        SCREW. Genuine Ferrari Part - New (to order)
                                        # 018
                                        MPN: 12643770
                                        WASHER
                                        from £0.71
                                        from £0.71
                                        WASHER Genuine Ferrari Part - New In stock
                                        # 019
                                        MPN: 127494
                                        WASHER
                                        (minimum order quantity = 20)
                                        from £0.52
                                        from £0.52
                                        This part replaces part number 10516470 - and 4 more. Click to view details
                                        WASHER Genuine Ferrari Part - New In stock
                                        WASHER Genuine Maserati Part - New In stock
                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
