108 - Engine Compartment Fire-Proof Insulations -Not for GD-

Ferrari 575 Superamerica Engine Compartment Fire-Proof Insulations -Not for GD- Parts Diagram

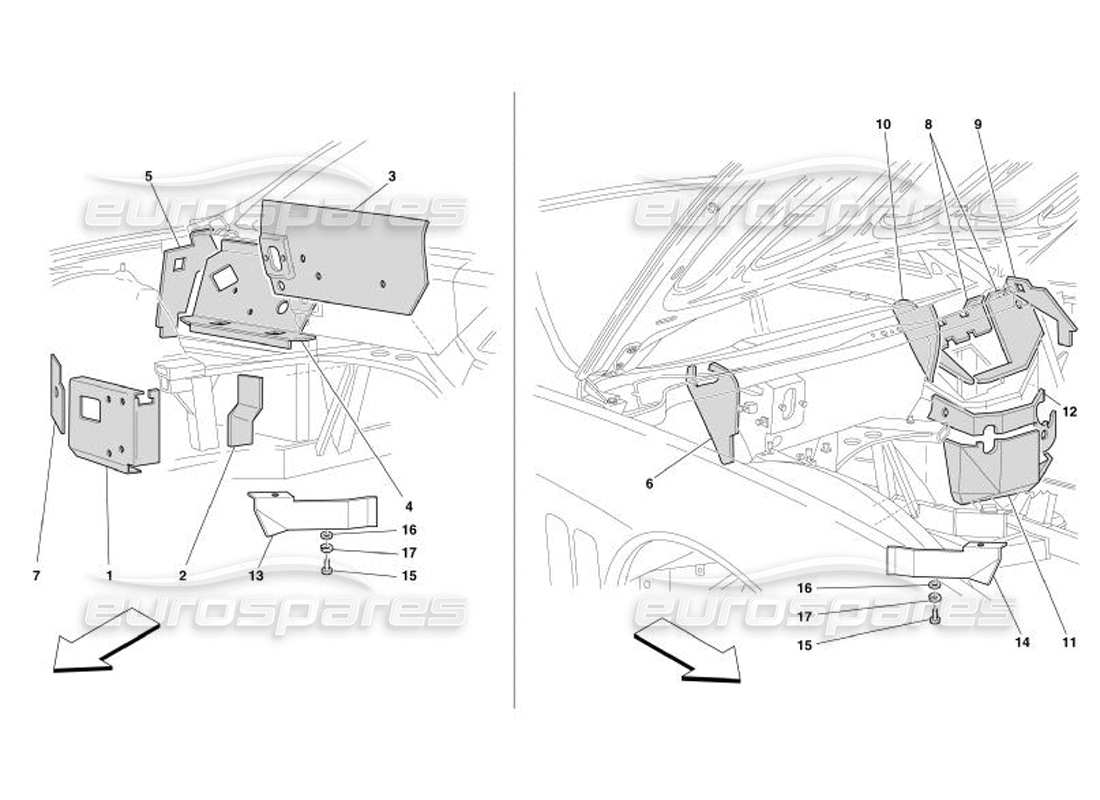

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 000
                                    MPN: 66717600
                                    SERIES OF OUTER FIRE-PROOF INSULATION
                                    from £1,110.68
                                    from £1,110.68
                                    # 001
                                    MPN: 66716700
                                    RH FIRE-PROOF LOWER FRONT INSULATION
                                    from £133.38
                                    from £133.38
                                    # 002
                                    MPN: 66716600
                                    TUNNEL RH LATERAL INSULATION
                                    from £53.22
                                    from £53.22
                                    # 003
                                    MPN: 66716100
                                    OUTER WALL FRONT INSULATION FOR A.C. UNIT
                                    from £85.86
                                    from £85.86
                                    # 004
                                    MPN: 66716400
                                    UPPER RH FRONT ANTI-HEAT INSULATION
                                    from £84.62
                                    from £84.62
                                    # 005
                                    MPN: 66717500
                                    RH OUTER FRONT FIRE-PROOF INSULATION
                                    from £45.39
                                    from £45.39
                                    # 006
                                    MPN: 66716500
                                    RH OUTER FIRE-PROOF INSULATION FOR A.C. UNIT
                                    from £36.99
                                    from £36.99
                                    # 007
                                    MPN: 66809000
                                    RH LATERAL FIRE-PROOF LOWER INSULATION
                                    from £48.03
                                    from £48.03
                                    # 008
                                    MPN: 66716200
                                    CENTRAL LH FRONT FIRE-PROOF INSULATION
                                    from £51.07
                                    from £51.07
                                    # 009
                                    MPN: 66717400
                                    LH OUTER FRONT FIRE-PROOF INSULATION
                                    from £29.03
                                    from £29.03
                                    # 010
                                    MPN: 66717000
                                    A.C. UNIT LH OUTER FIRE-PROOF INSULATION
                                    from £43.65
                                    from £43.65
                                    # 011
                                    MPN: 66717100
                                    LOWER LH FIRE-PROOF FRONT INSULATION
                                    from £150.08
                                    from £150.08
                                    # 012
                                    MPN: 66716300
                                    UPPER LH FRONT FIRE-PROOF INSULATION
                                    from £81.39
                                    from £81.39
                                    # 013
                                    MPN: 66084300
                                    RH HEAT PROTECTION SHIELD
                                    from £56.89
                                    from £56.89
                                    # 014
                                    MPN: 66084400
                                    LH HEAT PROTECTION SHIELD
                                    from £56.89
                                    from £56.89
                                    # 015
                                    MPN: 10902170
                                    SCREW
                                    from £0.47
                                    from £0.47
                                    # 016
                                    MPN: 12643770
                                    WASHER
                                    Supersession
                                    Supersession
                                    # 017
                                    MPN: 127494
                                    WASHER
                                    (minimum order quantity = 20)
                                    from £0.52
                                    from £0.52
                                    This part replaces part number 10516470 - and 4 more. Click to view details
