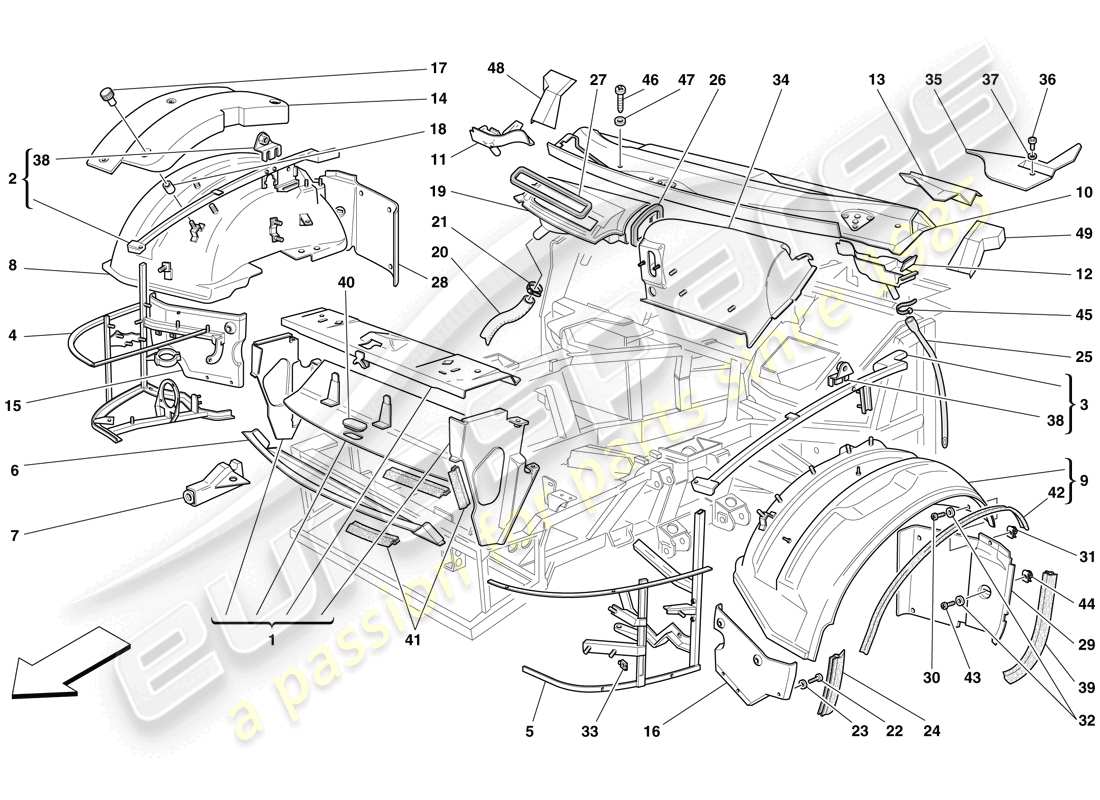

102 - Front Structures and Components

Ferrari 575 Superamerica Front Structures and Components Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 001
                                                                                    MPN: 66173100
                                                                                    COMPLETE FRONT CROSS MEMBER
                                                                                    from £1,731.96
                                                                                    from £1,731.96
                                                                                    # 002
                                                                                    MPN: 66172800
                                                                                    RH SIDE FRAME
                                                                                    -Not for GD-
                                                                                    from £865.50
                                                                                    from £865.50
                                                                                    # 002
                                                                                    MPN: 66634600
                                                                                    RH SIDE FRAME
                                                                                    -Valid for GD-
                                                                                    from £592.04
                                                                                    from £592.04
                                                                                    # 003
                                                                                    MPN: 66172900
                                                                                    LH SIDE FRAME
                                                                                    -Not for GD-
                                                                                    from £514.34
                                                                                    from £514.34
                                                                                    # 003
                                                                                    MPN: 66634700
                                                                                    LH SIDE FRAME
                                                                                    -Valid for GD-
                                                                                    from £592.04
                                                                                    from £592.04
                                                                                    # 004
                                                                                    MPN: 66172600
                                                                                    RH FRONT FRAME
                                                                                    from £777.71
                                                                                    from £777.71
                                                                                    # 005
                                                                                    MPN: 66172700
                                                                                    LH FRONT FRAME
                                                                                    from £777.71
                                                                                    from £777.71
                                                                                    # 006
                                                                                    MPN: 66173600
                                                                                    LOWER CONVEYOR
                                                                                    from £899.63
                                                                                    from £899.63
                                                                                    # 007
                                                                                    MPN: 66170900
                                                                                    TOW HOOK BRACKET
                                                                                    from £218.44
                                                                                    from £218.44
                                                                                    # 008
                                                                                    MPN: 66286800
                                                                                    RH FRONT WHEELHOUSE
                                                                                    -Not for GD-
                                                                                    from £394.98
                                                                                    from £394.98
                                                                                    # 008
                                                                                    MPN: 66634800
                                                                                    RH FRONT WHEELHOUSE
                                                                                    -Valid for GD-
                                                                                    from £568.45
                                                                                    from £568.45
                                                                                    # 009
                                                                                    MPN: 66287400
                                                                                    LH FRONT WHEELHOUSE
                                                                                    -Not for GD-
                                                                                    from £355.14
                                                                                    from £355.14
                                                                                    # 009
                                                                                    MPN: 66634900
                                                                                    LH FRONT WHEELHOUSE
                                                                                    -Valid for GD-
                                                                                    from £568.45
                                                                                    from £568.45
                                                                                    # 010
                                                                                    MPN: 64787200
                                                                                    WINDSHIELD LOWER CROSS MEMBER
                                                                                    -Not for GD-
                                                                                    from £197.46
                                                                                    from £197.46
                                                                                    This part replaces part number 64741300
                                                                                    # 010
                                                                                    MPN: 65210700
                                                                                    WINDSHIELD LOWER CROSS MEMBER
                                                                                    -Valid for GD-
                                                                                    from £765.12
                                                                                    from £765.12
                                                                                    # 011
                                                                                    MPN: 69113900
                                                                                    RH COMPLETE FRONT INSERT
                                                                                    from £57.95
                                                                                    from £57.95
                                                                                    # 012
                                                                                    MPN: 69114000
                                                                                    LH COMPLETE FRONT INSERT
                                                                                    from £57.95
                                                                                    from £57.95
                                                                                    # 013
                                                                                    MPN: 64561700
                                                                                    RH LOWER SEAL
                                                                                    from £73.38
                                                                                    from £73.38
                                                                                    # 013
                                                                                    MPN: 64561800
                                                                                    LH LOWER SEAL
                                                                                    from £51.37
                                                                                    from £51.37
                                                                                    # 014
                                                                                    MPN: 66611200
                                                                                    RH WHEELHOUSE COVER
                                                                                    -Not for GD-
                                                                                    from £28.89
                                                                                    from £28.89
                                                                                    # 014
                                                                                    MPN: 66611300
                                                                                    LH WHEELHOUSE COVER
                                                                                    from £28.89
                                                                                    from £28.89
                                                                                    # 014
                                                                                    MPN: 67083900
                                                                                    RH WHEELHOUSE COVER
                                                                                    -Valid for GD-
                                                                                    from £59.77
                                                                                    from £59.77
                                                                                    # 015
                                                                                    MPN: 66085700
                                                                                    RH FRONT GRAVEL GUARD
                                                                                    from £107.27
                                                                                    from £107.27
                                                                                    # 016
                                                                                    MPN: 66085800
                                                                                    LH FRONT GRAVEL GUARD
                                                                                    from £123.09
                                                                                    from £123.09
                                                                                    # 017
                                                                                    MPN: 63198900
                                                                                    RING NUT
                                                                                    from £19.89
                                                                                    from £19.89
                                                                                    # 018
                                                                                    MPN: 13604115
                                                                                    SPACER
                                                                                    from £0.91
                                                                                    from £0.91
                                                                                    This part replaces part number 13604111
                                                                                    # 019
                                                                                    MPN: 67801400
                                                                                    AIR DUCTING
                                                                                    -Not for GD-
                                                                                    from £62.01
                                                                                    from £62.01
                                                                                    This part replaces part number 63200700 - and 2 more. Click to view details
                                                                                    # 019
                                                                                    MPN: 67801500
                                                                                    AIR DUCTING
                                                                                    -Valid for GD-
                                                                                    from £118.46
                                                                                    from £118.46
                                                                                    This part replaces part number 65500700
                                                                                    # 020
                                                                                    MPN: 64537300
                                                                                    WATER EXHAUST TUBE
                                                                                    from £27.68
                                                                                    from £27.68
                                                                                    # 021
                                                                                    MPN: 13000690
                                                                                    SCREW COLLAR
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    This part replaces part number 12174090 - and 2 more. Click to view details
                                                                                    # 022
                                                                                    MPN: 13276477
                                                                                    SCREW
                                                                                    from £0.49
                                                                                    from £0.49
                                                                                    # 023
                                                                                    MPN: 12643778
                                                                                    WASHER
                                                                                    from £0.49
                                                                                    from £0.49
                                                                                    This part replaces part number 12643777 - and 1 more. Click to view details
                                                                                    # 024
                                                                                    MPN: 65260100
                                                                                    GASKET
                                                                                    from £1.82
                                                                                    from £1.82
                                                                                    # 025
                                                                                    MPN: 65195300
                                                                                    WATER EXHAUST TUBE
                                                                                    from £4.50
                                                                                    from £4.50
                                                                                    # 026
                                                                                    MPN: 65192200
                                                                                    GASKET
                                                                                    from £2.90
                                                                                    from £2.90
                                                                                    # 027
                                                                                    MPN: 63201100
                                                                                    GASKET
                                                                                    from £6.11
                                                                                    from £6.11
                                                                                    # 028
                                                                                    MPN: 64560400
                                                                                    RH LOWER FRONT WHEELHOUSE
                                                                                    from £89.25
                                                                                    from £89.25
                                                                                    # 029
                                                                                    MPN: 64560500
                                                                                    LH LOWER FRONT WHEELHOUSE
                                                                                    from £84.00
                                                                                    from £84.00
                                                                                    # 030
                                                                                    MPN: 13276477
                                                                                    SCREW
                                                                                    from £0.50
                                                                                    from £0.50
                                                                                    # 031
                                                                                    MPN: 62766300
                                                                                    CLIP
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    # 032
                                                                                    MPN: 12643778
                                                                                    WASHER
                                                                                    from £0.49
                                                                                    from £0.49
                                                                                    This part replaces part number 12643777 - and 1 more. Click to view details
                                                                                    # 033
                                                                                    MPN: 60659100
                                                                                    NUT WITH CAGE
                                                                                    from £0.58
                                                                                    from £0.58
                                                                                    This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                                                                    # 034
                                                                                    MPN: 170688
                                                                                    PROTECTION FOR AIR CONDITIONING
                                                                                    -Valid for GD-
                                                                                    from £286.34
                                                                                    from £286.34
                                                                                    # 034
                                                                                    MPN: 185924
                                                                                    PROTECTION FOR AIR CONDITIONING
                                                                                    -Not for GD-
                                                                                    from £324.95
                                                                                    from £324.95
                                                                                    # 035
                                                                                    MPN: 65194100
                                                                                    RH LATERAL COVER
                                                                                    from £6.09
                                                                                    from £6.09
                                                                                    # 035
                                                                                    MPN: 65194200
                                                                                    LH LATERAL COVER
                                                                                    from £11.08
                                                                                    from £11.08
                                                                                    # 036
                                                                                    MPN: 64460500
                                                                                    SCREW
                                                                                    from £0.83
                                                                                    from £0.83
                                                                                    # 037
                                                                                    MPN: 12638177
                                                                                    WASHER
                                                                                    from £1.08
                                                                                    from £1.08
                                                                                    This part replaces part number 12638108 - and 1 more. Click to view details
                                                                                    # 038
                                                                                    MPN: 65886700
                                                                                    HOOD GAS SHOCK ABSORBER BRACKET
                                                                                    from £16.07
                                                                                    from £16.07
                                                                                    # 039
                                                                                    MPN: 65747600
                                                                                    GASKET
                                                                                    from £3.70
                                                                                    from £3.70
                                                                                    # 040
                                                                                    MPN: 62797700
                                                                                    PLUG
                                                                                    from £2.12
                                                                                    from £2.12
                                                                                    # 041
                                                                                    MPN: 63403200
                                                                                    GASKET
                                                                                    from £9.14
                                                                                    from £9.14
                                                                                    # 042
                                                                                    MPN: 62926100
                                                                                    GASKET
                                                                                    from £86.48
                                                                                    from £86.48
                                                                                    # 043
                                                                                    MPN: 15688375
                                                                                    SCREW
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    This part replaces part number 15688306 which we have in stock
                                                                                    # 044
                                                                                    MPN: 14202782
                                                                                    BLOCK
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    # 045
                                                                                    MPN: 145855
                                                                                    CLAMP
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    This part replaces part number 14560287 - and 1 more. Click to view details
                                                                                    # 046
                                                                                    MPN: 15915977
                                                                                    SCREW
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    This part replaces part number 64428200
                                                                                    # 047
                                                                                    MPN: 13338047
                                                                                    WASHER
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    This part replaces part number 62765300
                                                                                    # 048
                                                                                    MPN: 69071600
                                                                                    RH LOWER KNOT WINDSCREEN FINISHING
                                                                                    # 049
                                                                                    MPN: 69071400
                                                                                    LH LOWER KNOT WINDSCREEN FINISHING
                                                                                    from £119.32
                                                                                    from £119.32
