101 - Frame and Structures

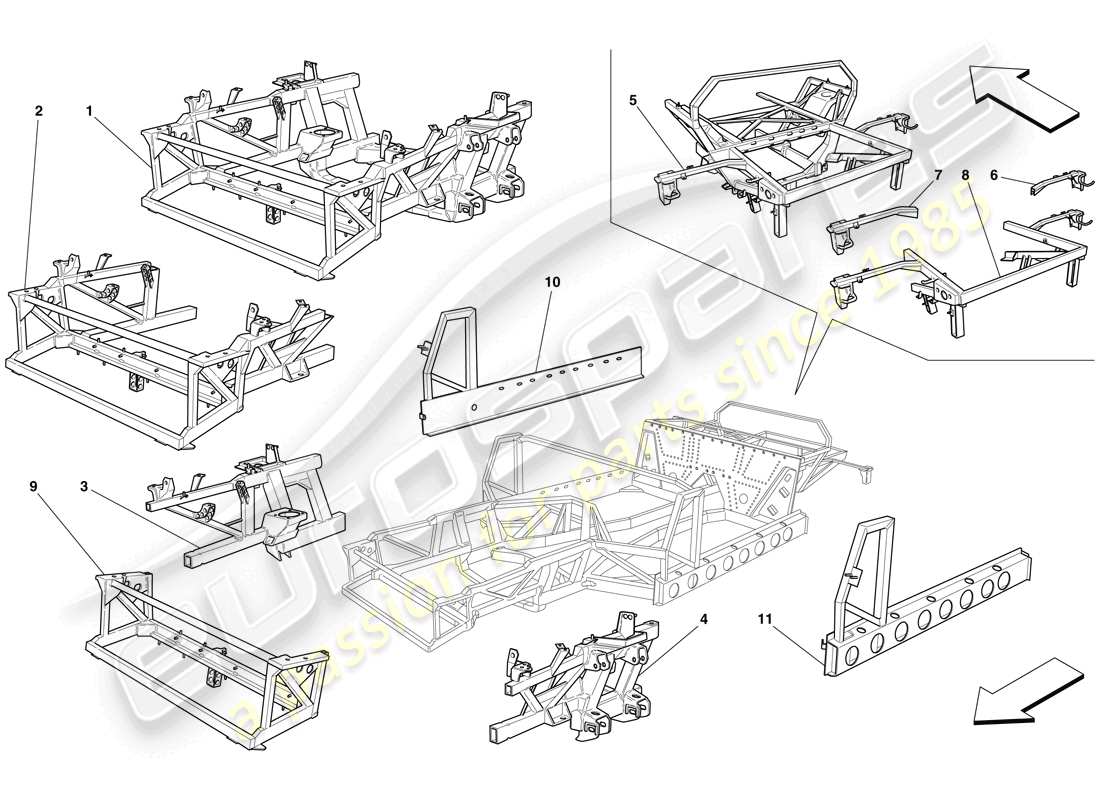

Ferrari 575 Superamerica Frame and Structures Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 70000155
COMPLETE FRONT FRAME
-Not for GD-
from £7,415.90
from £7,415.90
# 001
MPN: 70000157
COMPLETE FRONT FRAME
-Valid for GD-
from £9,862.84
from £9,862.84
# 002
MPN: 70000156
COMPLETE FRONT HALF FRAME
-Not for GD-
from £7,344.75
from £7,344.75
# 002
MPN: 70000158
COMPLETE FRONT HALF FRAME
-Valid for GD-
from £5,465.28
from £5,465.28
# 003
MPN: 70000162
COMPLETE RH FRONT SIDE FRAME
from £4,141.68
from £4,141.68
# 004
MPN: 70000160
COMPLETE LH FRONT SIDE FRAME
from £4,141.68
from £4,141.68
# 005
MPN: 70001117
COMPLETE REAR FRAME
-Not for GD-
from £7,055.73
from £7,055.73
# 005
MPN: 70001118
COMPLETE REAR FRAME
-Valid for GD-
from £7,055.73
from £7,055.73
# 006
MPN: 70000163
RH CROSS MEMBER
from £803.72
from £803.72
# 007
MPN: 70000164
LH CROSS MEMBER
from £803.72
from £803.72
# 008
MPN: 70000141
Rear Frame
from £763.31
from £763.31
# 009
MPN: 70000176
FRONT FRAME
-Not for GD-
from £2,067.39
from £2,067.39
# 009
MPN: 70000177
FRONT FRAME
-Valid for GD-
from £2,067.39
from £2,067.39
# 010
MPN: 70001115
RH SIDE SPAR
from £739.59
from £739.59
# 011
MPN: 70001116
LH SIDE SPAR
from £739.59
from £739.59
