ferrari 575 superamerica spare wheel and accessories parts diagram

065 - Spare Wheel and Accessories

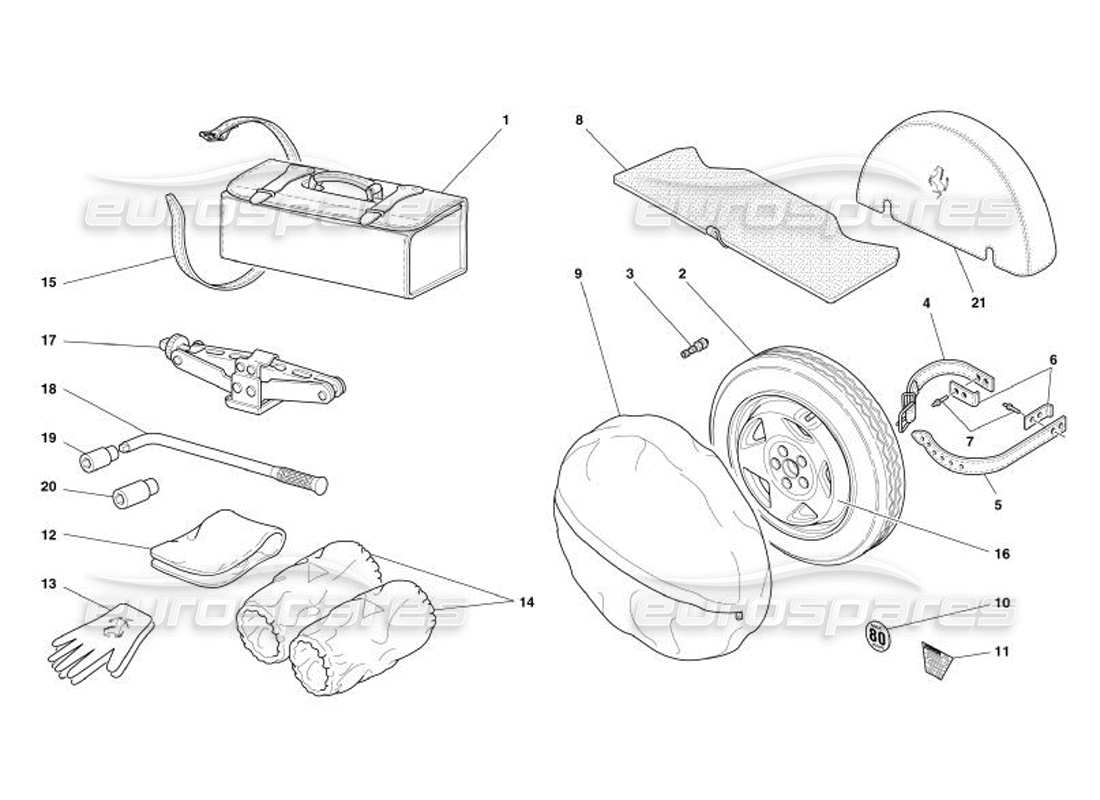

Ferrari 575 Superamerica Spare Wheel and Accessories Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 000
                                      MPN: 171488
                                      COMPLETE EMERGENCY TOOL KIT BAG
                                      from £348.77
                                      from £348.77
                                      This part replaces part number 163059
                                      # 001
                                      MPN: 159545
                                      EMPTY TOOL KIT BAG
                                      from £385.44
                                      from £385.44
                                      This part replaces part number 95992156
                                      # 002
                                      -
                                      TYRE GOOD-YEAR T125/80 R17
                                      # 003
                                      MPN: 174258
                                      VALVE
                                      from £4.96
                                      from £4.96
                                      # 004
                                      MPN: 65122800
                                      BELT WITH BUCKLE
                                      from £37.14
                                      from £37.14
                                      This part replaces part number 65122100
                                      # 005
                                      MPN: 65122900
                                      BELT
                                      from £37.84
                                      from £37.84
                                      This part replaces part number 65122100
                                      # 006
                                      MPN: 65123000
                                      SMALL PLATE
                                      from £3.56
                                      from £3.56
                                      This part replaces part number 63604700
                                      # 007
                                      MPN: 61741600
                                      RIVET
                                      from £0.51
                                      from £0.51
                                      # 008
                                      MPN: 65504200
                                      TRUNK BOTTOM COVER
                                      from £146.70
                                      from £146.70
                                      This part replaces part number 65334600
                                      # 009
                                      MPN: 65252900
                                      COVER FOR WHEEL
                                      from £36.84
                                      from £36.84
                                      # 010
                                      MPN: 153815

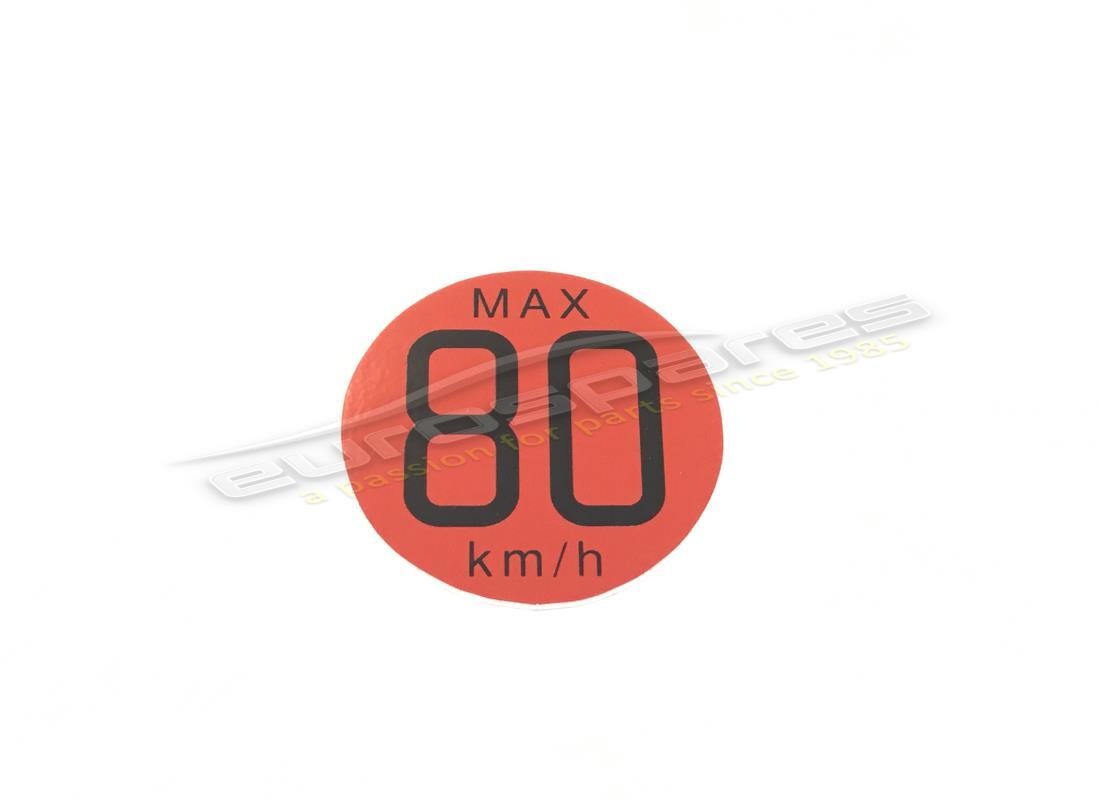

                                      ADHESIVE PLATE
                                      Not for USA and CDN
                                      from £9.08
                                      from £9.08
                                      This part replaces part number 133594
                                      # 011
                                      MPN: 139886
                                      ADHESIVE PLATE
                                      Valid for USA and CDN
                                      from £9.02
                                      from £9.02
                                      # 012
                                      MPN: 65253100
                                      ACCESSORIES ENVELOPE
                                      from £25.20
                                      from £25.20
                                      # 013
                                      MPN: 65253300
                                      GLOVES
                                      from £19.46
                                      from £19.46
                                      # 014
                                      MPN: 65253200
                                      SLEEVE
                                      from £4.45
                                      from £4.45
                                      # 015
                                      MPN: 65123200
                                      BELT FOR TOOL BAG
                                      from £28.01
                                      from £28.01
                                      This part replaces part number 65122100
                                      # 016
                                      MPN: 171989
                                      SPARE WHEEL RIM 31/2 B X 17
                                      from £825.02
                                      from £825.02
                                      This part replaces part number 171991
                                      # 017
                                      MPN: 171489
                                      JACK FOR CAR LIFTING
                                      not as spare part - use part number: 70000888
                                      from £643.50
                                      from £643.50
                                      # 018
                                      MPN: 171490
                                      Key
                                      from £60.55
                                      from £60.55
                                      # 019
                                      MPN: 171491
                                      SOCKET WRENCH 17/19
                                      from £35.45
                                      from £35.45
                                      # 020
                                      MPN: 171492
                                      SOCKET WRENCH FOR WHEEL SCREWS
                                      from £45.85
                                      from £45.85
                                      # 021
                                      MPN: 655043..
                                      LEATHER COVER
                                      Supersession
                                      Supersession
