Ferrari 575 Superamerica Wheels Parts Diagram

057 - Wheels

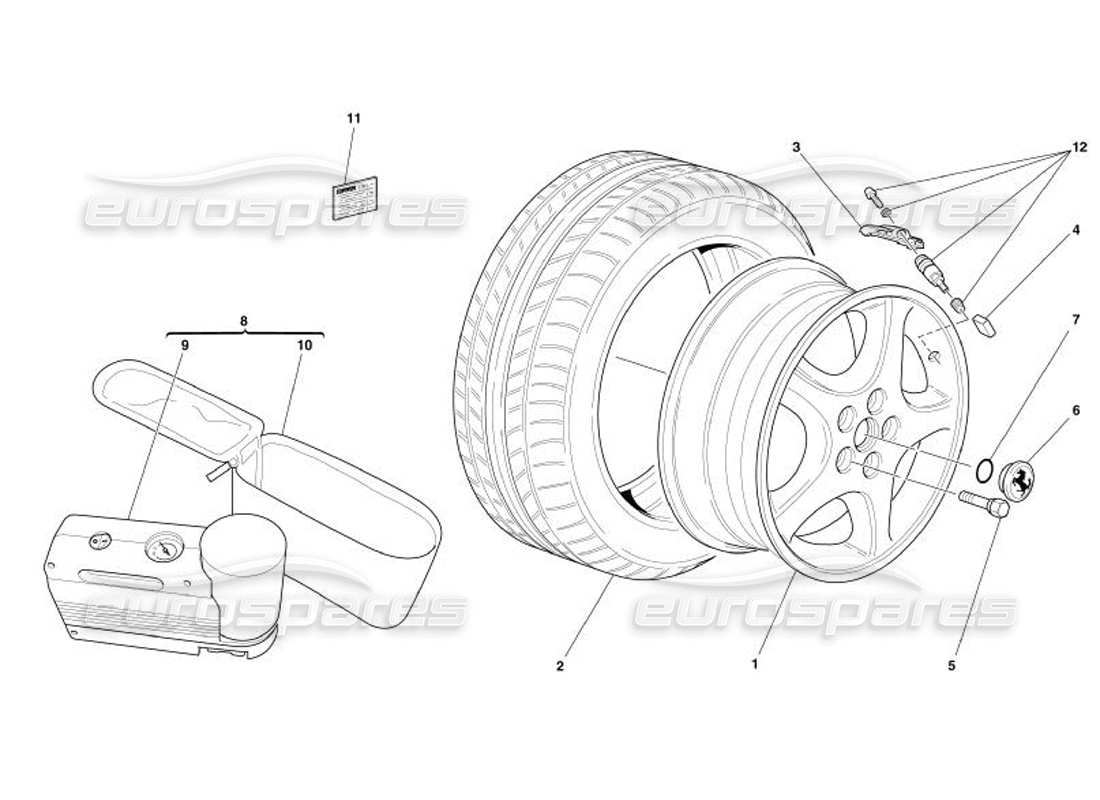

Ferrari 575 Superamerica Wheels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 188476
            REAR WHEEL RIM 101/2JX19 (SPLIT RIMS)
            - Optional -
            from £3,684.52
            from £3,684.52
            # 001
            MPN: 210660
            FRONT WHEEL RIM 81/2JX19 (SPLIT RIMS)
            - Optional -
            from £2,947.61
            from £2,947.61
            This part replaces part number 188475 - and 1 more. Click to view details
            # 002
            -
            FRONT TYRE BRIDGESTONE
            # 002
            -
            REAR TYRE BRIDGESTONE
            # 003
            MPN: 185327
            TYRES PRESSURE CONTROL SENSOR
            Valid for USA and CDN
            Supersession
            Supersession
            # 003
            MPN: 312450
            TYRE PRESSURE SENSOR 433 MHZ
            Not for USA and CDN - Use valve 185328 with TPMS Sensor - 224549
            from £91.76
            from £91.76
            This part replaces part number 224549
            # 004
            MPN: 192934
            COUNTER-WEIGHT - 90GR.
            from £2.28
            from £2.28
            This part replaces part number 155302 - and 1 more. Click to view details
            # 005
            MPN: 181291
            STUD
            from £20.72
            from £20.72
            # 005
            MPN: 70001200
            TITANIUM WHEEL BOLT KIT
            includes 20x titanium wheel Stud
            from £1,178.40
            from £1,178.40
            # 006
            MPN: 340066
            WHEEL BADGE
            from £5.33
            from £5.33
            This part replaces part number 226245 - and 2 more. Click to view details
            # 007
            MPN: 120065
            GASKET
            from £0.86
            from £0.86
            # 008
            MPN: 68926600
            TYRE REPAIR CYLINDER BOTTLE
            (UK shipment only or Collection)
            Supersession
            Supersession
            This part replaces part number 152367 which we have in stock - and 3 more. Click to view details
            # 009
            MPN: 220754
            TYRE REPAIR CYLINDER BOTTLE
            (UK shipment only or Collection)
            from £62.41
            from £62.41
            This part replaces part number 215486
            # 009
            MPN: 220754
            TYRE REPAIR CYLINDER BOTTLE
            (UK shipment only or Collection)
            from £62.41
            from £62.41
            This part replaces part number 215486
            # 010
            MPN: 68926700
            PORTFOLIO
            Supersession
            Supersession
            # 011
            MPN: 216412
            TYRE PRESSURE PLATE
            BRIDGESTONE 19 - Not for USA and CDN
            from £3.60
            from £3.60
            # 011
            MPN: 216419
            TYRE PRESSURE PLATE
            BRIDGESTONE 19 - Valid for USA and CDN
            from £21.16
            from £21.16
            # 012
            MPN: 192725
            VALVE
            from £101.04
            from £101.04
