054 - Front Suspension - Wishbones and Stabilizer Bar

Ferrari 575 Superamerica Front Suspension - Wishbones and Stabilizer Bar Parts Diagram

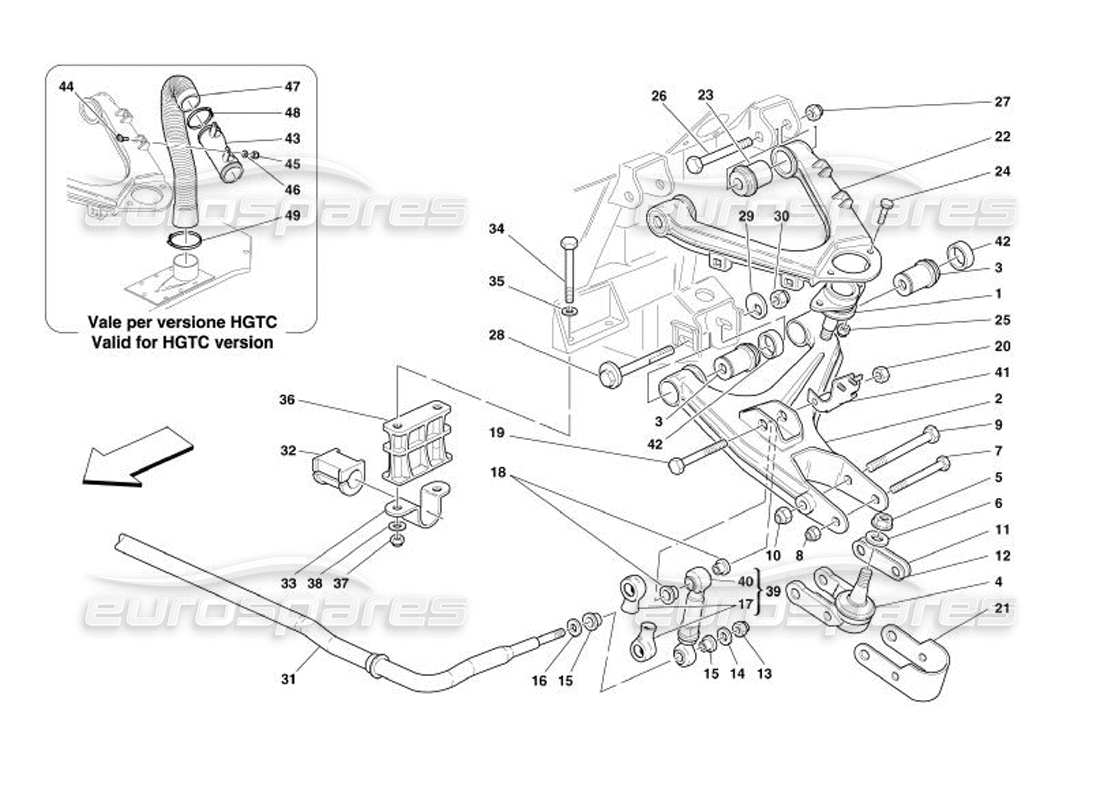

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 132776
                                                                                  UPPER BALL JOINT
                                                                                  from £51.47
                                                                                  from £51.47
                                                                                  # 002
                                                                                  MPN: 168388
                                                                                  RH LOWER LEVER
                                                                                  from £210.61
                                                                                  from £210.61
                                                                                  This part replaces part number 154624 - and 4 more. Click to view details
                                                                                  # 002
                                                                                  MPN: 168727
                                                                                  LH LOWER LEVER
                                                                                  from £269.83
                                                                                  from £269.83
                                                                                  This part replaces part number 154623 - and 4 more. Click to view details
                                                                                  # 003
                                                                                  MPN: 186494
                                                                                  FLAMBLOCK FOR LOWER FORK
                                                                                  from £109.27
                                                                                  from £109.27
                                                                                  # 004
                                                                                  MPN: 154396
                                                                                  LOWER BALL JOINT
                                                                                  from £50.00
                                                                                  from £50.00
                                                                                  # 005
                                                                                  MPN: 149807
                                                                                  NUT
                                                                                  from £0.62
                                                                                  from £0.62
                                                                                  # 006
                                                                                  MPN: 155002
                                                                                  WASHER
                                                                                  from £6.93
                                                                                  from £6.93
                                                                                  # 007
                                                                                  MPN: 15971734
                                                                                  SCREW
                                                                                  from £25.41
                                                                                  from £25.41
                                                                                  This part replaces part number 151308
                                                                                  # 008
                                                                                  MPN: 104114
                                                                                  NUT
                                                                                  Supersession
                                                                                  Supersession
                                                                                  This part replaces part number 15503711 - and 1 more. Click to view details
                                                                                  # 009
                                                                                  MPN: 153504
                                                                                  SCREW
                                                                                  from £14.18
                                                                                  from £14.18
                                                                                  # 010
                                                                                  MPN: 102825
                                                                                  NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 95900617
                                                                                  # 011
                                                                                  MPN: 101022
                                                                                  SETTING PLATE
                                                                                  from £1.22
                                                                                  from £1.22
                                                                                  This part replaces part number 153963
                                                                                  # 012
                                                                                  MPN: 101022
                                                                                  SETTING PLATE
                                                                                  Thickness mm. 1.50 - Possible fitting
                                                                                  from £1.22
                                                                                  from £1.22
                                                                                  This part replaces part number 153963
                                                                                  # 012
                                                                                  MPN: 115073
                                                                                  SETTING PLATE
                                                                                  Thickness mm. 1.20 - Possible fitting
                                                                                  from £0.79
                                                                                  from £0.79
                                                                                  This part replaces part number 153964
                                                                                  # 012
                                                                                  MPN: 164484
                                                                                  SETTING PLATE
                                                                                  Thickness mm. 1.00 - Possible fitting
                                                                                  from £18.33
                                                                                  from £18.33
                                                                                  # 012
                                                                                  MPN: 164485
                                                                                  SETTING PLATE
                                                                                  Thickness mm. 2.00 - Possible fitting
                                                                                  from £1.63
                                                                                  from £1.63
                                                                                  # 013
                                                                                  MPN: 148020
                                                                                  NUT
                                                                                  from £2.53
                                                                                  from £2.53
                                                                                  This part replaces part number 102825 - and 3 more. Click to view details
                                                                                  # 014
                                                                                  MPN: 152249
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 015
                                                                                  MPN: 148773
                                                                                  SPACER BUSHING
                                                                                  from £5.46
                                                                                  from £5.46
                                                                                  # 016
                                                                                  MPN: 149063
                                                                                  WASHER
                                                                                  from £1.12
                                                                                  from £1.12
                                                                                  # 017
                                                                                  MPN: 148772
                                                                                  PROTECTION
                                                                                  from £7.62
                                                                                  from £7.62
                                                                                  # 018
                                                                                  MPN: 148773
                                                                                  SPACER
                                                                                  from £5.46
                                                                                  from £5.46
                                                                                  # 019
                                                                                  MPN: 15541021
                                                                                  SCREW
                                                                                  from £1.26
                                                                                  from £1.26
                                                                                  # 020
                                                                                  MPN: 102825
                                                                                  NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 95900617
                                                                                  # 021
                                                                                  MPN: 157812
                                                                                  BALL JOINT PROTECTION
                                                                                  from £43.52
                                                                                  from £43.52
                                                                                  # 022
                                                                                  MPN: 212853
                                                                                  RH UPPER LEVER
                                                                                  from £218.13
                                                                                  from £218.13
                                                                                  # 022
                                                                                  MPN: 212854
                                                                                  LH UPPER LEVER
                                                                                  from £218.13
                                                                                  from £218.13
                                                                                  # 023
                                                                                  MPN: 186493
                                                                                  FLAMBLOCK FOR UPPER SUPPORT
                                                                                  from £77.57
                                                                                  from £77.57
                                                                                  This part replaces part number 161571 which we have in stock - and 1 more. Click to view details
                                                                                  # 024
                                                                                  MPN: 16043624
                                                                                  SCREW
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 16043621
                                                                                  # 025
                                                                                  MPN: 104030
                                                                                  NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 16104125
                                                                                  # 026
                                                                                  MPN: 106419
                                                                                  SCREW
                                                                                  from £8.11
                                                                                  from £8.11
                                                                                  This part replaces part number 100808 - and 9 more. Click to view details
                                                                                  # 027
                                                                                  MPN: 102825
                                                                                  NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 95900617
                                                                                  # 028
                                                                                  MPN: 150789
                                                                                  ECCENTRIC SCREW
                                                                                  from £37.94
                                                                                  from £37.94
                                                                                  # 029
                                                                                  MPN: 175077
                                                                                  ECCENTRIC WASHER
                                                                                  from £7.50
                                                                                  from £7.50
                                                                                  This part replaces part number 150790 which we have in stock - and 2 more. Click to view details
                                                                                  # 030
                                                                                  MPN: 150238
                                                                                  NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12575821 - and 2 more. Click to view details
                                                                                  # 031
                                                                                  MPN: 163204
                                                                                  FRONT ANTI-ROLL BAR -Ø 27
                                                                                  from £556.99
                                                                                  from £556.99
                                                                                  # 032
                                                                                  MPN: 208324
                                                                                  BAR BUFFER -Ø 27
                                                                                  from £21.07
                                                                                  from £21.07
                                                                                  This part replaces part number 163212
                                                                                  # 034
                                                                                  MPN: 16045024
                                                                                  SCREW
                                                                                  (minimum order quantity = 10)
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 125924 - and 1 more. Click to view details
                                                                                  # 035
                                                                                  MPN: 14496524
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 14496525 - and 1 more. Click to view details
                                                                                  # 036
                                                                                  MPN: 190282
                                                                                  COMPLETE SPACER
                                                                                  from £9.83
                                                                                  from £9.83
                                                                                  This part replaces part number 158048 which we have in stock
                                                                                  # 037
                                                                                  MPN: 104030
                                                                                  NUT
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 16104125
                                                                                  # 038
                                                                                  MPN: 14496524
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 14496525 - and 1 more. Click to view details
                                                                                  # 039
                                                                                  MPN: 183711
                                                                                  RH COMPLETE TIE ROD
                                                                                  from £183.42
                                                                                  from £183.42
                                                                                  # 039
                                                                                  MPN: 183712
                                                                                  LH COMPLETE TIE ROD
                                                                                  from £183.42
                                                                                  from £183.42
                                                                                  # 040
                                                                                  MPN: 183831
                                                                                  RH BALL JOINT TIE ROD
                                                                                  from £142.86
                                                                                  from £142.86
                                                                                  # 040
                                                                                  MPN: 183832
                                                                                  LH BALL JOINT TIE ROD
                                                                                  from £142.86
                                                                                  from £142.86
                                                                                  # 041
                                                                                  MPN: 188526
                                                                                  RH FRONT BRACKET
                                                                                  from £20.49
                                                                                  from £20.49
                                                                                  # 041
                                                                                  MPN: 188528
                                                                                  LH FRONT BRACKET
                                                                                  from £20.49
                                                                                  from £20.49
                                                                                  # 042
                                                                                  MPN: 187013
                                                                                  SPACER FOR FLAMBLOCK
                                                                                  from £2.08
                                                                                  from £2.08
                                                                                  # 043
                                                                                  MPN: 213541
                                                                                  LH SHAPED TUBE
                                                                                  CCM Version
                                                                                  from £88.29
                                                                                  from £88.29
                                                                                  # 043
                                                                                  MPN: 213602
                                                                                  RH SHAPED TUBE
                                                                                  CCM Version
                                                                                  from £88.29
                                                                                  from £88.29
                                                                                  # 044
                                                                                  MPN: 14662695
                                                                                  SCREW WITH CAGE
                                                                                  CCM Version
                                                                                  from £2.31
                                                                                  from £2.31
                                                                                  # 045
                                                                                  MPN: 102741
                                                                                  NUT
                                                                                  CCM Version
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                  # 046
                                                                                  MPN: 12646601
                                                                                  WASHER
                                                                                  CCM Version
                                                                                  from £0.71
                                                                                  from £0.71
                                                                                  # 047
                                                                                  MPN: 213621
                                                                                  AIR DELIVERY TUBE FOR FRONT BRAKES
                                                                                  CCM Version
                                                                                  from £120.06
                                                                                  from £120.06
                                                                                  # 048
                                                                                  MPN: 13000790
                                                                                  SCREW COLLAR
                                                                                  CCM Version
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12173190 - and 1 more. Click to view details
                                                                                  # 049
                                                                                  MPN: 13000890
                                                                                  SCREW COLLAR
                                                                                  CCM Version
                                                                                  from £0.64
                                                                                  from £0.64
                                                                                  This part replaces part number 12173290 - and 2 more. Click to view details
