051 - Steering Column

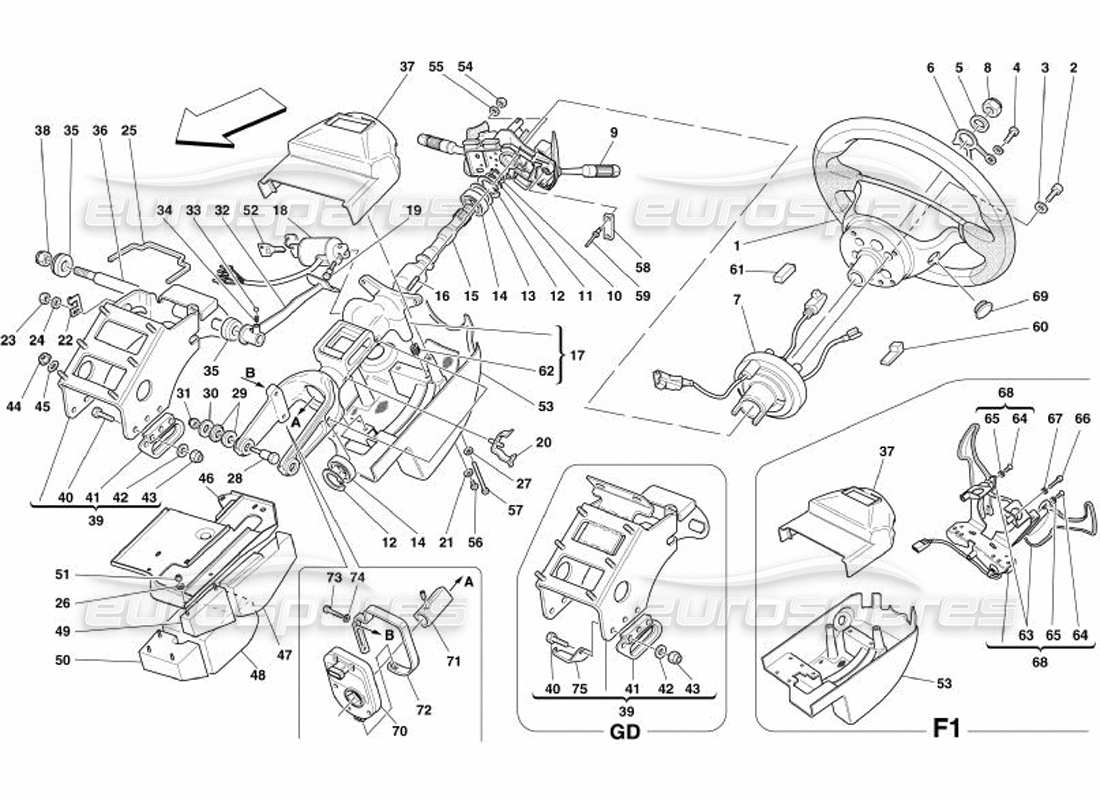

Ferrari 575 Superamerica Steering Column Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                            #
                                                                                                                            Part number
                                                                                                                            Description
                                                                                                                            Price
                                                                                                                            # 001
                                                                                                                            MPN: 672876..
                                                                                                                            COMPLETE STEERING WHEEL
                                                                                                                            - Without air bag module - With carbon insert - Optional
                                                                                                                            from £4,995.00
                                                                                                                            from £4,995.00
                                                                                                                            # 001
                                                                                                                            MPN: 693857..
                                                                                                                            COMPLETE STEERING WHEEL
                                                                                                                            -Without air bag module-
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 002
                                                                                                                            MPN: 13271914
                                                                                                                            SCREW
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 13271911 - and 1 more. Click to view details
                                                                                                                            # 003
                                                                                                                            MPN: 10615274
                                                                                                                            WASHER
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 10615270 - and 2 more. Click to view details
                                                                                                                            # 004
                                                                                                                            MPN: 11021111
                                                                                                                            SCREW
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 131745 which we have in stock
                                                                                                                            # 005
                                                                                                                            MPN: 10730921
                                                                                                                            WASHER
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 006
                                                                                                                            MPN: 157639
                                                                                                                            SPRING
                                                                                                                            from £4.90
                                                                                                                            from £4.90
                                                                                                                            # 007
                                                                                                                            MPN: 169471
                                                                                                                            SPIRAL CONTACT
                                                                                                                            from £111.07
                                                                                                                            from £111.07
                                                                                                                            This part replaces part number 155394
                                                                                                                            # 008
                                                                                                                            MPN: 101648
                                                                                                                            NUT
                                                                                                                            from £1.71
                                                                                                                            from £1.71
                                                                                                                            This part replaces part number 106082
                                                                                                                            # 010
                                                                                                                            MPN: 11066876
                                                                                                                            SEEGER RING
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 11066875
                                                                                                                            # 011
                                                                                                                            MPN: 134070
                                                                                                                            SEEGER RING
                                                                                                                            THINCKNESS mm. 1.0
                                                                                                                            from £1.82
                                                                                                                            from £1.82
                                                                                                                            # 011
                                                                                                                            MPN: 134071
                                                                                                                            SEEGER RING
                                                                                                                            THICKNESS MM. 1.1
                                                                                                                            from £0.83
                                                                                                                            from £0.83
                                                                                                                            # 011
                                                                                                                            MPN: 134072
                                                                                                                            SEEGER RING
                                                                                                                            THICKNESS MM. 1.2
                                                                                                                            from £0.83
                                                                                                                            from £0.83
                                                                                                                            # 011
                                                                                                                            MPN: 134073
                                                                                                                            SEEGER RING
                                                                                                                            THICKNESS MM. 1.3
                                                                                                                            from £0.94
                                                                                                                            from £0.94
                                                                                                                            # 011
                                                                                                                            MPN: 134074
                                                                                                                            SEEGER RING
                                                                                                                            THICKNESS MM. 1.4
                                                                                                                            from £4.13
                                                                                                                            from £4.13
                                                                                                                            # 012
                                                                                                                            MPN: 11060076
                                                                                                                            SEEGER RING
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 013
                                                                                                                            MPN: 134065
                                                                                                                            BEARING THRUST WASHER THINCKNESS MM. 1.0
                                                                                                                            from £0.97
                                                                                                                            from £0.97
                                                                                                                            # 013
                                                                                                                            MPN: 134066
                                                                                                                            DITTO, THICKNESS MM. 1.1
                                                                                                                            from £0.54
                                                                                                                            from £0.54
                                                                                                                            # 013
                                                                                                                            MPN: 134067
                                                                                                                            DITTO, THICKNESS MM. 1.2
                                                                                                                            from £0.83
                                                                                                                            from £0.83
                                                                                                                            # 013
                                                                                                                            MPN: 134068
                                                                                                                            DITTO, THICKNESS MM. 1.3
                                                                                                                            from £0.76
                                                                                                                            from £0.76
                                                                                                                            # 013
                                                                                                                            MPN: 134069
                                                                                                                            DITTO, THICKNESS MM. 1.4
                                                                                                                            from £1.23
                                                                                                                            from £1.23
                                                                                                                            # 014
                                                                                                                            MPN: 134061
                                                                                                                            BEARING
                                                                                                                            from £6.96
                                                                                                                            from £6.96
                                                                                                                            This part replaces part number 119213
                                                                                                                            # 015
                                                                                                                            MPN: 182277
                                                                                                                            UPPER SHAFT FOR STEERING CONTROL
                                                                                                                            from £378.61
                                                                                                                            from £378.61
                                                                                                                            # 016
                                                                                                                            MPN: 11001224
                                                                                                                            STUD
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 11001221
                                                                                                                            # 017
                                                                                                                            MPN: 202140
                                                                                                                            COLUMN SUPPORT
                                                                                                                            from £353.61
                                                                                                                            from £353.61
                                                                                                                            # 018
                                                                                                                            MPN: 183378
                                                                                                                            DOORS LOCKS SET COMPLETE ANTI-THEFT DEVICE
                                                                                                                            from £247.66
                                                                                                                            from £247.66
                                                                                                                            # 019
                                                                                                                            MPN: 168046
                                                                                                                            SCREW
                                                                                                                            from £2.44
                                                                                                                            from £2.44
                                                                                                                            This part replaces part number 156456
                                                                                                                            # 020
                                                                                                                            MPN: 157385
                                                                                                                            CLIP
                                                                                                                            from £0.48
                                                                                                                            from £0.48
                                                                                                                            # 021
                                                                                                                            MPN: 12601176
                                                                                                                            WASHER
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 022
                                                                                                                            MPN: 162606
                                                                                                                            CLIP
                                                                                                                            from £0.76
                                                                                                                            from £0.76
                                                                                                                            # 023
                                                                                                                            MPN: 102741
                                                                                                                            NUT
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                            # 024
                                                                                                                            MPN: 12646601
                                                                                                                            WASHER
                                                                                                                            from £0.71
                                                                                                                            from £0.71
                                                                                                                            # 025
                                                                                                                            MPN: 65938200
                                                                                                                            FELT
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 026
                                                                                                                            MPN: 12601279
                                                                                                                            WASHER
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                                                            # 027
                                                                                                                            MPN: 12601176
                                                                                                                            WASHER
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 028
                                                                                                                            MPN: 152044
                                                                                                                            PIN
                                                                                                                            from £15.21
                                                                                                                            from £15.21
                                                                                                                            # 029
                                                                                                                            MPN: 156061
                                                                                                                            BUSHING
                                                                                                                            from £9.00
                                                                                                                            from £9.00
                                                                                                                            # 030
                                                                                                                            MPN: 100660
                                                                                                                            WASHER
                                                                                                                            from £0.71
                                                                                                                            from £0.71
                                                                                                                            # 031
                                                                                                                            MPN: 147985
                                                                                                                            NUT
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 032
                                                                                                                            MPN: 168055
                                                                                                                            LOCK LEVER FOR STEERING COLUMN
                                                                                                                            from £103.57
                                                                                                                            from £103.57
                                                                                                                            This part replaces part number 164530 which we have in stock - and 1 more. Click to view details
                                                                                                                            # 033
                                                                                                                            MPN: 10-16-11
                                                                                                                            BALL
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 034
                                                                                                                            MPN: 155865
                                                                                                                            SPRING
                                                                                                                            from £1.48
                                                                                                                            from £1.48
                                                                                                                            # 035
                                                                                                                            MPN: 163593
                                                                                                                            SPACER
                                                                                                                            from £2.49
                                                                                                                            from £2.49
                                                                                                                            # 036
                                                                                                                            MPN: 175715
                                                                                                                            SHAFT
                                                                                                                            from £47.59
                                                                                                                            from £47.59
                                                                                                                            # 037
                                                                                                                            MPN: 66228400
                                                                                                                            UPPER COVER FOR STEERING ROD
                                                                                                                            Not for F1
                                                                                                                            from £52.22
                                                                                                                            from £52.22
                                                                                                                            # 037
                                                                                                                            MPN: 66228800
                                                                                                                            UPPER COVER FOR STEERING ROD
                                                                                                                            Valid for F1
                                                                                                                            from £80.78
                                                                                                                            from £80.78
                                                                                                                            # 038
                                                                                                                            MPN: 102825
                                                                                                                            NUT
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 95900617
                                                                                                                            # 039
                                                                                                                            MPN: 186682
                                                                                                                            COLUMN SUPPORT BRACKET
                                                                                                                            Not for GD
                                                                                                                            from £198.23
                                                                                                                            from £198.23
                                                                                                                            # 039
                                                                                                                            MPN: 188871
                                                                                                                            COLUMN SUPPORT BRACKET
                                                                                                                            Valid for GD - Valid for F1
                                                                                                                            # 039
                                                                                                                            MPN: 191914
                                                                                                                            COLUMN SUPPORT BRACKET
                                                                                                                            Valid for GD - Not for F1
                                                                                                                            from £237.37
                                                                                                                            from £237.37
                                                                                                                            # 040
                                                                                                                            MPN: 10902524
                                                                                                                            SCREW
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 041
                                                                                                                            MPN: 163579
                                                                                                                            RH SLIDING ELEMENT
                                                                                                                            from £61.66
                                                                                                                            from £61.66
                                                                                                                            # 041
                                                                                                                            MPN: 163587
                                                                                                                            LH SLIDING ELEMENT
                                                                                                                            from £87.47
                                                                                                                            from £87.47
                                                                                                                            # 042
                                                                                                                            MPN: 10519424
                                                                                                                            WASHER
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                                                            # 043
                                                                                                                            MPN: 102948
                                                                                                                            NUT
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                                                            # 044
                                                                                                                            MPN: 14058411
                                                                                                                            NUT
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 045
                                                                                                                            MPN: 12647624
                                                                                                                            WASHER
                                                                                                                            from £0.50
                                                                                                                            from £0.50
                                                                                                                            This part replaces part number 12647611
                                                                                                                            # 046
                                                                                                                            MPN: 64450700
                                                                                                                            UNDER COLUMN PLATE
                                                                                                                            from £30.71
                                                                                                                            from £30.71
                                                                                                                            # 049
                                                                                                                            MPN: 64509000
                                                                                                                            LH OUTER INSERT
                                                                                                                            from £20.24
                                                                                                                            from £20.24
                                                                                                                            # 050
                                                                                                                            MPN: 64508900
                                                                                                                            RH OUTER INSERT
                                                                                                                            from £17.02
                                                                                                                            from £17.02
                                                                                                                            # 051
                                                                                                                            MPN: 102741
                                                                                                                            NUT
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                            # 052
                                                                                                                            MPN: 170010
                                                                                                                            BLANK KEY
                                                                                                                            from £661.10
                                                                                                                            from £661.10
                                                                                                                            This part replaces part number 170010 ASM - and 1 more. Click to view details
                                                                                                                            # 053
                                                                                                                            MPN: 66228600
                                                                                                                            LOWER COVER FOR STEERING ROD
                                                                                                                            Not for F1
                                                                                                                            from £53.91
                                                                                                                            from £53.91
                                                                                                                            # 053
                                                                                                                            MPN: 66229000
                                                                                                                            LOWER COVER FOR STEERING ROD
                                                                                                                            Valid for F1
                                                                                                                            from £81.27
                                                                                                                            from £81.27
                                                                                                                            # 054
                                                                                                                            MPN: 15896470
                                                                                                                            NUT
                                                                                                                            (minimum order quantity = 20)
                                                                                                                            from £0.79
                                                                                                                            from £0.79
                                                                                                                            This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                                            # 055
                                                                                                                            MPN: 12601174
                                                                                                                            WASHER
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 12601173 - and 5 more. Click to view details
                                                                                                                            # 056
                                                                                                                            MPN: 13274117
                                                                                                                            SCREW
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 057
                                                                                                                            MPN: 13275217
                                                                                                                            SCREW
                                                                                                                            from £1.18
                                                                                                                            from £1.18
                                                                                                                            This part replaces part number 14063014
                                                                                                                            # 058
                                                                                                                            MPN: 164081
                                                                                                                            SMALL PLATE
                                                                                                                            from £7.16
                                                                                                                            from £7.16
                                                                                                                            # 059
                                                                                                                            MPN: 60739400
                                                                                                                            RIVET
                                                                                                                            from £0.71
                                                                                                                            from £0.71
                                                                                                                            # 061
                                                                                                                            MPN: 163816
                                                                                                                            RESISTOR FOR SPIRAL CONTACT
                                                                                                                            from £9.14
                                                                                                                            from £9.14
                                                                                                                            # 062
                                                                                                                            MPN: 13525170
                                                                                                                            THREADED INSERT
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 063
                                                                                                                            MPN: 194320
                                                                                                                            COUPLE LEVERS
                                                                                                                            Valid for F1
                                                                                                                            from £1,017.38
                                                                                                                            from £1,017.38
                                                                                                                            # 063
                                                                                                                            MPN: 194321
                                                                                                                            COUPLE LEVERS
                                                                                                                            Valid for F1 - Carbon - Optional
                                                                                                                            from £1,036.32
                                                                                                                            from £1,036.32
                                                                                                                            # 064
                                                                                                                            MPN: 13308977
                                                                                                                            SCREW
                                                                                                                            Valid for F1
                                                                                                                            from £1.43
                                                                                                                            from £1.43
                                                                                                                            # 065
                                                                                                                            MPN: 12606673
                                                                                                                            WASHER
                                                                                                                            Valid for F1
                                                                                                                            from £0.71
                                                                                                                            from £0.71
                                                                                                                            # 066
                                                                                                                            MPN: 13274611
                                                                                                                            SCREW
                                                                                                                            Valid for F1
                                                                                                                            from £0.71
                                                                                                                            from £0.71
                                                                                                                            # 067
                                                                                                                            MPN: 12601174
                                                                                                                            WASHER
                                                                                                                            Valid for F1
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 12601173 - and 5 more. Click to view details
                                                                                                                            # 068
                                                                                                                            MPN: 189805
                                                                                                                            F1 GEARBOX CONTROL LEVERS ASSEMBLY
                                                                                                                            Valid for F1 - Carbon - Optional
                                                                                                                            from £1,429.01
                                                                                                                            from £1,429.01
                                                                                                                            # 068
                                                                                                                            MPN: 192968
                                                                                                                            F1 GEARBOX CONTROL LEVERS ASSEMBLY
                                                                                                                            Valid for F1
                                                                                                                            from £1,220.11
                                                                                                                            from £1,220.11
                                                                                                                            This part replaces part number 182666
                                                                                                                            # 069
                                                                                                                            MPN: 185486
                                                                                                                            PLUG
                                                                                                                            from £1.59
                                                                                                                            from £1.59
                                                                                                                            # 070
                                                                                                                            MPN: 190405
                                                                                                                            STEERING ANGLE SENSOR
                                                                                                                            from £162.35
                                                                                                                            from £162.35
                                                                                                                            # 071
                                                                                                                            MPN: 200929
                                                                                                                            INTERNAL BUSHING
                                                                                                                            from £42.30
                                                                                                                            from £42.30
                                                                                                                            # 072
                                                                                                                            MPN: 200931
                                                                                                                            SENSOR MOUNTING BRACKET
                                                                                                                            from £28.88
                                                                                                                            from £28.88
                                                                                                                            # 073
                                                                                                                            MPN: 14304224
                                                                                                                            SCREW
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 074
                                                                                                                            MPN: 12601174
                                                                                                                            WASHER
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 12601173 - and 5 more. Click to view details
                                                                                                                            # 075
                                                                                                                            MPN: 179125
                                                                                                                            PEDAL RETURN SMALL PLATE
                                                                                                                            Valid for GD
