Ferrari 575 Superamerica Hydraulic Steering Box Parts Diagram

049 - Hydraulic Steering Box

Ferrari 575 Superamerica Hydraulic Steering Box Parts Diagram

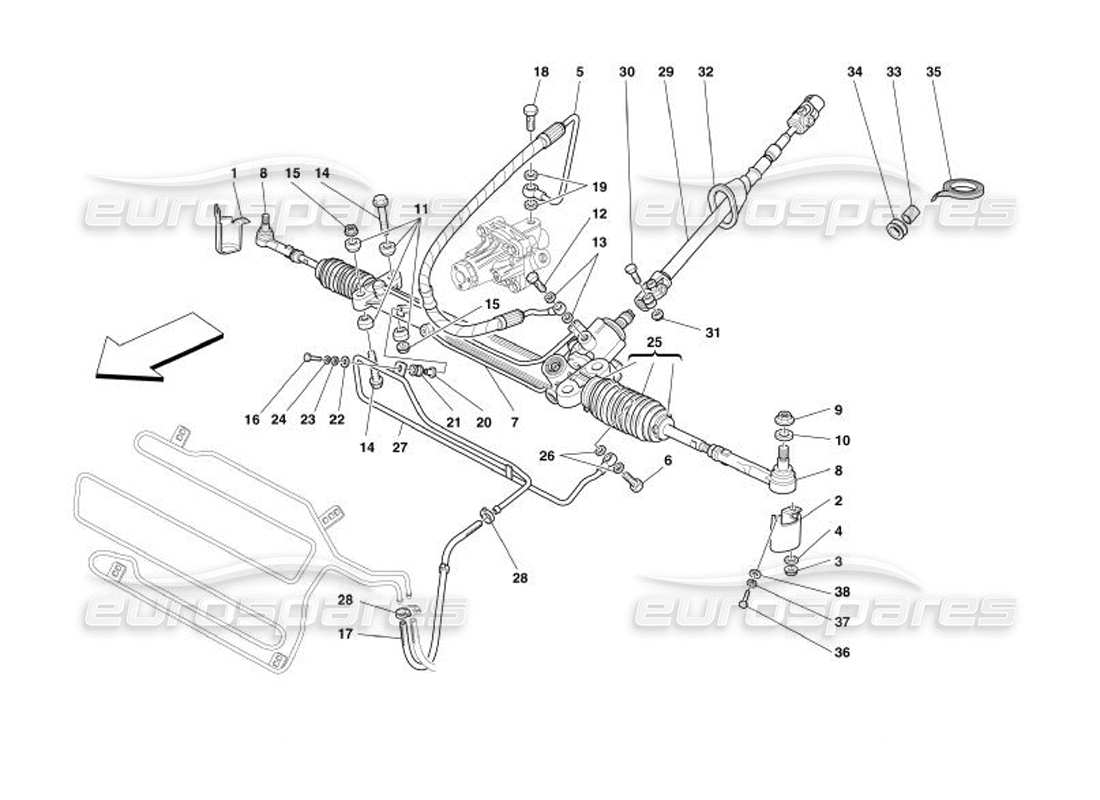

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 150879
                                                                    LH BALL JOINT PROTECTION
                                                                    from £4.76
                                                                    from £4.76
                                                                    # 002
                                                                    MPN: 150878
                                                                    RH BALL JOINT PROTECTION
                                                                    from £5.66
                                                                    from £5.66
                                                                    # 004
                                                                    MPN: 62764900
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 005
                                                                    MPN: 170860
                                                                    PIPE FROM PUMP TO STEERING BOX
                                                                    Not for GD
                                                                    from £165.06
                                                                    from £165.06
                                                                    # 005
                                                                    MPN: 171813
                                                                    PIPE FROM PUMP TO STEERING BOX
                                                                    Valid for GD
                                                                    from £285.40
                                                                    from £285.40
                                                                    # 006
                                                                    MPN: 10185111
                                                                    UNION
                                                                    from £2.80
                                                                    from £2.80
                                                                    # 007
                                                                    MPN: 169888
                                                                    RACK STEERING BOX
                                                                    Valid for GD
                                                                    from £2,850.92
                                                                    from £2,850.92
                                                                    # 007
                                                                    MPN: 170858
                                                                    Steering Rack
                                                                    (suitable for LHD)
                                                                    from £3,172.40
                                                                    from £3,172.40
                                                                    # 008
                                                                    MPN: 158016
                                                                    BALL JOINT
                                                                    from £110.00
                                                                    from £110.00
                                                                    # 009
                                                                    MPN: 149807
                                                                    NUT
                                                                    from £0.63
                                                                    from £0.63
                                                                    # 010
                                                                    MPN: 155002
                                                                    WASHER
                                                                    from £6.81
                                                                    from £6.81
                                                                    # 011
                                                                    MPN: 155567
                                                                    SILENTBLOCK
                                                                    from £74.54
                                                                    from £74.54
                                                                    # 012
                                                                    MPN: 170862
                                                                    UNION-VALVE
                                                                    from £15.54
                                                                    from £15.54
                                                                    # 013
                                                                    MPN: 10280060
                                                                    GASKET
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 100501 - and 3 more. Click to view details
                                                                    # 014
                                                                    MPN: 175701
                                                                    SCREW
                                                                    from £1.64
                                                                    from £1.64
                                                                    This part replaces part number 16287634 which we have in stock
                                                                    # 015
                                                                    MPN: 175283
                                                                    NUT
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 016
                                                                    MPN: 10445224
                                                                    SCREW
                                                                    from £0.54
                                                                    from £0.54
                                                                    # 017
                                                                    MPN: 178184
                                                                    RUBBER PIPE FROM STEERING BOX TO REFRIGERATING COIL
                                                                    Not for GD
                                                                    from £45.76
                                                                    from £45.76
                                                                    # 017
                                                                    MPN: 193026
                                                                    RUBBER PIPE FROM STEERING BOX TO REFRIGERATING COIL
                                                                    Valid for GD
                                                                    from £55.61
                                                                    from £55.61
                                                                    # 018
                                                                    MPN: 10184411
                                                                    UNION-VALVE
                                                                    from £30.13
                                                                    from £30.13
                                                                    # 019
                                                                    MPN: 10278660
                                                                    GASKET
                                                                    from £0.86
                                                                    from £0.86
                                                                    # 020
                                                                    MPN: 149707
                                                                    SPACER
                                                                    from £0.81
                                                                    from £0.81
                                                                    # 021
                                                                    MPN: 103549
                                                                    CABLE GROMMET
                                                                    from £0.70
                                                                    from £0.70
                                                                    # 022
                                                                    MPN: 10523424
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    # 023
                                                                    MPN: 12642878
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    # 024
                                                                    MPN: 10615274
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 10615270 - and 2 more. Click to view details
                                                                    # 025
                                                                    MPN: 171702
                                                                    COMPLETE RUBBER BOOT
                                                                    Supersession
                                                                    Supersession
                                                                    # 026
                                                                    MPN: 10280060
                                                                    GASKET
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 100501 - and 3 more. Click to view details
                                                                    # 027
                                                                    MPN: 172848
                                                                    PIPE FROM STEERING BOX WITH UNION
                                                                    Valid for GD
                                                                    # 027
                                                                    MPN: 177395
                                                                    PIPE FROM STEERING BOX WITH UNION
                                                                    Not for GD
                                                                    from £57.26
                                                                    from £57.26
                                                                    # 028
                                                                    MPN: 161490
                                                                    SCREW COLLAR
                                                                    from £1.40
                                                                    from £1.40
                                                                    # 029
                                                                    MPN: 167168
                                                                    STEERING CARDANIC TRASMISSION
                                                                    Not for GD
                                                                    from £870.25
                                                                    from £870.25
                                                                    # 029
                                                                    MPN: 172848
                                                                    PIPE FROM STEERING BOX WITH UNION
                                                                    Valid for GD
                                                                    # 030
                                                                    MPN: 150427
                                                                    SCREW
                                                                    from £3.94
                                                                    from £3.94
                                                                    This part replaces part number 150428 which we have in stock
                                                                    # 031
                                                                    MPN: 150428
                                                                    NUT
                                                                    from £0.59
                                                                    from £0.59
                                                                    # 032
                                                                    MPN: 167341
                                                                    GASKET
                                                                    from £15.31
                                                                    from £15.31
                                                                    This part replaces part number 154807
                                                                    # 033
                                                                    MPN: 167379
                                                                    RUBBER HOSE
                                                                    from £4.87
                                                                    from £4.87
                                                                    # 034
                                                                    MPN: 167376
                                                                    SEAL RING
                                                                    from £1.02
                                                                    from £1.02
                                                                    # 035
                                                                    MPN: 195293
                                                                    FILM FOR CARDANIC TRASMISSION
                                                                    from £7.14
                                                                    from £7.14
                                                                    This part replaces part number 179038
                                                                    # 036
                                                                    MPN: 10977524
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 037
                                                                    MPN: 10730014
                                                                    WASHER
                                                                    from £0.51
                                                                    from £0.51
                                                                    # 038
                                                                    MPN: 127493
                                                                    WASHER
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 106849 - and 1 more. Click to view details
