ferrari 575 superamerica brake system -valid for gd- parts diagram

045 - Brake System -Valid for GD-

Ferrari 575 Superamerica Brake System -Valid for GD- Parts Diagram

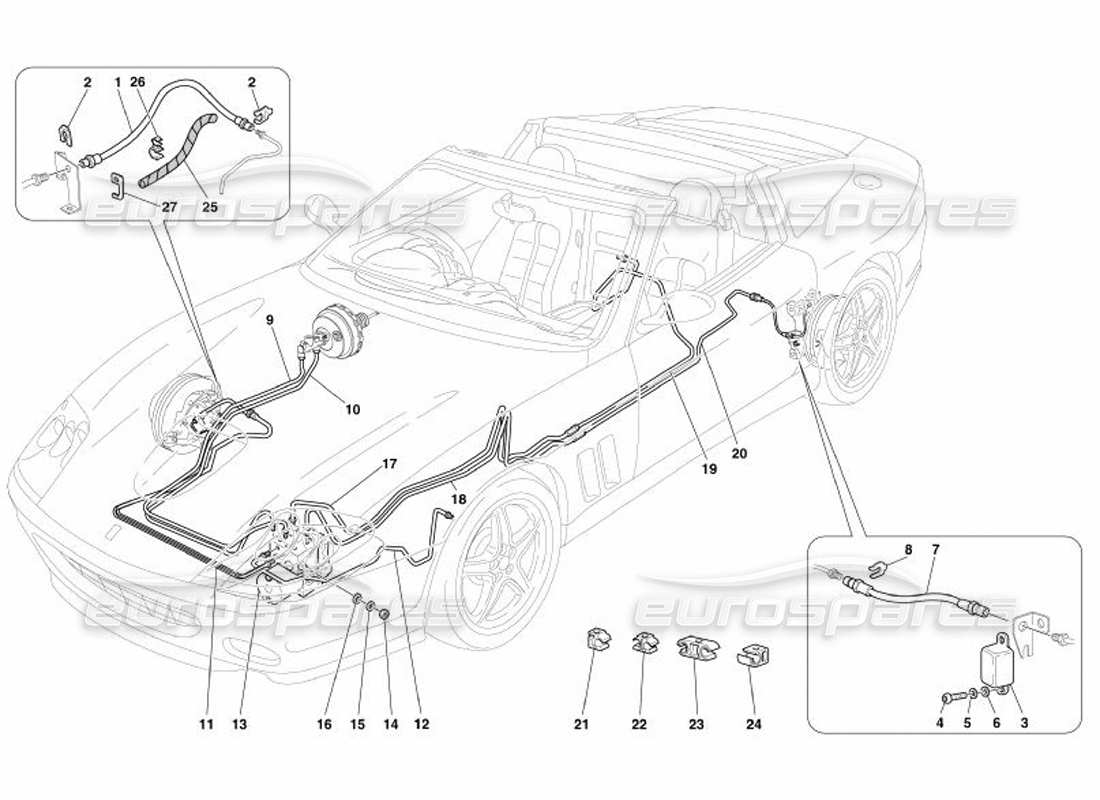

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 137313
                                                      HOSE
                                                      from £45.00
                                                      from £45.00
                                                      # 002
                                                      MPN: 116374
                                                      FIXING CLIP
                                                      from £1.19
                                                      from £1.19
                                                      # 003
                                                      MPN: 168148
                                                      REAR SENSOR PROTECTION
                                                      from £17.37
                                                      from £17.37
                                                      # 004
                                                      MPN: 60909500
                                                      SCREW
                                                      from £1.06
                                                      from £1.06
                                                      # 005
                                                      MPN: 127494
                                                      WASHER
                                                      (minimum order quantity = 20)
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                      # 006
                                                      MPN: 14496424
                                                      WASHER
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 14496401 - and 3 more. Click to view details
                                                      # 007
                                                      MPN: 137313
                                                      REAR HOSE
                                                      from £45.00
                                                      from £45.00
                                                      # 008
                                                      MPN: 116374
                                                      CLIP
                                                      from £1.19
                                                      from £1.19
                                                      # 009
                                                      MPN: 212534
                                                      BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION
                                                      from £21.71
                                                      from £21.71
                                                      This part replaces part number 188880
                                                      # 010
                                                      MPN: 212532
                                                      BRAKE PIPE FROM REAR PUMP TO CONTROL STATION
                                                      from £18.43
                                                      from £18.43
                                                      This part replaces part number 188878
                                                      # 011
                                                      MPN: 212523
                                                      RH BRAKE PIPE FROM CONTROL STATION TO FRONT HOSE
                                                      from £9.37
                                                      from £9.37
                                                      This part replaces part number 182980
                                                      # 012
                                                      MPN: 212524
                                                      LH BRAKE PIPE FROM CONTROL STATION TO FRONT HOSE
                                                      from £19.88
                                                      from £19.88
                                                      This part replaces part number 182981
                                                      # 013
                                                      MPN: 191997
                                                      ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION
                                                      from £1,819.88
                                                      from £1,819.88
                                                      This part replaces part number 191996
                                                      # 014
                                                      MPN: 16100814
                                                      NUT
                                                      from £0.71
                                                      from £0.71
                                                      This part replaces part number 16100811 - and 1 more. Click to view details
                                                      # 015
                                                      MPN: 127496
                                                      WASHER
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                      # 016
                                                      MPN: 12638524
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 12638501 - and 2 more. Click to view details
                                                      # 017
                                                      MPN: 212533
                                                      BRAKE PIPE FROM CONTROL STATION TO RH REAR RIGID PIPE
                                                      from £34.36
                                                      from £34.36
                                                      This part replaces part number 188879
                                                      # 018
                                                      MPN: 212535
                                                      BRAKE PIPE FROM CONTROL STATION TO LH REAR RIGID PIPE
                                                      from £30.88
                                                      from £30.88
                                                      This part replaces part number 188883
                                                      # 019
                                                      MPN: 212536
                                                      BRAKE PIPE TO RH REAR HOSE
                                                      from £16.14
                                                      from £16.14
                                                      This part replaces part number 188885
                                                      # 020
                                                      MPN: 212537
                                                      BRAKE PIPE TO LH REAR HOSE
                                                      from £13.53
                                                      from £13.53
                                                      This part replaces part number 188884
                                                      # 021
                                                      MPN: 141505
                                                      CLIP
                                                      from £0.62
                                                      from £0.62
                                                      # 022
                                                      MPN: 143055
                                                      CLIP
                                                      from £0.47
                                                      from £0.47
                                                      # 023
                                                      MPN: 169476
                                                      CLIP
                                                      from £1.51
                                                      from £1.51
                                                      # 024
                                                      MPN: 169477
                                                      CLIP
                                                      from £0.99
                                                      from £0.99
                                                      # 025
                                                      MPN: 204939
                                                      PIPE SHEATH
                                                      from £7.78
                                                      from £7.78
                                                      # 026
                                                      MPN: 150738
                                                      FLEXIBLE CLIP
                                                      from £0.47
                                                      from £0.47
                                                      # 027
                                                      MPN: 162606
                                                      CLIP
                                                      from £0.76
                                                      from £0.76
