042 - F1 Clutch Hydraulic Control -Valid for F1-

Ferrari 575 Superamerica F1 Clutch Hydraulic Control -Valid for F1- Parts Diagram

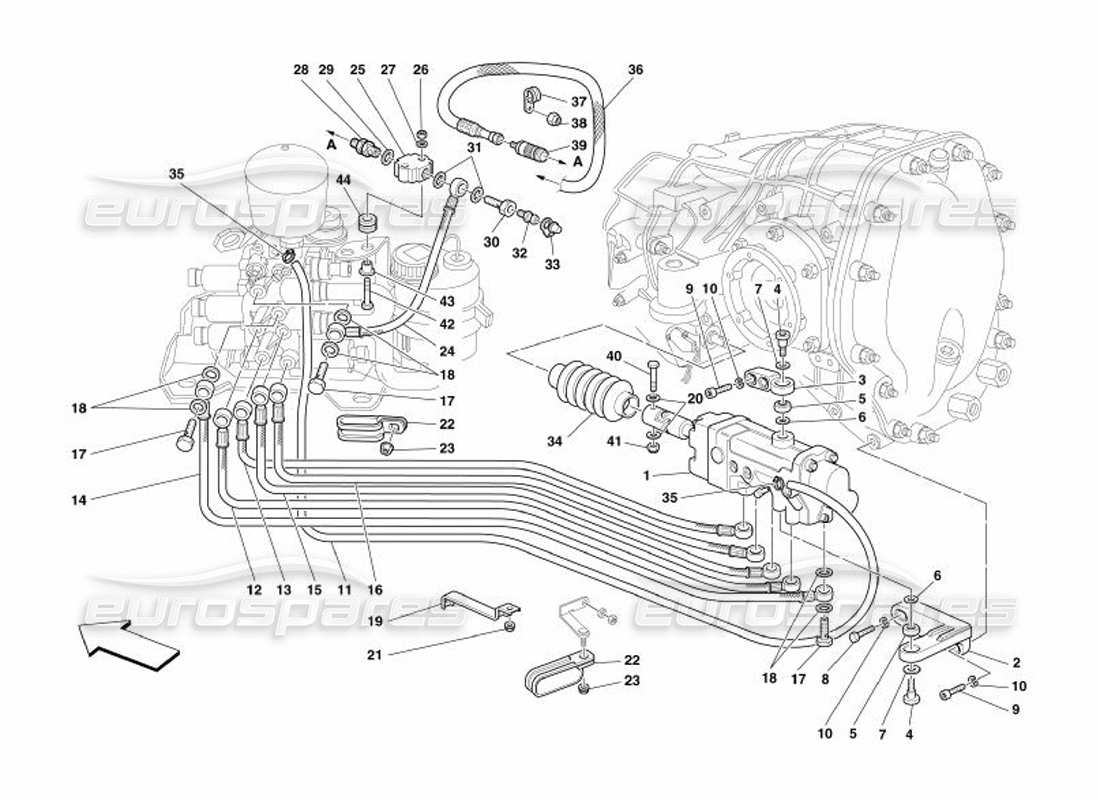

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 000
                                                                                          MPN: 212821
                                                                                          F1 Clutch Hydraulic Control
                                                                                          from £4,216.91
                                                                                          from £4,216.91
                                                                                          # 001
                                                                                          MPN: 179141
                                                                                          COMPLETE HYDRAULIC ACTUATOR
                                                                                          USE: 247224
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 002
                                                                                          MPN: 184110
                                                                                          LOWER ACTUATOR SUPPORT BRACKET
                                                                                          from £392.64
                                                                                          from £392.64
                                                                                          # 003
                                                                                          MPN: 184109
                                                                                          UPPER ACTUATOR SUPPORT BRACKET
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 004
                                                                                          MPN: 179300
                                                                                          PIN
                                                                                          from £149.74
                                                                                          from £149.74
                                                                                          # 005
                                                                                          MPN: 169222
                                                                                          BALL JOINT
                                                                                          from £24.36
                                                                                          from £24.36
                                                                                          # 006
                                                                                          MPN: 179679
                                                                                          WASHER
                                                                                          from £33.95
                                                                                          from £33.95
                                                                                          # 007
                                                                                          MPN: 10730314
                                                                                          WASHER
                                                                                          from £1.43
                                                                                          from £1.43
                                                                                          # 008
                                                                                          MPN: 16043834
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 16043824
                                                                                          # 009
                                                                                          MPN: 14306524
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 14306521
                                                                                          # 010
                                                                                          MPN: 10569374
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 011
                                                                                          MPN: 194027
                                                                                          OIL RECYCLE TUBE
                                                                                          from £17.81
                                                                                          from £17.81
                                                                                          # 012
                                                                                          MPN: 185087
                                                                                          PIPE (EV1)
                                                                                          from £282.46
                                                                                          from £282.46
                                                                                          # 013
                                                                                          MPN: 185088
                                                                                          PIPE (EV2)
                                                                                          from £163.86
                                                                                          from £163.86
                                                                                          # 014
                                                                                          MPN: 185089
                                                                                          PIPE (EV3)
                                                                                          from £172.13
                                                                                          from £172.13
                                                                                          # 015
                                                                                          MPN: 185090
                                                                                          PIPE (EV4)
                                                                                          from £164.95
                                                                                          from £164.95
                                                                                          # 016
                                                                                          MPN: 185091
                                                                                          PIPE (EV5)
                                                                                          from £173.73
                                                                                          from £173.73
                                                                                          # 017
                                                                                          MPN: 171454
                                                                                          UNION
                                                                                          from £27.04
                                                                                          from £27.04
                                                                                          # 017
                                                                                          MPN: 204543
                                                                                          UNION
                                                                                          from £54.20
                                                                                          from £54.20
                                                                                          # 017
                                                                                          MPN: 204545
                                                                                          UNION
                                                                                          from £56.14
                                                                                          from £56.14
                                                                                          # 018
                                                                                          MPN: 10261060
                                                                                          GASKET
                                                                                          from £0.49
                                                                                          from £0.49
                                                                                          # 019
                                                                                          MPN: 193714
                                                                                          PIPES SUPPORTING BRACKET
                                                                                          from £15.76
                                                                                          from £15.76
                                                                                          # 020
                                                                                          MPN: 12638524
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12638501 - and 2 more. Click to view details
                                                                                          # 021
                                                                                          MPN: 14058411
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 022
                                                                                          MPN: 61712500
                                                                                          BRACKET WITH SHEATH
                                                                                          from £0.88
                                                                                          from £0.88
                                                                                          # 023
                                                                                          MPN: 14058411
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 024
                                                                                          MPN: 185093
                                                                                          PIPE FROM VALVE SET TO BLOCK
                                                                                          from £250.19
                                                                                          from £250.19
                                                                                          # 026
                                                                                          MPN: 102741
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                          # 027
                                                                                          MPN: 14496424
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 14496401 - and 3 more. Click to view details
                                                                                          # 028
                                                                                          MPN: 210468
                                                                                          QUICK MALE COUPLING
                                                                                          from £81.67
                                                                                          from £81.67
                                                                                          This part replaces part number 171773
                                                                                          # 029
                                                                                          MPN: 171755
                                                                                          WASHER
                                                                                          from £2.38
                                                                                          from £2.38
                                                                                          # 030
                                                                                          MPN: 171630
                                                                                          UNION
                                                                                          from £20.59
                                                                                          from £20.59
                                                                                          # 031
                                                                                          MPN: 10261060
                                                                                          GASKET
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 032
                                                                                          MPN: 152954
                                                                                          BLEEDER SCREW
                                                                                          from £3.18
                                                                                          from £3.18
                                                                                          # 033
                                                                                          MPN: 152955
                                                                                          PROTECTION BOOT
                                                                                          from £2.95
                                                                                          from £2.95
                                                                                          # 034
                                                                                          MPN: 184119
                                                                                          RUBBER BOOT
                                                                                          from £106.28
                                                                                          from £106.28
                                                                                          # 035
                                                                                          MPN: 13430770
                                                                                          ELASTIC COLLAR
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 036
                                                                                          MPN: 186357
                                                                                          CLUTCH HOSE
                                                                                          from £415.11
                                                                                          from £415.11
                                                                                          # 037
                                                                                          MPN: 10441690
                                                                                          BRACKET WITH SHEATH
                                                                                          from £1.10
                                                                                          from £1.10
                                                                                          This part replaces part number 1044690
                                                                                          # 038
                                                                                          MPN: 14058411
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 039
                                                                                          MPN: 210469
                                                                                          FEMALE COUPLING
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 040
                                                                                          MPN: 170767
                                                                                          SCREW
                                                                                          from £4.22
                                                                                          from £4.22
                                                                                          # 041
                                                                                          MPN: 101139
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 16104425
                                                                                          # 042
                                                                                          MPN: 10903224
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 10903221
                                                                                          # 043
                                                                                          MPN: 149707
                                                                                          SPACER FOR CABLE GROMMET
                                                                                          from £0.65
                                                                                          from £0.65
                                                                                          # 044
                                                                                          MPN: 177576
                                                                                          CABLE GROMMET
                                                                                          from £1.11
                                                                                          from £1.11
                                                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
