038 - Differential & Axle Shafts

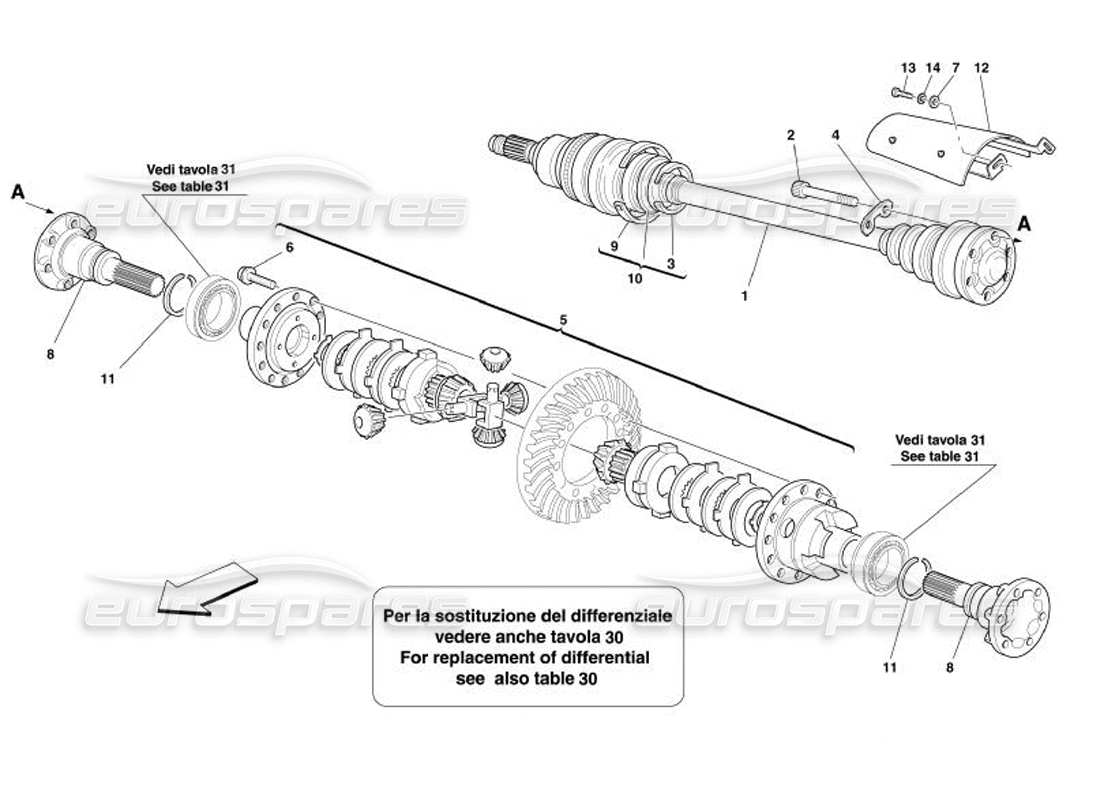

Ferrari 575 Superamerica Differential & Axle Shafts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 214428
                            AXLE SHAFT
                            from £578.74
                            from £578.74
                            This part replaces part number 183257 which we have in stock
                            # 002
                            MPN: 223916
                            SCREW
                            from £1.32
                            from £1.32
                            This part replaces part number 181910
                            # 003
                            MPN: 154213
                            LITTLE CLAMP
                            from £2.25
                            from £2.25
                            This part replaces part number 167570
                            # 004
                            MPN: 149415
                            SCRAPING PLATE
                            from £1.00
                            from £1.00
                            # 005
                            MPN: 181619
                            COMPLETE DIFFERENTIAL
                            from £2,596.46
                            from £2,596.46
                            # 006
                            MPN: 183909
                            SCREW
                            from £3.36
                            from £3.36
                            # 007
                            MPN: 12601274
                            WASHER
                            from £0.47
                            from £0.47
                            This part replaces part number 12601221 - and 5 more. Click to view details
                            # 008
                            MPN: 189097
                            FLANGE FOR AXLE COUPLING
                            from £1,125.06
                            from £1,125.06
                            # 009
                            MPN: 172347
                            BIG CLAMP
                            from £4.09
                            from £4.09
                            This part replaces part number 154214 - and 1 more. Click to view details
                            # 010
                            MPN: 70000868
                            PROTECTION REPLACEMENT SET
                            Wheel/gearbox side
                            from £69.26
                            from £69.26
                            This part replaces part number 70000782
                            # 010
                            MPN: 70006022
                            PROTECTION REPLACEMENT SET
                            Gearbox side
                            from £54.95
                            from £54.95
                            This part replaces part number 70000867
                            # 011
                            MPN: 184994
                            FLEXIBLE RING
                            from £3.75
                            from £3.75
                            # 012
                            MPN: 184341
                            SHIELD FOR AXLE SHAFT PROTECTION
                            from £59.27
                            from £59.27
                            # 013
                            MPN: 10902124
                            SCREW
                            from £0.51
                            from £0.51
                            This part replaces part number 10902111 - and 1 more. Click to view details
                            # 014
                            MPN: 12639724
                            WASHER
                            from £0.47
                            from £0.47
                            This part replaces part number 12639725 - and 1 more. Click to view details
