030 - GEARBOX

Ferrari 575 Superamerica Gearbox Parts Diagram

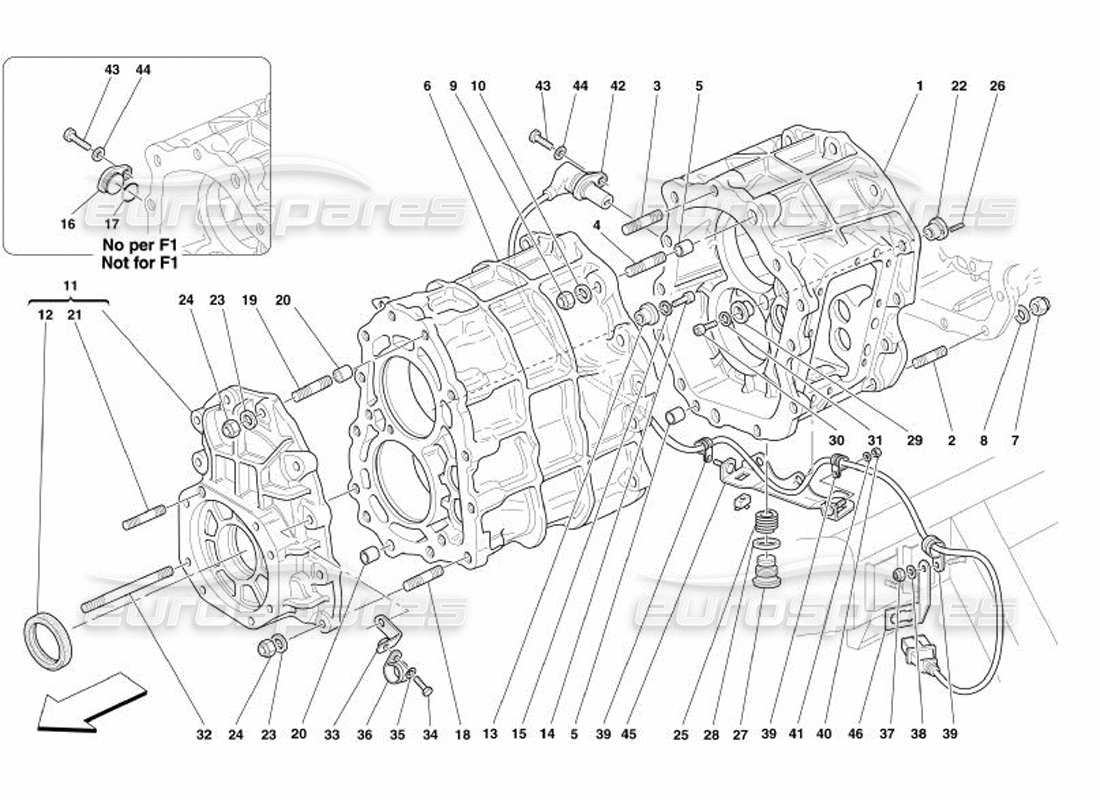

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 000
                                                                MPN: 210926
                                                                COMPLETE GEARBOX ASSEMBLY
                                                                (empty)
                                                                from £1,934.56
                                                                from £1,934.56
                                                                # 001
                                                                MPN: 210493
                                                                GEAR BOX 3RD ELEMENT
                                                                Not as spare part - With the complete gearbox 210926
                                                                # 002
                                                                MPN: 13543524
                                                                STUD
                                                                from £2.06
                                                                from £2.06
                                                                This part replaces part number 13543521
                                                                # 003
                                                                MPN: 13543524
                                                                STUD
                                                                from £2.06
                                                                from £2.06
                                                                This part replaces part number 13543521
                                                                # 004
                                                                MPN: 13543624
                                                                STUD
                                                                from £0.51
                                                                from £0.51
                                                                This part replaces part number 13543621
                                                                # 005
                                                                MPN: 102704
                                                                CENTERING DOWEL
                                                                from £1.59
                                                                from £1.59
                                                                This part replaces part number 500805
                                                                # 006
                                                                MPN: 161979
                                                                GEAR BOX 2ND ELEMENT
                                                                Not as spare part - With the complete gearbox 210926
                                                                # 007
                                                                MPN: 16100812
                                                                NUT
                                                                from £0.71
                                                                from £0.71
                                                                # 008
                                                                MPN: 12601374
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                # 009
                                                                MPN: 16100812
                                                                NUT
                                                                from £0.71
                                                                from £0.71
                                                                # 010
                                                                MPN: 12601374
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                # 011
                                                                MPN: 185933
                                                                COMPLETE GEAR BOX 1ST ELEMENT
                                                                This part replaces part number 162308
                                                                # 013
                                                                MPN: 131757
                                                                BUSHING
                                                                from £3.74
                                                                from £3.74
                                                                # 014
                                                                MPN: 14305724
                                                                SCREW
                                                                from £0.54
                                                                from £0.54
                                                                This part replaces part number 11567624 - and 2 more. Click to view details
                                                                # 015
                                                                MPN: 10569273
                                                                WASHER
                                                                Supersession
                                                                Supersession
                                                                # 016
                                                                MPN: 185721
                                                                PLUG
                                                                Not for F1
                                                                from £2.75
                                                                from £2.75
                                                                # 017
                                                                MPN: 254644
                                                                O.R. GASKET
                                                                Not for F1
                                                                from £0.54
                                                                from £0.54
                                                                This part replaces part number 14453481
                                                                # 018
                                                                MPN: 13543424
                                                                STUD
                                                                from £1.03
                                                                from £1.03
                                                                This part replaces part number 13543421
                                                                # 019
                                                                MPN: 13543624
                                                                STUD
                                                                from £0.51
                                                                from £0.51
                                                                This part replaces part number 13543621
                                                                # 020
                                                                MPN: 102704
                                                                CENTERING DOWEL
                                                                from £1.59
                                                                from £1.59
                                                                This part replaces part number 500805
                                                                # 021
                                                                MPN: 13546334
                                                                STUD
                                                                from £0.64
                                                                from £0.64
                                                                This part replaces part number 13546331
                                                                # 022
                                                                MPN: 157010
                                                                BUSHING
                                                                from £5.34
                                                                from £5.34
                                                                # 023
                                                                MPN: 12601374
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                # 024
                                                                MPN: 16100814
                                                                NUT
                                                                from £0.71
                                                                from £0.71
                                                                This part replaces part number 16100811 - and 1 more. Click to view details
                                                                # 025
                                                                MPN: 112254
                                                                THREADED INSERT
                                                                from £2.33
                                                                from £2.33
                                                                # 026
                                                                MPN: 14159470
                                                                PIN
                                                                from £2.81
                                                                from £2.81
                                                                # 027
                                                                MPN: 183962
                                                                OIL OUTLET PLUG
                                                                from £14.76
                                                                from £14.76
                                                                This part replaces part number 182116
                                                                # 028
                                                                MPN: 10263460
                                                                GASKET
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 95119
                                                                # 029
                                                                MPN: 157009
                                                                BUSHING
                                                                from £4.48
                                                                from £4.48
                                                                # 030
                                                                MPN: 14305724
                                                                SCREW
                                                                from £0.54
                                                                from £0.54
                                                                This part replaces part number 11567624 - and 2 more. Click to view details
                                                                # 032
                                                                MPN: 13547334
                                                                STUD
                                                                from £3.75
                                                                from £3.75
                                                                # 033
                                                                MPN: 142060
                                                                BRACKET
                                                                Valid for F1
                                                                from £3.42
                                                                from £3.42
                                                                # 034
                                                                MPN: 10977524
                                                                SCREW
                                                                from £0.53
                                                                from £0.53
                                                                # 035
                                                                MPN: 14447024
                                                                WASHER
                                                                Valid for F1
                                                                from £0.47
                                                                from £0.47
                                                                # 036
                                                                MPN: 10441690
                                                                BRACKET WITH SHEATH
                                                                Valid for F1
                                                                from £1.10
                                                                from £1.10
                                                                This part replaces part number 1044690
                                                                # 037
                                                                MPN: 102741
                                                                NUT
                                                                Valid for F1
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12575411 - and 1 more. Click to view details
                                                                # 038
                                                                MPN: 10519424
                                                                WASHER
                                                                Valid for F1
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 10519401 - and 3 more. Click to view details
                                                                # 039
                                                                MPN: 10441990
                                                                BRACKET WITH SHEATH
                                                                Valid for F1
                                                                from £0.47
                                                                from £0.47
                                                                # 040
                                                                MPN: 102948
                                                                NUT
                                                                Valid for F1
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12574211 - and 4 more. Click to view details
                                                                # 041
                                                                MPN: 10519424
                                                                WASHER
                                                                Valid for F1
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 10519401 - and 3 more. Click to view details
                                                                # 042
                                                                MPN: 168729
                                                                ELECTRO-MAGNETIC SENSOR
                                                                Valid for F1
                                                                from £71.48
                                                                from £71.48
                                                                # 043
                                                                MPN: 10902224
                                                                SCREW
                                                                from £0.53
                                                                from £0.53
                                                                # 044
                                                                MPN: 11194377
                                                                WASHER
                                                                from £0.71
                                                                from £0.71
                                                                # 045
                                                                MPN: 169464
                                                                FRONT BRACKET
                                                                Not for F1
                                                                from £10.09
                                                                from £10.09
                                                                # 045
                                                                MPN: 194807
                                                                FRONT BRACKET
                                                                Valid for F1
                                                                from £27.73
                                                                from £27.73
                                                                This part replaces part number 186690
                                                                # 046
                                                                MPN: 203766
                                                                CONNECTOR FIXING BRACKET
                                                                Valid for F1
                                                                from £2.15
                                                                from £2.15
                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
