027 - WATER PUMP

Ferrari 575 Superamerica Water Pump Parts Diagram

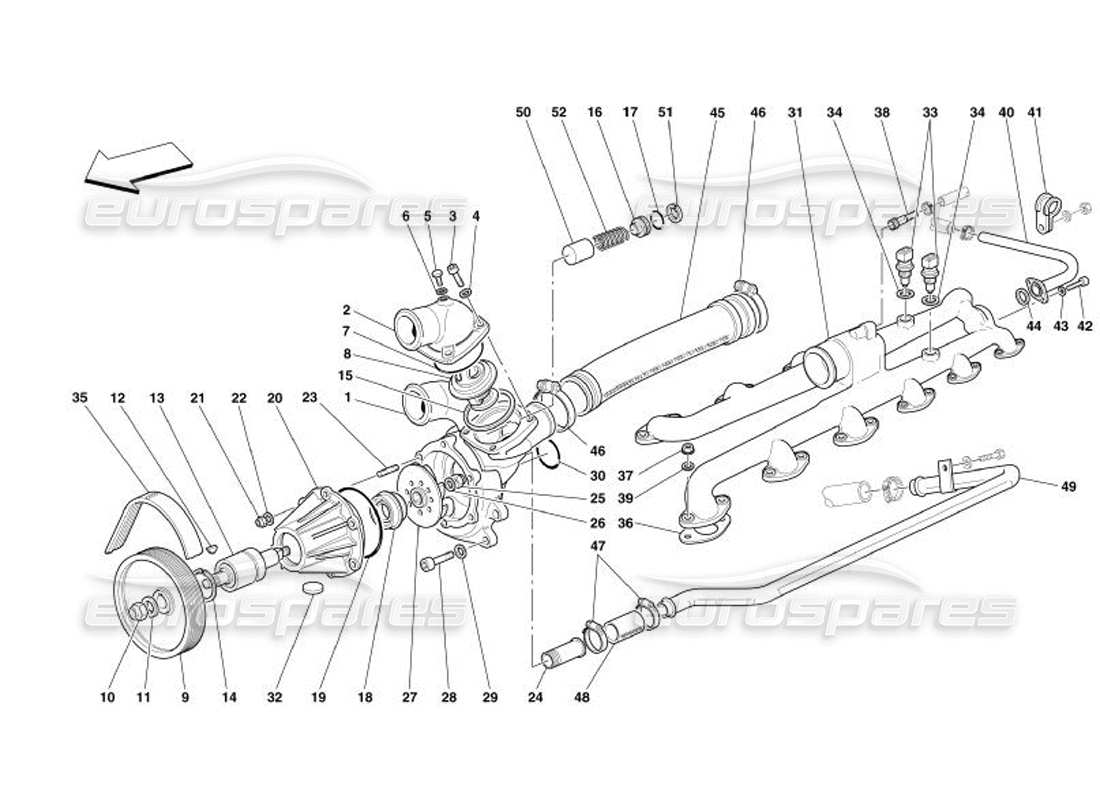

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 000
                                                                                                    MPN: 184038
                                                                                                    COMPLETE WATER PUMP
                                                                                                    from £1,299.04
                                                                                                    from £1,299.04
                                                                                                    This part replaces part number 177925
                                                                                                    # 001
                                                                                                    MPN: 184002

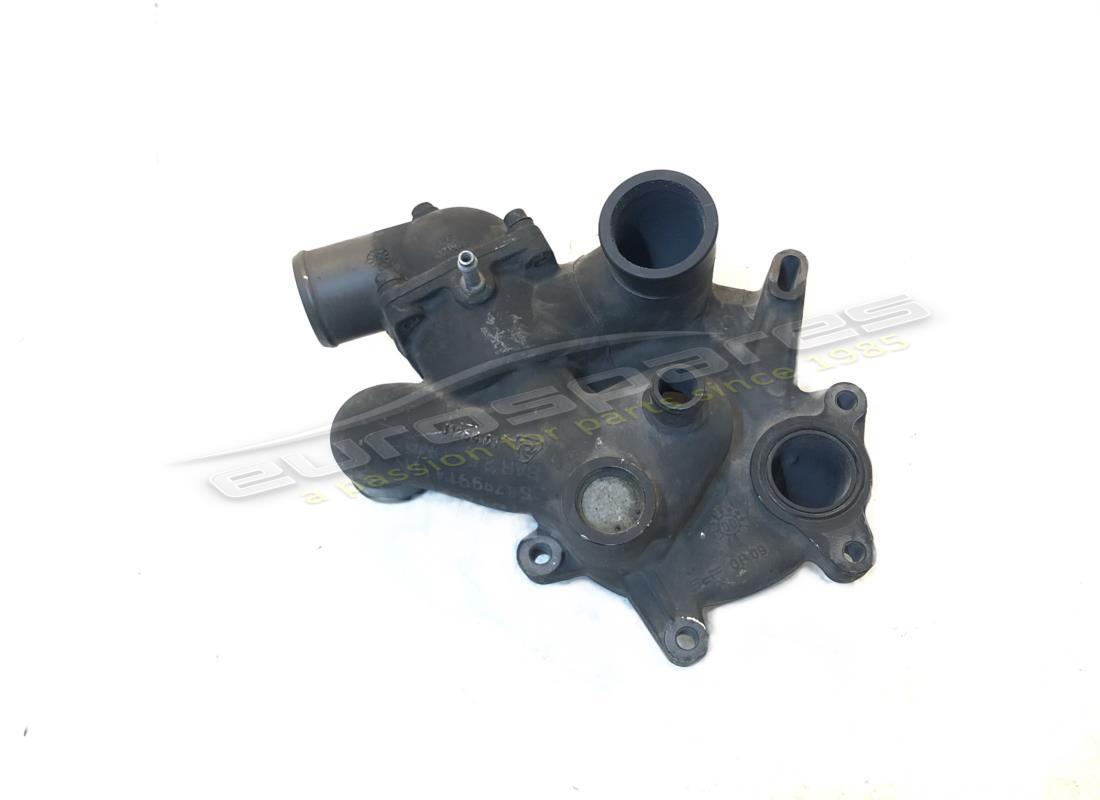

                                                                                                    WATER PUMP BODY
                                                                                                    from £379.32
                                                                                                    from £379.32
                                                                                                    This part replaces part number 174668 - and 3 more. Click to view details
                                                                                                    # 002
                                                                                                    MPN: 163952
                                                                                                    THERMOSTATIC VALVE COVER
                                                                                                    from £41.49
                                                                                                    from £41.49
                                                                                                    This part replaces part number 157565 which we have in stock - and 1 more. Click to view details
                                                                                                    # 003
                                                                                                    MPN: 14433124
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 14433121
                                                                                                    # 004
                                                                                                    MPN: 12601274
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                    # 005
                                                                                                    MPN: 132349
                                                                                                    UNION
                                                                                                    from £7.89
                                                                                                    from £7.89
                                                                                                    # 006
                                                                                                    MPN: 10297760
                                                                                                    GASKET
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 007
                                                                                                    MPN: 149279
                                                                                                    O.R. GASKET
                                                                                                    from £2.41
                                                                                                    from £2.41
                                                                                                    # 008
                                                                                                    MPN: 183758
                                                                                                    THERMOSTAT
                                                                                                    from £51.02
                                                                                                    from £51.02
                                                                                                    This part replaces part number 167473
                                                                                                    # 009
                                                                                                    MPN: 169924
                                                                                                    PULLEY 93 MM
                                                                                                    from £131.16
                                                                                                    from £131.16
                                                                                                    # 010
                                                                                                    MPN: 102742
                                                                                                    NUT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 12557621 - and 2 more. Click to view details
                                                                                                    # 011
                                                                                                    MPN: 12646824
                                                                                                    WASHER
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    # 012
                                                                                                    MPN: 10202320
                                                                                                    DISC KEY
                                                                                                    from £0.58
                                                                                                    from £0.58
                                                                                                    # 013
                                                                                                    MPN: 143742
                                                                                                    BEARING WITH SHAFT
                                                                                                    from £137.20
                                                                                                    from £137.20
                                                                                                    # 014
                                                                                                    MPN: 11059976
                                                                                                    SEEGER RING
                                                                                                    from £0.56
                                                                                                    from £0.56
                                                                                                    This part replaces part number 11059975
                                                                                                    # 015
                                                                                                    MPN: 137873
                                                                                                    GASKET
                                                                                                    from £2.86
                                                                                                    from £2.86
                                                                                                    # 016
                                                                                                    MPN: 176048
                                                                                                    PLUG FOR BY-PASS SPRING
                                                                                                    from £8.49
                                                                                                    from £8.49
                                                                                                    # 017
                                                                                                    MPN: 147278
                                                                                                    O.R. GASKET
                                                                                                    from £0.94
                                                                                                    from £0.94
                                                                                                    # 018
                                                                                                    MPN: 183759
                                                                                                    SEAL RING
                                                                                                    from £23.26
                                                                                                    from £23.26
                                                                                                    This part replaces part number 130932 - and 1 more. Click to view details
                                                                                                    # 019
                                                                                                    MPN: 137868
                                                                                                    O.R. GASKET
                                                                                                    from £7.24
                                                                                                    from £7.24
                                                                                                    # 020
                                                                                                    MPN: 176173
                                                                                                    WATER PUMP COVER
                                                                                                    use part number: 176173/A for complete pump (change pulley)
                                                                                                    from £271.51
                                                                                                    from £271.51
                                                                                                    This part replaces part number 154546
                                                                                                    # 021
                                                                                                    MPN: 102741
                                                                                                    NUT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                    # 022
                                                                                                    MPN: 12601274
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                    # 023
                                                                                                    MPN: 13540924
                                                                                                    STUD
                                                                                                    from £0.71
                                                                                                    from £0.71
                                                                                                    This part replaces part number 13540921
                                                                                                    # 024
                                                                                                    MPN: 141068
                                                                                                    UNION
                                                                                                    from £120.06
                                                                                                    from £120.06
                                                                                                    # 025
                                                                                                    MPN: 100436
                                                                                                    CAP NUT
                                                                                                    from £7.41
                                                                                                    from £7.41
                                                                                                    This part replaces part number 92896
                                                                                                    # 026
                                                                                                    MPN: 11194074
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 11194077 - and 1 more. Click to view details
                                                                                                    # 027
                                                                                                    MPN: 176045
                                                                                                    WATER PUMP IMPELLER
                                                                                                    from £81.29
                                                                                                    from £81.29
                                                                                                    # 028
                                                                                                    MPN: 14306424
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 14306324 - and 2 more. Click to view details
                                                                                                    # 029
                                                                                                    MPN: 11193874
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 11193879 which we have in stock
                                                                                                    # 030
                                                                                                    MPN: 141250
                                                                                                    O.R. GASKET
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    This part replaces part number 227203
                                                                                                    # 031
                                                                                                    MPN: 184255
                                                                                                    HEAD WATER MANIFOLD
                                                                                                    from £402.78
                                                                                                    from £402.78
                                                                                                    # 032
                                                                                                    MPN: 10158801
                                                                                                    PLUG
                                                                                                    from £0.73
                                                                                                    from £0.73
                                                                                                    This part replaces part number 10158800
                                                                                                    # 034
                                                                                                    MPN: 10298460
                                                                                                    GASKET
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 93353
                                                                                                    # 035
                                                                                                    MPN: 201456
                                                                                                    BELT
                                                                                                    from £19.32
                                                                                                    from £19.32
                                                                                                    This part replaces part number 177511
                                                                                                    # 036
                                                                                                    MPN: 141332
                                                                                                    GASKET
                                                                                                    (minimum order quantity = 8)
                                                                                                    from £0.80
                                                                                                    from £0.80
                                                                                                    # 037
                                                                                                    MPN: 194031
                                                                                                    NUT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 039
                                                                                                    MPN: 12604274
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 12604271 - and 1 more. Click to view details
                                                                                                    # 040
                                                                                                    MPN: 189984
                                                                                                    PIPE FROM DUCT
                                                                                                    Not for GD
                                                                                                    from £30.86
                                                                                                    from £30.86
                                                                                                    # 040
                                                                                                    MPN: 191905
                                                                                                    PIPE FROM DUCT
                                                                                                    Valid for GD
                                                                                                    from £102.68
                                                                                                    from £102.68
                                                                                                    # 041
                                                                                                    MPN: 145661
                                                                                                    BRACKET WITH SHEATH
                                                                                                    Valid for GD
                                                                                                    from £4.67
                                                                                                    from £4.67
                                                                                                    # 041
                                                                                                    MPN: 189983
                                                                                                    BRACKET WITH SHEATH
                                                                                                    Not for GD
                                                                                                    from £2.14
                                                                                                    from £2.14
                                                                                                    # 042
                                                                                                    MPN: 14433124
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 14433121
                                                                                                    # 043
                                                                                                    MPN: 11197774
                                                                                                    WASHER
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                    # 044
                                                                                                    MPN: 145352
                                                                                                    O.R. GASKET
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 045
                                                                                                    MPN: 181599
                                                                                                    CONNECTION SLEEVE BEETWEN MANIFOLD AND WATER PUMP
                                                                                                    from £183.85
                                                                                                    from £183.85
                                                                                                    This part replaces part number 154480
                                                                                                    # 046
                                                                                                    MPN: 134109
                                                                                                    SCREW COLLAR
                                                                                                    from £2.78
                                                                                                    from £2.78
                                                                                                    This part replaces part number 178203 - and 1 more. Click to view details
                                                                                                    # 047
                                                                                                    MPN: 13000490
                                                                                                    SCREW COLLAR
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                                    # 048
                                                                                                    MPN: 175223
                                                                                                    RUBBER PIPE
                                                                                                    from £5.05
                                                                                                    from £5.05
                                                                                                    This part replaces part number 122842
                                                                                                    # 049
                                                                                                    MPN: 191906
                                                                                                    PIPE FROM WATER PUMP
                                                                                                    from £128.33
                                                                                                    from £128.33
                                                                                                    # 049
                                                                                                    MPN: 191916
                                                                                                    PIPE FROM WATER PUMP
                                                                                                    from £28.14
                                                                                                    from £28.14
                                                                                                    # 050
                                                                                                    MPN: 176046
                                                                                                    BUSHING FOR BY-PASS
                                                                                                    from £16.63
                                                                                                    from £16.63
                                                                                                    # 051
                                                                                                    MPN: 11058376
                                                                                                    SEEGER RING
                                                                                                    from £1.50
                                                                                                    from £1.50
                                                                                                    # 052
                                                                                                    MPN: 176047
                                                                                                    SPRING FOR BY-PASS
                                                                                                    from £8.19
                                                                                                    from £8.19
