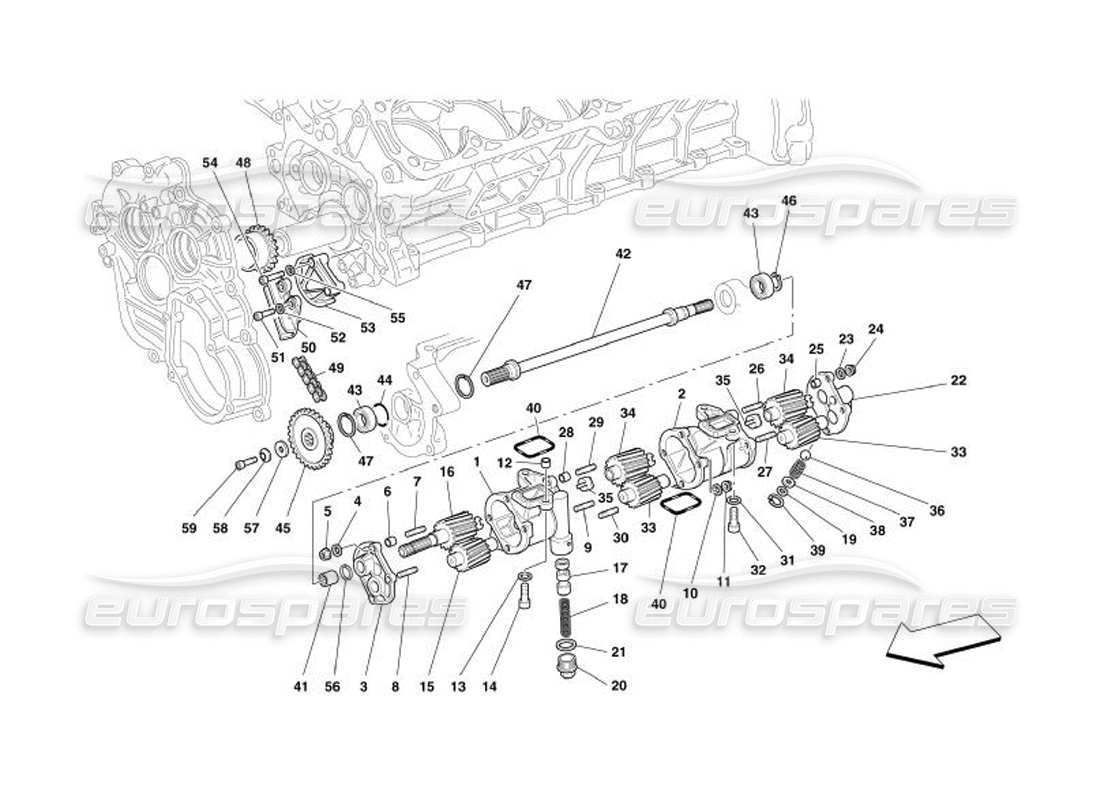

024 - Lubrication - Oil Pumps
Ferrari 575 Superamerica Lubrication - Oil Pumps Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 153197
COMPLETE DELIVERY PUMP BODY
from £973.59
from £973.59
This part replaces part number 154575
# 000
MPN: 153198
COMPLETE RECOVERY PUMP BODY
from £1,063.72
from £1,063.72
This part replaces part number 154567
# 001
MPN: 154575
DELIVERY PUMP BODY
With complete delivery pump body
Supersession
Supersession
# 002
MPN: 154567
RECOVERY PUMP BODY
With complete recovery pump body
Supersession
Supersession
# 003
MPN: 141837
DELIVERY PUMP COVER
from £147.17
from £147.17
# 004
MPN: 11197774
WASHER
from £0.53
from £0.53
This part replaces part number 11197770 - and 3 more. Click to view details
# 005
MPN: 134041
NUT
from £0.57
from £0.57
This part replaces part number 15896221
# 006
MPN: 102725
DOWEL
from £0.66
from £0.66
# 007
MPN: 13541124
STUD
from £12.64
from £12.64
This part replaces part number 13541121
# 008
MPN: 13540824
STUD
from £14.21
from £14.21
This part replaces part number 13540821
# 009
MPN: 11500224
STUD
from £0.53
from £0.53
This part replaces part number 11500221 - and 1 more. Click to view details
# 010
MPN: 153366
WASHER
from £0.47
from £0.47
# 011
MPN: 132877
NUT
from £1.54
from £1.54
This part replaces part number 67190100
# 012
MPN: 102704
CENTERING DOWEL
from £1.59
from £1.59
This part replaces part number 500805
# 013
MPN: 11193874
WASHER
from £0.47
from £0.47
This part replaces part number 11193879 which we have in stock
# 014
MPN: 14306524
SCREW
from £0.47
from £0.47
This part replaces part number 14306521
# 015
MPN: 154518
DRIVEN GEAR
from £119.10
from £119.10
# 016
MPN: 154519
DRIVING GEAR
from £138.36
from £138.36
# 017
MPN: 156950
PISTON
from £75.01
from £75.01
This part replaces part number 150071
# 018
MPN: 137614
SPRING
from £30.56
from £30.56
# 019
MPN: 168180
WASHER
from £2.09
from £2.09
# 020
MPN: 156143
PLUG
from £8.40
from £8.40
This part replaces part number 150072
# 021
MPN: 10257460
GASKET
from £0.47
from £0.47
This part replaces part number 94702
# 022
MPN: 141838
RECOVERY PUMP COVER
from £64.52
from £64.52
# 023
MPN: 11197774
WASHER
from £0.53
from £0.53
This part replaces part number 11197770 - and 3 more. Click to view details
# 024
MPN: 134041
NUT
from £0.57
from £0.57
This part replaces part number 15896221
# 025
MPN: 102725
DOWEL
from £0.66
from £0.66
# 026
MPN: 13541224
STUD
from £35.23
from £35.23
This part replaces part number 13541221
# 027
MPN: 13540924
STUD
from £0.70
from £0.70
This part replaces part number 13540921
# 028
MPN: 102725
DOWEL
from £0.66
from £0.66
# 029
MPN: 13541124
STUD
from £12.64
from £12.64
This part replaces part number 13541121
# 030
MPN: 13540824
STUD
from £14.21
from £14.21
This part replaces part number 13540821
# 031
MPN: 11193874
WASHER
from £0.47
from £0.47
This part replaces part number 11193879 which we have in stock
# 032
MPN: 14306424
SCREW
from £0.47
from £0.47
This part replaces part number 14306324 - and 2 more. Click to view details
# 033
MPN: 154516
DRIVEN GEAR
from £119.10
from £119.10
# 034
MPN: 154517
DRIVING GEAR
from £119.10
from £119.10
# 035
MPN: 109309
COUPLING
from £8.99
from £8.99
# 036
MPN: 121306
BALL
from £1.83
from £1.83
# 037
MPN: 109980
SPRING FOR BALL
from £9.44
from £9.44
# 038
MPN: 132772
SPACER
Supersession
Supersession
# 039
MPN: 11057876
SEEGER RING
from £0.47
from £0.47
This part replaces part number 11057875
# 040
MPN: 154588
O.R. GASKET
from £2.87
from £2.87
# 041
MPN: 141252
COUPLING
from £6.88
from £6.88
# 042
MPN: 157042
SHAFT
from £61.61
from £61.61
This part replaces part number 141386 - and 2 more. Click to view details
# 043
MPN: 140915
BEARING
from £13.60
from £13.60
# 044
MPN: 140071
O.R. GASKET
from £0.47
from £0.47
# 045
MPN: 163750
DRIVEN GEAR
from £31.37
from £31.37
# 046
MPN: 11066576
SEEGER RING
from £0.47
from £0.47
# 047
MPN: 11058876
SEEGER RING
from £0.47
from £0.47
# 048
MPN: 141459
DRIVING GEAR
from £49.55
from £49.55
# 049
MPN: 163753
OIL PUMP CONTROL CHAIN
from £25.66
from £25.66
# 050
MPN: 141525
CHAIN TENSIONER
from £62.54
from £62.54
# 051
MPN: 14306424
SCREW
from £0.47
from £0.47
This part replaces part number 14306324 - and 2 more. Click to view details
# 052
MPN: 14499401
WASHER
from £0.47
from £0.47
# 053
MPN: 152536
FIXED TENSION
from £61.14
from £61.14
# 054
MPN: 14305521
SCREW
from £0.47
from £0.47
# 055
MPN: 10569279
WASHER
from £0.71
from £0.71
# 056
MPN: 11066376
SEEGER RING
from £0.51
from £0.51
This part replaces part number 11066366 - and 1 more. Click to view details
# 057
MPN: 106744
WASHER
from £4.91
from £4.91
# 058
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 059
MPN: 14305224
SCREW
from £0.47
from £0.47
