Ferrari 575 Superamerica Blow - By System Parts Diagram

022 - Blow - By System

Ferrari 575 Superamerica Blow - By System Parts Diagram

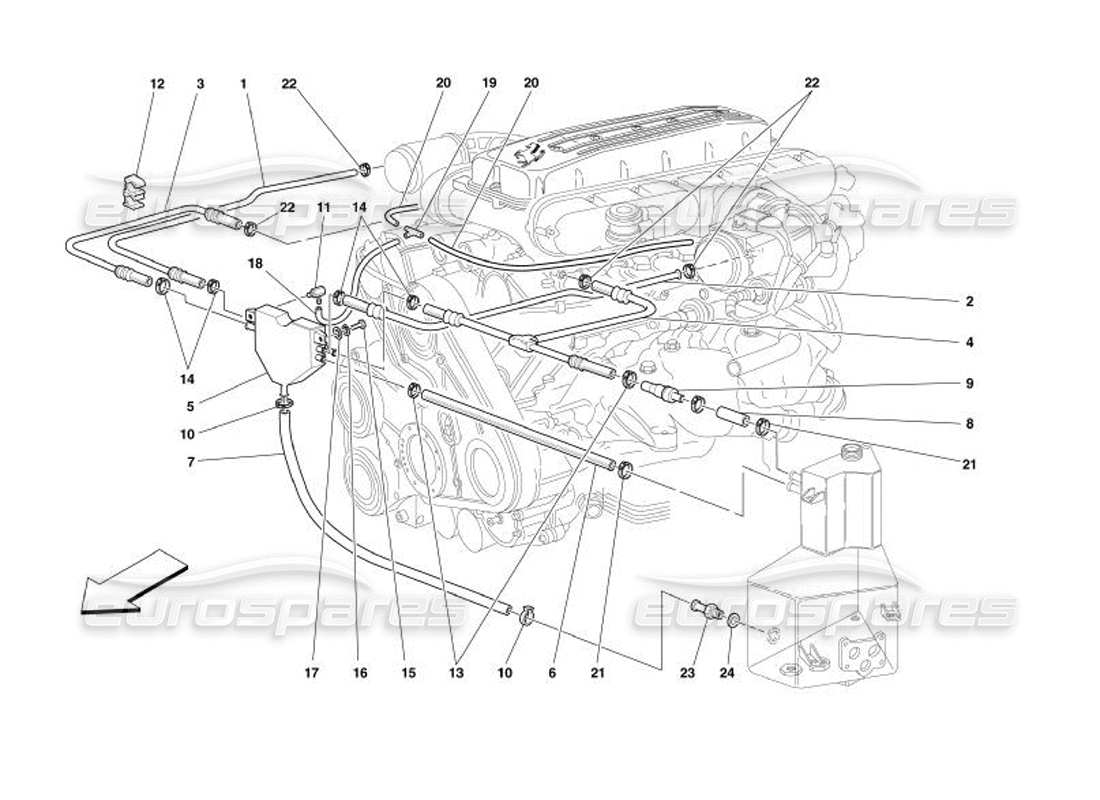

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 184477
                                                PIPE FROM OIL VENT BODY TO RH SLEEVE
                                                from £207.87
                                                from £207.87
                                                # 002
                                                MPN: 184476
                                                PIPE FROM OIL VENT BODY TO LH SLEEVE
                                                from £197.97
                                                from £197.97
                                                # 003
                                                MPN: 184478
                                                PIPE FROM RH HEAD TO VENT BODY
                                                from £102.89
                                                from £102.89
                                                # 004
                                                MPN: 184475
                                                PIPE FROM LH HEAD TO VENT BODY
                                                from £231.66
                                                from £231.66
                                                # 005
                                                MPN: 186852
                                                ENGINE OIL VENT BODY
                                                from £84.22
                                                from £84.22
                                                # 006
                                                MPN: 178931
                                                PIPE FROM VENT BODY TO OIL TANK
                                                from £38.69
                                                from £38.69
                                                This part replaces part number 167938
                                                # 007
                                                MPN: 120414
                                                RUBBER HOSE PER DRAINAGE
                                                from £4.88
                                                from £4.88
                                                # 008
                                                MPN: 179382
                                                RUBBER HOSE
                                                from £19.22
                                                from £19.22
                                                # 009
                                                MPN: 184484
                                                NONRETURN VALVE
                                                from £64.06
                                                from £64.06
                                                This part replaces part number 204251
                                                # 010
                                                MPN: 178051
                                                CLAMP
                                                from £1.96
                                                from £1.96
                                                # 011
                                                MPN: 128016
                                                UNION
                                                from £6.85
                                                from £6.85
                                                # 012
                                                MPN: 145543
                                                FIXING CLIP
                                                from £0.53
                                                from £0.53
                                                # 014
                                                MPN: 13430770
                                                SCREW COLLAR
                                                from £0.53
                                                from £0.53
                                                # 015
                                                MPN: 10902124
                                                SCREW
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 10902111 - and 1 more. Click to view details
                                                # 016
                                                MPN: 12644424
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 12644401 - and 1 more. Click to view details
                                                # 017
                                                MPN: 12601274
                                                WASHER
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                # 018
                                                MPN: 118502
                                                RUBBER PIPE
                                                from £18.37
                                                from £18.37
                                                This part replaces part number 115148 - and 3 more. Click to view details
                                                # 019
                                                MPN: 146972
                                                3-WAY UNION
                                                from £2.82
                                                from £2.82
                                                # 020
                                                MPN: 124790
                                                RUBBER PIPE
                                                Replaced by 159542
                                                from £3.14
                                                from £3.14
                                                # 021
                                                MPN: 178053
                                                CLAMP
                                                from £0.99
                                                from £0.99
                                                # 022
                                                MPN: 178052
                                                CLAMP
                                                from £0.94
                                                from £0.94
                                                # 023
                                                MPN: 186849
                                                NO RETURN VALVE
                                                from £103.92
                                                from £103.92
                                                # 024
                                                MPN: 153722
                                                GASKET
                                                from £4.62
                                                from £4.62
