020 - Front Exhaust System

Ferrari 575 Superamerica Front Exhaust System Parts Diagram

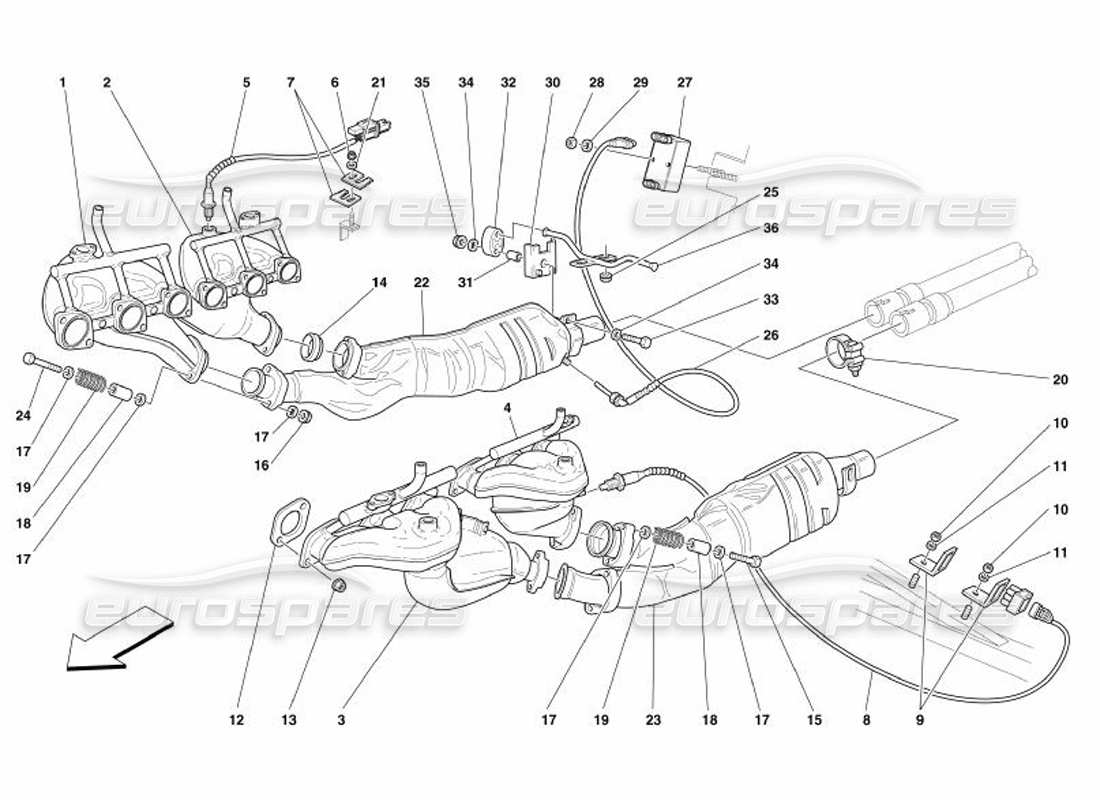

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 189758
                                                              RH FRONT EXHAUST MANIFOLD
                                                              from £1,595.99
                                                              from £1,595.99
                                                              This part replaces part number 201663 - and 3 more. Click to view details
                                                              # 002
                                                              MPN: 189760
                                                              RH REAR EXHAUST MANIFOLD
                                                              Not for GD
                                                              from £6,826.97
                                                              from £6,826.97
                                                              This part replaces part number 201664 - and 2 more. Click to view details
                                                              # 002
                                                              MPN: 190294
                                                              RH REAR EXHAUST MANIFOLD
                                                              Valid for GD
                                                              from £2,728.04
                                                              from £2,728.04
                                                              # 003
                                                              MPN: 189759
                                                              LH FRONT EXHAUST MANIFOLD
                                                              from £1,595.99
                                                              from £1,595.99
                                                              This part replaces part number 201665 - and 3 more. Click to view details
                                                              # 004
                                                              MPN: 189761
                                                              LH REAR EXHAUST MANIFOLD
                                                              from £3,754.83
                                                              from £3,754.83
                                                              This part replaces part number 201666 - and 4 more. Click to view details
                                                              # 005
                                                              MPN: 182837
                                                              FRONT LAMBDA FEELER
                                                              For front side head
                                                              from £137.60
                                                              from £137.60
                                                              This part replaces part number 178290 - and 1 more. Click to view details
                                                              # 005
                                                              MPN: 187587
                                                              FRONT LAMBDA FEELER
                                                              For rear side head
                                                              from £140.40
                                                              from £140.40
                                                              # 006
                                                              MPN: 62790300
                                                              NUT
                                                              from £0.53
                                                              from £0.53
                                                              This part replaces part number 12574011 - and 1 more. Click to view details
                                                              # 007
                                                              MPN: 175856
                                                              CONNECTOR FIXING BRACKET
                                                              from £1.17
                                                              from £1.17
                                                              # 008
                                                              MPN: 180915
                                                              REAR LAMBDA FEELER
                                                              For front side head
                                                              from £26.25
                                                              from £26.25
                                                              This part replaces part number 177674 - and 3 more. Click to view details
                                                              # 008
                                                              MPN: 187586
                                                              REAR LAMBDA FEELER
                                                              For rear side head
                                                              from £66.29
                                                              from £66.29
                                                              # 009
                                                              MPN: 185408
                                                              CONNECTOR FIXING BRACKET
                                                              from £9.20
                                                              from £9.20
                                                              # 010
                                                              MPN: 102741
                                                              NUT
                                                              from £0.51
                                                              from £0.51
                                                              This part replaces part number 12575411 - and 1 more. Click to view details
                                                              # 011
                                                              MPN: 14499324
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 14499301 which we have in stock
                                                              # 012
                                                              MPN: 143408
                                                              GASKET
                                                              (minimum order quantity = 12)
                                                              from £10.61
                                                              from £10.61
                                                              # 013
                                                              MPN: 138392
                                                              NUT
                                                              (minimum order quantity = 25)
                                                              from £0.73
                                                              from £0.73
                                                              # 014
                                                              MPN: 154981
                                                              GASKET
                                                              Supersession
                                                              Supersession
                                                              This part replaces part number 125917 - and 1 more. Click to view details
                                                              # 015
                                                              MPN: 16045024
                                                              SCREW
                                                              (minimum order quantity = 10)
                                                              from £0.54
                                                              from £0.54
                                                              This part replaces part number 125924 - and 1 more. Click to view details
                                                              # 016
                                                              MPN: 114748
                                                              NUT
                                                              from £8.76
                                                              from £8.76
                                                              # 017
                                                              MPN: 128010
                                                              WASHER
                                                              from £2.16
                                                              from £2.16
                                                              # 018
                                                              MPN: 114749
                                                              SPACER
                                                              from £1.23
                                                              from £1.23
                                                              # 019
                                                              MPN: 111743
                                                              SPRING
                                                              from £6.85
                                                              from £6.85
                                                              # 020
                                                              MPN: 170541
                                                              CLAMP
                                                              from £12.66
                                                              from £12.66
                                                              # 021
                                                              MPN: 12642877
                                                              WASHER
                                                              from £0.54
                                                              from £0.54
                                                              # 022
                                                              MPN: 185647
                                                              RH CATALYST
                                                              from £1,594.13
                                                              from £1,594.13
                                                              # 023
                                                              MPN: 185648
                                                              LH CATALYST
                                                              from £2,413.25
                                                              from £2,413.25
                                                              # 024
                                                              MPN: 16045121
                                                              SCREW
                                                              from £10.73
                                                              from £10.73
                                                              # 025
                                                              MPN: 14058519
                                                              NUT
                                                              from £0.53
                                                              from £0.53
                                                              # 026
                                                              MPN: 174674
                                                              THERMOCOUPLE
                                                              from £126.47
                                                              from £126.47
                                                              This part replaces part number 168661
                                                              # 027
                                                              MPN: 179278
                                                              CONTROL STATION
                                                              from £172.60
                                                              from £172.60
                                                              This part replaces part number 160454 which we have in stock - and 3 more. Click to view details
                                                              # 028
                                                              MPN: 62790300
                                                              NUT
                                                              from £0.53
                                                              from £0.53
                                                              This part replaces part number 12574011 - and 1 more. Click to view details
                                                              # 029
                                                              MPN: 10519224
                                                              WASHER
                                                              from £0.53
                                                              from £0.53
                                                              This part replaces part number 10519201 which we have in stock
                                                              # 030
                                                              MPN: 170023
                                                              R. H. PAD PROTECTION
                                                              from £5.07
                                                              from £5.07
                                                              # 030
                                                              MPN: 170024
                                                              L. H. PAD PROTECTION
                                                              from £5.07
                                                              from £5.07
                                                              # 031
                                                              MPN: 154016
                                                              SPACER
                                                              from £8.88
                                                              from £8.88
                                                              # 032
                                                              MPN: 154564
                                                              PAD
                                                              from £77.13
                                                              from £77.13
                                                              # 033
                                                              MPN: 16287524
                                                              SCREW
                                                              from £0.82
                                                              from £0.82
                                                              This part replaces part number 16287521
                                                              # 034
                                                              MPN: 12642078
                                                              WASHER
                                                              from £0.50
                                                              from £0.50
                                                              This part replaces part number 12642006 which we have in stock
                                                              # 035
                                                              MPN: 14058519
                                                              NUT
                                                              from £0.53
                                                              from £0.53
                                                              # 036
                                                              MPN: 168149
                                                              CENTRAL SHIELD SUPPORTING CATALYSTS
                                                              from £20.69
                                                              from £20.69
