137 - Rear Passengers Compartment Control Stations

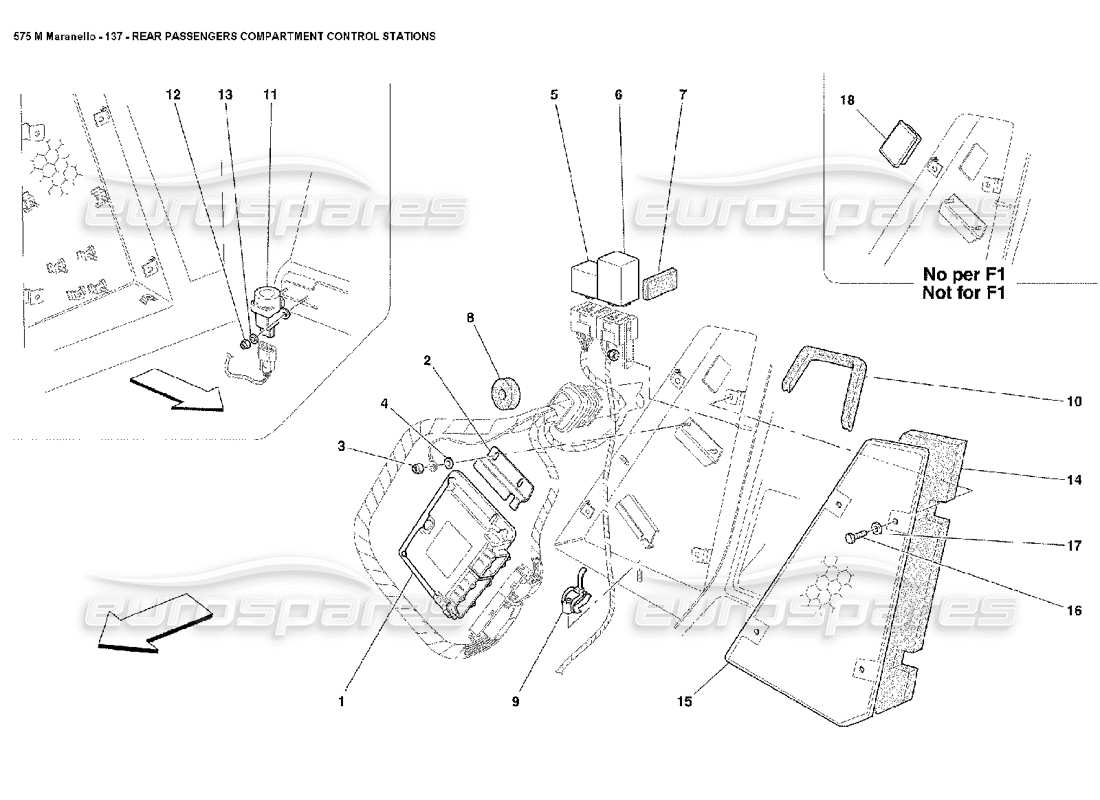

Ferrari 575M Maranello Rear Passengers Compartment Control Stations Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 185172
F1 GEARBOX ELECTRIC CONTROL STATION
- Valid for F1 - Not as spare part - Replaced by 195685
Supersession
Supersession
# 001
MPN: 195685
F1 GEARBOX ELECTRIC CONTROL STATION
- Valid for F1 - Not as spare part - Replaced by 197425 (NOT USA) - and by 197426 (USA)
from £939.75
from £939.75
This part replaces part number 185172 - and 1 more. Click to view details
# 001
MPN: 197425
F1 GEARBOX ELECTRIC CONTROL STATION
- Valid for F1 - Not for USA
from £2,863.34
from £2,863.34
# 001
MPN: 197426
F1 GEARBOX ELECTRIC CONTROL STATION
- Valid for F1 - Valid for USA
from £1,274.24
from £1,274.24
# 002
MPN: 65668900
CONTROL UNIT FIXING BRACKET
- Valid for F1
from £184.14
from £184.14
# 003
MPN: 169180
NUT
- Valid for F1
from £0.47
from £0.47
This part replaces part number 12574121
# 004
MPN: 12637824
WASHER
- Valid for F1
from £0.47
from £0.47
This part replaces part number 12637801 - and 1 more. Click to view details
# 005
MPN: 155437
RELAY CONTROL MOTOR PUMP
- Valid for F1
from £41.85
from £41.85
# 005
MPN: 194909
F1 RELAY
- Valid for F1 - not as spare part - use part number: 233100
from £7.83
from £7.83
# 006
MPN: 183209
TRUNK LAMP TIMER
from £19.69
from £19.69
# 007
MPN: 158346
RUBBER THICKNESS
from £0.81
from £0.81
# 008
MPN: 63566000
SEAL RING
from £1.01
from £1.01
# 009
MPN: 177553
CLAMP
from £0.47
from £0.47
# 010
MPN: 65387300
COVER GASKET
from £12.65
from £12.65
# 011
MPN: 179087
INERTIAL SWITCH
from £35.22
from £35.22
This part replaces part number 163675 - and 7 more. Click to view details
# 012
MPN: 169180
NUT
from £0.47
from £0.47
This part replaces part number 12574121
# 013
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 - and 1 more. Click to view details
# 014
MPN: 67116900
Insulation
from £19.40
from £19.40
# 015
MPN: 184860
LH COVER
from £17.47
from £17.47
# 016
MPN: 10977624
SCREW
from £0.47
from £0.47
This part replaces part number 10977611 - and 1 more. Click to view details
# 017
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 - and 1 more. Click to view details
# 018
MPN: 170180
PLUG
- Not for F1
from £3.87
from £3.87
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
