110 - Passengers Compartment Insulations Not for GD

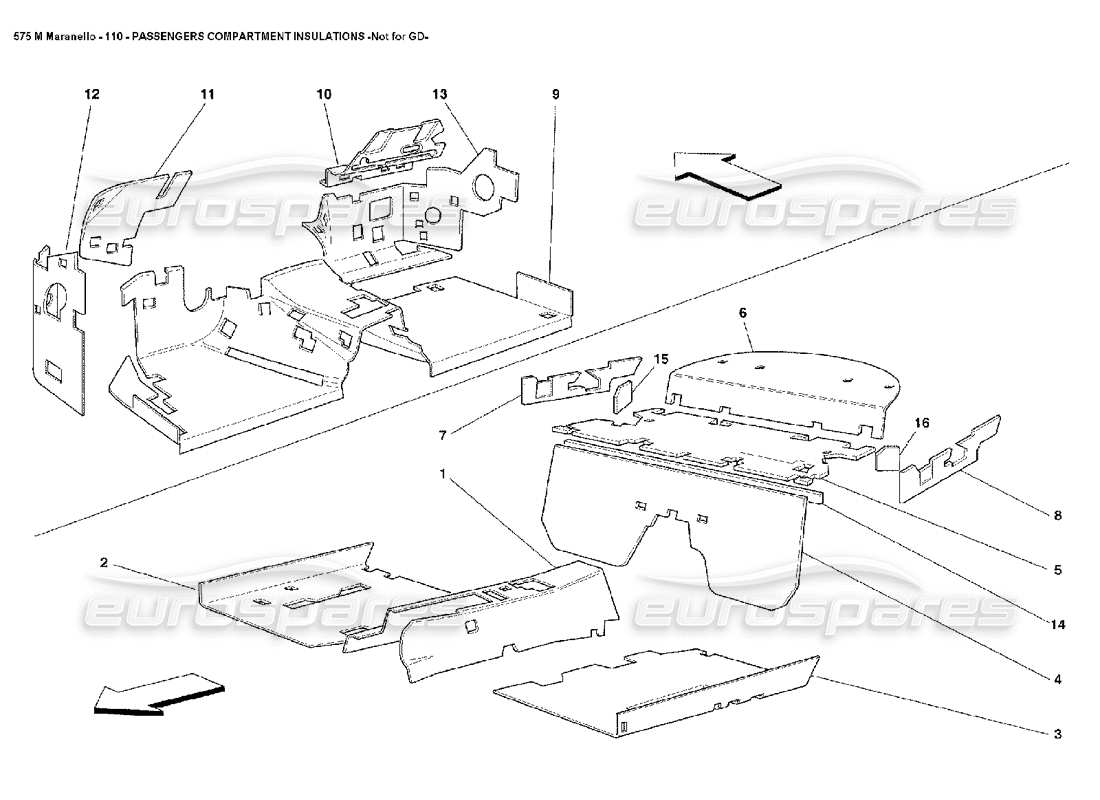

Ferrari 575M Maranello Passengers Compartment Insulations Not for GD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66082100
REAR INSULATION FOR TUNNEL
from £104.58
from £104.58
# 002
MPN: 66081800
RH REAR INSULATION FOR PLATFORM
from £117.50
from £117.50
# 003
MPN: 66081900
LH REAR INSULATION FOR PLATFORM
from £124.20
from £124.20
# 004
MPN: 64826200
INSULATION FOR BACK SEAT
from £174.74
from £174.74
# 005
MPN: 66082200
BENCH INSULATION
from £59.87
from £59.87
# 005
MPN: 66467700
BENCH INSULATION
- Not for USA, CDN, AUS and J - Valid for 4 ponit belts version - Optional
from £65.05
from £65.05
# 006
MPN: 64826600
INSULATION UNDER REAR WINDOW
from £55.41
from £55.41
# 007
MPN: 66082400
BENCH RH LATERAL INSULATION
from £11.91
from £11.91
# 008
MPN: 66082300
BENCH LH LATERAL INSULATION
from £11.91
from £11.91
# 009
MPN: 66081700
PLATFORM FRONT INSULATION
from £451.21
from £451.21
# 010
MPN: 64824900
UPPER RH INSULATION
from £49.71
from £49.71
# 011
MPN: 66404400
UPPER LH INSULATION
from £31.68
from £31.68
# 012
MPN: 66403200
LOWER FRONT LH INSULATION
from £19.29
from £19.29
# 013
MPN: 66403000
LOWER FRONT RH INSULATION
from £56.91
from £56.91
# 014
MPN: 65376500
ANTI VIBRATIONS
from £1.88
from £1.88
# 015
MPN: 67117100
RH INSULATION
from £12.57
from £12.57
# 016
MPN: 67117200
LH INSULATION
from £12.57
from £12.57
