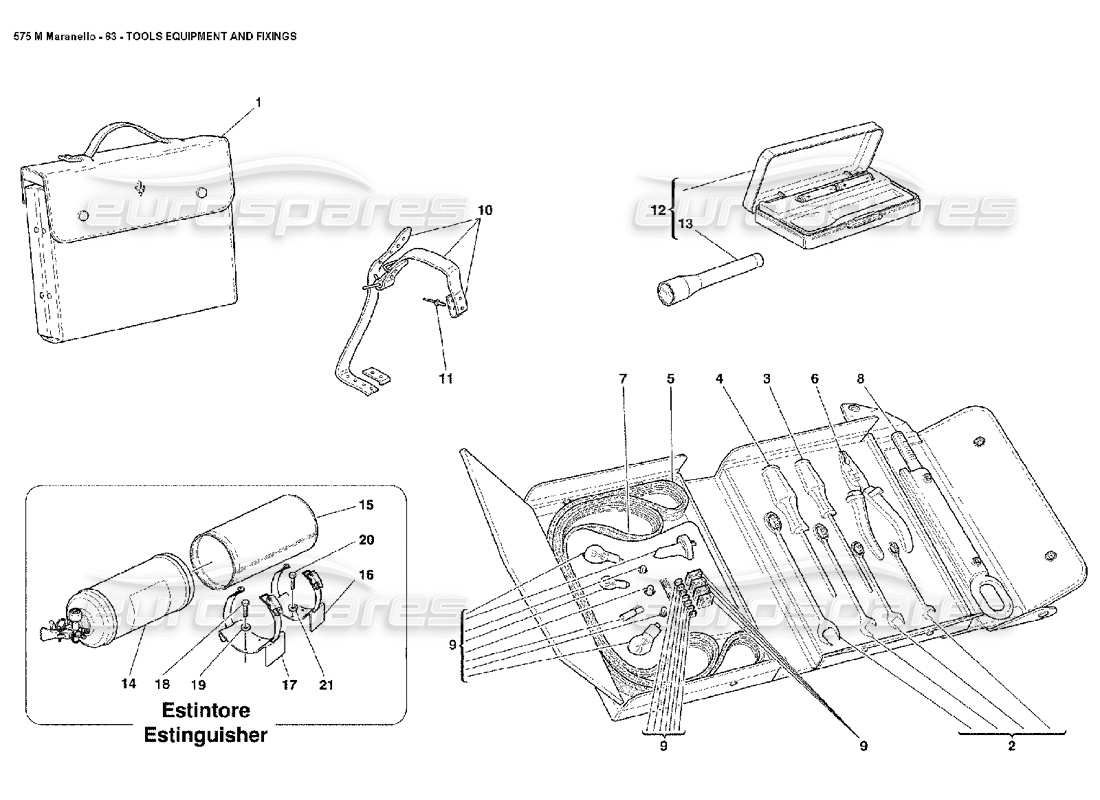

Ferrari 575M Maranello Tools Equipment and Fixings Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 190474
COMPLETE TOOL KIT BAG
- Valid for USA and CDN - Valid till stock exhaustion
Supersession
Supersession
# 000
MPN: 202881
COMPLETE TOOL KIT BAG
- Not for USA and CDN
from £579.78
from £579.78
This part replaces part number 199435 - and 1 more. Click to view details
# 001
MPN: 190477
EMPTY TOOL KIT BAG WRENCH SET 8/17
- With complete bag
from £307.56
from £307.56
# 003
-
MM. 125 SCREWDRIVER FOR SLOT SCREW
# 004
-
MM. 100 SCREWDRIVER FOR CROSS SLOT SCREW
# 005
MPN: 201444
BELT FOR ALTERNATOR AND COMPRESSOR
- See Tab. 60 Pos. 34 - Valid after stock exhaustion of 171092
from £11.58
from £11.58
This part replaces part number 171092
# 006
-
MM. 160 CUTTING PLIERS
# 007
MPN: 201456
BELT FOR HYDRAULIC SERVO
from £18.79
from £18.79
This part replaces part number 177511
# 007
MPN: 201456
BELT FOR HYDRAULIC SERVO
- CONTROL PUMP - See Tab. 27 Pos. 35 and Tab. 52 Pos. 21 - Valid after stock exhaustion of 177511
from £18.79
from £18.79
This part replaces part number 177511
# 008
MPN: 169395
TOW HOOK
- 5W - 4W - Not for USA and CDN - MARKER - Valid for USA and CDN - 21W - 5/21W - 3W - 55W BULB - 21W BULB - 5W BULB
from £107.36
from £107.36
# 009
MPN: 101525
BULB
from £2.11
from £2.11
This part replaces part number 101528
# 009
MPN: 10857790
BULB 12V
from £1.29
from £1.29
This part replaces part number 101524
# 009
MPN: 14142390
BULB 12V
from £1.23
from £1.23
# 009
MPN: 14144190
PARKING LIGHT 12V
from £0.60
from £0.60
# 009
MPN: 14144690
BULB 12V
from £2.78
from £2.78
# 009
MPN: 14145890
BULB 12V FOR SIDE
from £0.58
from £0.58
# 009
MPN: 14148190
BULB 12V
from £2.03
from £2.03
# 009
MPN: 14151095
H1 12V
from £9.77
from £9.77
# 009
MPN: 166835
MAXI FUSE 40 A.
from £6.03
from £6.03
# 009
MPN: 170093
MAXI FUSE 30 A.
from £7.99
from £7.99
# 009
MPN: 172871
MAXI FUSE 60 A.
from £8.39
from £8.39
# 009
MPN: 172873
MAXI FUSE 80 A.
from £2.62
from £2.62
# 009
MPN: 172875
MINI FUSE 5 AMP.
from £5.77
from £5.77
# 009
MPN: 172876
MINI FUSE 7,5 AMP.
from £5.66
from £5.66
# 009
MPN: 172877
MINI FUSE 10 AMP.
from £5.64
from £5.64
# 009
MPN: 172878
MINI FUSE 15 AMP.
from £4.88
from £4.88
# 009
MPN: 172879
MINI FUSE 20 AMP.
from £5.74
from £5.74
# 009
MPN: 172880
MINI FUSE 25 AMP.
from £5.76
from £5.76
# 009
MPN: 172881
MINI FUSE 30 AMP.
from £7.04
from £7.04
# 009
MPN: 187652
12V
from £14.63
from £14.63
# 010
MPN: 65123200
BELT FOR TOOL BAG
from £28.01
from £28.01
This part replaces part number 65122100
# 011
MPN: 61741600
RIVET
from £0.53
from £0.53
# 012
MPN: 182261
BOX COMPLETE EMERGENCY LIGHT
from £129.69
from £129.69
This part replaces part number 142397
# 013
MPN: 180720
EMERGENCY LIGHT
from £1,372.50
from £1,372.50
# 014
MPN: 65644700
EXTINGUISHER
- optional
from £452.90
from £452.90
# 015
MPN: 656448..
EXTINGUISHER BAG
- optional
Supersession
Supersession
# 016
MPN: 679799..
COMPLETE REAR COVERED BRACKET
- optional
Supersession
Supersession
# 017
MPN: 679798..
COMPLETE FRONT COVERED BRACKET
- optional
Supersession
Supersession
# 018
MPN: 15210624
SCREW
- optional
from £1.39
from £1.39
# 019
MPN: 10519224
WASHER
- optional
from £0.54
from £0.54
This part replaces part number 10519201 which we have in stock
# 020
MPN: 15211024
SCREW
- optional
from £2.05
from £2.05
# 021
MPN: 10519224
WASHER
- optional
from £0.54
from £0.54
This part replaces part number 10519201 which we have in stock
