ferrari 575m maranello evaporator unit and controls parts diagram

062 - Evaporator Unit and Controls

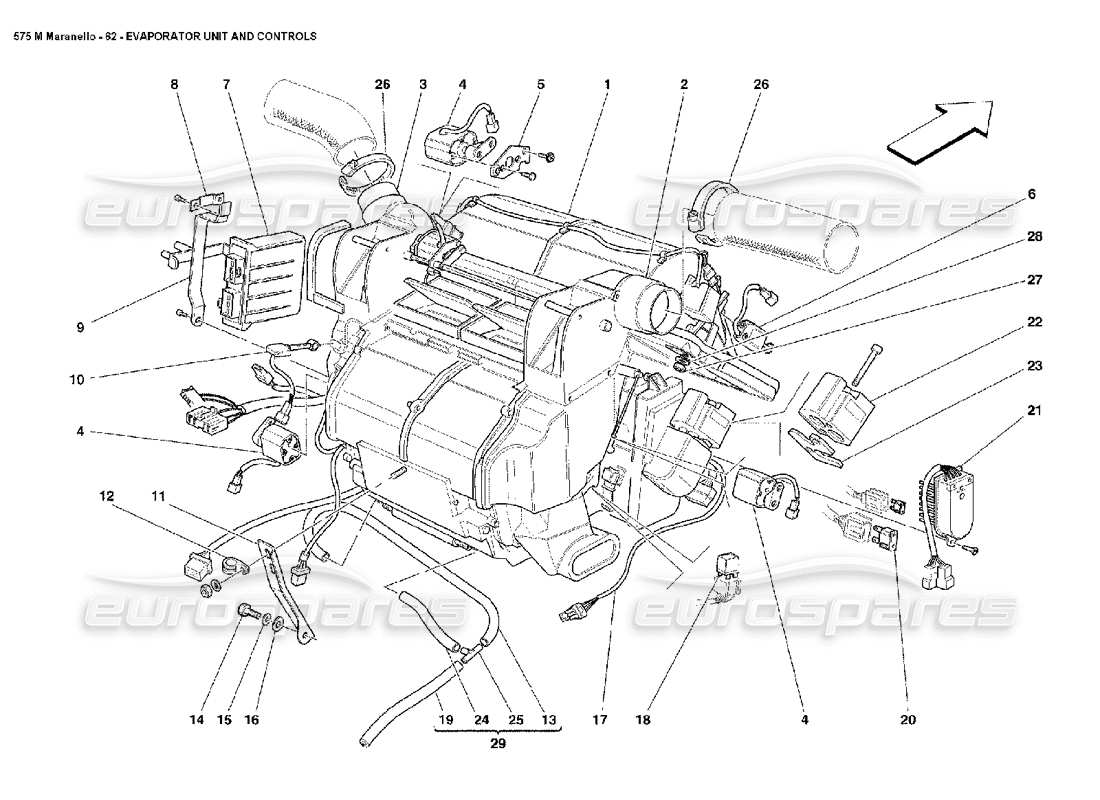

Ferrari 575M Maranello Evaporator Unit and Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 66169600
                                          COMPLETE EVAPORATOR SET
                                          - Not for GD - Valid till Ass. Nr. 52508
                                          from £2,143.12
                                          from £2,143.12
                                          # 001
                                          MPN: 66634200
                                          COMPLETE EVAPORATOR SET
                                          - Valid for GD - Valid till Ass. Nr. 52508
                                          from £2,111.75
                                          from £2,111.75
                                          # 001
                                          MPN: 67978900
                                          COMPLETE EVAPORATOR SET
                                          - Not for GD - Valid from Ass. Nr. 52509
                                          from £2,625.00
                                          from £2,625.00
                                          This part replaces part number 66169600 which we have in stock - and 1 more. Click to view details
                                          # 001
                                          MPN: 67979100
                                          COMPLETE EVAPORATOR SET
                                          - Valid for GD - Valid from Ass. Nr. 52509
                                          from £3,057.48
                                          from £3,057.48
                                          This part replaces part number 66634200 which we have in stock
                                          # 002
                                          MPN: 64929800
                                          RH AIR DISTRIBUTOR
                                          - Not for GD
                                          from £85.33
                                          from £85.33
                                          # 002
                                          MPN: 65026000
                                          RH AIR DISTRIBUTOR
                                          - Valid for GD
                                          from £49.18
                                          from £49.18
                                          # 003
                                          MPN: 64680800
                                          LH AIR DISTRIBUTOR
                                          - Not for GD
                                          from £55.91
                                          from £55.91
                                          # 003
                                          MPN: 65026100
                                          LH AIR DISTRIBUTOR
                                          - Valid for GD
                                          from £49.18
                                          from £49.18

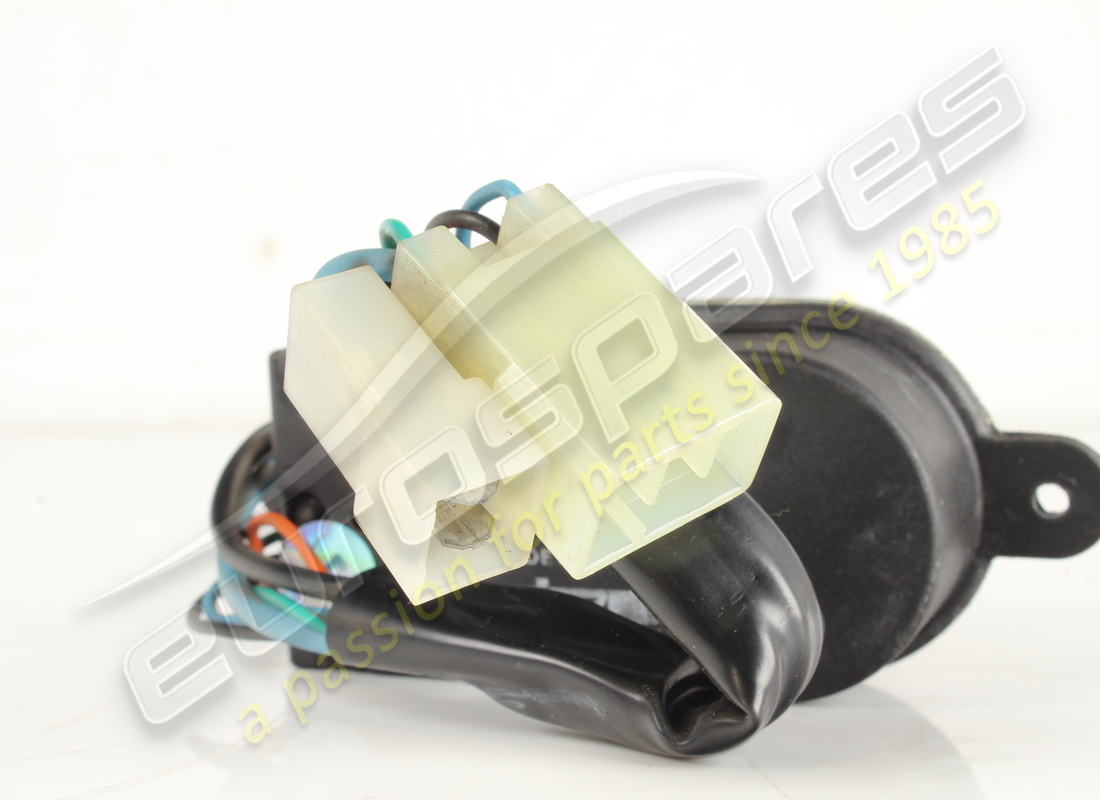

                                          # 004
                                          MPN: 64280800
                                          electric motor
                                          from £50.50
                                          from £50.50
                                          # 005
                                          MPN: 64281300
                                          BRACKET
                                          from £4.67
                                          from £4.67
                                          # 006
                                          MPN: 64280700
                                          RH ELECTRIC MOTOR
                                          from £61.66
                                          from £61.66
                                          # 006
                                          MPN: 64280900
                                          LH ELECTRIC MOTOR
                                          from £414.75
                                          from £414.75
                                          This part replaces part number 65229500 - and 2 more. Click to view details
                                          # 007
                                          MPN: 66283600
                                          ELECTRONIC CONTROL STATION
                                          - Valid till Ass. Nr. 52508
                                          Supersession
                                          Supersession
                                          # 007
                                          MPN: 67979000
                                          ELECTRONIC CONTROL STATION
                                          - Valid from Ass. Nr. 52509
                                          from £1,000.09
                                          from £1,000.09
                                          This part replaces part number 66283600
                                          # 008
                                          MPN: 64298300
                                          SMALL PLATE
                                          from £4.06
                                          from £4.06
                                          # 009
                                          MPN: 66169800
                                          BRACKET
                                          from £29.20
                                          from £29.20
                                          # 010
                                          MPN: 63962000
                                          FEELER
                                          from £15.52
                                          from £15.52
                                          # 011
                                          MPN: 64689900
                                          BRACKET
                                          from £34.64
                                          from £34.64
                                          # 012
                                          MPN: 10441590
                                          BRACKET WITH SHEATH
                                          from £0.53
                                          from £0.53
                                          This part replaces part number 10113600
                                          # 013
                                          MPN: 64471000
                                          SIDE PILOT PIPE FOR CONDENSATE VENT
                                          - Not as spare part - Replaced by 66926500
                                          Supersession
                                          Supersession
                                          # 014
                                          MPN: 10977524
                                          SCREW
                                          from £0.53
                                          from £0.53
                                          # 016
                                          MPN: 12644424
                                          WASHER
                                          from £0.54
                                          from £0.54
                                          This part replaces part number 12644401 - and 1 more. Click to view details
                                          # 017
                                          MPN: 66283700
                                          A.C. ELECTRIC WIRING
                                          - Not for GD
                                          from £163.92
                                          from £163.92
                                          # 017
                                          MPN: 67417100
                                          A.C. ELECTRIC WIRING
                                          - Valid for GD
                                          from £417.99
                                          from £417.99
                                          # 018
                                          MPN: 64286100
                                          RELAY
                                          from £42.09
                                          from £42.09
                                          # 019
                                          MPN: 66926300
                                          CENTRAL CONDENSATE OUTEL PIPE
                                          - Not as spare part - Replaced by 66926500
                                          Supersession
                                          Supersession
                                          # 020
                                          MPN: 64286200
                                          FUSE 40 A
                                          from £6.56
                                          from £6.56
                                          # 021
                                          MPN: 64280200
                                          ELECTRO BLOWER REGULATOR
                                          from £751.44
                                          from £751.44
                                          This part replaces part number 65230100
                                          # 022
                                          MPN: 63960100
                                          EXPANSION VALVE
                                          from £112.76
                                          from £112.76
                                          This part replaces part number 65230300

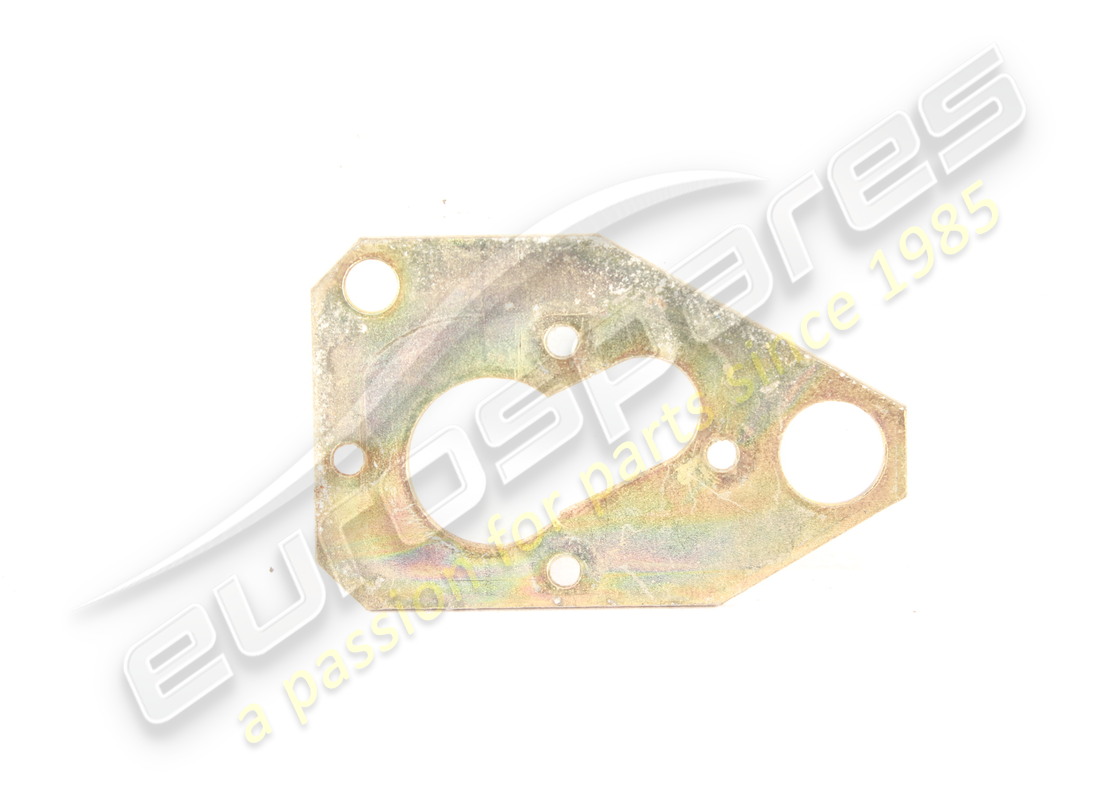

                                          # 023
                                          MPN: 64281400
                                          FLANGE
                                          from £9.12
                                          from £9.12
                                          # 024
                                          MPN: 64471100
                                          PASSENGER SIDE CONDENSATE OUTLET PIPE
                                          - Not as spare part - Replaced by 66926500
                                          Supersession
                                          Supersession
                                          # 025
                                          MPN: 64471300
                                          3 WAY UNION
                                          - Not as spare part - Replaced by 66926500
                                          Supersession
                                          Supersession
                                          # 026
                                          MPN: 13000890
                                          SCREW COLLAR
                                          from £0.63
                                          from £0.63
                                          This part replaces part number 12173290 - and 2 more. Click to view details
                                          # 027
                                          MPN: 104030
                                          NUT
                                          from £0.54
                                          from £0.54
                                          This part replaces part number 16104125
                                          # 028
                                          MPN: 116413
                                          WASHER
                                          from £0.74
                                          from £0.74
                                          # 029
                                          MPN: 66926500
                                          COMPLETE CONDENSATE OUTLET PIPE
                                          from £17.08
                                          from £17.08
                                          This part replaces part number 66926300
