055 - Rear Suspension Shock Absorber and Brake Disc

Ferrari 575M Maranello Rear Suspension Shock Absorber and Brake Disc Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 000
                                                MPN: 183315
                                                COMPLETE RH REAR HUB HOLDER
                                                from £396.63
                                                from £396.63
                                                This part replaces part number 194243 - and 2 more. Click to view details
                                                # 000
                                                MPN: 183324
                                                COMPLETE LH REAR HUB HOLDER
                                                from £472.50
                                                from £472.50
                                                This part replaces part number 194244 - and 1 more. Click to view details
                                                # 000
                                                MPN: 194243
                                                COMPLETE RH REAR HUB HOLDER
                                                - Not as spare part - Replaced by 183315
                                                Supersession
                                                Supersession
                                                This part replaces part number 183057
                                                # 000
                                                MPN: 194244
                                                COMPLETE LH REAR HUB HOLDER
                                                - Not as spare part - Replaced by 183324
                                                Supersession
                                                Supersession
                                                This part replaces part number 183325
                                                # 001
                                                MPN: 183057
                                                RH REAR HUB HOLDER
                                                - Not as spare part - With complete RH steering - knuckle 194243
                                                Supersession
                                                Supersession
                                                # 001
                                                MPN: 183325
                                                LH REAR HUB HOLDER
                                                - Not as spare part - With complete LH steering - knuckle194244
                                                Supersession
                                                Supersession
                                                # 002
                                                MPN: 185561
                                                BEARING FOR WHEEL
                                                - Valid till stock exhaustion - Replace in couple
                                                Supersession
                                                Supersession
                                                # 002
                                                MPN: 197271
                                                WHEEL BEARING
                                                from £642.90
                                                from £642.90
                                                This part replaces part number 185561
                                                # 003
                                                MPN: 180591
                                                SCREW
                                                from £30.33
                                                from £30.33
                                                This part replaces part number 14816834
                                                # 004
                                                MPN: 183753
                                                RH SUPPORT
                                                from £10.73
                                                from £10.73
                                                # 004
                                                MPN: 183754
                                                LH SUPPORT
                                                from £10.73
                                                from £10.73
                                                # 005
                                                MPN: 102741
                                                NUT
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 12575411 - and 1 more. Click to view details
                                                # 006
                                                MPN: 10519424
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                # 007
                                                MPN: 188161
                                                NUT
                                                from £2.94
                                                from £2.94
                                                # 008
                                                MPN: 183321
                                                WASHER
                                                - Not as spare part - Replaced by 196577
                                                Supersession
                                                Supersession
                                                # 008
                                                MPN: 196577
                                                WASHER
                                                from £2.78
                                                from £2.78
                                                This part replaces part number 183321
                                                # 009
                                                MPN: 11500124
                                                STUD
                                                from £0.69
                                                from £0.69
                                                This part replaces part number 11500121
                                                # 010
                                                MPN: 182991

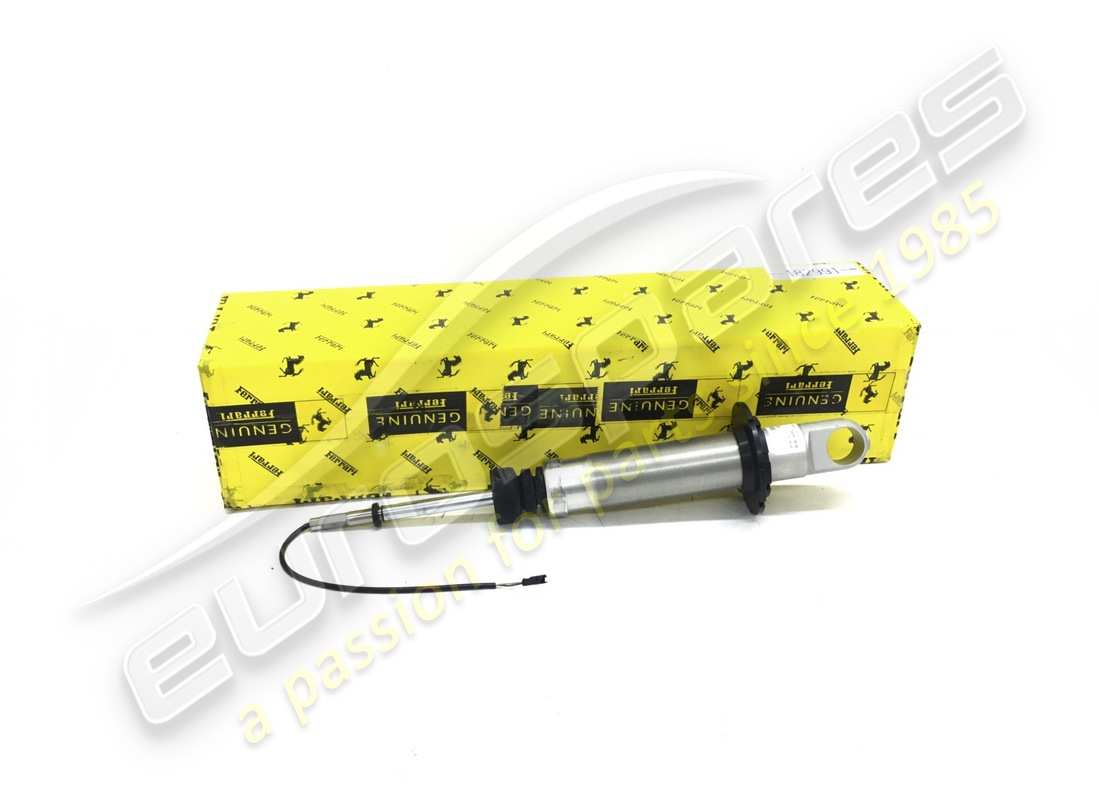

                                                REAR SHOCK ABSORBER
                                                - Valid till car Ass. Nr. 48711
                                                Supersession
                                                Supersession
                                                # 010
                                                MPN: 190996
                                                REAR SHOCK ABSORBER
                                                - Valid from car Ass. Nr. 48712 - Valid till Ass. Nr.55768
                                                from £1,866.02
                                                from £1,866.02
                                                This part replaces part number 182991
                                                # 010
                                                MPN: 205290
                                                REAR SHOCK ABSORBER
                                                - Valid from car Ass. Nr. 55769
                                                from £1,519.40
                                                from £1,519.40
                                                # 011
                                                MPN: 189997
                                                SHOCK ABSORBER PAD
                                                from £21.14
                                                from £21.14
                                                # 012
                                                MPN: 157630
                                                SILENT BLOCK BUSH
                                                Flanblock
                                                from £48.50
                                                from £48.50
                                                This part replaces part number 159262
                                                # 013
                                                MPN: 187095
                                                HYPERBLOCK
                                                - Valid till Ass. Nr.55768
                                                from £29.11
                                                from £29.11
                                                # 013
                                                MPN: 204606
                                                HYPERBLOCK
                                                - Valid from Ass. Nr.55769
                                                from £68.23
                                                from £68.23
                                                # 014
                                                MPN: 105369
                                                CABLE GROMMET
                                                from £19.10
                                                from £19.10
                                                # 015
                                                MPN: 133771
                                                THREADED INSERT
                                                from £2.39
                                                from £2.39
                                                # 016
                                                MPN: 13526170
                                                THREADED INSERT
                                                from £2.39
                                                from £2.39
                                                This part replaces part number 105197
                                                # 017
                                                MPN: 153495
                                                SPACER WASHER MM. 3.00
                                                from £2.40
                                                from £2.40
                                                # 017
                                                MPN: 153496
                                                SPACER WASHER MM. 2.90
                                                - As an alternative of 153495
                                                from £2.40
                                                from £2.40
                                                # 017
                                                MPN: 153497
                                                SPACER WASHER MM. 3.10
                                                - As an alternative of 153495
                                                from £2.42
                                                from £2.42
                                                # 018
                                                MPN: 127496
                                                WASHER
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                # 019
                                                MPN: 16043424
                                                SCREW
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 16043421
                                                # 020
                                                MPN: 10520124
                                                WASHER
                                                - Valid from car Ass. Nr. 48712
                                                from £0.53
                                                from £0.53
                                                # 020
                                                MPN: 188997
                                                FASTENING SPACER
                                                - Valid till car Ass. Nr. 48711
                                                from £15.80
                                                from £15.80
                                                # 022
                                                MPN: 11500124
                                                STUD
                                                from £0.69
                                                from £0.69
                                                This part replaces part number 11500121
                                                # 023
                                                MPN: 163652
                                                SPRING
                                                - Sold in pair - Not for cars with handling Fiorano equipment
                                                from £138.86
                                                from £138.86
                                                # 023
                                                MPN: 169986
                                                SPRING
                                                - Sold in pair - As an alternative - Not for cars with handling Fiorano equipment
                                                from £183.89
                                                from £183.89
                                                # 023
                                                MPN: 175887
                                                SPRING
                                                -Cagnola - sold in pairs - Valid for cars with handling - Optional Fiorano equipment
                                                from £291.63
                                                from £291.63
                                                # 023
                                                MPN: 208679
                                                SPRING
                                                - Cosmos - Sold in pair - As an alternativa - Valid for cars with handling Fiorano equipment - Optional
                                                from £420.69
                                                from £420.69
                                                # 024
                                                MPN: 156978
                                                UPPER SPACER
                                                from £16.30
                                                from £16.30
                                                # 025
                                                MPN: 113581
                                                LOWER SPACER
                                                from £6.20
                                                from £6.20
                                                This part replaces part number 387000338 - and 2 more. Click to view details
                                                # 026
                                                MPN: 13525470
                                                THREADED INSERT
                                                from £0.50
                                                from £0.50
                                                This part replaces part number 107333
                                                # 027
                                                MPN: 189055
                                                PAD FASTENING CUP
                                                - Valid till Ass. Nr.55768
                                                from £198.43
                                                from £198.43
                                                # 027
                                                MPN: 204507
                                                PAD FASTENING CUP
                                                from £10.91
                                                from £10.91
                                                # 028
                                                MPN: 12601574
                                                WASHER
                                                from £0.54
                                                from £0.54
                                                This part replaces part number 106616 which we have in stock - and 2 more. Click to view details
                                                # 029
                                                MPN: 159309
                                                SCREW
                                                from £20.59
                                                from £20.59
                                                # 030
                                                MPN: 102825
                                                NUT
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 95900617
                                                # 031
                                                MPN: 191982
                                                REAR BRAKE DISC
                                                from £154.67
                                                from £154.67
                                                # 031
                                                MPN: 211606
                                                REAR BRAKE DISC
                                                - CCM Version
                                                from £2,367.61
                                                from £2,367.61
                                                # 032
                                                MPN: 104370
                                                SCREW
                                                from £5.66
                                                from £5.66
                                                This part replaces part number 139981
                                                # 033
                                                MPN: 12601474
                                                WASHER
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                # 034
                                                MPN: 104114
                                                NUT
                                                Supersession
                                                Supersession
                                                This part replaces part number 15503711 - and 1 more. Click to view details
                                                # 035
                                                MPN: 189054
                                                PAD FASTENING SPRING
                                                - Valid till Ass. Nr.55768
                                                from £44.67
                                                from £44.67
                                                # 035
                                                MPN: 204458
                                                PAD FASTENING SPRING
                                                - Valid from Ass. Nr.55769
                                                from £34.89
                                                from £34.89
                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
