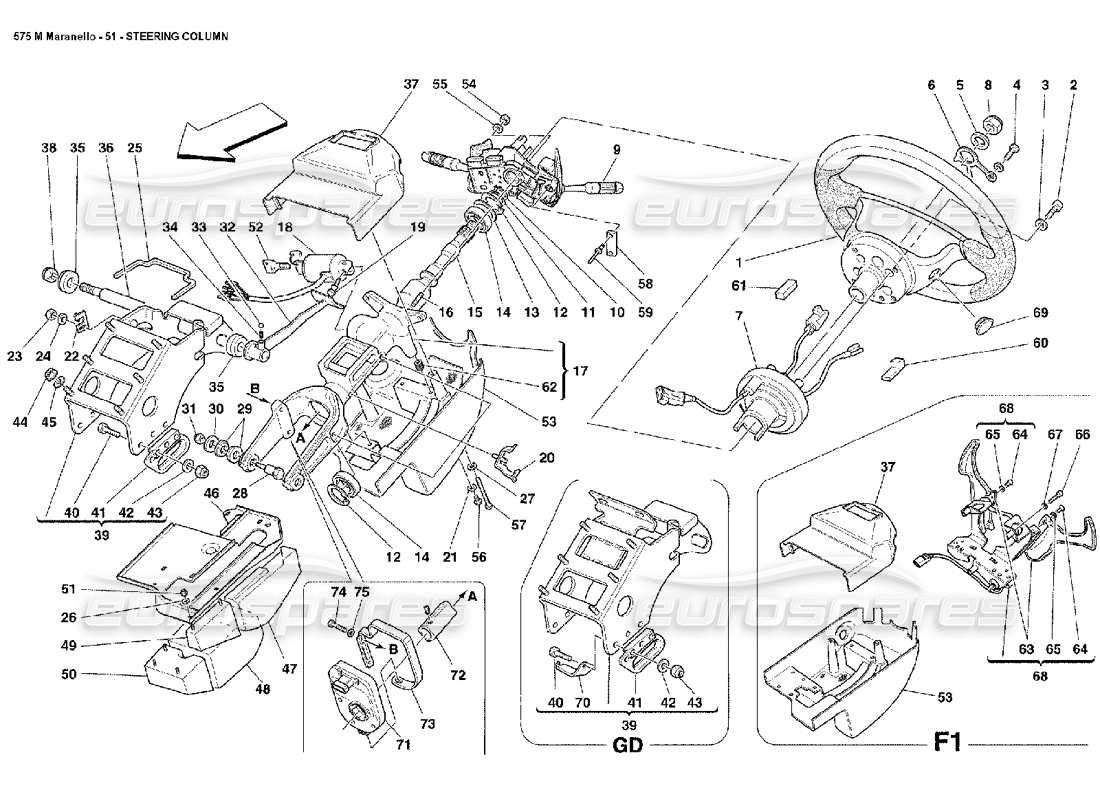

Ferrari 575M Maranello Steering Column Parts Diagram

051 - Steering Column

Ferrari 575M Maranello Steering Column Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                #
                                                                                                                Part number
                                                                                                                Description
                                                                                                                Price

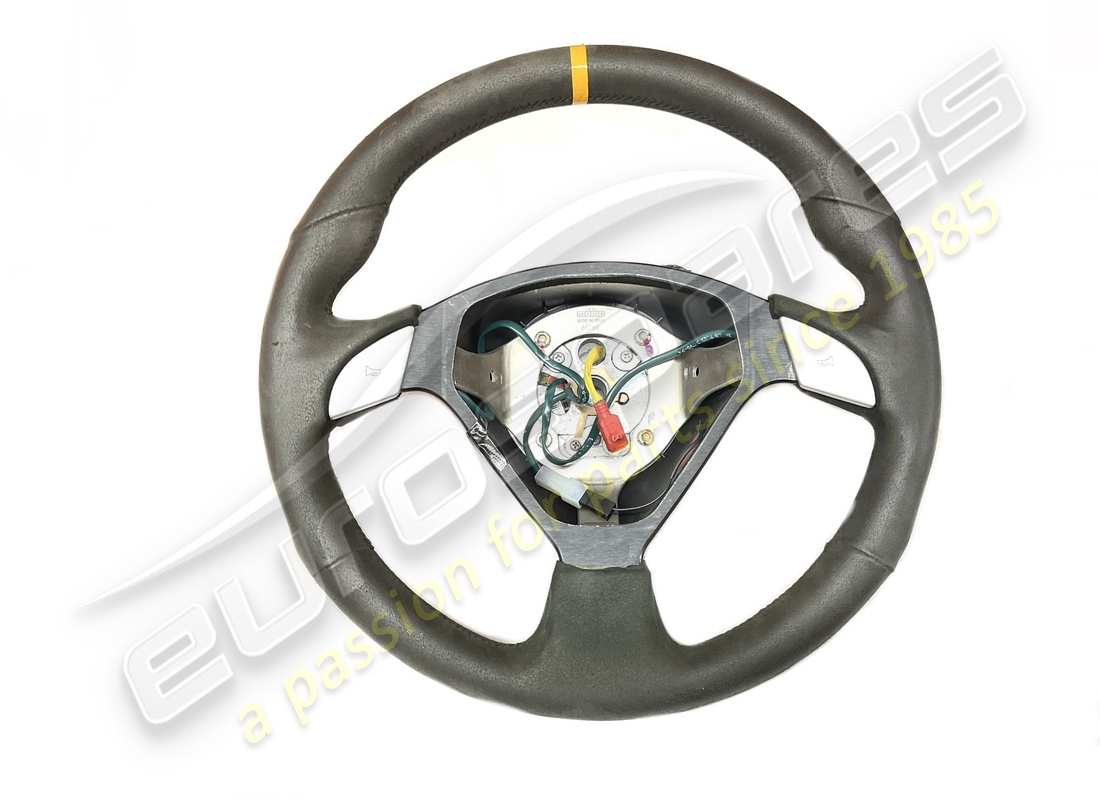

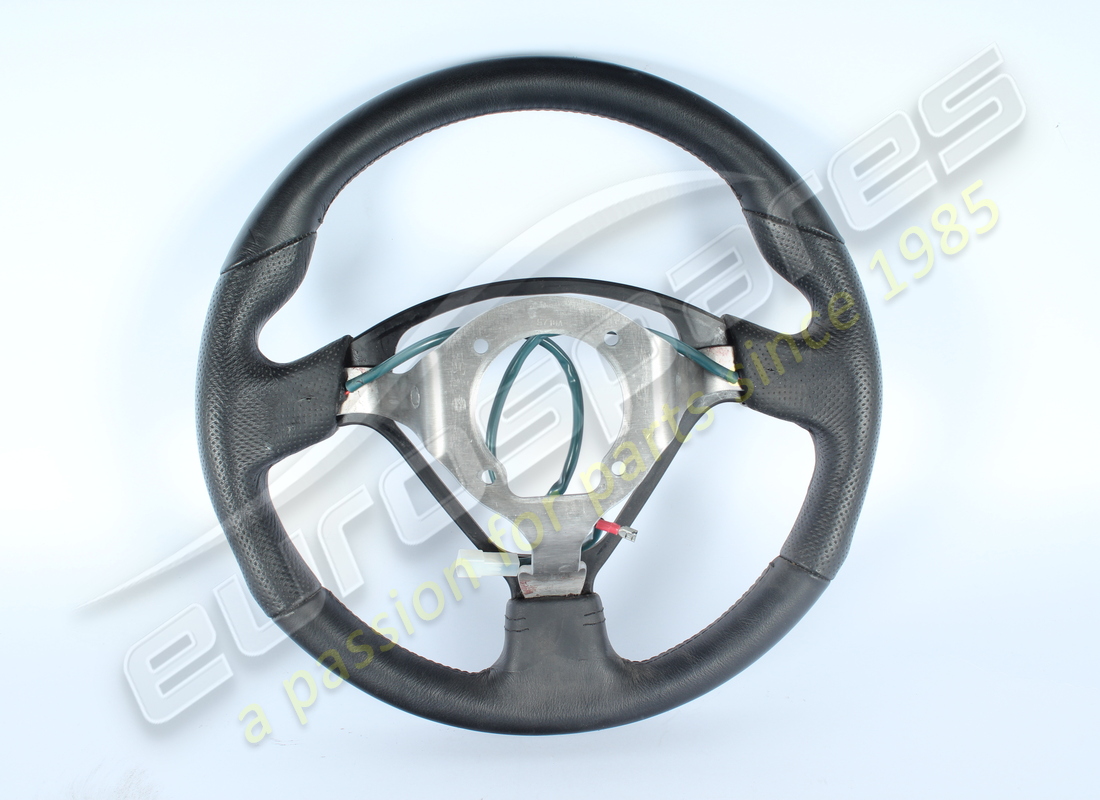

                                                                                                                # 001
                                                                                                                MPN: 672875..
                                                                                                                COMPLETE STEERING WHEEL
                                                                                                                - Without air bag module
                                                                                                                from £939.75
                                                                                                                from £939.75
                                                                                                                # 001
                                                                                                                MPN: 67287500
                                                                                                                STEERING WHEEL CPL. BLACK
                                                                                                                from £868.24
                                                                                                                from £868.24
                                                                                                                This part replaces part number 672875.. which we have in stock
                                                                                                                # 001
                                                                                                                MPN: 672875915
                                                                                                                COMPLETE STEERING WHEEL
                                                                                                                Black Alcantara
                                                                                                                from £1,795.00
                                                                                                                from £1,795.00
                                                                                                                # 001
                                                                                                                MPN: 672876..
                                                                                                                COMPLETE STEERING WHEEL
                                                                                                                - Without air bag module - With carbon insert - Optional
                                                                                                                from £4,995.00
                                                                                                                from £4,995.00
                                                                                                                # 002
                                                                                                                MPN: 13271914
                                                                                                                SCREW
                                                                                                                from £0.52
                                                                                                                from £0.52
                                                                                                                This part replaces part number 13271911 - and 1 more. Click to view details
                                                                                                                # 003
                                                                                                                MPN: 10615274
                                                                                                                WASHER
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 10615270 - and 2 more. Click to view details
                                                                                                                # 004
                                                                                                                MPN: 11021111
                                                                                                                SCREW
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 131745 which we have in stock
                                                                                                                # 005
                                                                                                                MPN: 10730921
                                                                                                                WASHER
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                # 006
                                                                                                                MPN: 157639
                                                                                                                SPRING
                                                                                                                from £4.90
                                                                                                                from £4.90
                                                                                                                # 007
                                                                                                                MPN: 169471
                                                                                                                SPIRAL CONTACT
                                                                                                                from £109.49
                                                                                                                from £109.49
                                                                                                                This part replaces part number 155394
                                                                                                                # 008
                                                                                                                MPN: 101648
                                                                                                                NUT
                                                                                                                from £2.37
                                                                                                                from £2.37
                                                                                                                This part replaces part number 106082
                                                                                                                # 010
                                                                                                                MPN: 11066876
                                                                                                                SEEGER RING
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 11066875
                                                                                                                # 011
                                                                                                                MPN: 134070
                                                                                                                SEEGER RING
                                                                                                                from £2.53
                                                                                                                from £2.53
                                                                                                                # 011
                                                                                                                MPN: 134071
                                                                                                                DITTO, THICKNESS MM. 1.1
                                                                                                                from £1.18
                                                                                                                from £1.18
                                                                                                                # 011
                                                                                                                MPN: 134072
                                                                                                                DITTO, THICKNESS MM. 1.2
                                                                                                                from £1.14
                                                                                                                from £1.14
                                                                                                                # 011
                                                                                                                MPN: 134073
                                                                                                                DITTO, THICKNESS MM. 1.3
                                                                                                                from £1.29
                                                                                                                from £1.29
                                                                                                                # 011
                                                                                                                MPN: 134074
                                                                                                                DITTO, THICKNESS MM. 1.4
                                                                                                                from £4.09
                                                                                                                from £4.09
                                                                                                                # 012
                                                                                                                MPN: 11060076
                                                                                                                SEEGER RING
                                                                                                                from £0.51
                                                                                                                from £0.51
                                                                                                                # 013
                                                                                                                MPN: 134065
                                                                                                                BEARING THRUST WASHER THINCKNESS MM. 1.0
                                                                                                                from £1.37
                                                                                                                from £1.37
                                                                                                                # 013
                                                                                                                MPN: 134066
                                                                                                                DITTO, THICKNESS MM. 1.1
                                                                                                                from £0.76
                                                                                                                from £0.76
                                                                                                                # 013
                                                                                                                MPN: 134067
                                                                                                                DITTO, THICKNESS MM. 1.2
                                                                                                                from £1.18
                                                                                                                from £1.18
                                                                                                                # 013
                                                                                                                MPN: 134068
                                                                                                                DITTO, THICKNESS MM. 1.3
                                                                                                                from £1.07
                                                                                                                from £1.07
                                                                                                                # 013
                                                                                                                MPN: 134069
                                                                                                                DITTO, THICKNESS MM. 1.4 BEARING
                                                                                                                from £1.23
                                                                                                                from £1.23
                                                                                                                # 014
                                                                                                                MPN: 134061
                                                                                                                BEARING
                                                                                                                from £6.96
                                                                                                                from £6.96
                                                                                                                This part replaces part number 119213
                                                                                                                # 015
                                                                                                                MPN: 182277
                                                                                                                UPPER SHAFT FOR STEERING CONTROL
                                                                                                                from £378.61
                                                                                                                from £378.61
                                                                                                                # 016
                                                                                                                MPN: 11001224
                                                                                                                STUD
                                                                                                                from £0.52
                                                                                                                from £0.52
                                                                                                                This part replaces part number 11001221
                                                                                                                # 017
                                                                                                                MPN: 182645
                                                                                                                COLUMN SUPPORT
                                                                                                                - Valid till Ass. Nr. 52555
                                                                                                                from £377.63
                                                                                                                from £377.63
                                                                                                                # 017
                                                                                                                MPN: 202140
                                                                                                                COLUMN SUPPORT
                                                                                                                - Valid from Ass. Nr. 52556
                                                                                                                from £353.61
                                                                                                                from £353.61
                                                                                                                # 018
                                                                                                                MPN: 183378
                                                                                                                DOORS LOCKS SET COMPLETE ANTI THEFT DEVICE
                                                                                                                from £255.85
                                                                                                                from £255.85
                                                                                                                # 019
                                                                                                                MPN: 168046
                                                                                                                SCREW
                                                                                                                from £3.02
                                                                                                                from £3.02
                                                                                                                This part replaces part number 156456
                                                                                                                # 020
                                                                                                                MPN: 157385
                                                                                                                CLIP
                                                                                                                from £0.48
                                                                                                                from £0.48
                                                                                                                # 021
                                                                                                                MPN: 12601176
                                                                                                                WASHER
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                # 022
                                                                                                                MPN: 162606
                                                                                                                CLIP
                                                                                                                from £0.86
                                                                                                                from £0.86
                                                                                                                # 023
                                                                                                                MPN: 102741
                                                                                                                NUT
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                # 024
                                                                                                                MPN: 12646601
                                                                                                                WASHER
                                                                                                                from £0.49
                                                                                                                from £0.49
                                                                                                                # 025
                                                                                                                MPN: 65938200
                                                                                                                FELT
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 026
                                                                                                                MPN: 12601279
                                                                                                                WASHER
                                                                                                                from £0.52
                                                                                                                from £0.52
                                                                                                                This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                                                # 027
                                                                                                                MPN: 12601176
                                                                                                                WASHER
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                # 028
                                                                                                                MPN: 152044
                                                                                                                PIN
                                                                                                                from £15.71
                                                                                                                from £15.71
                                                                                                                # 029
                                                                                                                MPN: 156061
                                                                                                                BUSHING
                                                                                                                from £9.30
                                                                                                                from £9.30
                                                                                                                # 030
                                                                                                                MPN: 100660
                                                                                                                WASHER
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 031
                                                                                                                MPN: 147985
                                                                                                                NUT
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                # 032
                                                                                                                MPN: 168055
                                                                                                                LOCK LEVER FOR STEERING COLUMN
                                                                                                                from £106.99
                                                                                                                from £106.99
                                                                                                                This part replaces part number 164530 which we have in stock - and 1 more. Click to view details
                                                                                                                # 033
                                                                                                                MPN: 10-16-11
                                                                                                                BALL
                                                                                                                from £0.48
                                                                                                                from £0.48
                                                                                                                # 034
                                                                                                                MPN: 155865
                                                                                                                SPRING
                                                                                                                from £2.03
                                                                                                                from £2.03
                                                                                                                # 035
                                                                                                                MPN: 163593
                                                                                                                SPACER
                                                                                                                from £3.08
                                                                                                                from £3.08
                                                                                                                # 036
                                                                                                                MPN: 175715
                                                                                                                SHAFT
                                                                                                                from £49.05
                                                                                                                from £49.05
                                                                                                                # 037
                                                                                                                MPN: 66228400
                                                                                                                UPPER COVER FOR STEERING ROD
                                                                                                                - Not for F1
                                                                                                                from £52.22
                                                                                                                from £52.22
                                                                                                                # 037
                                                                                                                MPN: 66228800
                                                                                                                UPPER COVER FOR STEERING ROD
                                                                                                                - Valid for F1
                                                                                                                from £56.54
                                                                                                                from £56.54
                                                                                                                # 038
                                                                                                                MPN: 102825
                                                                                                                NUT
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                This part replaces part number 95900617
                                                                                                                # 039
                                                                                                                MPN: 186682
                                                                                                                COLUMN SUPPORT BRACKET
                                                                                                                - Not for GD
                                                                                                                from £198.23
                                                                                                                from £198.23
                                                                                                                # 039
                                                                                                                MPN: 188871
                                                                                                                COLUMN SUPPORT BRACKET
                                                                                                                - Valid for GD - Valid for F1
                                                                                                                # 039
                                                                                                                MPN: 191914
                                                                                                                COLUMN SUPPORT BRACKET
                                                                                                                - Valid for GD - Not for F1
                                                                                                                from £237.37
                                                                                                                from £237.37
                                                                                                                # 040
                                                                                                                MPN: 10902524
                                                                                                                SCREW
                                                                                                                from £0.50
                                                                                                                from £0.50
                                                                                                                # 041
                                                                                                                MPN: 163579
                                                                                                                RH SLIDING ELEMENT
                                                                                                                from £63.70
                                                                                                                from £63.70
                                                                                                                # 041
                                                                                                                MPN: 163587
                                                                                                                LH SLIDING ELEMENT
                                                                                                                from £61.23
                                                                                                                from £61.23
                                                                                                                # 042
                                                                                                                MPN: 10519424
                                                                                                                WASHER
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                                                # 043
                                                                                                                MPN: 102948
                                                                                                                NUT
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                                                # 044
                                                                                                                MPN: 14058411
                                                                                                                NUT
                                                                                                                from £0.52
                                                                                                                from £0.52
                                                                                                                # 045
                                                                                                                MPN: 12647624
                                                                                                                WASHER
                                                                                                                from £0.50
                                                                                                                from £0.50
                                                                                                                This part replaces part number 12647611
                                                                                                                # 046
                                                                                                                MPN: 64450700
                                                                                                                UNDER COLUMN PLATE
                                                                                                                from £31.72
                                                                                                                from £31.72
                                                                                                                # 049
                                                                                                                MPN: 64509000
                                                                                                                LH OUTER INSERT
                                                                                                                from £14.17
                                                                                                                from £14.17
                                                                                                                # 050
                                                                                                                MPN: 64508900
                                                                                                                RH OUTER INSERT
                                                                                                                from £17.59
                                                                                                                from £17.59
                                                                                                                # 050
                                                                                                                MPN: SAG355
                                                                                                                SUSPENSION ACTUATOR GEAR & PIN
                                                                                                                Gear & Pin
                                                                                                                from £45.10
                                                                                                                from £45.10
                                                                                                                # 051
                                                                                                                MPN: 102741
                                                                                                                NUT
                                                                                                                from £0.51
                                                                                                                from £0.51
                                                                                                                This part replaces part number 12575411 - and 1 more. Click to view details

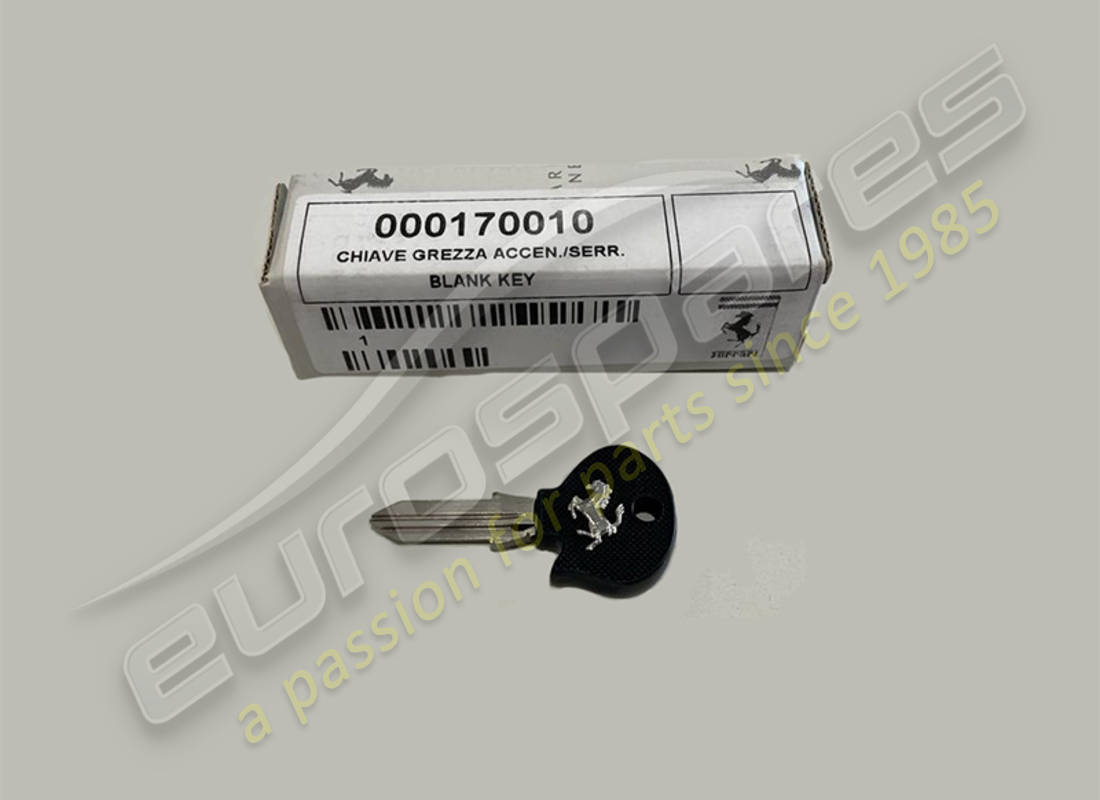

                                                                                                                # 052
                                                                                                                MPN: 170010
                                                                                                                BLANK KEY
                                                                                                                from £681.40
                                                                                                                from £681.40
                                                                                                                This part replaces part number 170010 ASM - and 1 more. Click to view details
                                                                                                                # 053
                                                                                                                MPN: 66228600
                                                                                                                LOWER COVER FOR STEERING ROD
                                                                                                                - Not for F1
                                                                                                                from £53.91
                                                                                                                from £53.91
                                                                                                                # 053
                                                                                                                MPN: 66229000
                                                                                                                LOWER COVER FOR STEERING ROD
                                                                                                                - Valid for F1
                                                                                                                from £56.89
                                                                                                                from £56.89
                                                                                                                # 054
                                                                                                                MPN: 15896470
                                                                                                                NUT
                                                                                                                (minimum order quantity = 20)
                                                                                                                from £0.78
                                                                                                                from £0.78
                                                                                                                This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                                # 055
                                                                                                                MPN: 12601174
                                                                                                                WASHER
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                This part replaces part number 12601173 - and 5 more. Click to view details
                                                                                                                # 056
                                                                                                                MPN: 13274117
                                                                                                                SCREW
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 057
                                                                                                                MPN: 13275217
                                                                                                                SCREW
                                                                                                                from £1.18
                                                                                                                from £1.18
                                                                                                                This part replaces part number 14063014
                                                                                                                # 058
                                                                                                                MPN: 164081
                                                                                                                SMALL PLATE
                                                                                                                from £8.89
                                                                                                                from £8.89
                                                                                                                # 059
                                                                                                                MPN: 60739400
                                                                                                                RIVET
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 061
                                                                                                                MPN: 163816
                                                                                                                RESISTOR FOR SPIRAL CONTACT
                                                                                                                from £9.01
                                                                                                                from £9.01
                                                                                                                # 062
                                                                                                                MPN: 13525170
                                                                                                                THREADED INSERT
                                                                                                                from £0.48
                                                                                                                from £0.48
                                                                                                                # 063
                                                                                                                MPN: 194320
                                                                                                                COUPLE LEVERS
                                                                                                                - Valid for F1
                                                                                                                from £712.16
                                                                                                                from £712.16
                                                                                                                # 063
                                                                                                                MPN: 194321
                                                                                                                COUPLE LEVERS
                                                                                                                - Valid for F1 - Carbon - Optional
                                                                                                                from £1,070.57
                                                                                                                from £1,070.57
                                                                                                                # 064
                                                                                                                MPN: 13308977
                                                                                                                SCREW
                                                                                                                - Valid for F1
                                                                                                                from £1.50
                                                                                                                from £1.50
                                                                                                                # 065
                                                                                                                MPN: 12606673
                                                                                                                WASHER
                                                                                                                - Valid for F1
                                                                                                                from £0.74
                                                                                                                from £0.74
                                                                                                                # 066
                                                                                                                MPN: 13274611
                                                                                                                SCREW
                                                                                                                - Valid for F1
                                                                                                                from £0.49
                                                                                                                from £0.49
                                                                                                                # 067
                                                                                                                MPN: 12601174
                                                                                                                WASHER
                                                                                                                - Valid for F1
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                This part replaces part number 12601173 - and 5 more. Click to view details
                                                                                                                # 068
                                                                                                                MPN: 189805
                                                                                                                F1 GEARBOX CONTROL LEVERS ASSEMBLY
                                                                                                                - Valid for F1 - Carbon - Optional
                                                                                                                from £1,429.01
                                                                                                                from £1,429.01
                                                                                                                # 068
                                                                                                                MPN: 192968
                                                                                                                F1 GEARBOX CONTROL LEVERS ASSEMBLY
                                                                                                                - Valid for F1
                                                                                                                from £624.75
                                                                                                                from £624.75
                                                                                                                This part replaces part number 182666 - and 1 more. Click to view details

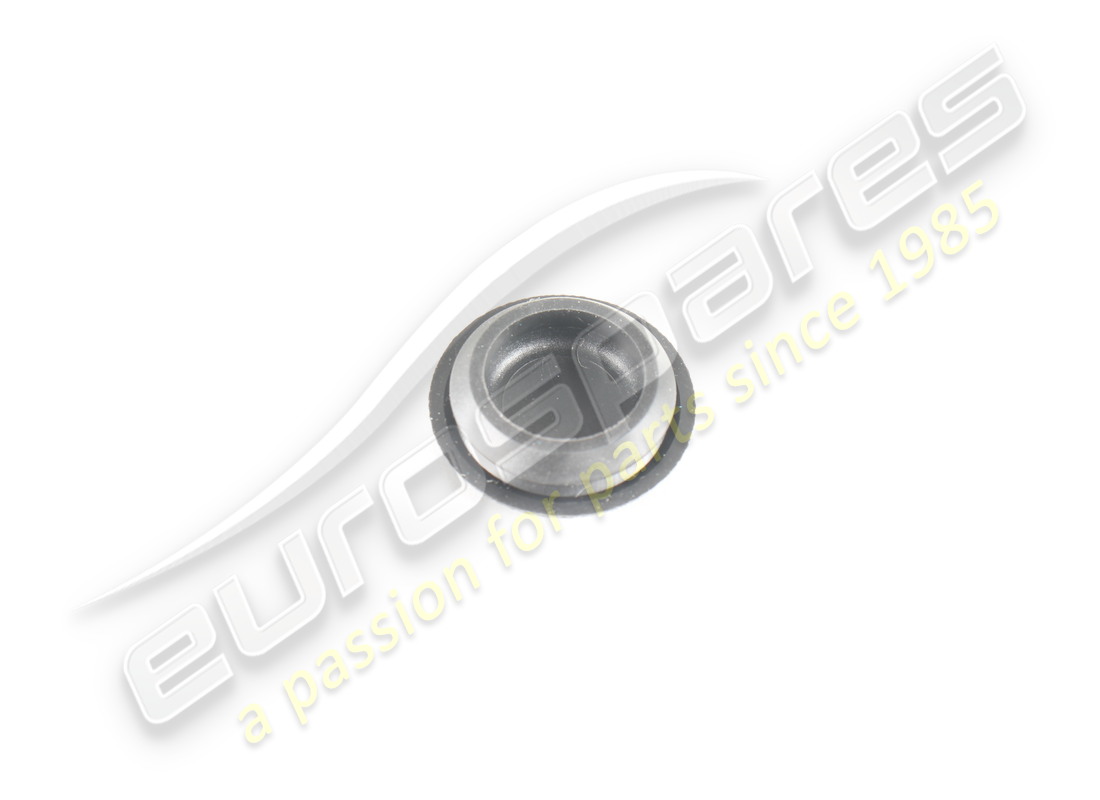

                                                                                                                # 069
                                                                                                                MPN: 185486
                                                                                                                PLUG
                                                                                                                from £1.57
                                                                                                                from £1.57
                                                                                                                # 070
                                                                                                                MPN: 179125
                                                                                                                PEDAL RETURN SMALL PLATE
                                                                                                                - Valid for GD
                                                                                                                # 071
                                                                                                                MPN: 190405
                                                                                                                STEERING ANGLE SENSOR
                                                                                                                - Valid from Ass. Nr. 52556
                                                                                                                from £197.32
                                                                                                                from £197.32
                                                                                                                # 072
                                                                                                                MPN: 200929
                                                                                                                INTERNAL BUSHING
                                                                                                                - Valid from Ass. Nr. 52556
                                                                                                                from £42.30
                                                                                                                from £42.30
                                                                                                                # 073
                                                                                                                MPN: 200931
                                                                                                                SENSOR MOUNTING BRACKET
                                                                                                                - Valid from Ass. Nr. 52556
                                                                                                                from £29.84
                                                                                                                from £29.84
                                                                                                                # 074
                                                                                                                MPN: 14304224
                                                                                                                SCREW
                                                                                                                - Valid from Ass. Nr. 52556
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                # 075
                                                                                                                MPN: 12601174
                                                                                                                WASHER
                                                                                                                - Valid from Ass. Nr. 52556
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                This part replaces part number 12601173 - and 5 more. Click to view details
