Ferrari 575M Maranello Oil Tank for Servosteering and Serpentine Parts Diagram

050 - Oil Tank for Servosteering and Serpentine

Ferrari 575M Maranello Oil Tank for Servosteering and Serpentine Parts Diagram

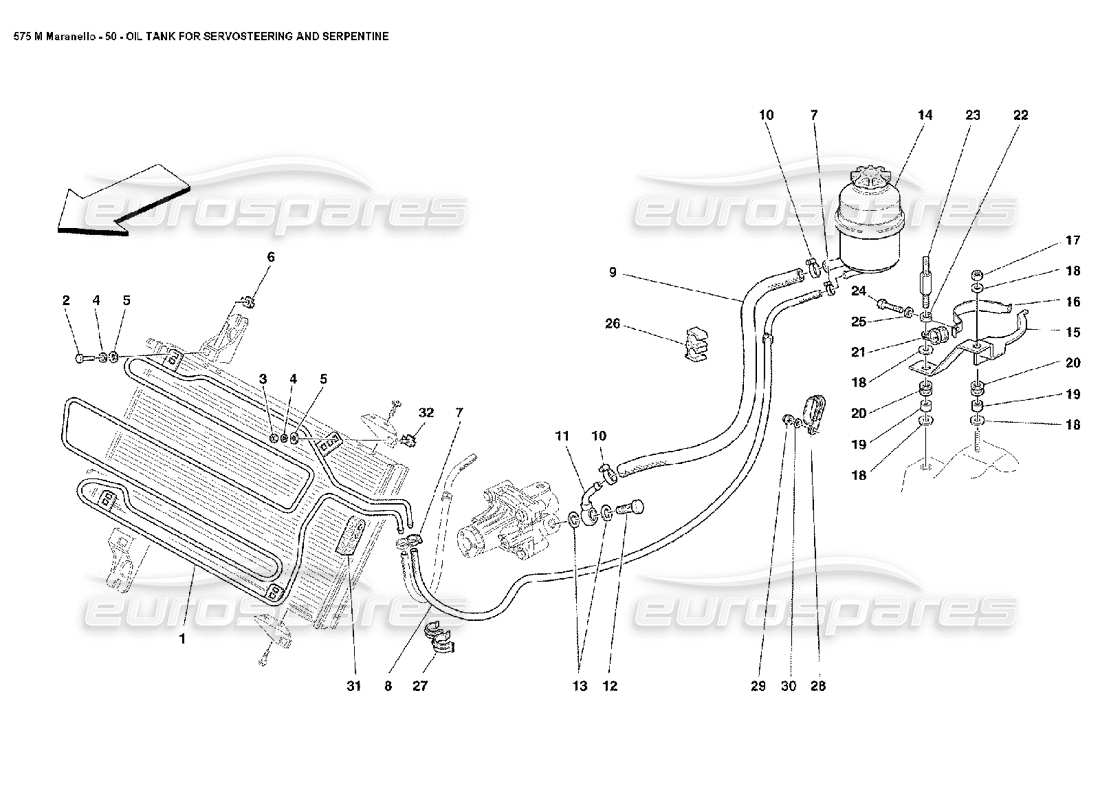

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 177360
                                                  REFRIGERATING COIL
                                                  from £131.11
                                                  from £131.11
                                                  This part replaces part number 170856 - and 1 more. Click to view details
                                                  # 002
                                                  MPN: 10902224
                                                  SCREW
                                                  from £0.53
                                                  from £0.53
                                                  # 003
                                                  MPN: 15896214
                                                  NUT
                                                  from £0.54
                                                  from £0.54
                                                  This part replaces part number 15896211
                                                  # 004
                                                  MPN: 127494
                                                  WASHER
                                                  (minimum order quantity = 20)
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                  # 005
                                                  MPN: 12643724
                                                  WASHER
                                                  from £0.51
                                                  from £0.51
                                                  This part replaces part number 109684 - and 4 more. Click to view details
                                                  # 006
                                                  MPN: 60659100
                                                  NUT WITH CAGE
                                                  from £0.64
                                                  from £0.64
                                                  This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                                  # 007
                                                  MPN: 161490
                                                  SCREW COLLAR
                                                  from £1.40
                                                  from £1.40
                                                  # 008
                                                  MPN: 179377
                                                  PIPE FROM REFRIGERATING COIL TO FUEL TANK
                                                  - Valid for GD
                                                  from £60.95
                                                  from £60.95
                                                  # 008
                                                  MPN: 186912
                                                  PIPE FROM REFRIGERATING COIL TO FUEL TANK
                                                  - Not for GD
                                                  from £176.91
                                                  from £176.91
                                                  # 009
                                                  MPN: 179381
                                                  RUBBER PIPE FROM TANK TO PUMP
                                                  - Not for GD
                                                  from £106.05
                                                  from £106.05
                                                  # 009
                                                  MPN: 193216
                                                  RUBBER PIPE FROM TANK TO PUMP
                                                  - Valid for GD
                                                  from £51.31
                                                  from £51.31
                                                  # 010
                                                  MPN: 13000390
                                                  SCREW COLLAR
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 12179590 - and 1 more. Click to view details
                                                  # 011
                                                  MPN: 155449
                                                  SWINGING UNION
                                                  from £126.58
                                                  from £126.58
                                                  # 012
                                                  MPN: 155448
                                                  UNION
                                                  from £15.40
                                                  from £15.40
                                                  # 013
                                                  MPN: 10261560
                                                  GASKET
                                                  from £0.53
                                                  from £0.53
                                                  # 015
                                                  MPN: 173586
                                                  BRACKET
                                                  - Valid for GD
                                                  from £63.22
                                                  from £63.22
                                                  # 015
                                                  MPN: 183077
                                                  BRACKET
                                                  - Not for GD
                                                  from £25.20
                                                  from £25.20
                                                  # 016
                                                  MPN: 173587
                                                  CLAMP
                                                  - Valid for GD
                                                  from £50.33
                                                  from £50.33
                                                  # 017
                                                  MPN: 102948
                                                  NUT
                                                  from £0.54
                                                  from £0.54
                                                  This part replaces part number 12574211 - and 4 more. Click to view details
                                                  # 018
                                                  MPN: 12643724
                                                  WASHER
                                                  from £0.51
                                                  from £0.51
                                                  This part replaces part number 109684 - and 4 more. Click to view details
                                                  # 019
                                                  MPN: 103550
                                                  SPACER
                                                  from £4.68
                                                  from £4.68
                                                  This part replaces part number 4130913
                                                  # 020
                                                  MPN: 103549
                                                  CABLE GROMMET
                                                  from £0.70
                                                  from £0.70
                                                  # 021
                                                  MPN: 10441490
                                                  BRACKET WITH SHEATH
                                                  from £0.53
                                                  from £0.53
                                                  # 022
                                                  MPN: 127494
                                                  WASHER
                                                  (minimum order quantity = 20)
                                                  from £0.54
                                                  from £0.54
                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                  # 023
                                                  MPN: 189070
                                                  STUD
                                                  from £77.35
                                                  from £77.35
                                                  # 024
                                                  MPN: 10902124
                                                  SCREW
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 10902111 - and 1 more. Click to view details
                                                  # 025
                                                  MPN: 12601274
                                                  WASHER
                                                  from £0.54
                                                  from £0.54
                                                  This part replaces part number 12601221 - and 5 more. Click to view details
                                                  # 026
                                                  MPN: 172847
                                                  SPRINGS
                                                  - Valid for GD
                                                  from £0.50
                                                  from £0.50
                                                  # 026
                                                  MPN: 190219
                                                  SPRINGS
                                                  - Not for GD
                                                  from £2.93
                                                  from £2.93
                                                  # 027
                                                  MPN: 140730
                                                  FIXING CLIP
                                                  from £0.52
                                                  from £0.52
                                                  This part replaces part number 179357 which we have in stock
                                                  # 027
                                                  MPN: 171358
                                                  FIXING CLIP
                                                  from £0.47
                                                  from £0.47
                                                  # 027
                                                  MPN: 179357
                                                  FIXING CLIP
                                                  See also 140730
                                                  from £0.47
                                                  from £0.47
                                                  # 028
                                                  MPN: 61712500
                                                  BRACKET WITH SHEATH
                                                  from £1.04
                                                  from £1.04
                                                  # 029
                                                  MPN: 102948
                                                  NUT
                                                  from £0.54
                                                  from £0.54
                                                  This part replaces part number 12574211 - and 4 more. Click to view details
                                                  # 030
                                                  MPN: 12639724
                                                  WASHER
                                                  from £0.54
                                                  from £0.54
                                                  This part replaces part number 12639725 - and 1 more. Click to view details
                                                  # 031
                                                  MPN: 65141300
                                                  SEALING
                                                  from £0.82
                                                  from £0.82
                                                  # 032
                                                  MPN: 14662495
                                                  SCREW WITH CAGE
                                                  from £0.53
                                                  from £0.53
