049 - Hydraulic Steering Box

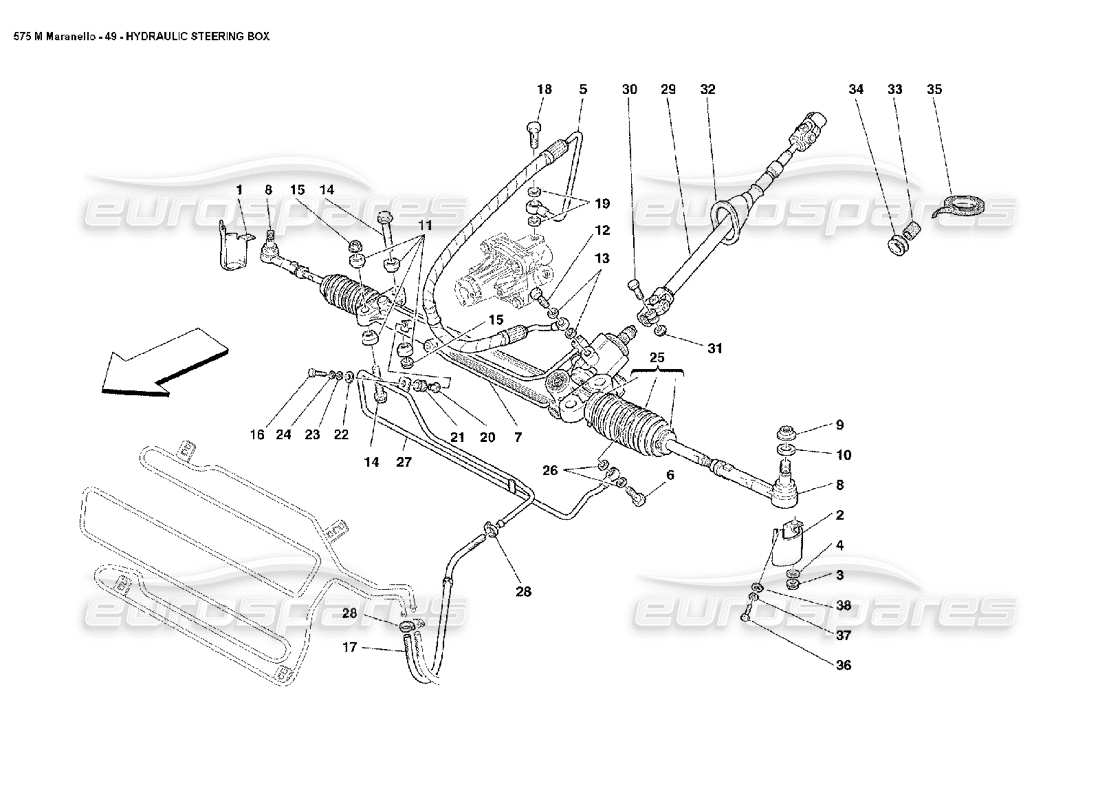

Ferrari 575M Maranello Hydraulic Steering Box Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 150879
                                                                LH BALL JOINT PROTECTION
                                                                from £3.84
                                                                from £3.84
                                                                # 002
                                                                MPN: 150878
                                                                RH BALL JOINT PROTECTION
                                                                from £5.39
                                                                from £5.39
                                                                # 004
                                                                MPN: 62764900
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                # 005
                                                                MPN: 170860
                                                                PIPE FROM PUMP TO STEERING BOX
                                                                - Not for GD
                                                                from £165.06
                                                                from £165.06
                                                                # 005
                                                                MPN: 171813
                                                                PIPE FROM PUMP TO STEERING BOX
                                                                - Valid for GD
                                                                from £407.72
                                                                from £407.72
                                                                # 006
                                                                MPN: 10185111
                                                                UNION
                                                                from £2.25
                                                                from £2.25
                                                                # 007
                                                                MPN: 169888
                                                                RACK STEERING BOX
                                                                - Valid for GD
                                                                from £4,072.74
                                                                from £4,072.74
                                                                # 007
                                                                MPN: 170858
                                                                Steering Rack
                                                                (suitable for LHD)
                                                                from £3,172.40
                                                                from £3,172.40
                                                                # 008
                                                                MPN: 158016
                                                                BALL JOINT
                                                                from £110.00
                                                                from £110.00
                                                                # 009
                                                                MPN: 149807
                                                                NUT
                                                                from £0.63
                                                                from £0.63
                                                                # 010
                                                                MPN: 155002
                                                                WASHER
                                                                from £6.90
                                                                from £6.90
                                                                # 011
                                                                MPN: 155567
                                                                SILENTBLOCK
                                                                - VALVE
                                                                from £72.32
                                                                from £72.32
                                                                # 012
                                                                MPN: 170862
                                                                UNION
                                                                from £15.04
                                                                from £15.04
                                                                # 013
                                                                MPN: 10280060
                                                                GASKET
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 100501 - and 3 more. Click to view details
                                                                # 014
                                                                MPN: 175701
                                                                SCREW
                                                                from £1.33
                                                                from £1.33
                                                                This part replaces part number 16287634 which we have in stock
                                                                # 015
                                                                MPN: 175283
                                                                NUT
                                                                from £0.47
                                                                from £0.47
                                                                # 016
                                                                MPN: 10445224
                                                                SCREW
                                                                from £0.47
                                                                from £0.47
                                                                # 017
                                                                MPN: 178184
                                                                RUBBER PIPE FROM STEERING BOX TO REFRIGERATING COIL
                                                                - Not for GD
                                                                from £44.30
                                                                from £44.30
                                                                # 017
                                                                MPN: 193026
                                                                RUBBER PIPE FROM STEERING BOX TO REFRIGERATING COIL
                                                                - Valid for GD - VALVE
                                                                from £53.83
                                                                from £53.83
                                                                # 019
                                                                MPN: 10278660
                                                                GASKET
                                                                from £0.77
                                                                from £0.77
                                                                # 020
                                                                MPN: 149707
                                                                SPACER
                                                                from £0.66
                                                                from £0.66
                                                                # 021
                                                                MPN: 103549
                                                                CABLE GROMMET
                                                                from £0.71
                                                                from £0.71
                                                                # 022
                                                                MPN: 10523424
                                                                WASHER
                                                                from £0.54
                                                                from £0.54
                                                                # 023
                                                                MPN: 12642878
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                # 024
                                                                MPN: 10615274
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 10615270 - and 2 more. Click to view details
                                                                # 025
                                                                MPN: 171702
                                                                COMPLETE RUBBER BOOT
                                                                Supersession
                                                                Supersession
                                                                # 026
                                                                MPN: 10280060
                                                                GASKET
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 100501 - and 3 more. Click to view details
                                                                # 027
                                                                MPN: 172848
                                                                PIPE FROM STEERING BOX WITH UNION
                                                                - Valid for GD
                                                                # 027
                                                                MPN: 177395
                                                                PIPE FROM STEERING BOX WITH UNION
                                                                - Not for GD
                                                                from £55.43
                                                                from £55.43
                                                                # 028
                                                                MPN: 161490
                                                                SCREW COLLAR
                                                                from £1.02
                                                                from £1.02
                                                                # 029
                                                                MPN: 167168
                                                                STEERING CARDANIC TRASMISSION
                                                                - Not for GD
                                                                from £1,243.23
                                                                from £1,243.23
                                                                # 029
                                                                MPN: 169886
                                                                STEERING CARDANIC TRASMISSION
                                                                - Valid for GD
                                                                from £1,407.54
                                                                from £1,407.54
                                                                # 030
                                                                MPN: 150427
                                                                SCREW
                                                                from £3.17
                                                                from £3.17
                                                                This part replaces part number 150428 which we have in stock
                                                                # 031
                                                                MPN: 150428
                                                                NUT
                                                                from £0.42
                                                                from £0.42
                                                                # 032
                                                                MPN: 167341
                                                                GASKET
                                                                from £21.87
                                                                from £21.87
                                                                This part replaces part number 154807
                                                                # 033
                                                                MPN: 167379
                                                                RUBBER HOSE
                                                                from £6.96
                                                                from £6.96
                                                                # 034
                                                                MPN: 167376
                                                                SEAL RING
                                                                from £0.83
                                                                from £0.83
                                                                # 035
                                                                MPN: 179038
                                                                FILM FOR CARDANIC TRASMISSION
                                                                - Valid till stock exhaustion
                                                                Supersession
                                                                Supersession
                                                                # 035
                                                                MPN: 195293
                                                                FILM FOR CARDANIC TRASMISSION
                                                                from £7.14
                                                                from £7.14
                                                                This part replaces part number 179038
                                                                # 036
                                                                MPN: 10977524
                                                                SCREW
                                                                from £0.53
                                                                from £0.53
                                                                # 037
                                                                MPN: 10730014
                                                                WASHER
                                                                from £0.51
                                                                from £0.51
                                                                # 038
                                                                MPN: 127493
                                                                WASHER
                                                                from £0.53
                                                                from £0.53
                                                                This part replaces part number 106849 - and 1 more. Click to view details
