Ferrari 575M Maranello Brake System Not for GD Parts Diagram

044 - Brake System Not for GD

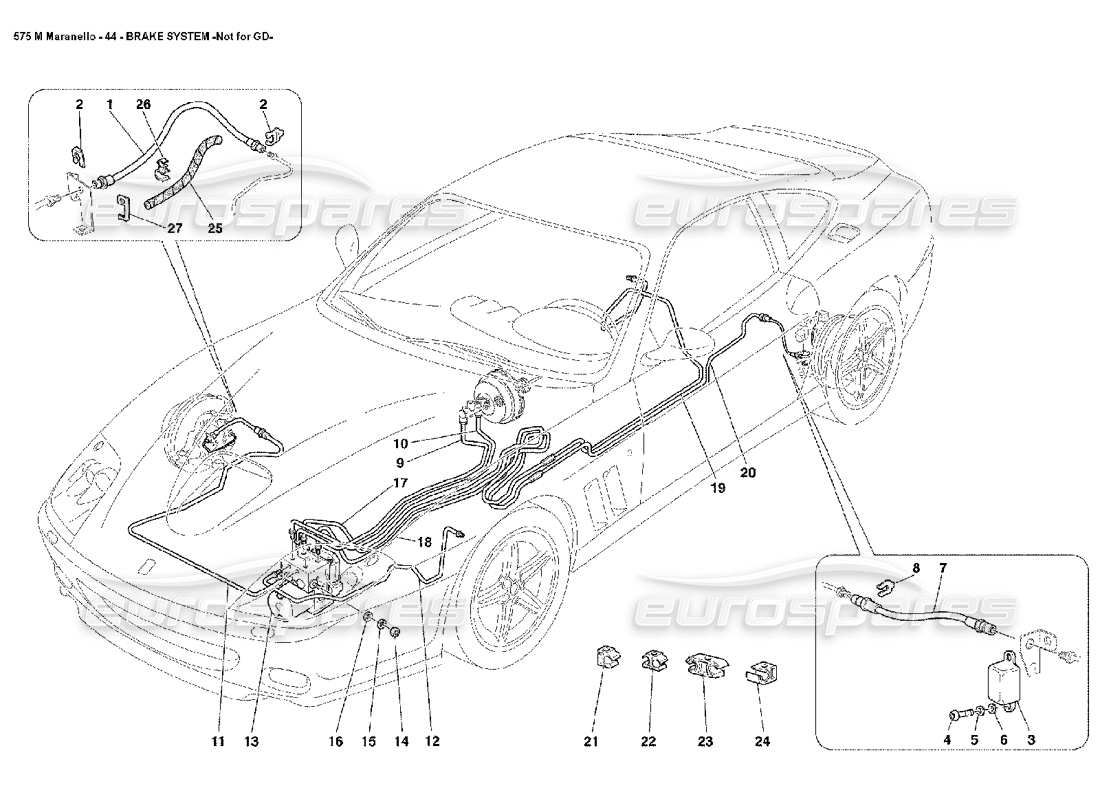

Ferrari 575M Maranello Brake System Not for GD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 137313
                                HOSE
                                from £45.00
                                from £45.00
                                # 002
                                MPN: 116374
                                FIXING CLIP
                                from £1.17
                                from £1.17
                                # 003
                                MPN: 168148
                                REAR SENSOR PROTECTION
                                from £17.30
                                from £17.30
                                # 004
                                MPN: 60909500
                                SCREW
                                from £1.33
                                from £1.33
                                # 005
                                MPN: 127494
                                WASHER
                                (minimum order quantity = 20)
                                from £0.53
                                from £0.53
                                This part replaces part number 10516470 - and 4 more. Click to view details
                                # 006
                                MPN: 14496424
                                WASHER
                                Supersession
                                Supersession
                                This part replaces part number 14496401 - and 3 more. Click to view details
                                # 007
                                MPN: 137313
                                REAR HOSE
                                from £45.00
                                from £45.00
                                # 008
                                MPN: 116374
                                CLIP
                                from £1.17
                                from £1.17
                                # 009
                                MPN: 182979
                                BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION
                                - Not as spare part - Replaced by 212522 for LH D.
                                Supersession
                                Supersession
                                # 009
                                MPN: 212522
                                BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION
                                - Not for GD
                                from £12.93
                                from £12.93
                                This part replaces part number 182979
                                # 010
                                MPN: 182255
                                BRAKE PIPE FROM REAR PUMP TO CONTROL STATION
                                - Not as spare part - Replaced by 212520 for LH D.
                                Supersession
                                Supersession
                                # 010
                                MPN: 212520
                                BRAKE PIPE FROM REAR PUMP TO CONTROL STATION
                                - Not for GD
                                from £12.34
                                from £12.34
                                This part replaces part number 182255
                                # 011
                                MPN: 182980
                                RH BRAKE PIPE FROM CONTROL STATION TO FRONT HOSE
                                - Not as spare part - Replaced by 212523
                                Supersession
                                Supersession
                                # 011
                                MPN: 212523
                                RH BRAKE PIPE FROM CONTROL STATION TO FRONT HOSE
                                from £9.68
                                from £9.68
                                This part replaces part number 182980
                                # 012
                                MPN: 182981
                                LH BRAKE PIPE FROM CONTROL STATION TO FRONT HOSE
                                - Not as spare part - Replaced by 212524
                                Supersession
                                Supersession
                                # 012
                                MPN: 212524
                                LH BRAKE PIPE FROM CONTROL STATION TO FRONT HOSE
                                from £20.54
                                from £20.54
                                This part replaces part number 182981
                                # 013
                                MPN: 191997
                                ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION
                                from £1,880.04
                                from £1,880.04
                                This part replaces part number 191996
                                # 014
                                MPN: 16100814
                                NUT
                                from £0.49
                                from £0.49
                                This part replaces part number 16100811 - and 1 more. Click to view details
                                # 015
                                MPN: 127496
                                WASHER
                                from £0.54
                                from £0.54
                                This part replaces part number 10516671 - and 2 more. Click to view details
                                # 016
                                MPN: 12638524
                                WASHER
                                from £0.47
                                from £0.47
                                This part replaces part number 12638501 - and 2 more. Click to view details
                                # 017
                                MPN: 185676
                                BRAKE PIPE FROM CONTROL STATION TO RH REAR RIGID PIPE
                                - Not as spare part - Replaced by 212521 for LH D.
                                Supersession
                                Supersession
                                # 017
                                MPN: 212521
                                BRAKE PIPE FROM CONTROL STATION TO RH REAR RIGID PIPE
                                - Not for GD
                                from £12.08
                                from £12.08
                                This part replaces part number 185676
                                # 018
                                MPN: 185677
                                BRAKE PIPE FROM CONTROL STATION TO LH REAR RIGID PIPE
                                - Not as spare part - Replaced by 212525 for LH D.
                                Supersession
                                Supersession
                                # 018
                                MPN: 212525
                                BRAKE PIPE FROM CONTROL STATION TO LH REAR RIGID PIPE
                                - Not for GD
                                from £20.50
                                from £20.50
                                This part replaces part number 185677
                                # 019
                                MPN: 187041
                                BRAKE PIPE TO RH REAR HOSE
                                - Not as spare part - Replaced by 212526 for LH D.
                                Supersession
                                Supersession
                                # 019
                                MPN: 212526
                                BRAKE PIPE TO RH REAR HOSE
                                - Not for GD
                                from £13.66
                                from £13.66
                                This part replaces part number 187041
                                # 020
                                MPN: 187042
                                BRAKE PIPE TO LH REAR HOSE
                                - Not as spare part - Replaced by 212527 for LH D. - and 212537 for RH D.
                                Supersession
                                Supersession
                                # 020
                                MPN: 212527
                                BRAKE PIPE TO LH REAR HOSE
                                - Not for GD
                                from £10.96
                                from £10.96
                                This part replaces part number 187042
                                # 021
                                MPN: 141505
                                CLIP
                                from £0.62
                                from £0.62
                                # 022
                                MPN: 143055
                                CLIP
                                from £0.52
                                from £0.52
                                # 023
                                MPN: 169476
                                CLIP
                                from £1.69
                                from £1.69
                                # 024
                                MPN: 169477
                                CLIP
                                from £1.30
                                from £1.30
                                # 025
                                MPN: 204939
                                PIPE SHEATH
                                - CCM Version
                                from £8.02
                                from £8.02
                                # 026
                                MPN: 150738
                                FLEXIBLE CLIP
                                - CCM Version
                                from £0.53
                                from £0.53
                                # 027
                                MPN: 162606
                                CLIP
                                - CCM Version
                                from £0.85
                                from £0.85
