Ferrari 575M Maranello Power Unit and Tank Valid for F1 Parts Diagram

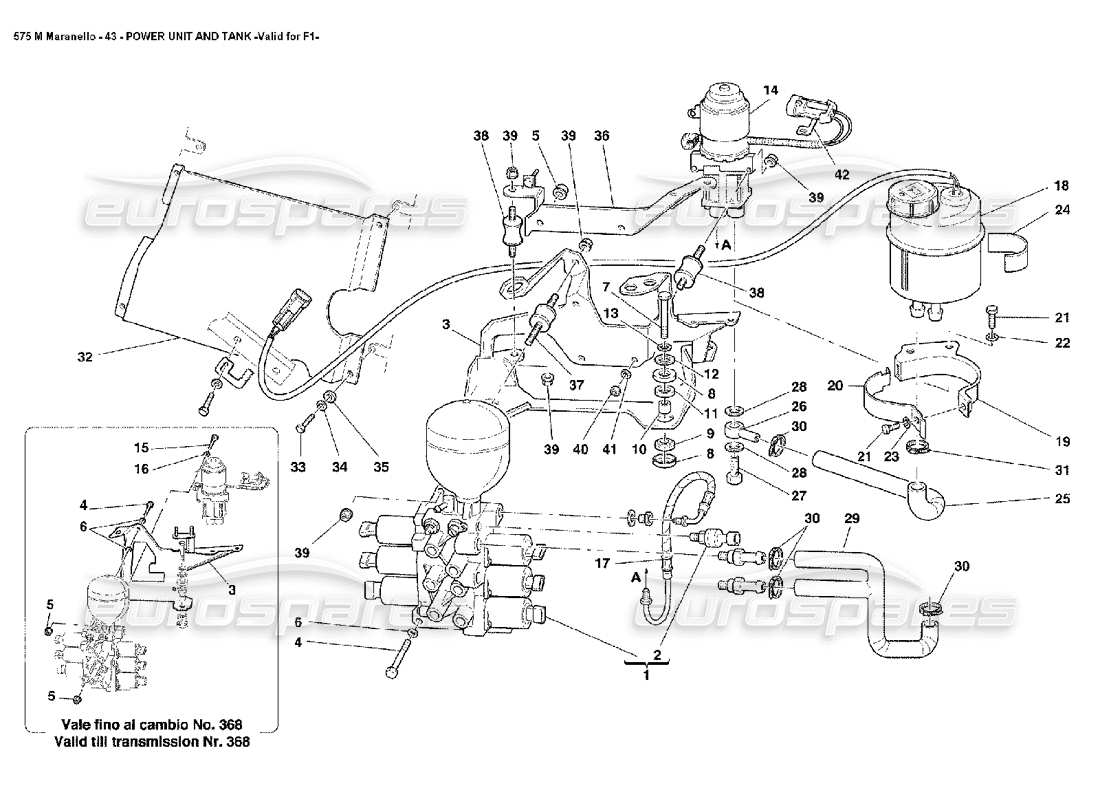

043 - Power Unit and Tank Valid for F1

Ferrari 575M Maranello Power Unit and Tank Valid for F1 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 000
                                              MPN: 185086
                                              F1 Clutch Hydraulic Control
                                              - Valid till transmission Nr. 368
                                              from £9,278.56
                                              from £9,278.56
                                              # 000
                                              MPN: 194327
                                              F1 Clutch Hydraulic Control
                                              - Valid from transmission Nr. 369 - Valid till gearbox Nr.1890
                                              from £8,325.25
                                              from £8,325.25
                                              # 000
                                              MPN: 212821
                                              F1 Clutch Hydraulic Control
                                              - Valid from transmission Nr. 1891
                                              from £4,216.91
                                              from £4,216.91
                                              # 001
                                              MPN: 179533

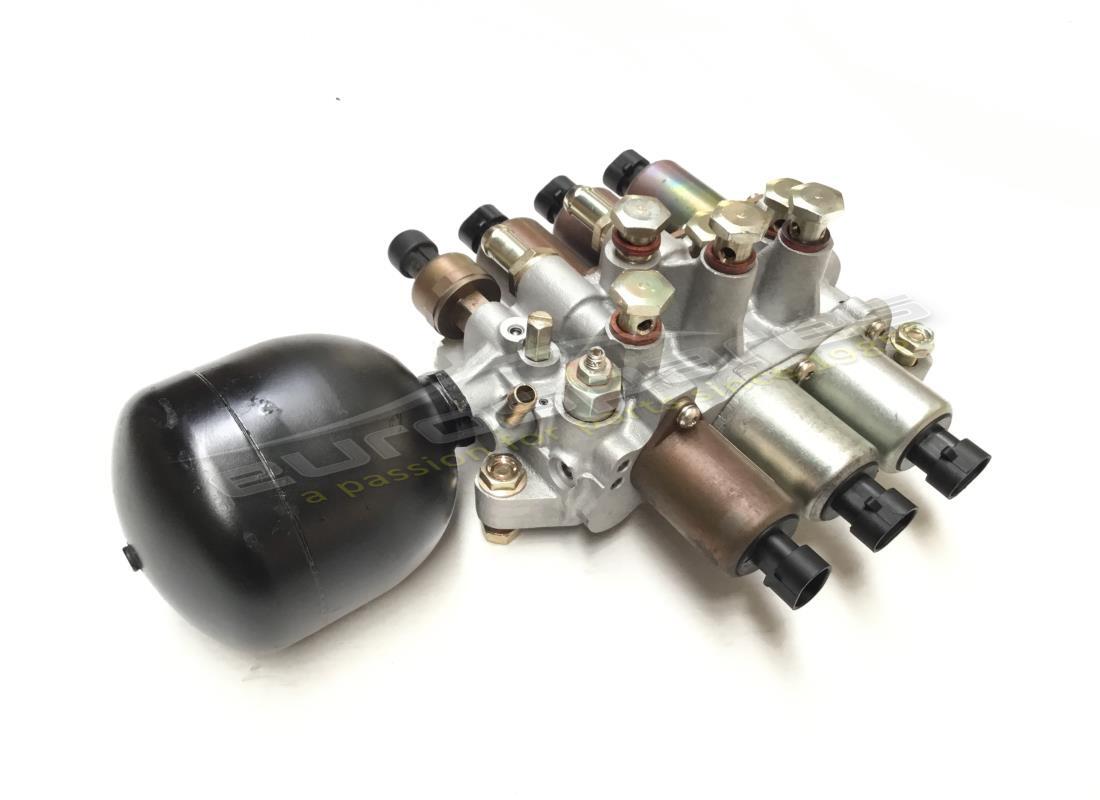

                                              POWER UNIT
                                              (surcharge to be applied)
                                              from £1,869.57
                                              from £1,869.57
                                              # 001A
                                              MPN: 247346

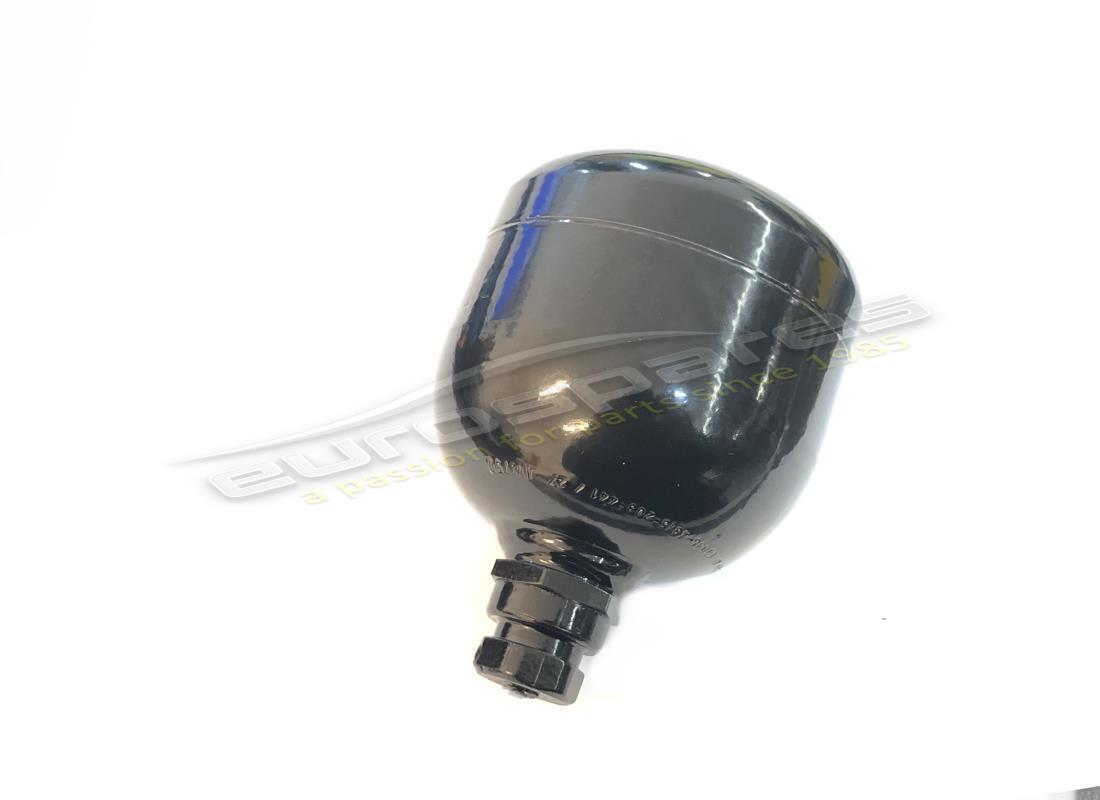

                                              ACCUMULATOR
                                              from £325.00
                                              from £325.00
                                              # 002
                                              MPN: 190662
                                              PRESSURE SENSOR
                                              alternative 980001156
                                              from £194.94
                                              from £194.94
                                              This part replaces part number 184191 - and 1 more. Click to view details
                                              # 003
                                              MPN: 185096
                                              POWER UNIT SUPPORTING BRACKET
                                              - Valid till transmission Nr. 368
                                              from £75.60
                                              from £75.60
                                              # 003
                                              MPN: 194331
                                              POWER UNIT SUPPORTING BRACKET
                                              - Valid from transmission Nr. 369 - Valid till stock exhaustion
                                              Supersession
                                              Supersession
                                              # 003
                                              MPN: 196214
                                              POWER UNIT SUPPORTING BRACKET
                                              - Valid from transmission Nr. 369 - (Q.ty 3 for cars with transmission till Nr. 368)
                                              from £253.11
                                              from £253.11
                                              This part replaces part number 194331
                                              # 004
                                              MPN: 16043834

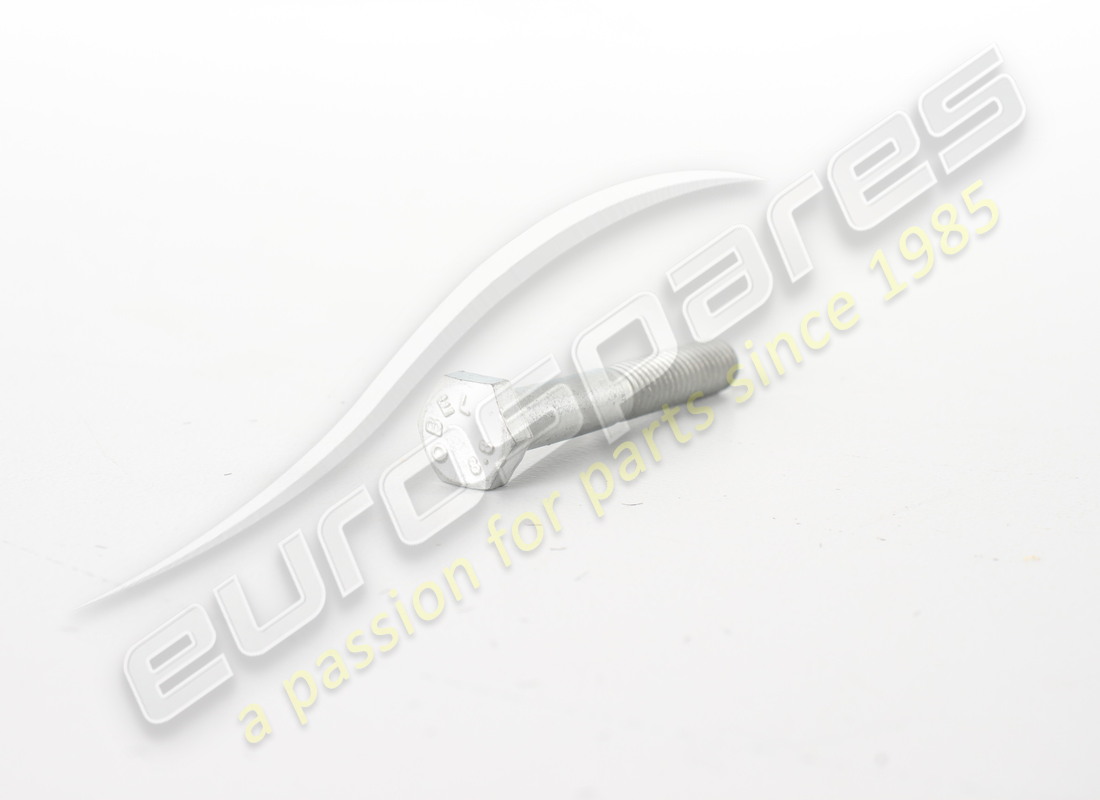

                                              SCREW
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 16043824
                                              # 005
                                              MPN: 175283

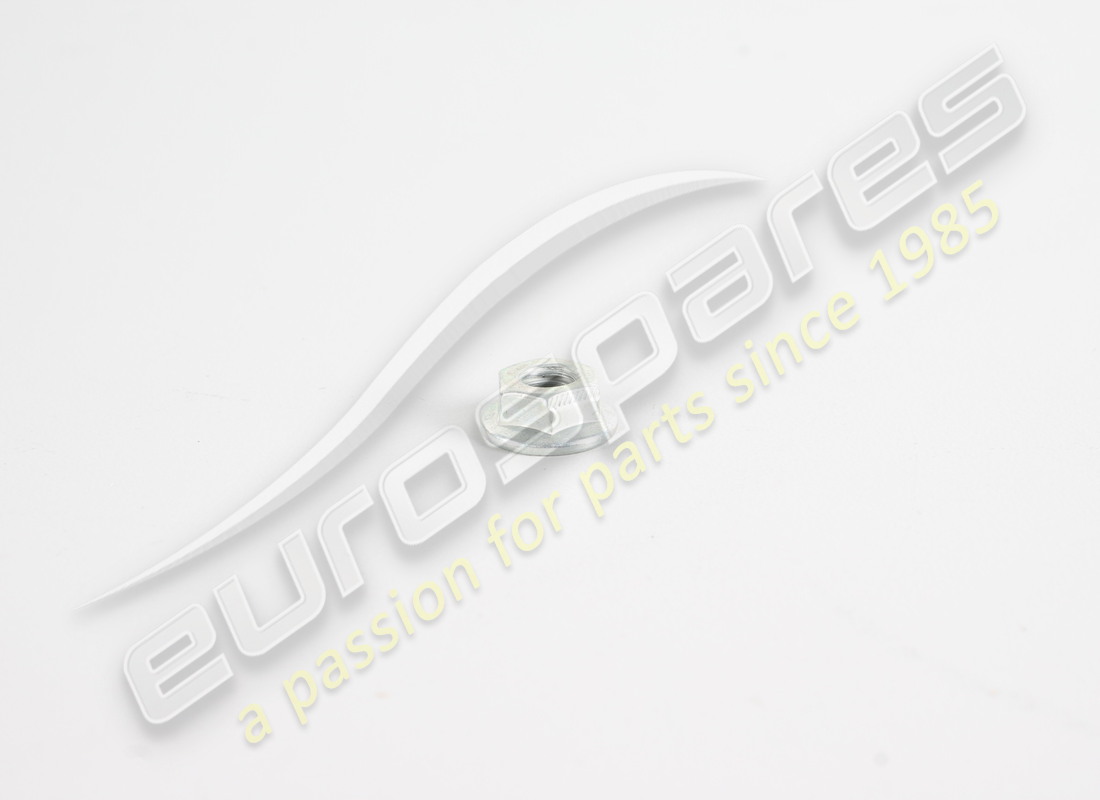

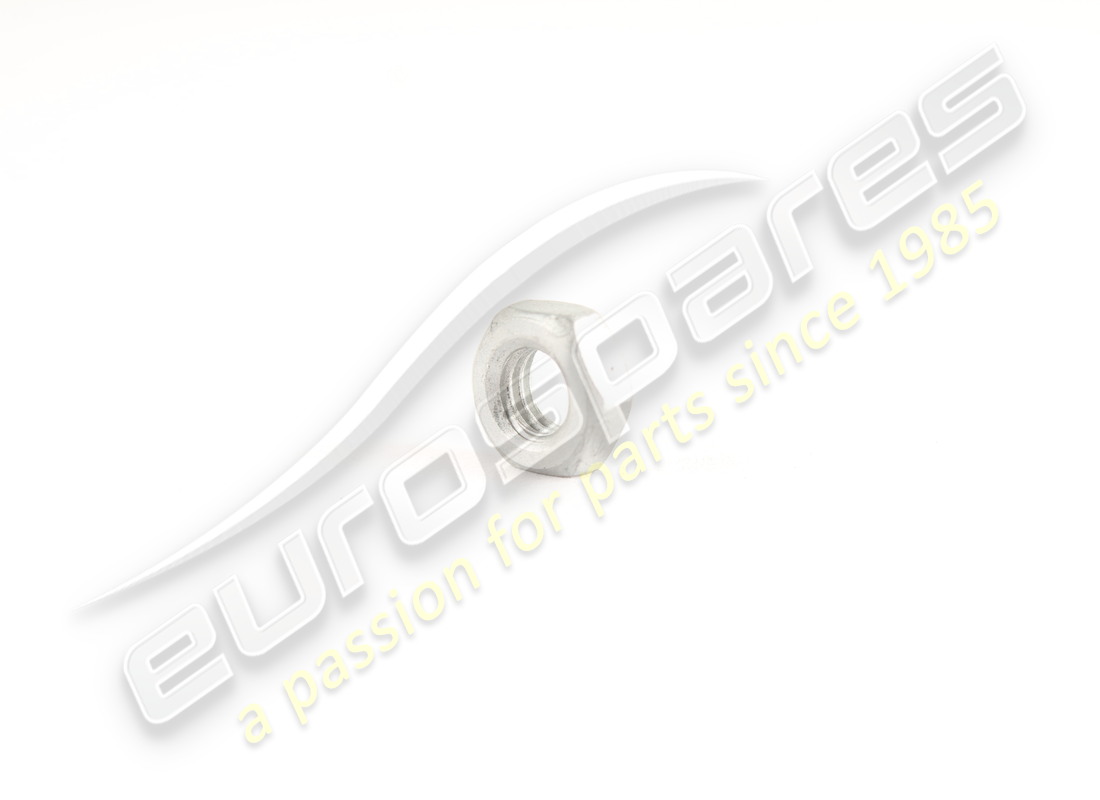

                                              NUT
                                              - (Q.ty 3 for cars with transmission till Nr. 368)
                                              from £0.53
                                              from £0.53
                                              # 006
                                              MPN: 14496524

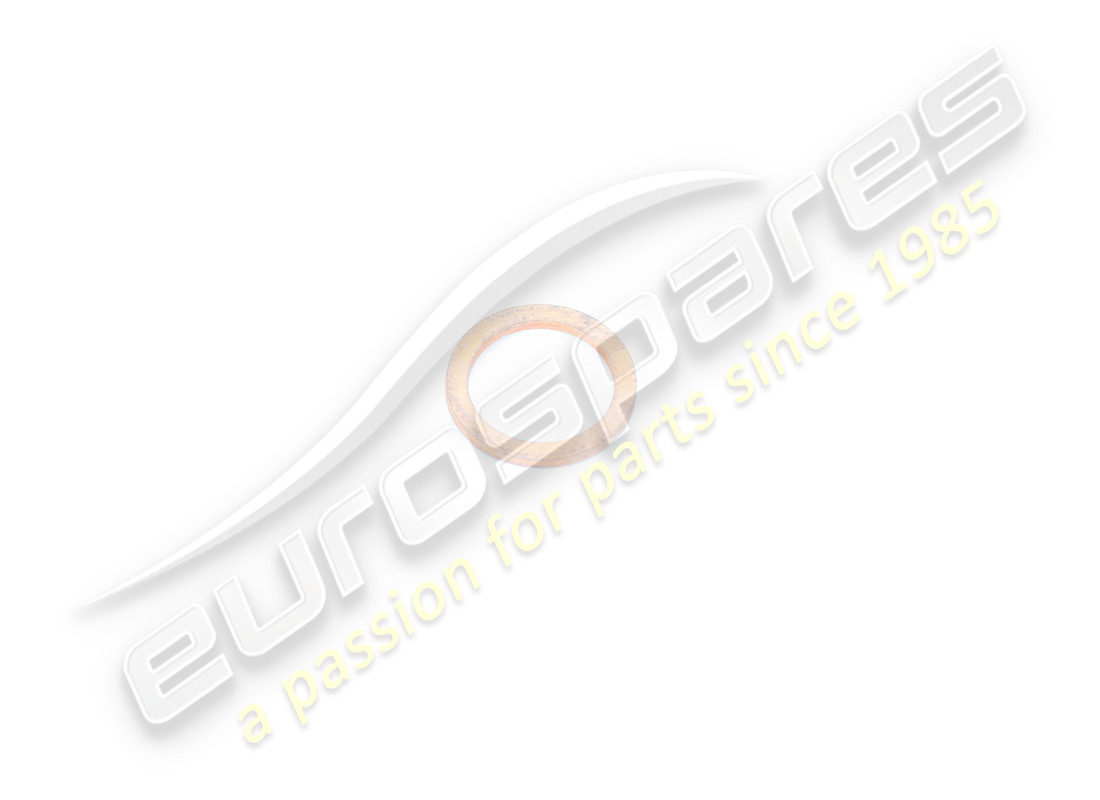

                                              WASHER
                                              - (Q.ty 6 for cars with transmission till Nr. 368)
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 14496525 - and 1 more. Click to view details
                                              # 007
                                              MPN: 10902727

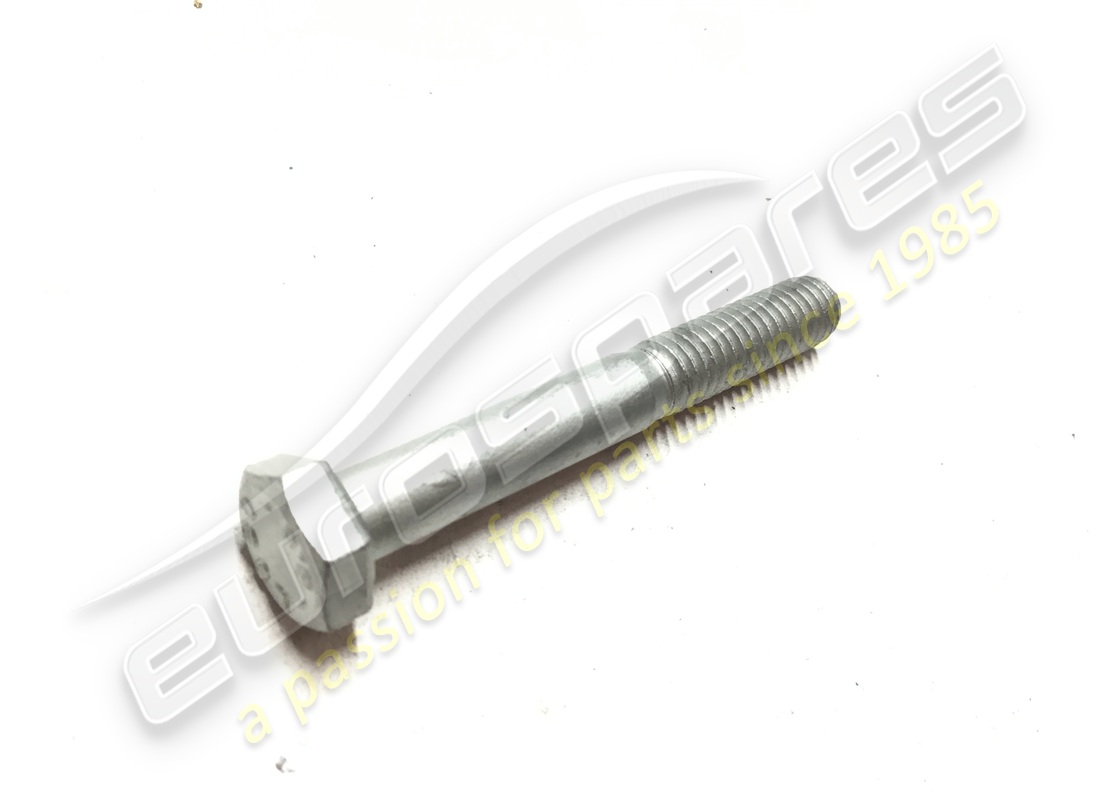

                                              SCREW
                                              - Valid till transmission Nr. 368
                                              from £1.33
                                              from £1.33
                                              # 007
                                              MPN: 10903224
                                              SCREW
                                              - Valid from transmission Nr. 369 - Not as spare part - Replaced by 10903424
                                              from £0.52
                                              from £0.52
                                              This part replaces part number 10903221
                                              # 007
                                              MPN: 10903424
                                              SCREW
                                              - Valid from transmission Nr. 369
                                              from £1.57
                                              from £1.57
                                              # 008
                                              MPN: 179636
                                              CUP
                                              - Valid till transmission Nr. 368
                                              from £1.41
                                              from £1.41
                                              # 008
                                              MPN: 192345
                                              CUP
                                              - Valid from transmission Nr. 369
                                              from £1.81
                                              from £1.81
                                              # 009
                                              MPN: 179639
                                              LOWER PAD
                                              - Valid till transmission Nr. 368
                                              from £0.68
                                              from £0.68
                                              # 009
                                              MPN: 192337
                                              LOWER PAD
                                              - Valid from transmission Nr. 369
                                              from £0.55
                                              from £0.55
                                              # 010
                                              MPN: 179637
                                              SPACER FOR WICK
                                              - Valid till transmission Nr. 368
                                              from £1.69
                                              from £1.69
                                              # 010
                                              MPN: 192344
                                              SPACER FOR WICK
                                              - Valid from transmission Nr. 369
                                              from £1.42
                                              from £1.42
                                              # 011
                                              MPN: 179638
                                              UPPER PAD
                                              - Valid till transmission Nr. 368
                                              from £0.47
                                              from £0.47
                                              # 011
                                              MPN: 192339
                                              UPPER PAD
                                              - Valid from transmission Nr. 369
                                              from £0.53
                                              from £0.53
                                              # 012
                                              MPN: 12620474

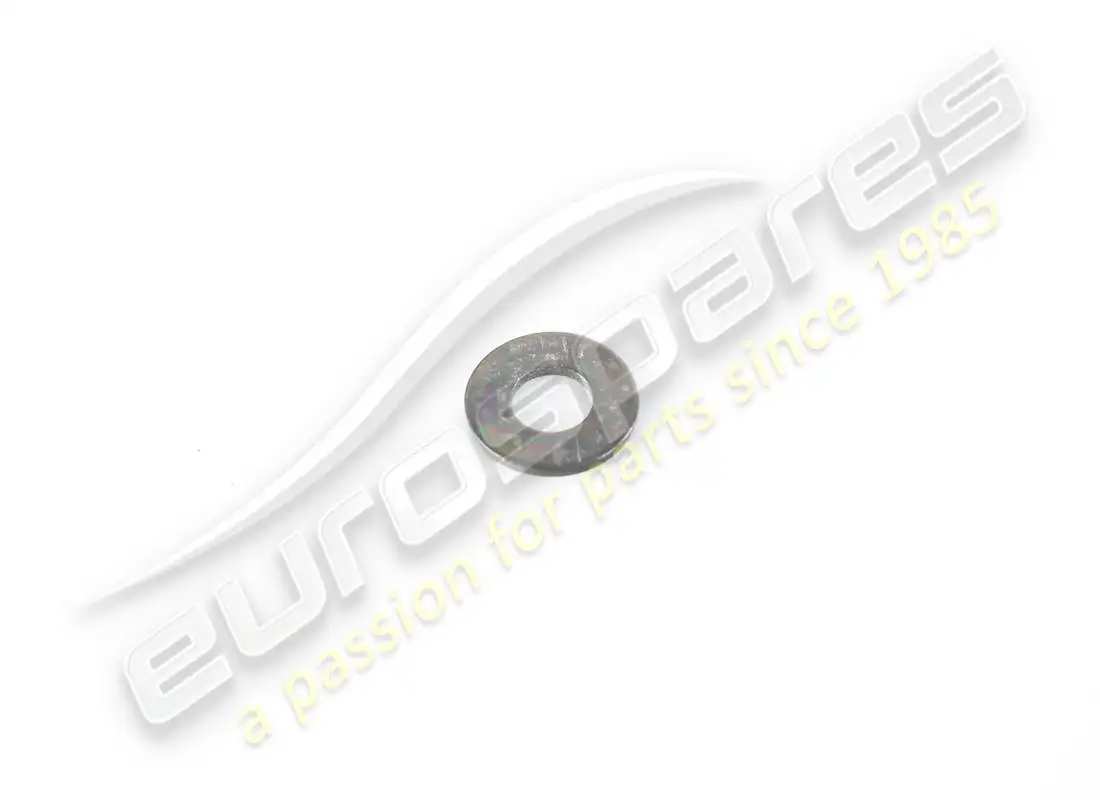

                                              WASHER
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12620479 - and 1 more. Click to view details
                                              # 013
                                              MPN: 14446627
                                              WASHER
                                              from £0.49
                                              from £0.49
                                              # 014
                                              MPN: 247223
                                              ELECTRIC PUMP
                                              from £250.00
                                              from £250.00
                                              This part replaces part number 213264 - and 1 more. Click to view details
                                              # 014
                                              MPN: 247223
                                              ELECTRIC PUMP
                                              from £250.00
                                              from £250.00
                                              This part replaces part number 213264 - and 1 more. Click to view details
                                              # 014
                                              MPN: 247223
                                              ELECTRIC PUMP
                                              from £250.00
                                              from £250.00
                                              This part replaces part number 213264 - and 1 more. Click to view details
                                              # 015
                                              MPN: 10902324
                                              SCREW
                                              - Valid till transmission Nr. 368
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                              # 016
                                              MPN: 14496424
                                              WASHER
                                              - Valid till transmission Nr. 368
                                              Supersession
                                              Supersession
                                              This part replaces part number 14496401 - and 3 more. Click to view details
                                              # 017
                                              MPN: 185092
                                              PIPE FROM ELECTRICAL PUMP TO POWER UNIT
                                              - Valid till transmission Nr. 368
                                              from £31.09
                                              from £31.09
                                              # 017
                                              MPN: 194328
                                              PIPE FROM ELECTRICAL PUMP TO POWER UNIT
                                              - Valid from transmission Nr. 369
                                              from £164.59
                                              from £164.59
                                              # 018
                                              MPN: 188685
                                              OIL TANK
                                              from £117.69
                                              from £117.69
                                              # 021
                                              MPN: 10902124
                                              SCREW
                                              from £0.52
                                              from £0.52
                                              This part replaces part number 10902111 - and 1 more. Click to view details
                                              # 022
                                              MPN: 14496424
                                              WASHER
                                              Supersession
                                              Supersession
                                              This part replaces part number 14496401 - and 3 more. Click to view details
                                              # 023
                                              MPN: 12601274
                                              WASHER
                                              from £0.54
                                              from £0.54
                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                              # 024
                                              MPN: 183718
                                              RUBBER GASKET
                                              from £1.59
                                              from £1.59
                                              # 025
                                              MPN: 185094
                                              PIPE FROM TANK TO PUMP
                                              - Valid till transmission Nr. 368
                                              from £61.35
                                              from £61.35
                                              # 025
                                              MPN: 194330
                                              PIPE FROM TANK TO PUMP
                                              - Valid from transmission Nr. 369
                                              from £94.35
                                              from £94.35
                                              # 026
                                              MPN: 184958
                                              SWINGING UNION
                                              from £244.94
                                              from £244.94
                                              # 027
                                              MPN: 10185111
                                              UNION
                                              from £2.80
                                              from £2.80
                                              # 028
                                              MPN: 10280050
                                              GASKET
                                              Supersession
                                              Supersession
                                              # 029
                                              MPN: 185095
                                              PIPE FROM POWER UNIT TO TANK
                                              from £98.74
                                              from £98.74
                                              # 030
                                              MPN: 161490
                                              SCREW COLLAR
                                              from £1.36
                                              from £1.36
                                              # 031
                                              MPN: 13000390
                                              SCREW COLLAR
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 12179590 - and 1 more. Click to view details
                                              # 032
                                              MPN: 184121
                                              ANTI HEAT SHIELD
                                              from £31.50
                                              from £31.50
                                              # 033
                                              MPN: 10902124
                                              SCREW
                                              from £0.51
                                              from £0.51
                                              This part replaces part number 10902111 - and 1 more. Click to view details
                                              # 034
                                              MPN: 127494
                                              WASHER
                                              (minimum order quantity = 20)
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 10516470 - and 4 more. Click to view details
                                              # 035
                                              MPN: 12643724
                                              WASHER
                                              from £0.51
                                              from £0.51
                                              This part replaces part number 109684 - and 4 more. Click to view details
                                              # 036
                                              MPN: 195187
                                              POWER UNIT SUPPORTING BRACKET
                                              - Valid from transmission Nr. 369
                                              from £160.89
                                              from £160.89

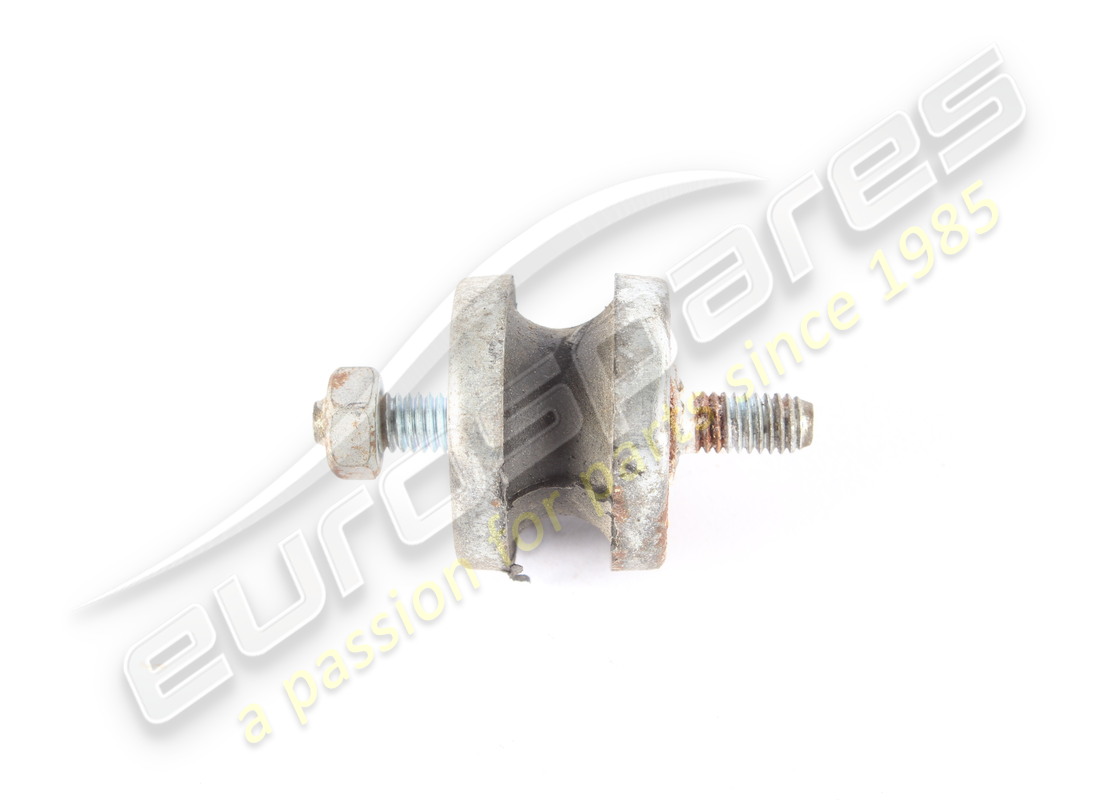

                                              # 037
                                              MPN: 194786
                                              PAD
                                              - Valid from transmission Nr. 369 - Valid for bracket 194331 ref. 3
                                              from £6.18
                                              from £6.18
                                              # 037
                                              MPN: 195372
                                              PAD
                                              - Valid from transmission Nr. 369 - Valid for bracket 196214 ref. 3
                                              from £18.08
                                              from £18.08

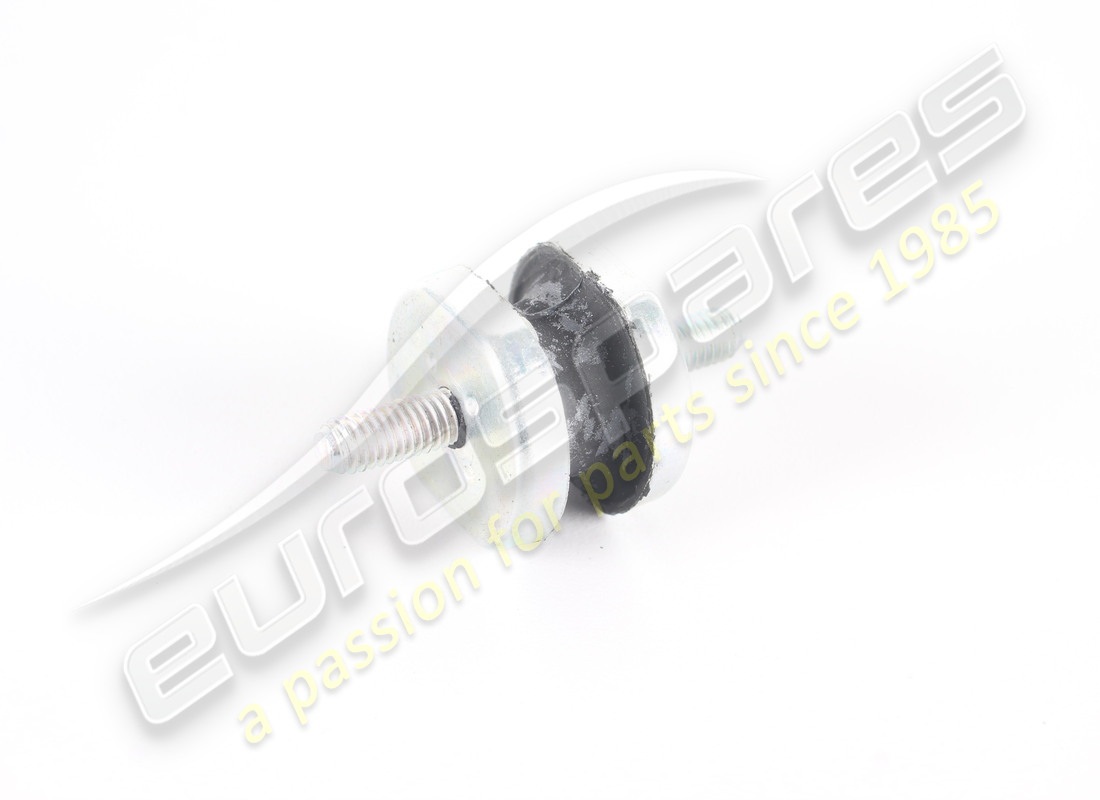

                                              # 038
                                              MPN: 194787
                                              PAD
                                              - Valid from transmission Nr. 369 - Valid for bracket 194331 ref. 3
                                              from £7.25
                                              from £7.25
                                              # 038
                                              MPN: 195373
                                              PAD
                                              - Valid from transmission Nr. 369 - Valid for bracket 196214 ref. 3
                                              from £9.04
                                              from £9.04
                                              # 039
                                              MPN: 14058421
                                              NUT
                                              - Valid from transmission Nr. 369
                                              from £0.75
                                              from £0.75
                                              This part replaces part number 14075721
                                              # 040
                                              MPN: 10725914
                                              NUT
                                              - Valid from transmission Nr. 369
                                              from £0.49
                                              from £0.49
                                              This part replaces part number 10725911 - and 1 more. Click to view details
                                              # 041
                                              MPN: 12604274
                                              WASHER
                                              - Valid from transmission Nr. 369
                                              from £0.54
                                              from £0.54
                                              This part replaces part number 12604271 - and 1 more. Click to view details
                                              # 042
                                              MPN: 162606
                                              CLIP
                                              from £0.86
                                              from £0.86
