042 - F1 Clutch Hydraulic Control Valid for F1

Ferrari 575M Maranello F1 Clutch Hydraulic Control Valid for F1 Parts Diagram

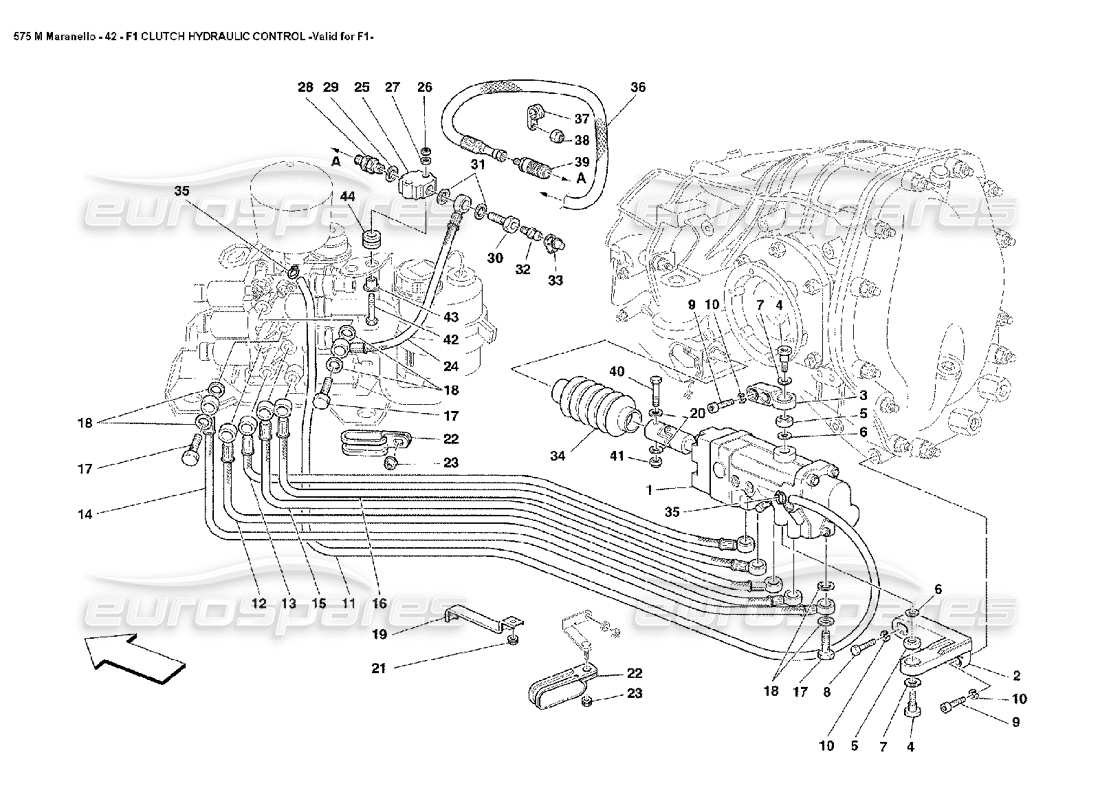

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 000
                                                                              MPN: 185086
                                                                              F1 CLUTCH HYDRAULIC CONT ROL
                                                                              -Valid till transmission Nr. 368-
                                                                              from £13,255.08
                                                                              from £13,255.08
                                                                              # 000
                                                                              MPN: 194327
                                                                              F1 Clutch Hydraulic Control
                                                                              -Valid from transmission Nr. 369- valid till gearbox Nr.1 890-
                                                                              from £8,325.25
                                                                              from £8,325.25
                                                                              # 000
                                                                              MPN: 212821
                                                                              F1 Clutch Hydraulic Control
                                                                              -Valid from transmission Nr. 1891-
                                                                              from £4,216.91
                                                                              from £4,216.91
                                                                              # 001
                                                                              MPN: 179141
                                                                              COMPLETE HYDRAULIC ACTUATOR
                                                                              USE: 247224
                                                                              Supersession
                                                                              Supersession
                                                                              # 002
                                                                              MPN: 184110
                                                                              LOWER ACTUATOR SUPPORT BRACKET
                                                                              from £392.64
                                                                              from £392.64
                                                                              # 003
                                                                              MPN: 184109
                                                                              UPPER ACTUATOR SUPPORT BRACKET
                                                                              Supersession
                                                                              Supersession
                                                                              # 004
                                                                              MPN: 179300
                                                                              PIN
                                                                              from £149.74
                                                                              from £149.74
                                                                              # 005
                                                                              MPN: 169222
                                                                              BALL JOINT
                                                                              from £24.36
                                                                              from £24.36
                                                                              # 006
                                                                              MPN: 179679
                                                                              WASHER
                                                                              from £33.95
                                                                              from £33.95
                                                                              # 007
                                                                              MPN: 10730314
                                                                              WASHER
                                                                              from £1.43
                                                                              from £1.43
                                                                              # 008
                                                                              MPN: 16043834
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 16043824
                                                                              # 009
                                                                              MPN: 14306524
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 14306521
                                                                              # 010
                                                                              MPN: 10569374
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 011
                                                                              MPN: 194027
                                                                              OIL RECYCLE TUBE
                                                                              from £17.81
                                                                              from £17.81
                                                                              # 012
                                                                              MPN: 185087
                                                                              PIPE (EV1)
                                                                              from £282.46
                                                                              from £282.46
                                                                              # 013
                                                                              MPN: 185088
                                                                              PIPE (EV2)
                                                                              from £163.86
                                                                              from £163.86
                                                                              # 014
                                                                              MPN: 185089
                                                                              PIPE (EV3)
                                                                              from £172.13
                                                                              from £172.13
                                                                              # 015
                                                                              MPN: 185090
                                                                              PIPE (EV4)
                                                                              from £164.95
                                                                              from £164.95
                                                                              # 016
                                                                              MPN: 185091
                                                                              PIPE (EV5)
                                                                              from £173.73
                                                                              from £173.73
                                                                              # 017
                                                                              MPN: 171454
                                                                              UNION
                                                                              from £27.04
                                                                              from £27.04
                                                                              # 017
                                                                              MPN: 204543
                                                                              UNION
                                                                              from £54.20
                                                                              from £54.20
                                                                              # 017
                                                                              MPN: 204545
                                                                              UNION
                                                                              from £56.14
                                                                              from £56.14
                                                                              # 018
                                                                              MPN: 10261060
                                                                              GASKET
                                                                              from £0.49
                                                                              from £0.49
                                                                              # 019
                                                                              MPN: 193714
                                                                              PIPES SUPPORTING BRACKET
                                                                              from £15.76
                                                                              from £15.76
                                                                              # 020
                                                                              MPN: 12638524
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12638501 - and 2 more. Click to view details
                                                                              # 021
                                                                              MPN: 14058411
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 022
                                                                              MPN: 61712500
                                                                              BRACKET WITH SHEATH
                                                                              from £0.88
                                                                              from £0.88
                                                                              # 023
                                                                              MPN: 14058411
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 024
                                                                              MPN: 185093
                                                                              PIPE FROM VALVE SET TO BLOCK
                                                                              from £250.19
                                                                              from £250.19
                                                                              # 026
                                                                              MPN: 102741
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12575411 - and 1 more. Click to view details
                                                                              # 027
                                                                              MPN: 14496424
                                                                              WASHER
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 14496401 - and 3 more. Click to view details
                                                                              # 028
                                                                              MPN: 172965
                                                                              QUICK MALE COUPLING
                                                                              -Not as spare part--Replaced by 210468-
                                                                              from £185.16
                                                                              from £185.16
                                                                              # 028
                                                                              MPN: 210468
                                                                              QUICK MALE COUPLING
                                                                              from £81.67
                                                                              from £81.67
                                                                              This part replaces part number 171773
                                                                              # 029
                                                                              MPN: 171755
                                                                              WASHER
                                                                              from £2.38
                                                                              from £2.38
                                                                              # 030
                                                                              MPN: 171630
                                                                              UNION
                                                                              from £20.59
                                                                              from £20.59
                                                                              # 031
                                                                              MPN: 10261060
                                                                              GASKET
                                                                              from £0.53
                                                                              from £0.53
                                                                              # 032
                                                                              MPN: 152954
                                                                              BLEEDER SCREW
                                                                              from £3.18
                                                                              from £3.18
                                                                              # 033
                                                                              MPN: 152955
                                                                              PROTECTION BOOT
                                                                              from £2.95
                                                                              from £2.95
                                                                              # 034
                                                                              MPN: 184119
                                                                              RUBBER BOOT
                                                                              from £106.28
                                                                              from £106.28
                                                                              # 035
                                                                              MPN: 13430770
                                                                              ELASTIC COLLAR
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 036
                                                                              MPN: 186357
                                                                              CLUTCH HOSE
                                                                              from £415.11
                                                                              from £415.11
                                                                              # 037
                                                                              MPN: 10441690
                                                                              BRACKET WITH SHEATH
                                                                              from £1.10
                                                                              from £1.10
                                                                              This part replaces part number 1044690
                                                                              # 038
                                                                              MPN: 14058411
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 039
                                                                              MPN: 210469
                                                                              FEMALE COUPLING
                                                                              Supersession
                                                                              Supersession
                                                                              # 039
                                                                              MPN: 70001184
                                                                              KIT FEMALE & MALE COUPLING
                                                                              from £162.50
                                                                              from £162.50
                                                                              This part replaces part number 172964 which we have in stock - and 3 more. Click to view details
                                                                              # 040
                                                                              MPN: 170767
                                                                              SCREW
                                                                              from £4.22
                                                                              from £4.22
                                                                              # 041
                                                                              MPN: 101139
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 16104425
                                                                              # 042
                                                                              MPN: 10903224
                                                                              SCREW
                                                                              -Valid from transmission Nr. 369-
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 10903221
                                                                              # 043
                                                                              MPN: 149707
                                                                              SPACER FOR CABLE GROMMET
                                                                              -Valid from transmission Nr. 369-
                                                                              from £0.65
                                                                              from £0.65
                                                                              # 044
                                                                              MPN: 177576
                                                                              CABLE GROMMET
                                                                              -Valid from transmission Nr. 369-
                                                                              from £1.11
                                                                              from £1.11
