ferrari 575m maranello inside gearbox controls valid for f1 parts diagram

035 - Inside Gearbox Controls Valid for F1

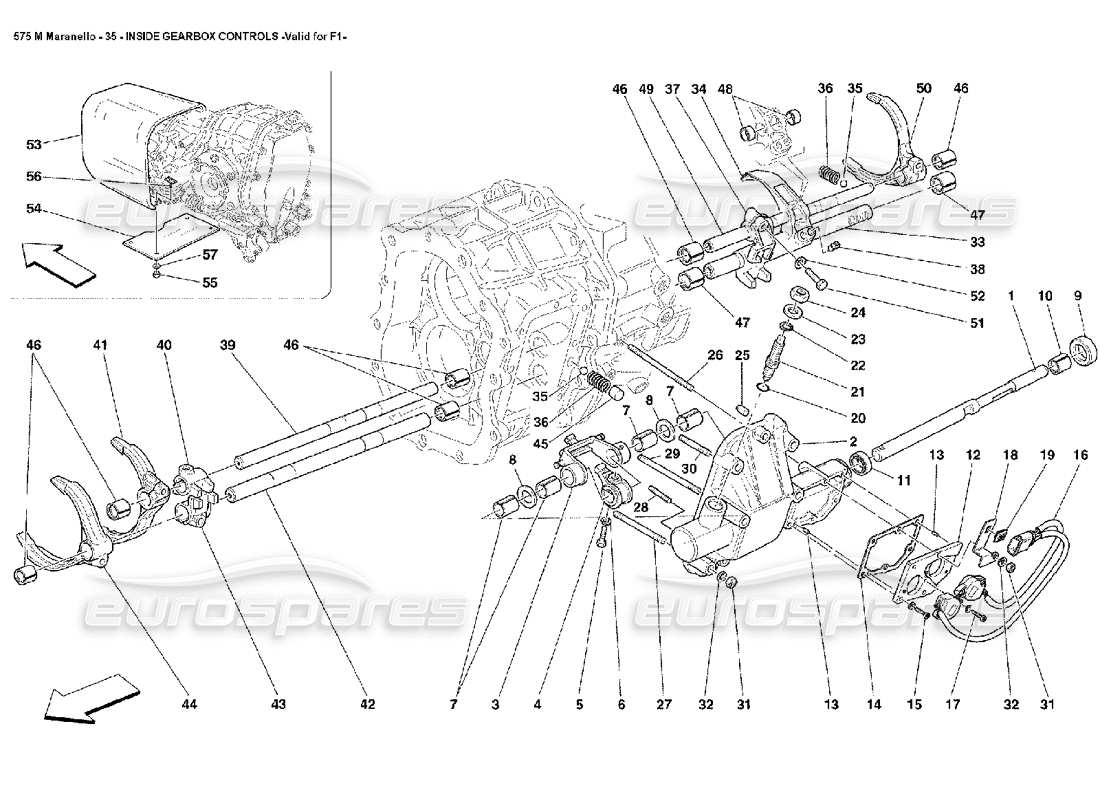

Ferrari 575M Maranello Inside Gearbox Controls Valid for F1 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                              #
                                                                                                              Part number
                                                                                                              Description
                                                                                                              Price
                                                                                                              # 001
                                                                                                              MPN: 186450
                                                                                                              CONTROL ROD FOR GEARBOX
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 002
                                                                                                              MPN: 186432
                                                                                                              INSIDE GEARBOX CONTROLS COVER
                                                                                                              from £636.92
                                                                                                              from £636.92
                                                                                                              # 003
                                                                                                              MPN: 193890
                                                                                                              ROCKER
                                                                                                              from £109.74
                                                                                                              from £109.74
                                                                                                              # 004
                                                                                                              MPN: 193914
                                                                                                              SMALL LEVER
                                                                                                              from £77.21
                                                                                                              from £77.21
                                                                                                              # 005
                                                                                                              MPN: 11306930
                                                                                                              SCREW
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 006
                                                                                                              MPN: 10571879
                                                                                                              WASHER
                                                                                                              from £0.53
                                                                                                              from £0.53
                                                                                                              # 007
                                                                                                              MPN: 103226
                                                                                                              BUSHING
                                                                                                              from £2.38
                                                                                                              from £2.38
                                                                                                              # 008
                                                                                                              MPN: 147346
                                                                                                              WASHER
                                                                                                              from £2.89
                                                                                                              from £2.89
                                                                                                              # 009
                                                                                                              MPN: 184047
                                                                                                              BUSHING
                                                                                                              from £25.11
                                                                                                              from £25.11
                                                                                                              # 010
                                                                                                              MPN: 192067
                                                                                                              SELF
                                                                                                              - LUBRICATING BUSHING
                                                                                                              from £3.99
                                                                                                              from £3.99
                                                                                                              # 011
                                                                                                              MPN: 146306
                                                                                                              GASKET
                                                                                                              from £1.42
                                                                                                              from £1.42
                                                                                                              # 012
                                                                                                              MPN: 187682
                                                                                                              FLANGE SUPPORTIG POTENTIOMETERS
                                                                                                              from £119.16
                                                                                                              from £119.16
                                                                                                              # 013
                                                                                                              MPN: 192867
                                                                                                              PIN
                                                                                                              from £7.49
                                                                                                              from £7.49
                                                                                                              # 014
                                                                                                              MPN: 186514
                                                                                                              GASKET
                                                                                                              from £8.43
                                                                                                              from £8.43
                                                                                                              # 015
                                                                                                              MPN: 192866
                                                                                                              SCREW
                                                                                                              from £0.93
                                                                                                              from £0.93
                                                                                                              # 016
                                                                                                              MPN: 248095
                                                                                                              POTENTIOMETERS KIT
                                                                                                              from £1,117.78
                                                                                                              from £1,117.78
                                                                                                              This part replaces part number 193442
                                                                                                              # 017
                                                                                                              MPN: 192865
                                                                                                              SCREW
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 018
                                                                                                              MPN: 185198
                                                                                                              CONNECTOR FIXING BRACKET
                                                                                                              from £6.86
                                                                                                              from £6.86
                                                                                                              # 019
                                                                                                              MPN: 187161
                                                                                                              FIXING CLIP
                                                                                                              from £2.24
                                                                                                              from £2.24
                                                                                                              # 020
                                                                                                              MPN: 127816
                                                                                                              O.R. GASKET
                                                                                                              from £1.41
                                                                                                              from £1.41
                                                                                                              # 021
                                                                                                              MPN: 184040
                                                                                                              PIN
                                                                                                              from £43.74
                                                                                                              from £43.74
                                                                                                              # 022
                                                                                                              MPN: 178306
                                                                                                              RING
                                                                                                              from £0.64
                                                                                                              from £0.64
                                                                                                              # 023
                                                                                                              MPN: 14496624
                                                                                                              WASHER
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              This part replaces part number 14496601 - and 2 more. Click to view details
                                                                                                              # 025
                                                                                                              MPN: 125717
                                                                                                              CENTERING DOWEL
                                                                                                              from £1.59
                                                                                                              from £1.59
                                                                                                              # 026
                                                                                                              MPN: 13541924
                                                                                                              STUD
                                                                                                              from £0.83
                                                                                                              from £0.83
                                                                                                              This part replaces part number 13541921
                                                                                                              # 027
                                                                                                              MPN: 13541524
                                                                                                              STUD
                                                                                                              from £0.51
                                                                                                              from £0.51
                                                                                                              This part replaces part number 13541521
                                                                                                              # 028
                                                                                                              MPN: 13541224
                                                                                                              STUD
                                                                                                              from £35.84
                                                                                                              from £35.84
                                                                                                              This part replaces part number 13541221
                                                                                                              # 029
                                                                                                              MPN: 13542024
                                                                                                              STUD
                                                                                                              from £14.50
                                                                                                              from £14.50
                                                                                                              This part replaces part number 13542021
                                                                                                              # 030
                                                                                                              MPN: 13541624
                                                                                                              STUD
                                                                                                              from £9.44
                                                                                                              from £9.44
                                                                                                              This part replaces part number 13541621
                                                                                                              # 031
                                                                                                              MPN: 15896211
                                                                                                              NUT
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              This part replaces part number 15896210
                                                                                                              # 032
                                                                                                              MPN: 11194377
                                                                                                              WASHER
                                                                                                              from £0.71
                                                                                                              from £0.71
                                                                                                              # 033
                                                                                                              MPN: 189531
                                                                                                              ROD FOR 1ST AND 2ND GEAR
                                                                                                              from £61.61
                                                                                                              from £61.61
                                                                                                              # 034
                                                                                                              MPN: 189530
                                                                                                              CONTROL FORK FOR 1ST AND 2ND GEAR
                                                                                                              from £566.60
                                                                                                              from £566.60
                                                                                                              # 035
                                                                                                              MPN: 101612
                                                                                                              BALL
                                                                                                              from £0.71
                                                                                                              from £0.71
                                                                                                              This part replaces part number 93309
                                                                                                              # 036
                                                                                                              MPN: 100750
                                                                                                              SPRING
                                                                                                              from £0.91
                                                                                                              from £0.91
                                                                                                              This part replaces part number 523899
                                                                                                              # 037
                                                                                                              MPN: 193901
                                                                                                              ROD FORK REVERSE GEAR
                                                                                                              from £113.36
                                                                                                              from £113.36
                                                                                                              # 038
                                                                                                              MPN: 142245
                                                                                                              SCREW
                                                                                                              from £0.54
                                                                                                              from £0.54
                                                                                                              # 039
                                                                                                              MPN: 158051
                                                                                                              ROD FOR 3RD AND 4TH GEAR
                                                                                                              from £60.59
                                                                                                              from £60.59
                                                                                                              This part replaces part number 159716 - and 1 more. Click to view details
                                                                                                              # 040
                                                                                                              MPN: 171829
                                                                                                              ROD FORK FOR 3RD AND 4TH GEAR
                                                                                                              from £52.17
                                                                                                              from £52.17
                                                                                                              This part replaces part number 145454 which we have in stock
                                                                                                              # 041
                                                                                                              MPN: 261486
                                                                                                              CONTROL FORK FOR 3RD AND 4TH GEAR
                                                                                                              from £775.59
                                                                                                              from £775.59
                                                                                                              This part replaces part number 189532
                                                                                                              # 042
                                                                                                              MPN: 189533
                                                                                                              ROD FOR 5TH AND 6TH GEAR
                                                                                                              from £81.44
                                                                                                              from £81.44
                                                                                                              # 043
                                                                                                              MPN: 193902
                                                                                                              ROD FORK FOR 5TH AND 6TH GEAR
                                                                                                              from £70.88
                                                                                                              from £70.88
                                                                                                              # 044
                                                                                                              MPN: 189534
                                                                                                              CONTROL FORK FOR 5TH AND 6TH GEAR
                                                                                                              from £119.09
                                                                                                              from £119.09
                                                                                                              # 045
                                                                                                              MPN: 150173
                                                                                                              SPACER
                                                                                                              from £2.62
                                                                                                              from £2.62
                                                                                                              # 046
                                                                                                              MPN: 106500
                                                                                                              BUSHING
                                                                                                              from £5.85
                                                                                                              from £5.85
                                                                                                              # 047
                                                                                                              MPN: 150093
                                                                                                              BUSHING
                                                                                                              from £4.28
                                                                                                              from £4.28
                                                                                                              This part replaces part number 150035
                                                                                                              # 048
                                                                                                              MPN: 185566
                                                                                                              SELF
                                                                                                              - LUBRICATING BUSHING
                                                                                                              from £3.85
                                                                                                              from £3.85
                                                                                                              This part replaces part number 175729
                                                                                                              # 049
                                                                                                              MPN: 189527
                                                                                                              CONTROL ROD FOR REVERSE
                                                                                                              from £110.11
                                                                                                              from £110.11
                                                                                                              # 050
                                                                                                              MPN: 189528
                                                                                                              CONTROL FORK FOR REVERSE
                                                                                                              from £201.63
                                                                                                              from £201.63
                                                                                                              # 051
                                                                                                              MPN: 16043634
                                                                                                              SCREW
                                                                                                              from £0.50
                                                                                                              from £0.50
                                                                                                              # 052
                                                                                                              MPN: 10571779
                                                                                                              WASHER
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 053
                                                                                                              MPN: 194138
                                                                                                              UPPER SILENCER SHIELD
                                                                                                              from £130.59
                                                                                                              from £130.59
                                                                                                              # 054
                                                                                                              MPN: 194139
                                                                                                              LOWER SILENCER SHIELD
                                                                                                              from £69.61
                                                                                                              from £69.61
                                                                                                              # 055
                                                                                                              MPN: 13831801
                                                                                                              NUT
                                                                                                              from £0.53
                                                                                                              from £0.53
                                                                                                              # 056
                                                                                                              MPN: 195933
                                                                                                              SMALL PLATE
                                                                                                              from £1.55
                                                                                                              from £1.55
                                                                                                              This part replaces part number 65193400
                                                                                                              # 056
                                                                                                              MPN: 65193400
                                                                                                              SMALL PLATE
                                                                                                              - Not as spare part - Replaced by 195933
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 057
                                                                                                              MPN: 12638124
                                                                                                              WASHER
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              This part replaces part number 12638101 - and 1 more. Click to view details
