032 - Main Shaft Gears and Clutch Oil Pump

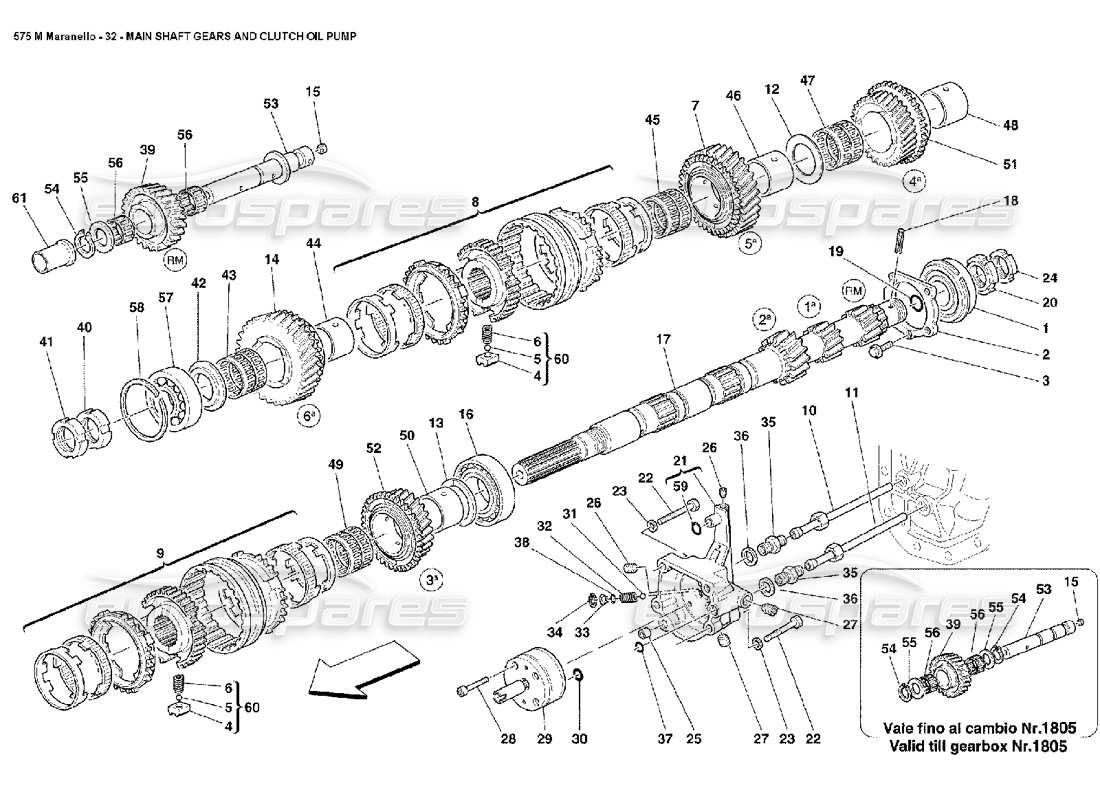

Ferrari 575M Maranello Main Shaft Gears and Clutch Oil Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 144502
BEARING FOR MAIN SHAFT PUMP OIL SIDE
from £91.39
from £91.39
# 002
MPN: 144444
SUPPORT RING
from £36.67
from £36.67
# 003
MPN: 16287124
SCREW
from £0.83
from £0.83
# 004
MPN: 184991
SMALL BLOCK
- Not as spare part - Replaced by 194029 - See ref. 60
# 005
MPN: 184997
BALL
- Not as spare part - Replaced by 194029 - See ref. 60
# 006
MPN: 189523
SPRING
- Not as spare part - Replaced by 194029 - See ref. 60
Supersession
Supersession
# 007
MPN: 189691
PINION FOR 5TH GEAR
Supersession
Supersession
# 008
MPN: 189689
5TH AND 6TH GEAR COMPLETE SYNCHRONIZER
from £455.52
from £455.52
# 009
MPN: 189657
3TH AND 4TH GEAR COMPLETE SYNCHRONIZER
from £399.76
from £399.76
# 010
MPN: 179660
OIL RETURN PIPE
from £66.27
from £66.27
# 011
MPN: 179659
OIL DELIVERY PIPE
from £66.27
from £66.27
# 012
MPN: 189671
RING
Supersession
Supersession
# 013
MPN: 189700
RING
from £22.60
from £22.60
# 014
MPN: 189693
PINION FOR 6TH GEAR
from £425.15
from £425.15
# 015
MPN: 189573
PLUG
from £3.30
from £3.30
# 016
MPN: 228055
ROLLER BEARING
from £47.37
from £47.37
This part replaces part number 131056 - and 1 more. Click to view details
# 017
MPN: 189526
MAIN SHAFT FOR GEAR LEVER
Supersession
Supersession
# 018
MPN: 14601270
FLEXIBLE PIN
from £0.53
from £0.53
# 019
MPN: 109724

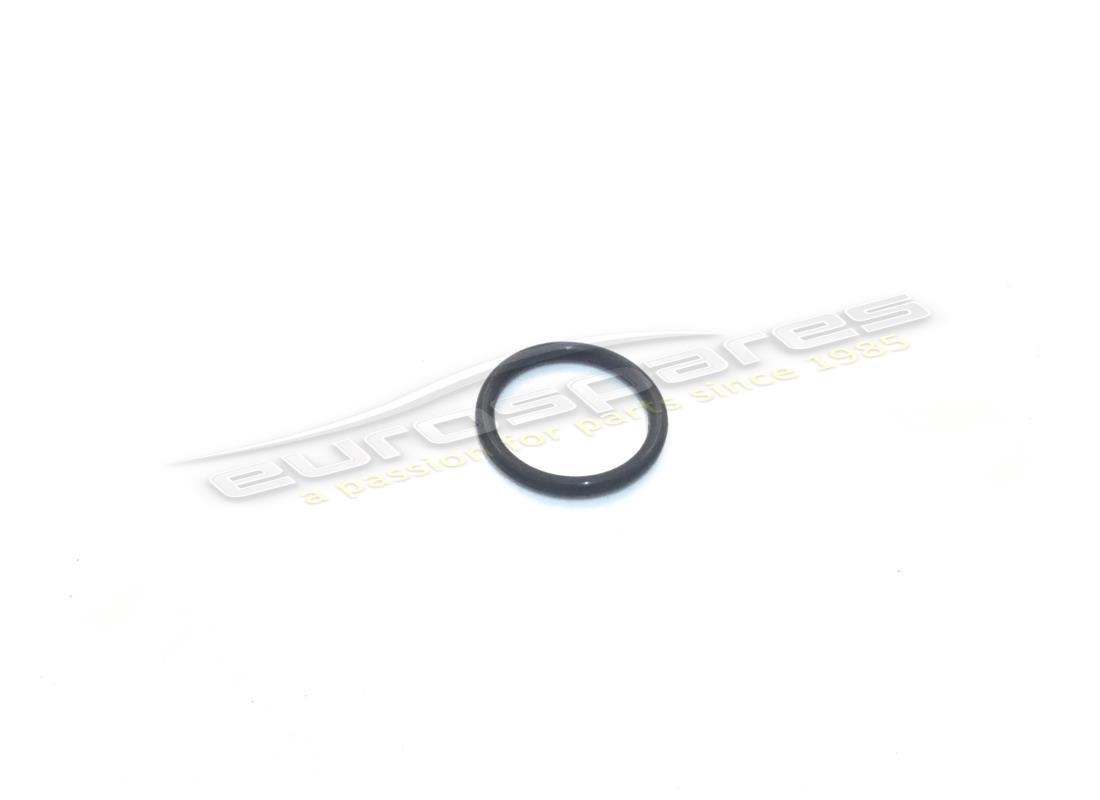

O.R. GASKET
from £0.76
from £0.76
# 020
MPN: 163670
RING NUT
from £19.86
from £19.86
# 021
MPN: 170931
OIL PUMP BODY
- With complete oil pump body - Not as spare part - Replaced by 195013
Supersession
Supersession
# 021
MPN: 195013
OIL PUMP BODY
- With complete oil pump body
Supersession
Supersession
# 021
MPN: 196155
COMPLETE OIL PUMP BODY
from £297.76
from £297.76
This part replaces part number 195013
# 022
MPN: 16044321

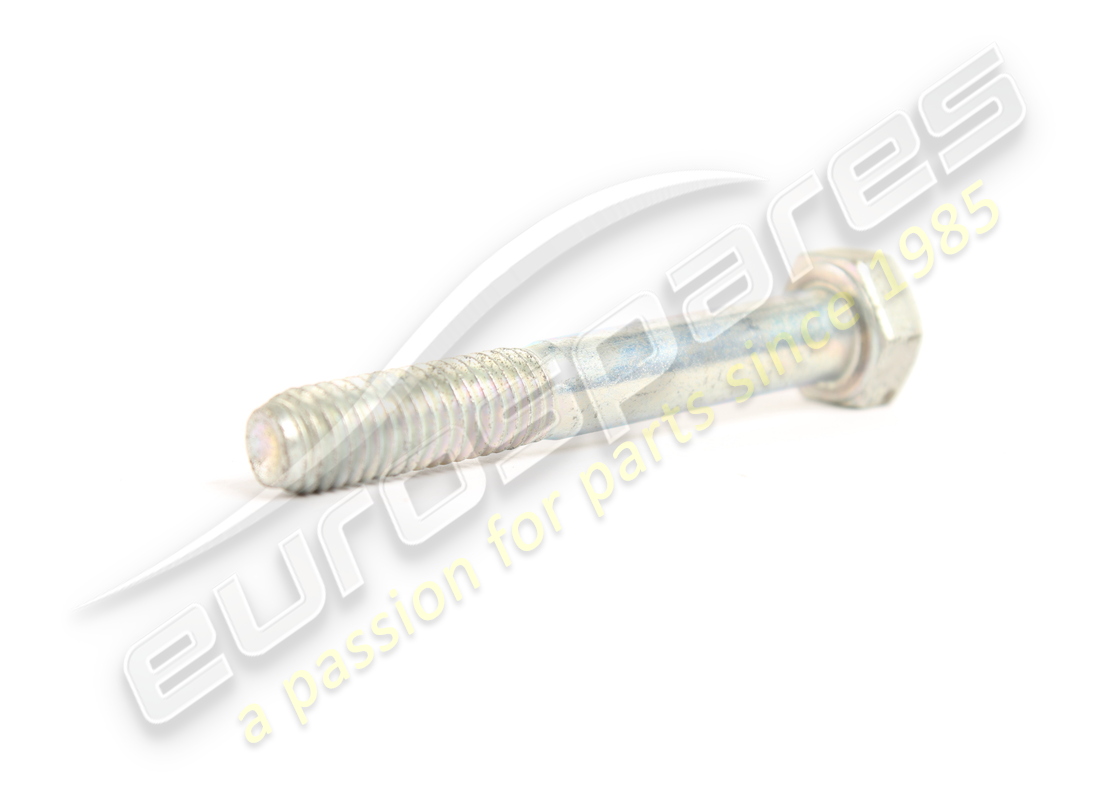

SCREW
from £0.29
from £0.29
# 023
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 024
MPN: 163684
RING NUT
from £10.26
from £10.26
# 025
MPN: 102704
CENTERING DOWEL
from £1.78
from £1.78
This part replaces part number 500805
# 026
MPN: 14326150
PLUG
from £0.51
from £0.51
This part replaces part number 12326150
# 027
MPN: 10269550
PLUG
from £1.55
from £1.55
# 028
MPN: 14303474

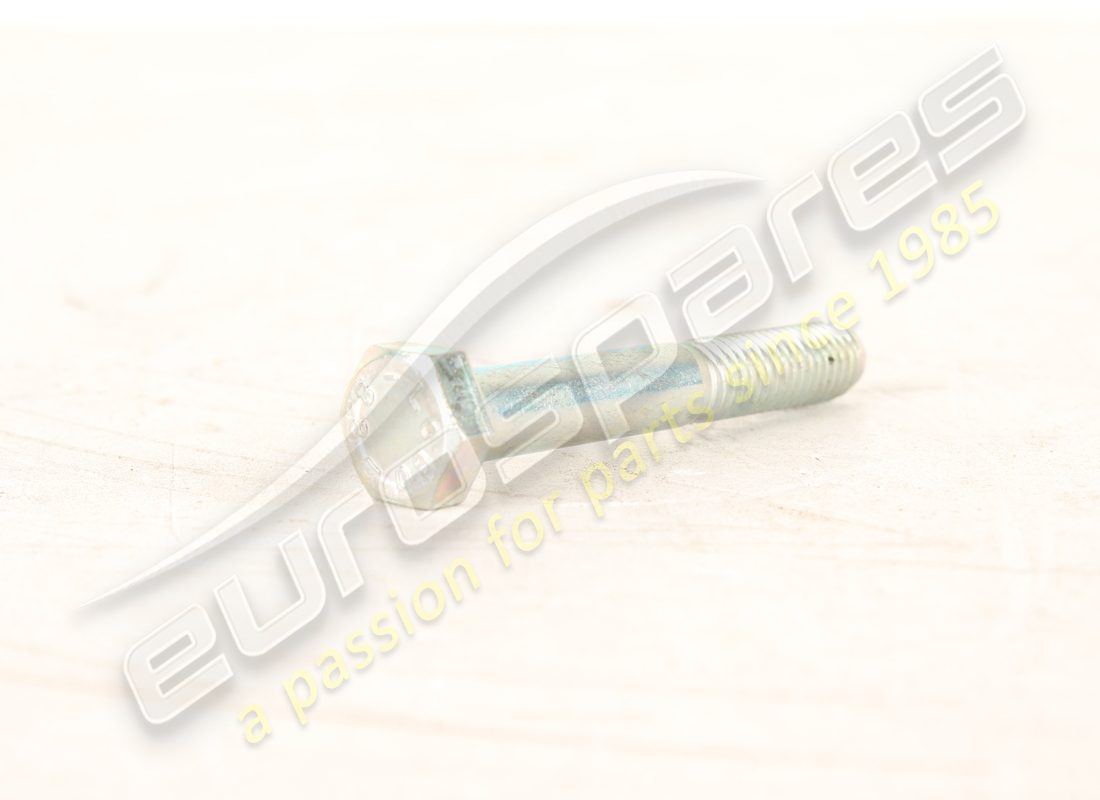

SCREW
from £0.53
from £0.53
# 029
MPN: 185458
COMPLETE BEARBOX OIL PUMP
from £747.18
from £747.18
This part replaces part number 171706
# 030
MPN: 137192
O.R. GASKET
from £0.54
from £0.54
# 031
MPN: 135770
BALL
from £0.54
from £0.54
# 032
MPN: 171889
SPRING
from £2.29
from £2.29
# 033
MPN: 162315
SPACER
from £1.26
from £1.26
# 034
MPN: 11057576
SEEGER RING
from £0.53
from £0.53
# 035
MPN: 150577
UNION
from £10.75
from £10.75
# 036
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 037
MPN: 137192
GASKET
from £0.54
from £0.54
# 038
MPN: 14453281
GASKET
from £0.84
from £0.84
# 039
MPN: 189570
IDLE GEAR FOR REVERSE
from £165.31
from £165.31
# 040
MPN: 189707
RING NUT
from £27.49
from £27.49
# 041
MPN: 189708
RING NUT
from £38.97
from £38.97
# 042
MPN: 189704
SPACER
- Th. mm 3,9
from £16.15
from £16.15
# 042
MPN: 189709
SPACER
- Th. mm 4,15
from £19.05
from £19.05
# 043
MPN: 109002

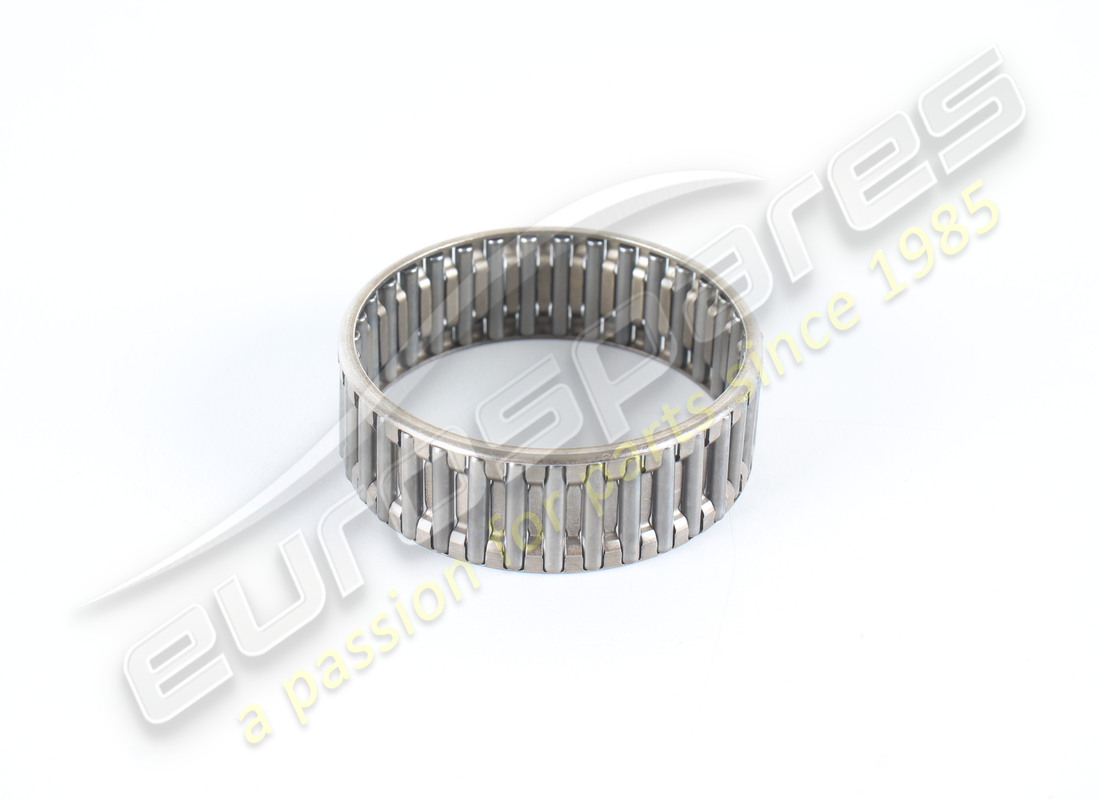

ROLLER CAGE
from £18.16
from £18.16
This part replaces part number 114059
# 044
MPN: 189705
BUSHING
from £37.72
from £37.72
# 045
MPN: 109002
ROLLER CAGE
from £18.16
from £18.16
This part replaces part number 114059
# 046
MPN: 189669
BUSHING
Supersession
Supersession
# 047
MPN: 109002
ROLLER CAGE
from £18.16
from £18.16
This part replaces part number 114059
# 048
MPN: 189669
BUSHING
Supersession
Supersession
# 049
MPN: 109002
ROLLER CAGE
from £18.16
from £18.16
This part replaces part number 114059
# 050
MPN: 189656
BUSHING
from £32.29
from £32.29
# 051
MPN: 189661
PINION FOR 4TH GEAR
Supersession
Supersession
# 052
MPN: 189659
PINION FOR 3RD GEAR
from £425.15
from £425.15
# 053
MPN: 189574
PIN
- Valid till gearbox Nr. 1805
Supersession
Supersession
# 053
MPN: 211960
PIN
- Valid from gearbox Nr. 1806
from £56.79
from £56.79
This part replaces part number 189574
# 054
MPN: 158272
FLEXIBLE RING
- Q.ty 1 from gearbox Nr. 1806
from £0.47
from £0.47
# 055
MPN: 193891
SPACER WASHER
- Th. mm. 4,0 - Q.ty 1 from gearbox Nr. 1806
from £17.47
from £17.47
# 055
MPN: 193892
SPACER WASHER
- Th. mm. 4,1 - Q.ty 1 from gearbox Nr. 1806
from £17.47
from £17.47
# 055
MPN: 193893
SPACER WASHER
- Th. mm. 3,9 - Q.ty 1 from gearbox Nr. 1806
from £17.47
from £17.47
# 056
MPN: 104256
ROLLER CAGE
from £5.85
from £5.85
# 057
MPN: 103030
ROLLER BEARING
from £128.26
from £128.26
This part replaces part number 101605 - and 2 more. Click to view details
# 058
MPN: 144511
STOP RING
from £1.55
from £1.55
# 059
MPN: 14452981
O.R. GASKET
from £0.78
from £0.78
# 060
MPN: 194029
PAD FOR SYNCHRONIZER/BALL/SPRING REPLACEMENT KIT
from £11.28
from £11.28
This part replaces part number 189523
# 061
MPN: 211961
SPACER BUSHING
- Valid from gearbox Nr. 1806
from £12.88
from £12.88
