Ferrari 575M Maranello WATER PUMP Parts Diagram

027 - WATER PUMP

Ferrari 575M Maranello Water Pump Parts Diagram

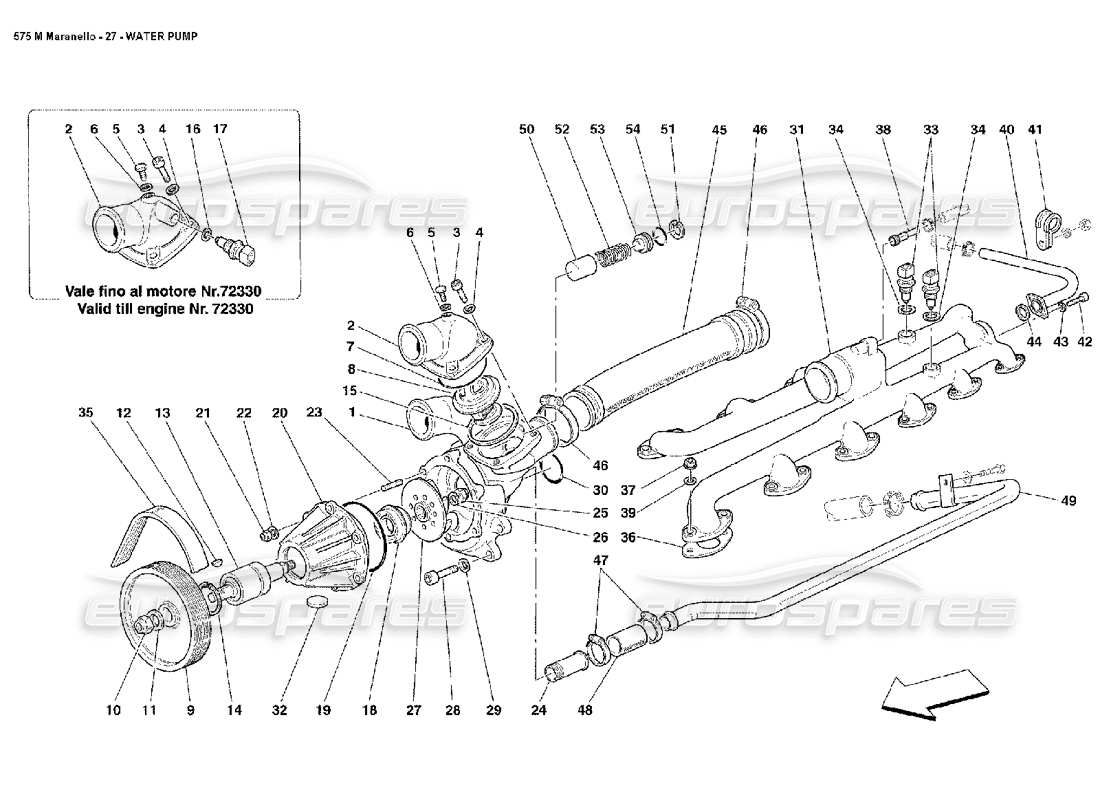

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 000
                                                                      MPN: 181134
                                                                      COMPLETE WATER PUMP
                                                                      - Valid till engine Nr. 72330
                                                                      from £1,431.17
                                                                      from £1,431.17
                                                                      # 000
                                                                      MPN: 181841/A
                                                                      WATER PUMP ASSY
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 183760
                                                                      # 000
                                                                      MPN: 184038
                                                                      COMPLETE WATER PUMP
                                                                      - Valid from engine Nr. 72331
                                                                      from £1,293.43
                                                                      from £1,293.43
                                                                      This part replaces part number 177925
                                                                      # 001
                                                                      MPN: 184002
                                                                      WATER PUMP BODY
                                                                      from £377.69
                                                                      from £377.69
                                                                      This part replaces part number 174668 - and 3 more. Click to view details
                                                                      # 001
                                                                      MPN: 194329
                                                                      WATER PUMP BODY COMPLETED WITH STUDS
                                                                      - Not as spare part - Replaced by 184002
                                                                      Supersession
                                                                      Supersession
                                                                      # 002
                                                                      MPN: 163952
                                                                      THERMOSTATIC VALVE COVER
                                                                      - Valid from engine Nr. 72331
                                                                      from £42.76
                                                                      from £42.76
                                                                      This part replaces part number 157565 which we have in stock - and 1 more. Click to view details
                                                                      # 002
                                                                      MPN: 183681
                                                                      THERMOSTATIC VALVE COVER
                                                                      - Valid till engine Nr. 72330
                                                                      from £63.95
                                                                      from £63.95
                                                                      # 003
                                                                      MPN: 14433124
                                                                      SCREW
                                                                      from £0.51
                                                                      from £0.51
                                                                      This part replaces part number 14433121
                                                                      # 004
                                                                      MPN: 12601274
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                      # 005
                                                                      MPN: 130282
                                                                      UNION
                                                                      - Valid till engine Nr. 72330
                                                                      Supersession
                                                                      Supersession
                                                                      # 005
                                                                      MPN: 132349
                                                                      UNION
                                                                      - Valid from engine Nr. 72331
                                                                      from £9.98
                                                                      from £9.98
                                                                      # 006
                                                                      MPN: 10297760
                                                                      GASKET
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 007
                                                                      MPN: 149279
                                                                      O.R. GASKET
                                                                      from £2.54
                                                                      from £2.54
                                                                      # 008
                                                                      MPN: 183758
                                                                      THERMOSTAT
                                                                      from £50.80
                                                                      from £50.80
                                                                      This part replaces part number 167473
                                                                      # 009
                                                                      MPN: 169924
                                                                      PULLEY 93 MM
                                                                      from £135.18
                                                                      from £135.18
                                                                      # 010
                                                                      MPN: 102742
                                                                      NUT
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 12557621 - and 2 more. Click to view details
                                                                      # 011
                                                                      MPN: 12646824
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 012
                                                                      MPN: 10202320
                                                                      DISC KEY
                                                                      from £0.68
                                                                      from £0.68
                                                                      # 013
                                                                      MPN: 143742
                                                                      BEARING WITH SHAFT
                                                                      from £143.73
                                                                      from £143.73
                                                                      # 014
                                                                      MPN: 11059976
                                                                      SEEGER RING
                                                                      from £0.64
                                                                      from £0.64
                                                                      This part replaces part number 11059975
                                                                      # 015
                                                                      MPN: 137873
                                                                      GASKET
                                                                      from £2.95
                                                                      from £2.95
                                                                      # 016
                                                                      MPN: 10298460
                                                                      GASKET
                                                                      - Valid till engine Nr. 72330
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 93353
                                                                      # 017
                                                                      MPN: 180137
                                                                      WATER TEMPERATURE SENSOR
                                                                      - Valid till engine Nr. 72330
                                                                      from £9.88
                                                                      from £9.88
                                                                      # 018
                                                                      MPN: 183759
                                                                      SEAL RING
                                                                      from £23.15
                                                                      from £23.15
                                                                      This part replaces part number 130932 - and 1 more. Click to view details
                                                                      # 019
                                                                      MPN: 137868
                                                                      O.R. GASKET
                                                                      from £8.20
                                                                      from £8.20
                                                                      # 020
                                                                      MPN: 176173
                                                                      WATER PUMP COVER
                                                                      use part number: 176173/A for complete pump (change pulley)
                                                                      from £270.33
                                                                      from £270.33
                                                                      This part replaces part number 154546
                                                                      # 021
                                                                      MPN: 102741
                                                                      NUT
                                                                      from £0.50
                                                                      from £0.50
                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                      # 022
                                                                      MPN: 12601274
                                                                      WASHER
                                                                      from £0.52
                                                                      from £0.52
                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                      # 023
                                                                      MPN: 13540924
                                                                      STUD
                                                                      from £0.70
                                                                      from £0.70
                                                                      This part replaces part number 13540921
                                                                      # 024
                                                                      MPN: 141068
                                                                      UNION
                                                                      from £123.72
                                                                      from £123.72
                                                                      # 025
                                                                      MPN: 100436
                                                                      CAP NUT
                                                                      from £7.78
                                                                      from £7.78
                                                                      This part replaces part number 92896
                                                                      # 026
                                                                      MPN: 11194074
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 11194077 - and 1 more. Click to view details
                                                                      # 027
                                                                      MPN: 176045
                                                                      WATER PUMP IMPELLER
                                                                      from £83.79
                                                                      from £83.79
                                                                      # 028
                                                                      MPN: 14306424
                                                                      SCREW
                                                                      from £0.51
                                                                      from £0.51
                                                                      This part replaces part number 14306324 - and 2 more. Click to view details
                                                                      # 029
                                                                      MPN: 11193874
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 11193879 which we have in stock
                                                                      # 030
                                                                      MPN: 141250
                                                                      O.R. GASKET
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 227203
                                                                      # 031
                                                                      MPN: 184255
                                                                      HEAD WATER MANIFOLD
                                                                      from £416.10
                                                                      from £416.10
                                                                      # 032
                                                                      MPN: 10158801
                                                                      PLUG
                                                                      from £0.83
                                                                      from £0.83
                                                                      This part replaces part number 10158800
                                                                      # 034
                                                                      MPN: 10298460
                                                                      GASKET
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 93353
                                                                      # 035
                                                                      MPN: 201456
                                                                      BELT FOR HYDRAULIC SERVO
                                                                      from £19.11
                                                                      from £19.11
                                                                      This part replaces part number 177511
                                                                      # 035
                                                                      MPN: 201456
                                                                      BELT
                                                                      - Valid after stock exhaustion of 177511
                                                                      from £19.11
                                                                      from £19.11
                                                                      This part replaces part number 177511
                                                                      # 036
                                                                      MPN: 141332
                                                                      GASKET
                                                                      (minimum order quantity = 8)
                                                                      from £0.79
                                                                      from £0.79
                                                                      # 037
                                                                      MPN: 132877
                                                                      NUT
                                                                      - Not as spare part - Replaced by 194031
                                                                      from £1.64
                                                                      from £1.64
                                                                      This part replaces part number 67190100
                                                                      # 037
                                                                      MPN: 194031
                                                                      NUT
                                                                      from £0.49
                                                                      from £0.49
                                                                      # 039
                                                                      MPN: 12604274
                                                                      WASHER
                                                                      from £0.51
                                                                      from £0.51
                                                                      This part replaces part number 12604271 - and 1 more. Click to view details
                                                                      # 040
                                                                      MPN: 189984
                                                                      PIPE FROM DUCT
                                                                      - Not for GD
                                                                      from £31.88
                                                                      from £31.88
                                                                      # 040
                                                                      MPN: 191905
                                                                      PIPE FROM DUCT
                                                                      - Valid for GD
                                                                      from £106.07
                                                                      from £106.07
                                                                      # 041
                                                                      MPN: 145661
                                                                      BRACKET WITH SHEATH
                                                                      - Valid for GD
                                                                      from £3.11
                                                                      from £3.11
                                                                      # 041
                                                                      MPN: 189983
                                                                      BRACKET WITH SHEATH
                                                                      - Not for GD
                                                                      from £2.13
                                                                      from £2.13
                                                                      # 042
                                                                      MPN: 14433124
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 14433121
                                                                      # 043
                                                                      MPN: 11197774
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                      # 044
                                                                      MPN: 145352
                                                                      O.R. GASKET
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 045
                                                                      MPN: 181599
                                                                      CONNECTION SLEEVE BEETWEN MANIFOLD AND WATER PUMP
                                                                      from £180.89
                                                                      from £180.89
                                                                      This part replaces part number 154480
