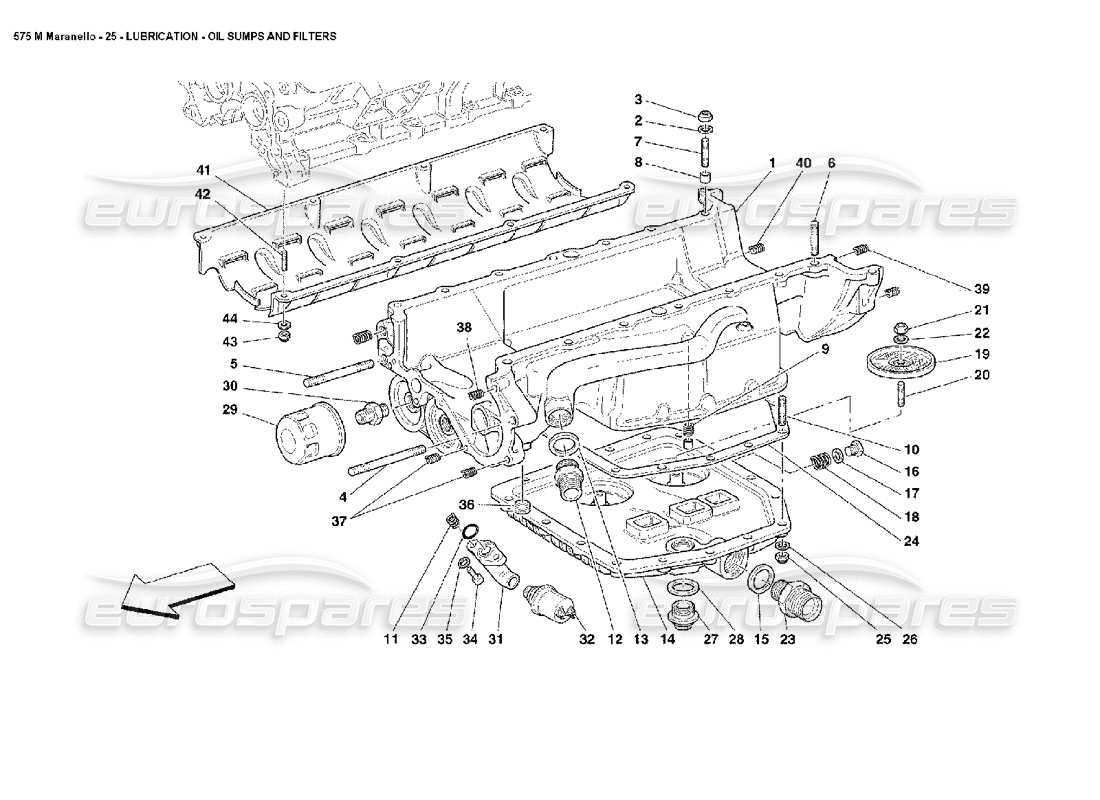

025 - Lubrication Oil Sumps and Filters

                                                                                        Key

                                                                                        STPart in stock.PSAvailable in a part set.
                                                                                        SSPart supersession in stock.PSAvailable in a part set to order (subject to availability).
                                                                                        SOPart available to order (subject to availability).PKAvailable in a part kit.
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 000
                                                                                        PN: 172465
                                                                                        COMPLETE OIL SUMP
                                                                                        from £856.24
                                                                                        # 001
                                                                                        PN: 165757
                                                                                        OIL SUMP
                                                                                        - With complete oil sump
                                                                                        # 002
                                                                                        PN: 12601374
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        # 003
                                                                                        PN: 101139
                                                                                        NUT
                                                                                        from £0.52
                                                                                        NYLON STOP HEX.NUT M8X8X (101139) Genuine Maserati Part - New (to order)
                                                                                        # 004
                                                                                        PN: 13971134
                                                                                        STUD
                                                                                        from £1.21
                                                                                        # 005
                                                                                        PN: 153423
                                                                                        STUD
                                                                                        from £3.77
                                                                                        # 006
                                                                                        PN: 13543424
                                                                                        STUD
                                                                                        from £0.48
                                                                                        STUD M8X16 STEM 28 (13543424) Genuine Maserati Part - New in stock
                                                                                        # 007
                                                                                        PN: 13543624
                                                                                        STUD
                                                                                        from £0.47
                                                                                        PRIGIONIERO M 8X16 GAMBO 3 Genuine Ferrari Part - New (to order)
                                                                                        STUD M8X16 STEM 30 (13543624) Genuine Maserati Part - New (to order)
                                                                                        # 008
                                                                                        PN: 100041
                                                                                        CENTERING DOWEL
                                                                                        from £3.31
                                                                                        # 009
                                                                                        PN: 13525770
                                                                                        THREADED INSERT
                                                                                        from £0.48
                                                                                        THREADED FITTING M8X12 (13525770) Genuine Maserati Part - New in stock
                                                                                        # 010
                                                                                        PN: 13541224
                                                                                        STUD
                                                                                        from £0.48
                                                                                        STUD M6X12 STEM 22 (13541224) Genuine Maserati Part - New (to order)
                                                                                        # 011
                                                                                        PN: 13525470
                                                                                        THREADED INSERT
                                                                                        from £0.51
                                                                                        # 012
                                                                                        PN: 145085
                                                                                        UNION
                                                                                        from £4.74
                                                                                        # 013
                                                                                        PN: 144485
                                                                                        GASKET
                                                                                        from £11.63
                                                                                        # 014
                                                                                        PN: 154602
                                                                                        SUMP COVER
                                                                                        from £634.41
                                                                                        # 015
                                                                                        PN: 144485
                                                                                        GASKET
                                                                                        from £11.63
                                                                                        # 016
                                                                                        PN: 153903
                                                                                        OIL OUTLET PLUG
                                                                                        from £5.63
                                                                                        # 018
                                                                                        PN: 13526570
                                                                                        THREADED INSERT
                                                                                        from £0.47
                                                                                        # 019
                                                                                        PN: 125308
                                                                                        OIL SUCTION FILTER
                                                                                        from £308.70
                                                                                        # 020
                                                                                        PN: 13540724
                                                                                        STUD
                                                                                        from £0.51
                                                                                        # 021
                                                                                        PN: 15896214
                                                                                        NUT
                                                                                        from £0.49
                                                                                        # 023
                                                                                        PN: 138149
                                                                                        UNION
                                                                                        from £14.47
                                                                                        # 024
                                                                                        PN: 141960
                                                                                        GASKET
                                                                                        from £23.76
                                                                                        # 025
                                                                                        PN: 102741
                                                                                        NUT
                                                                                        from £0.47
                                                                                        # 026
                                                                                        PN: 12601274
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        # 027
                                                                                        PN: 156144
                                                                                        THREADED PLUG
                                                                                        from £67.50
                                                                                        # 028
                                                                                        PN: 10303460
                                                                                        GASKET
                                                                                        from £0.73
                                                                                        # 029
                                                                                        PN: 206166
                                                                                        OIL FILTER CARTRIDGE
                                                                                        from £8.95
                                                                                        # 030
                                                                                        PN: 141707
                                                                                        UNION
                                                                                        from £12.53
                                                                                        # 031
                                                                                        PN: 143866
                                                                                        SUPPORT
                                                                                        from £83.76
                                                                                        # 032
                                                                                        PN: 135940
                                                                                        OIL PRESSURE TRANSMITTER
                                                                                        from £41.78
                                                                                        CPL PRESSURE ELECTRONIC TRANSMITT (135940) Genuine Maserati Part - New (to order)
                                                                                        # 033
                                                                                        PN: 132248
                                                                                        O.R. GASKET
                                                                                        from £0.47
                                                                                        # 034
                                                                                        PN: 14305324
                                                                                        SCREW
                                                                                        from £0.47
                                                                                        # 036
                                                                                        PN: 10269850
                                                                                        Threaded Plug
                                                                                        from £0.88
                                                                                        CONICAL THREADED PLUG D. 22X 11 (10269850) Genuine Maserati Part - New (to order)
                                                                                        # 037
                                                                                        PN: 13525870
                                                                                        THREADED INSERT
                                                                                        from £1.87
                                                                                        # 038
                                                                                        PN: 13525570
                                                                                        THREADED INSERT
                                                                                        from £2.39
                                                                                        # 039
                                                                                        PN: 13525870
                                                                                        THREADED INSERT
                                                                                        from £1.87
                                                                                        # 040
                                                                                        PN: 13525570
                                                                                        THREADED INSERT
                                                                                        from £2.39
                                                                                        # 041
                                                                                        PN: 167016
                                                                                        ANTI PANEL
                                                                                        - SHAKING OIL
                                                                                        from £13.99
                                                                                        # 042
                                                                                        PN: 13540824
                                                                                        STUD
                                                                                        from £0.47
