021 - Rear Exhaust System

Ferrari 575M Maranello Rear Exhaust System Parts Diagram

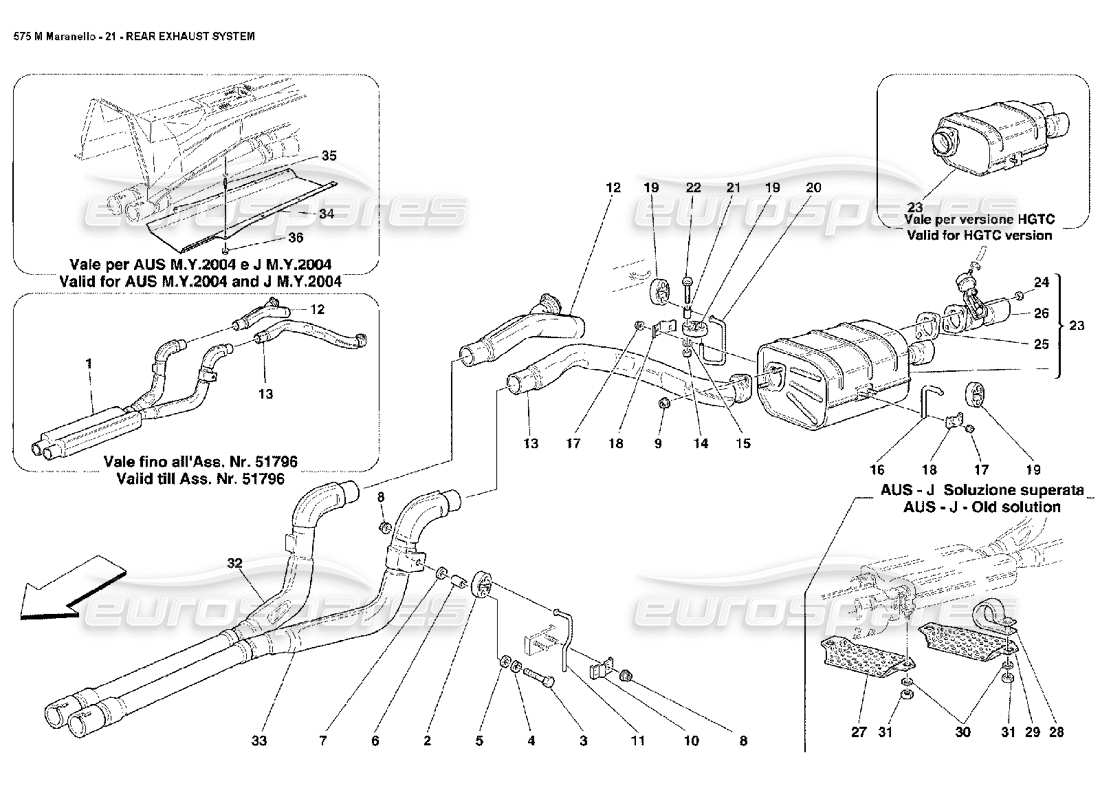

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price

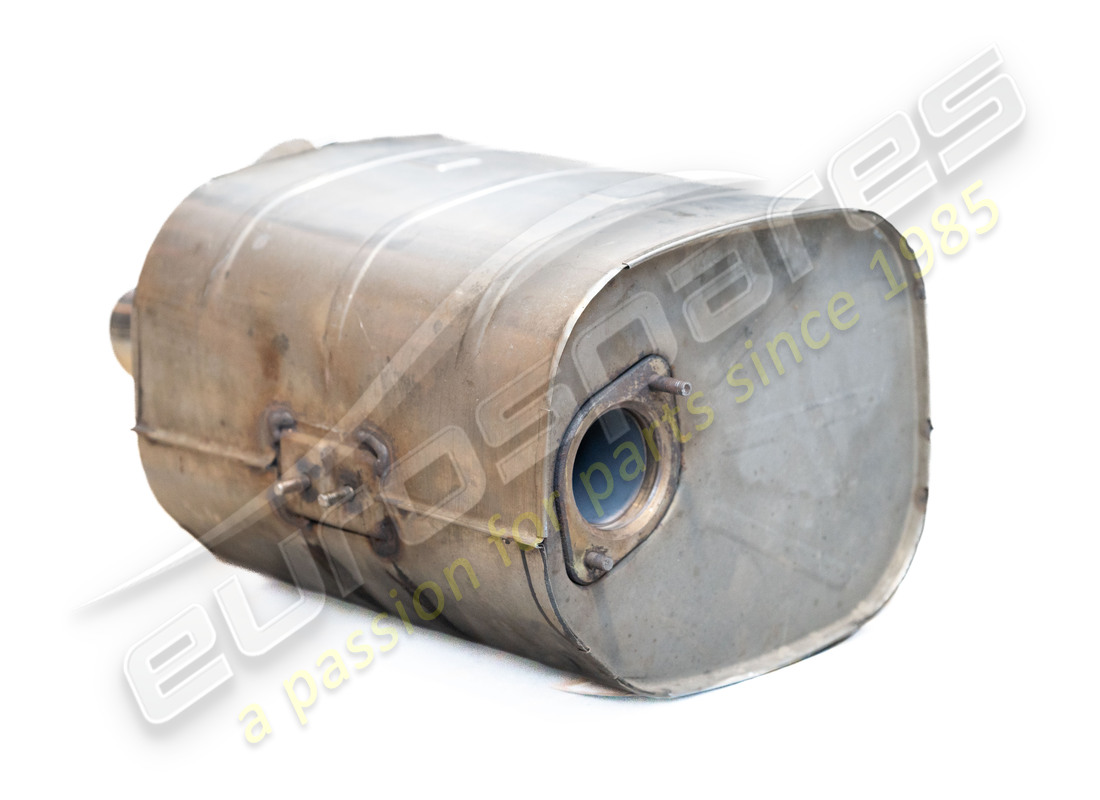

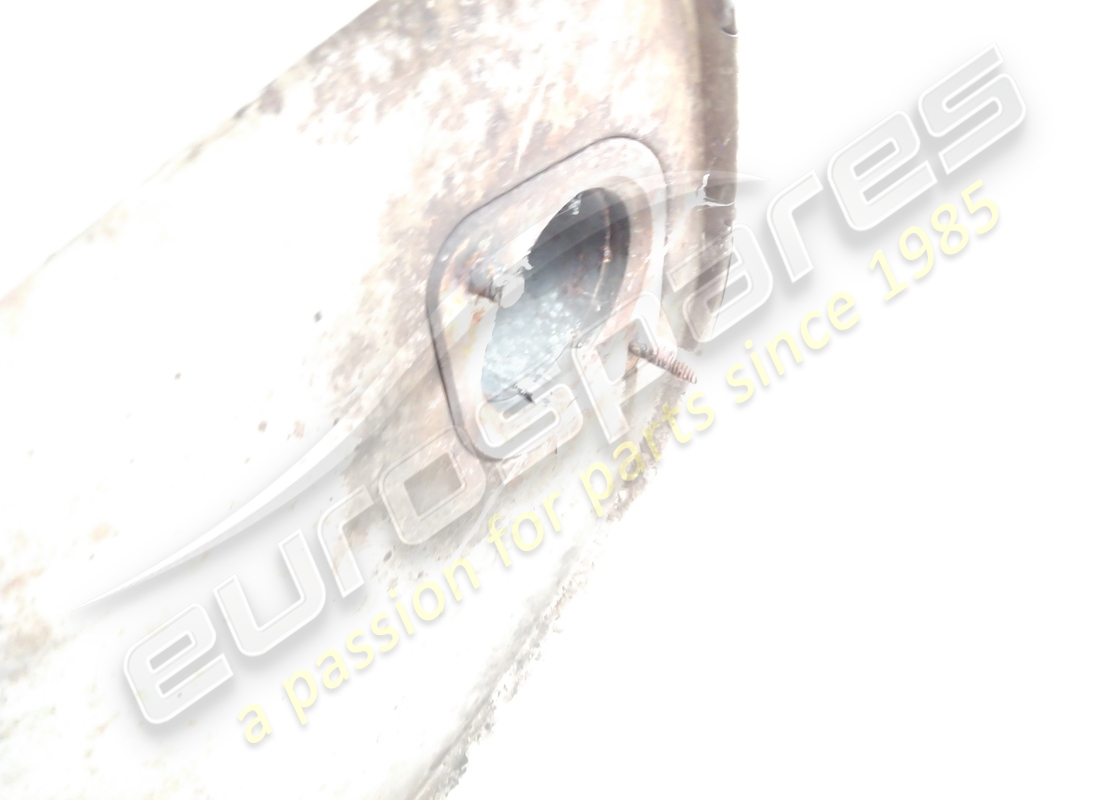

                                                # 001
                                                MPN: 181794
                                                CENTRAL MUFFLER
                                                - Valid till Ass. Nr. 51796
                                                from £586.17
                                                from £586.17
                                                # 002
                                                MPN: 187804
                                                MUFFLER BUFFER FOR SUPPORT
                                                Supersession
                                                Supersession
                                                # 003
                                                MPN: 16044324
                                                SCREW
                                                from £0.53
                                                from £0.53
                                                # 004
                                                MPN: 106852
                                                SPLIT WASHER
                                                Supersession
                                                Supersession
                                                This part replaces part number 10516670 - and 2 more. Click to view details
                                                # 005
                                                MPN: 12642078
                                                WASHER
                                                from £0.51
                                                from £0.51
                                                This part replaces part number 12642006
                                                # 006
                                                MPN: 154016
                                                SPACER
                                                from £9.10
                                                from £9.10
                                                # 007
                                                MPN: 184953
                                                SPACER
                                                from £3.27
                                                from £3.27
                                                # 008
                                                MPN: 14058519
                                                NUT
                                                from £0.47
                                                from £0.47
                                                # 009
                                                MPN: 114748
                                                NUT
                                                from £7.97
                                                from £7.97
                                                # 010
                                                MPN: 154116
                                                BRACKET
                                                from £5.69
                                                from £5.69
                                                # 011
                                                MPN: 191421
                                                REAR SUPPORT
                                                from £12.80
                                                from £12.80

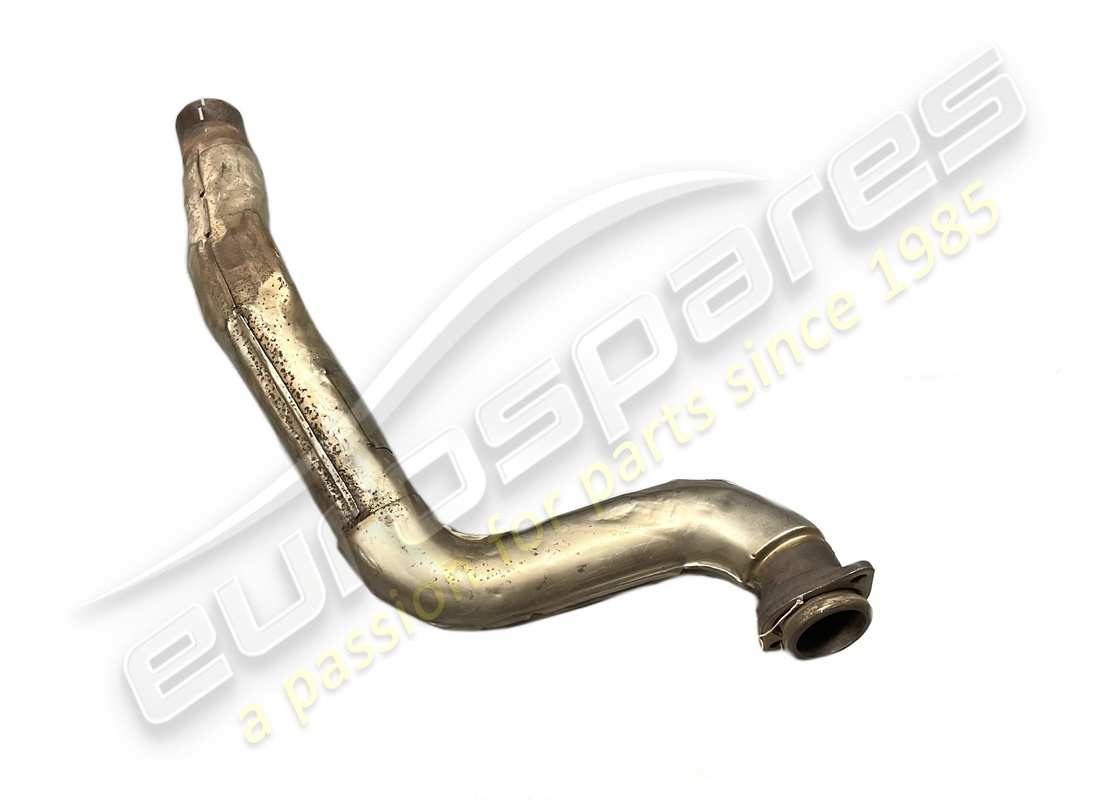

                                                # 012
                                                MPN: 181795
                                                RH EXHAUST EXTENSION
                                                from £323.57
                                                from £323.57

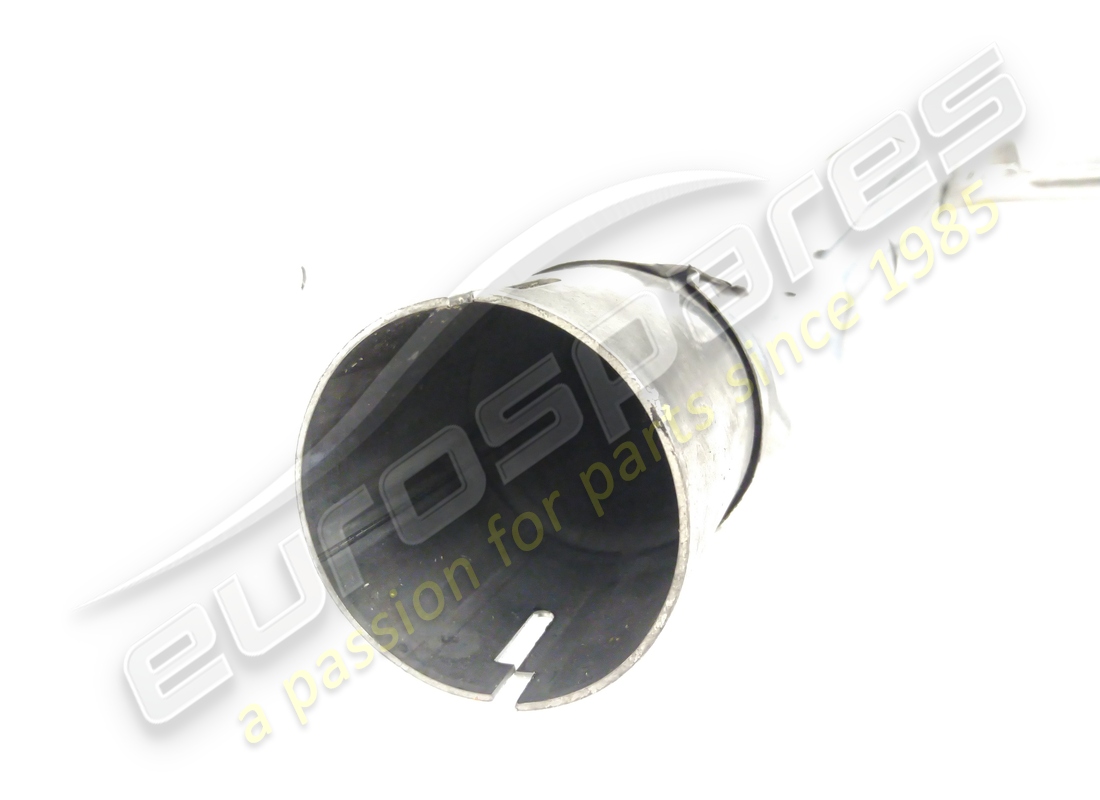

                                                # 013
                                                MPN: 181796
                                                LH EXHAUST EXTENSION
                                                from £581.44
                                                from £581.44
                                                # 014
                                                MPN: 14058519
                                                NUT
                                                from £0.47
                                                from £0.47
                                                # 015
                                                MPN: 12642078
                                                WASHER
                                                from £0.51
                                                from £0.51
                                                This part replaces part number 12642006
                                                # 016
                                                MPN: 154110
                                                OUTER SUPPORT
                                                from £42.91
                                                from £42.91
                                                # 017
                                                MPN: 14058519
                                                NUT
                                                from £0.47
                                                from £0.47
                                                # 018
                                                MPN: 154116
                                                BRACKET
                                                from £5.69
                                                from £5.69
                                                # 019
                                                MPN: 156968
                                                MUFFLER BUFFER FOR SUPPORT
                                                from £36.90
                                                from £36.90
                                                # 020
                                                MPN: 161548
                                                LH INNER SUPPORT
                                                from £71.85
                                                from £71.85
                                                This part replaces part number 156840
                                                # 020
                                                MPN: 161549
                                                RH INNER SUPPORT
                                                from £135.87
                                                from £135.87
                                                This part replaces part number 156849
                                                # 021
                                                MPN: 154016
                                                SPACER
                                                from £9.10
                                                from £9.10
                                                # 022
                                                MPN: 16287524
                                                SCREW
                                                from £0.74
                                                from £0.74
                                                This part replaces part number 16287521

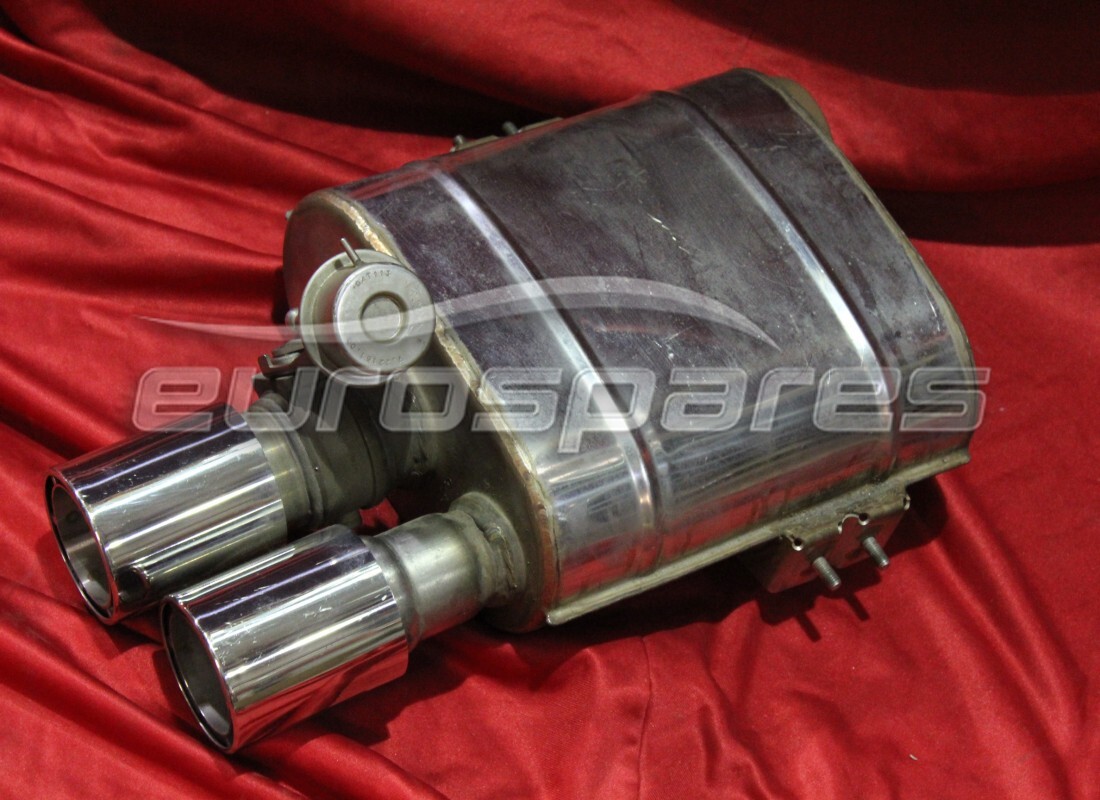

                                                # 023
                                                MPN: 181797
                                                RH REAR SILENCER
                                                - Valid till Ass. Nr.51796
                                                from £624.99
                                                from £624.99
                                                # 023
                                                MPN: 181798
                                                LH REAR SILENCER
                                                - Valid till Ass. Nr.51796
                                                from £637.49
                                                from £637.49

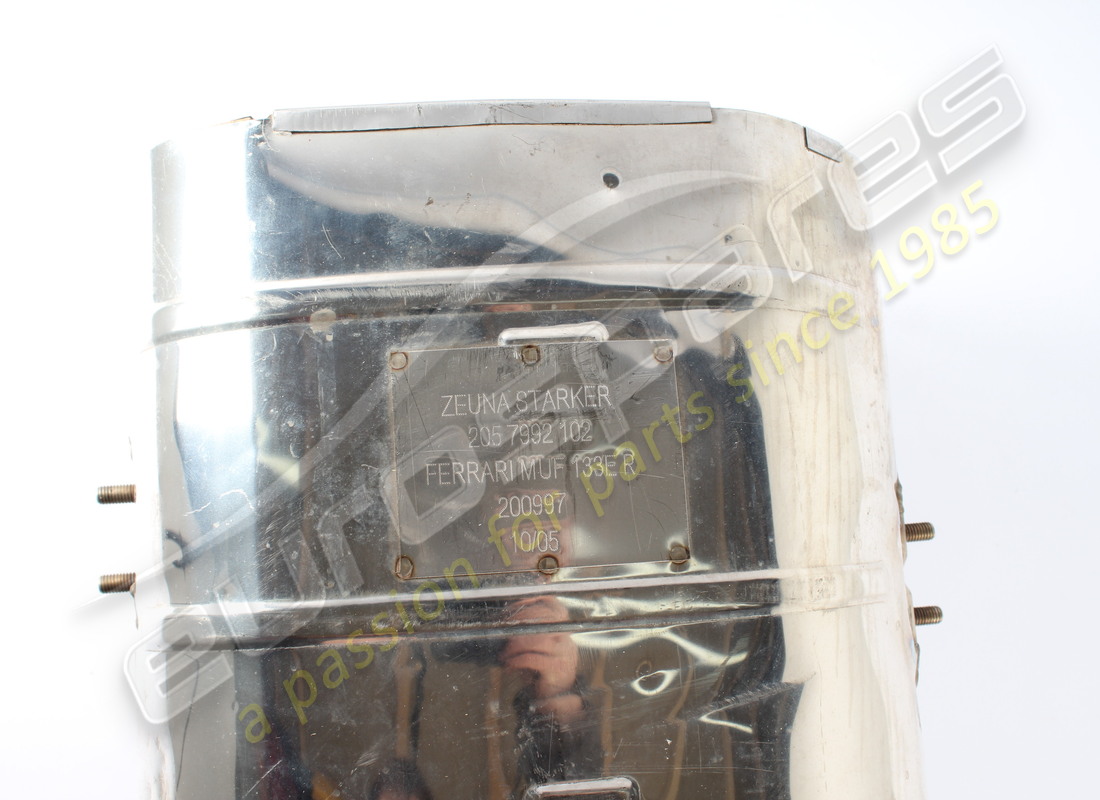

                                                # 023
                                                MPN: 200997
                                                RH REAR SILENCER
                                                - Valid from Ass. Nr.51797
                                                from £3,595.57
                                                from £3,595.57
                                                # 023
                                                MPN: 200998
                                                LH REAR SILENCER
                                                - Valid from Ass. Nr.51797
                                                from £3,573.38
                                                from £3,573.38
                                                # 023
                                                MPN: 212805
                                                RH REAR SILENCER
                                                - Versione HGTC
                                                from £2,312.34
                                                from £2,312.34
                                                # 023
                                                MPN: 212806
                                                LH REAR SILENCER
                                                - Versione HGTC
                                                from £2,653.09
                                                from £2,653.09
                                                # 024
                                                MPN: 114748
                                                NUT
                                                from £7.97
                                                from £7.97
                                                # 025
                                                MPN: 170041
                                                GASKET
                                                from £30.53
                                                from £30.53
                                                # 026
                                                MPN: 170028
                                                COMPLETE RH BY
                                                from £1,084.56
                                                from £1,084.56
                                                # 026
                                                MPN: 170029
                                                COMPLETE LH BY
                                                - PASS VALVE - PASS VALVE
                                                from £675.61
                                                from £675.61
                                                # 027
                                                MPN: 174314
                                                FRONT HEAT PROTECTION SHIELD
                                                - Valid for AUS and J - Not for M.Y. 2004
                                                from £26.12
                                                from £26.12
                                                # 028
                                                MPN: 174316
                                                CLAMP
                                                - Valid for AUS and J - Not for M.Y. 2004
                                                from £2.90
                                                from £2.90
                                                # 029
                                                MPN: 188910
                                                REAR HEAT PROTECTION SHIELD
                                                - Valid for AUS and J - Not for M.Y. 2004
                                                from £169.69
                                                from £169.69
                                                # 030
                                                MPN: 12643724
                                                WASHER
                                                - Valid for AUS and J - Not for M.Y. 2004
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 109684 - and 4 more. Click to view details
                                                # 031
                                                MPN: 14048327
                                                NUT
                                                - Valid for AUS and J - Not for M.Y. 2004
                                                from £0.50
                                                from £0.50

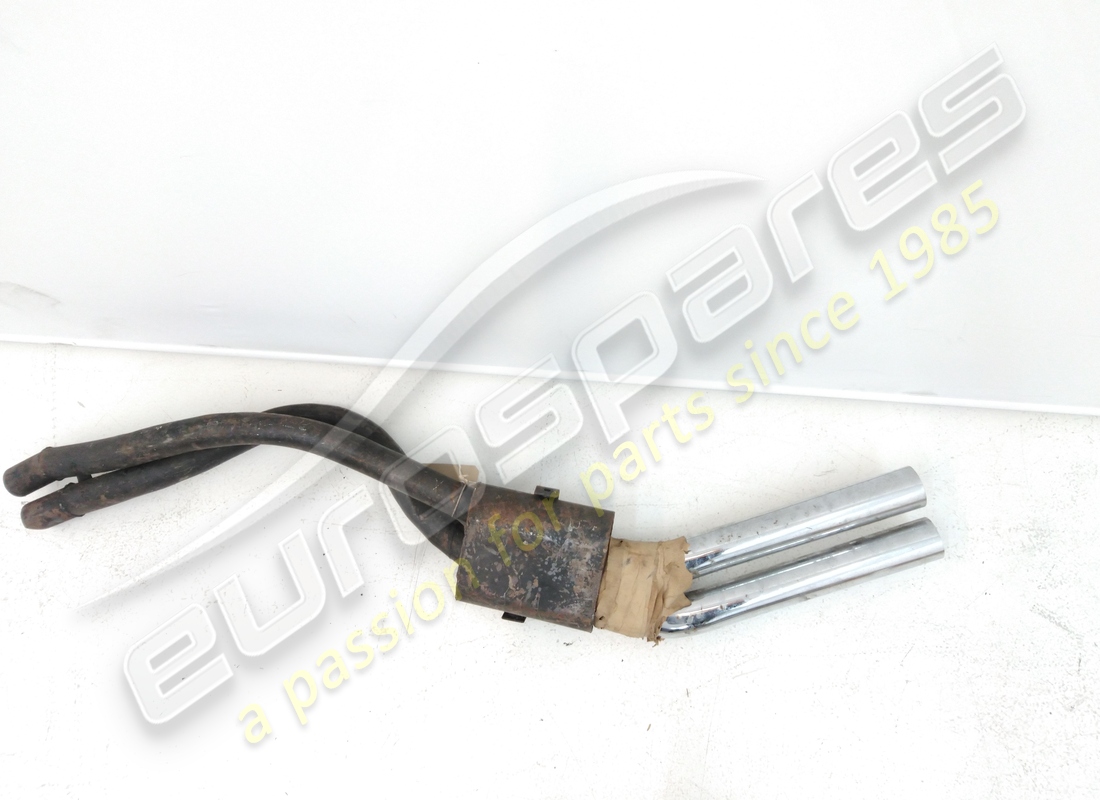

                                                # 032
                                                MPN: 200995
                                                RH EXHAUST EXTENSION
                                                - Valid from Ass. Nr.51797
                                                from £1,212.48
                                                from £1,212.48
                                                # 033
                                                MPN: 200996
                                                LH EXHAUST EXTENSION
                                                - Valid from Ass. Nr.51797
                                                from £1,212.48
                                                from £1,212.48
                                                # 034
                                                MPN: 202393
                                                FRONT HEAT PROTECTION SHIELD
                                                - Valid for AUS M.Y. 2004 and J M.Y. 2004
                                                from £215.88
                                                from £215.88
                                                # 035
                                                MPN: 67972900
                                                STUD
                                                - Valid for AUS M.Y. 2004 and J M.Y. 2004
                                                from £4.95
                                                from £4.95
                                                # 036
                                                MPN: 14058419
                                                NUT
                                                - Valid for AUS M.Y. 2004 and J M.Y. 2004
                                                from £0.47
                                                from £0.47
