020 - Front Exhaust System

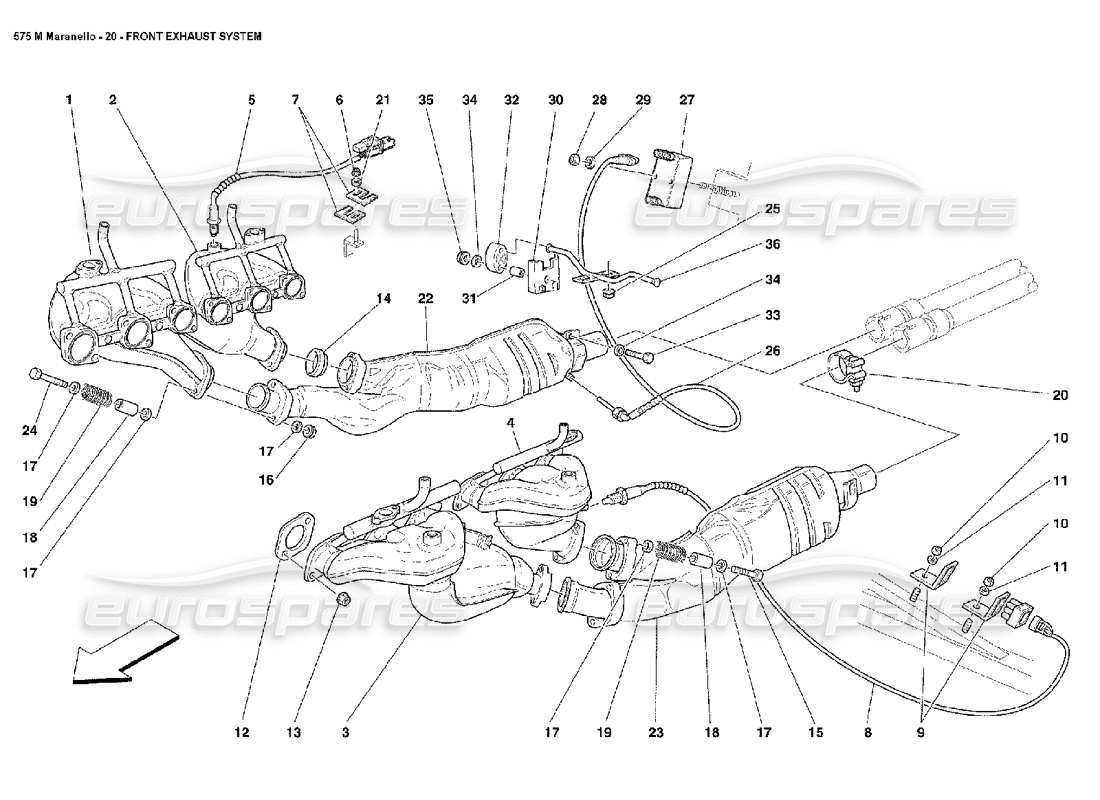

Ferrari 575M Maranello Front Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 189758

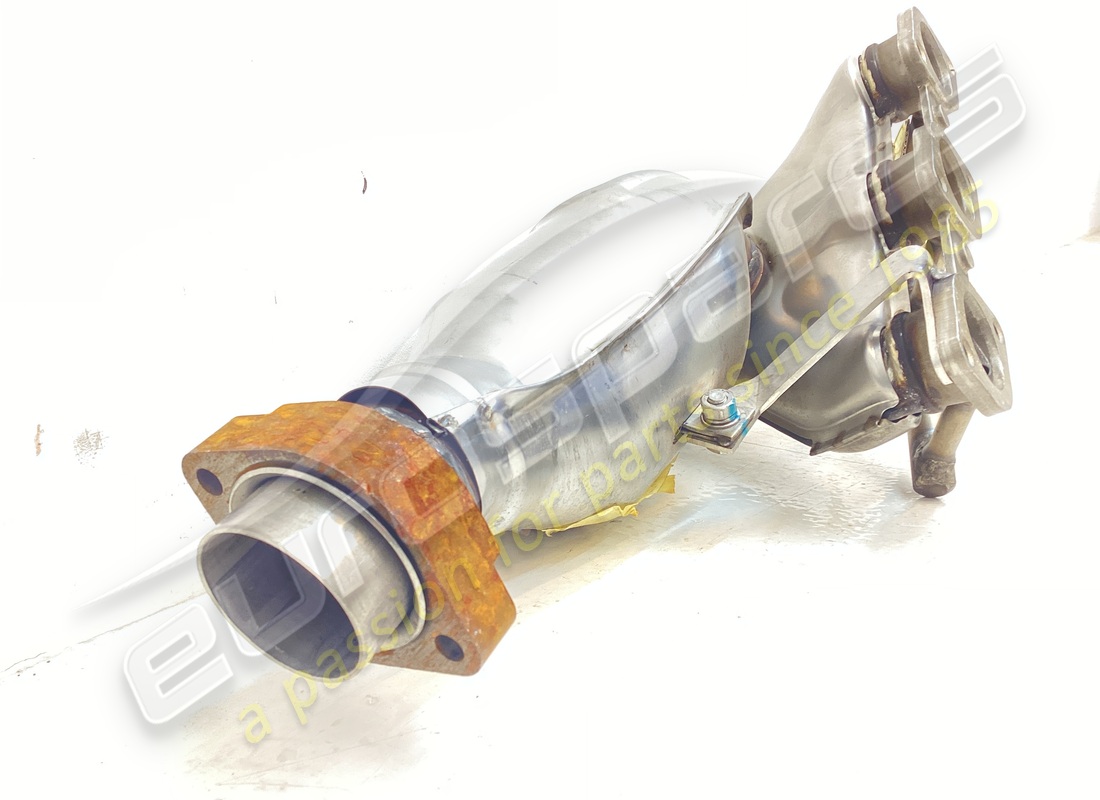

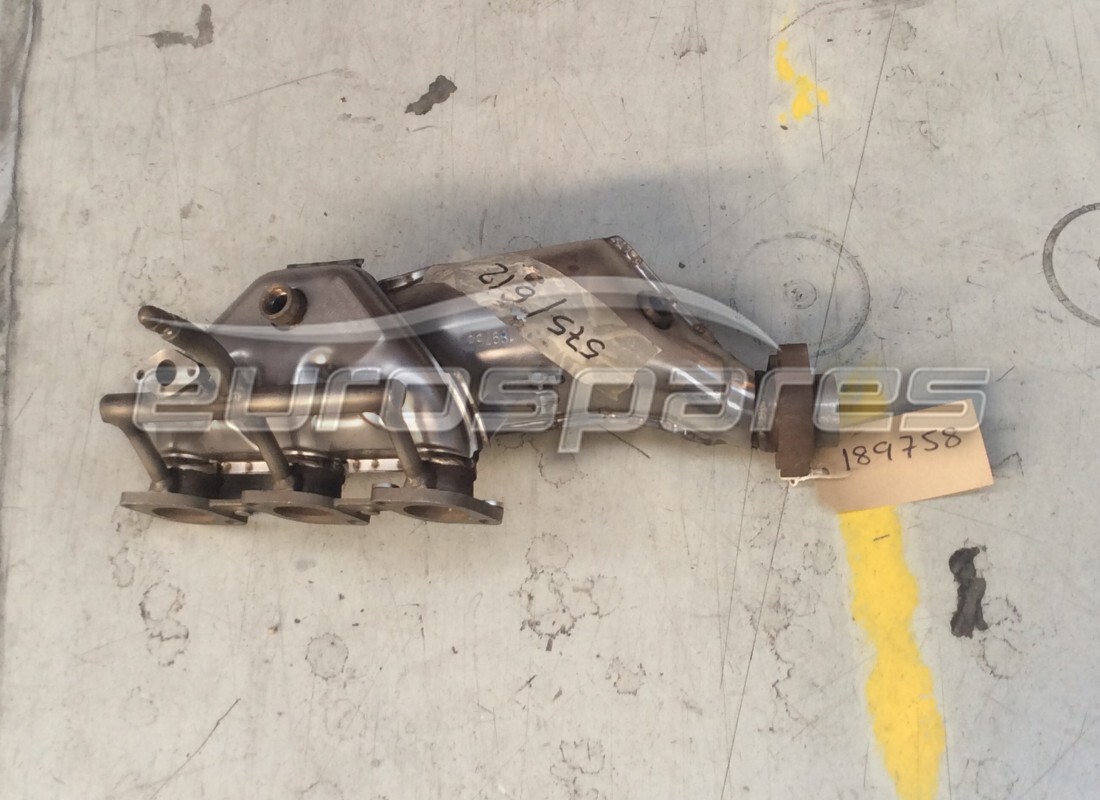

                                                            RH FRONT EXHAUST MANIFOLD
                                                            from £1,575.23
                                                            from £1,575.23
                                                            This part replaces part number 201663 - and 3 more. Click to view details
                                                            # 002
                                                            MPN: 189760

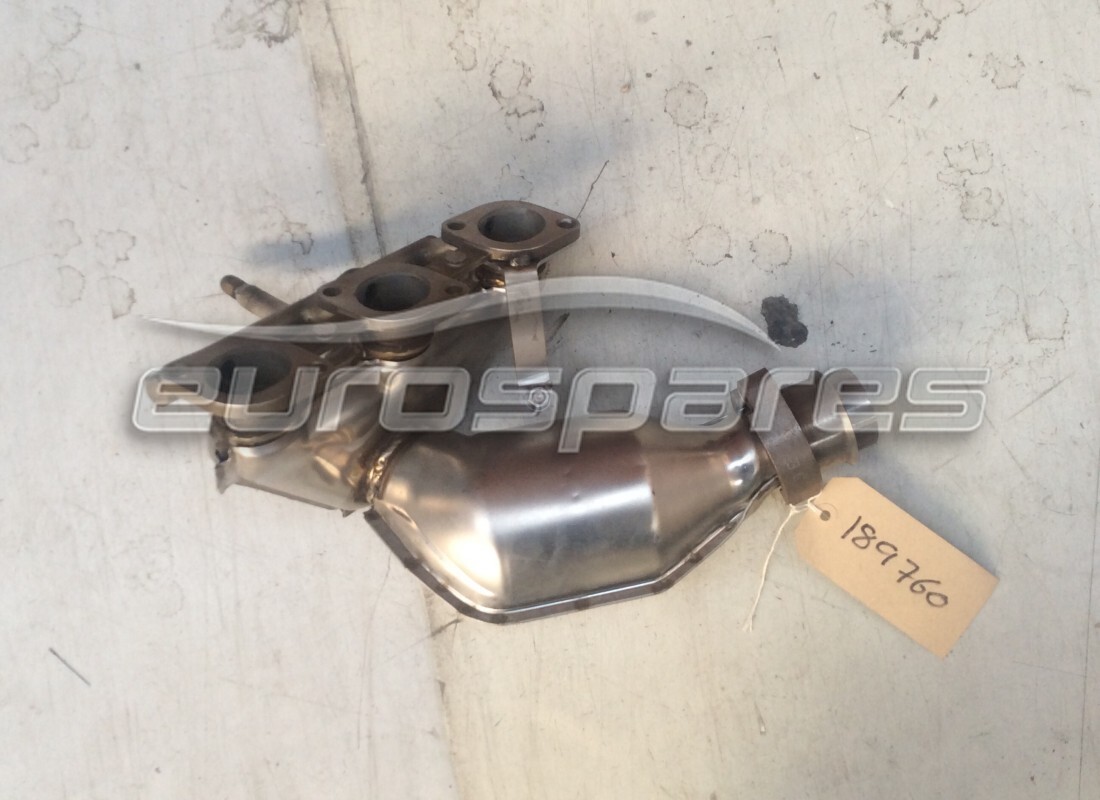

                                                            RH REAR EXHAUST MANIFOLD
                                                            - Not for GD
                                                            from £6,974.74
                                                            from £6,974.74
                                                            This part replaces part number 201664 - and 2 more. Click to view details
                                                            # 002
                                                            MPN: 190294
                                                            RH REAR EXHAUST MANIFOLD
                                                            - Valid for GD
                                                            from £2,692.53
                                                            from £2,692.53
                                                            # 003
                                                            MPN: 189759
                                                            LH FRONT EXHAUST MANIFOLD
                                                            from £1,575.23
                                                            from £1,575.23
                                                            This part replaces part number 201665 - and 3 more. Click to view details
                                                            # 004
                                                            MPN: 189761
                                                            LH REAR EXHAUST MANIFOLD
                                                            from £3,836.11
                                                            from £3,836.11
                                                            This part replaces part number 201666 - and 4 more. Click to view details
                                                            # 005
                                                            MPN: 182837

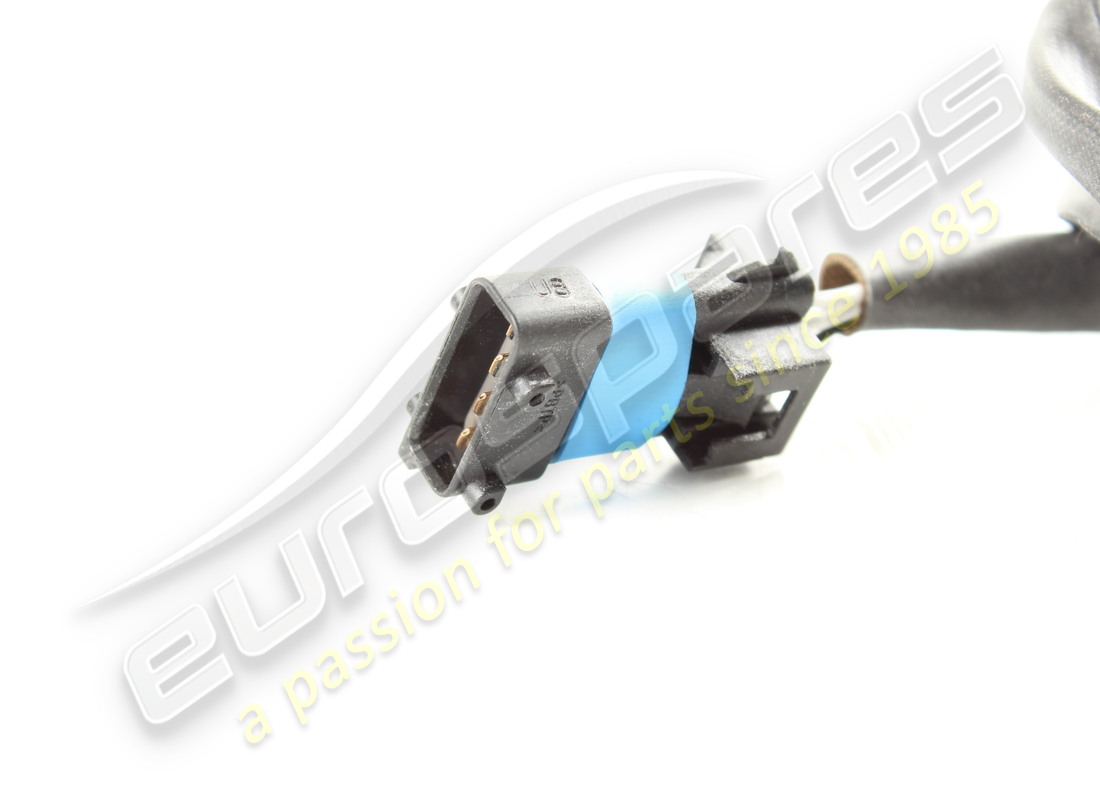

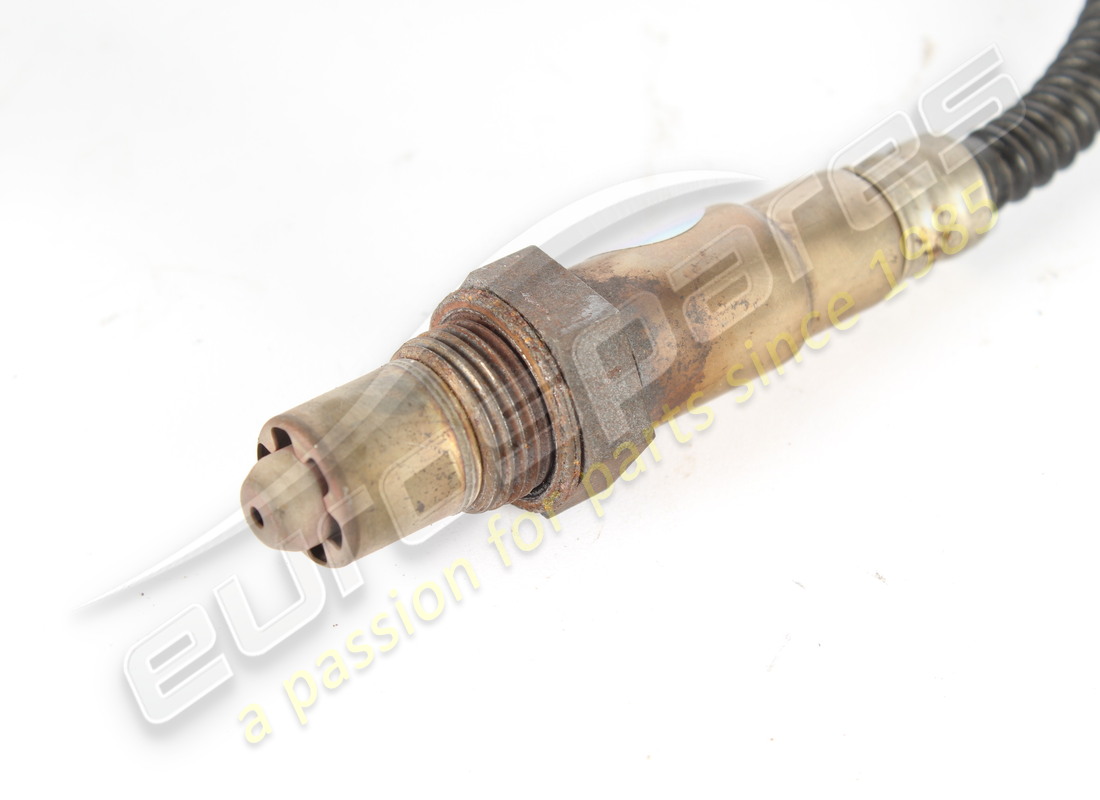

                                                            FRONT LAMBDA FEELER
                                                            - For front side head
                                                            from £144.54
                                                            from £144.54
                                                            This part replaces part number 178290 - and 1 more. Click to view details
                                                            # 005
                                                            MPN: 187587
                                                            FRONT LAMBDA FEELER
                                                            - For rear side head
                                                            from £144.60
                                                            from £144.60
                                                            # 006
                                                            MPN: 62790300
                                                            NUT
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 12574011 - and 1 more. Click to view details
                                                            # 007
                                                            MPN: 175856
                                                            CONNECTOR FIXING BRACKET
                                                            from £1.19
                                                            from £1.19
                                                            # 008
                                                            MPN: 180915

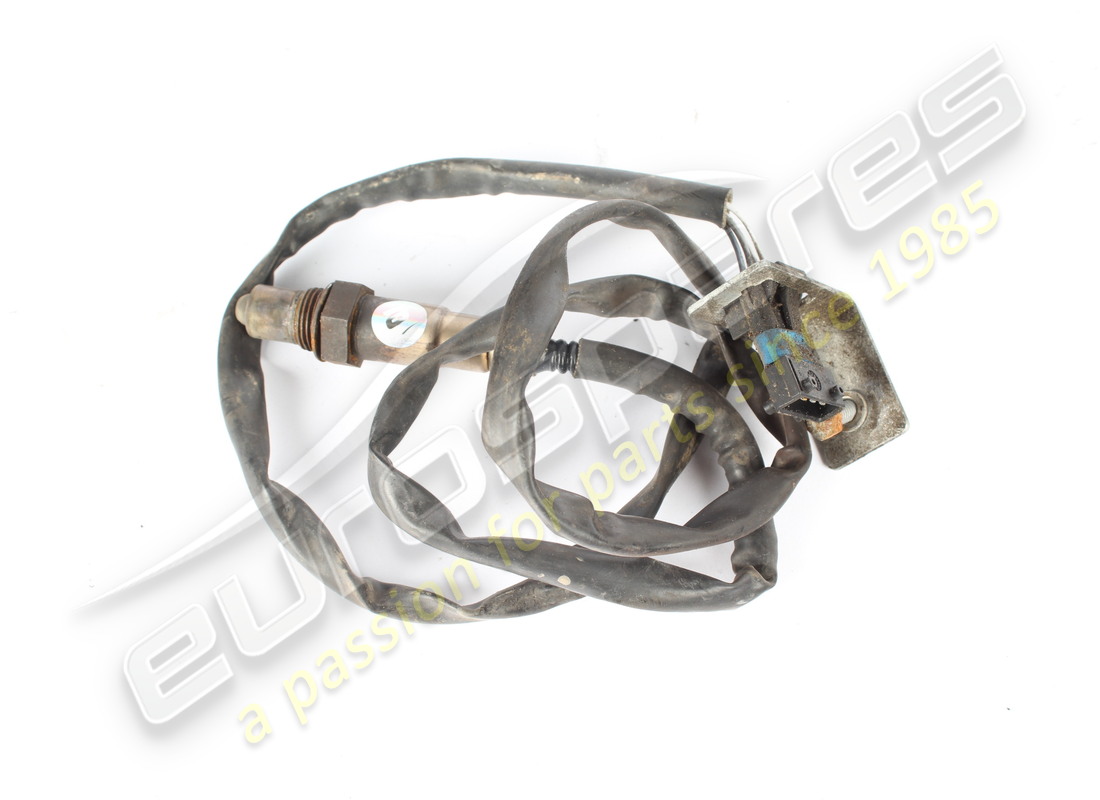

                                                            REAR LAMBDA FEELER
                                                            - For front side head
                                                            from £26.25
                                                            from £26.25
                                                            This part replaces part number 177674 - and 2 more. Click to view details
                                                            # 008
                                                            MPN: 187586
                                                            REAR LAMBDA FEELER
                                                            - For rear side head
                                                            from £64.36
                                                            from £64.36
                                                            # 009
                                                            MPN: 185408
                                                            CONNECTOR FIXING BRACKET
                                                            from £9.40
                                                            from £9.40
                                                            # 010
                                                            MPN: 102741
                                                            NUT
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                            # 011
                                                            MPN: 14499324

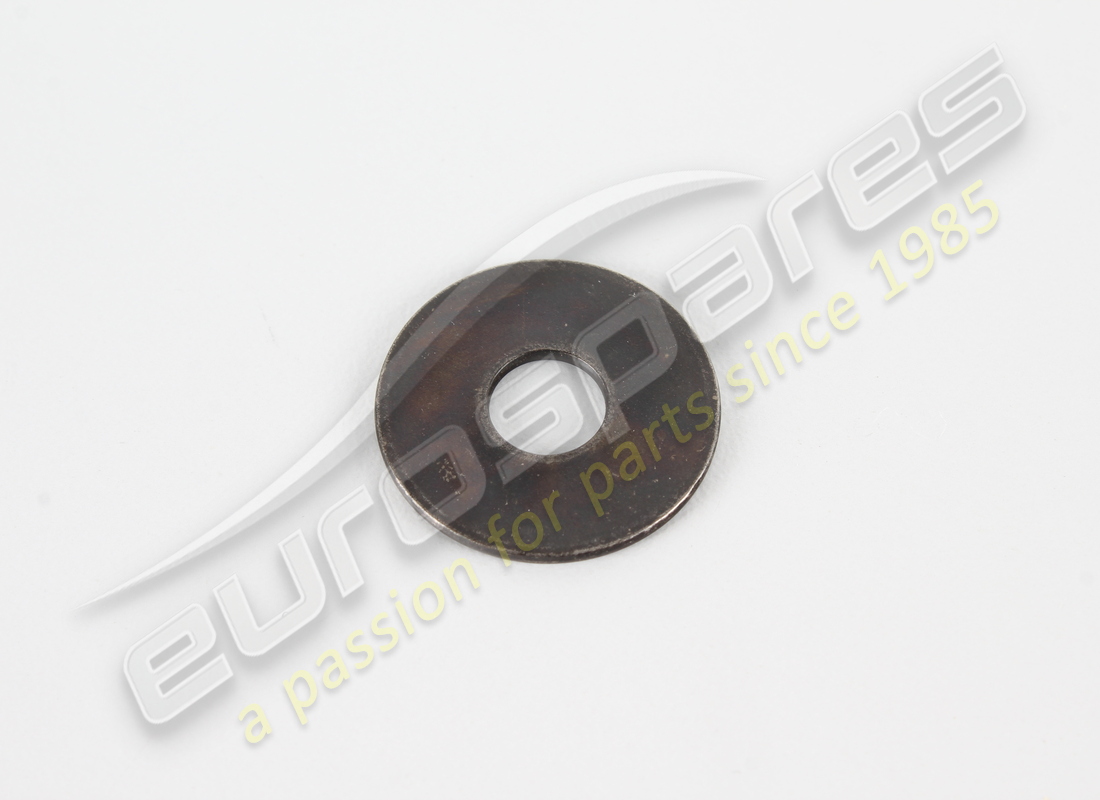

                                                            WASHER
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 14499301 which we have in stock
                                                            # 012
                                                            MPN: 143408
                                                            GASKET
                                                            (minimum order quantity = 12)
                                                            from £10.49
                                                            from £10.49
                                                            # 013
                                                            MPN: 138392
                                                            NUT
                                                            (minimum order quantity = 25)
                                                            from £0.58
                                                            from £0.58
                                                            # 014
                                                            MPN: 154981
                                                            GASKET
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 125917 - and 1 more. Click to view details
                                                            # 015
                                                            MPN: 16045024
                                                            SCREW
                                                            (minimum order quantity = 10)
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 125924 - and 1 more. Click to view details
                                                            # 016
                                                            MPN: 114748
                                                            NUT
                                                            from £7.97
                                                            from £7.97
                                                            # 017
                                                            MPN: 128010
                                                            WASHER
                                                            from £2.16
                                                            from £2.16
                                                            # 018
                                                            MPN: 114749
                                                            SPACER
                                                            from £1.28
                                                            from £1.28
                                                            # 019
                                                            MPN: 111743
                                                            SPRING
                                                            from £7.12
                                                            from £7.12
                                                            # 020
                                                            MPN: 170541
                                                            CLAMP
                                                            from £10.39
                                                            from £10.39
                                                            # 021
                                                            MPN: 12642877
                                                            WASHER
                                                            from £0.47
                                                            from £0.47
                                                            # 022
                                                            MPN: 174097
                                                            REPLACEMENT PIPES SET
                                                            (straight through)
                                                            # 022
                                                            MPN: 185647

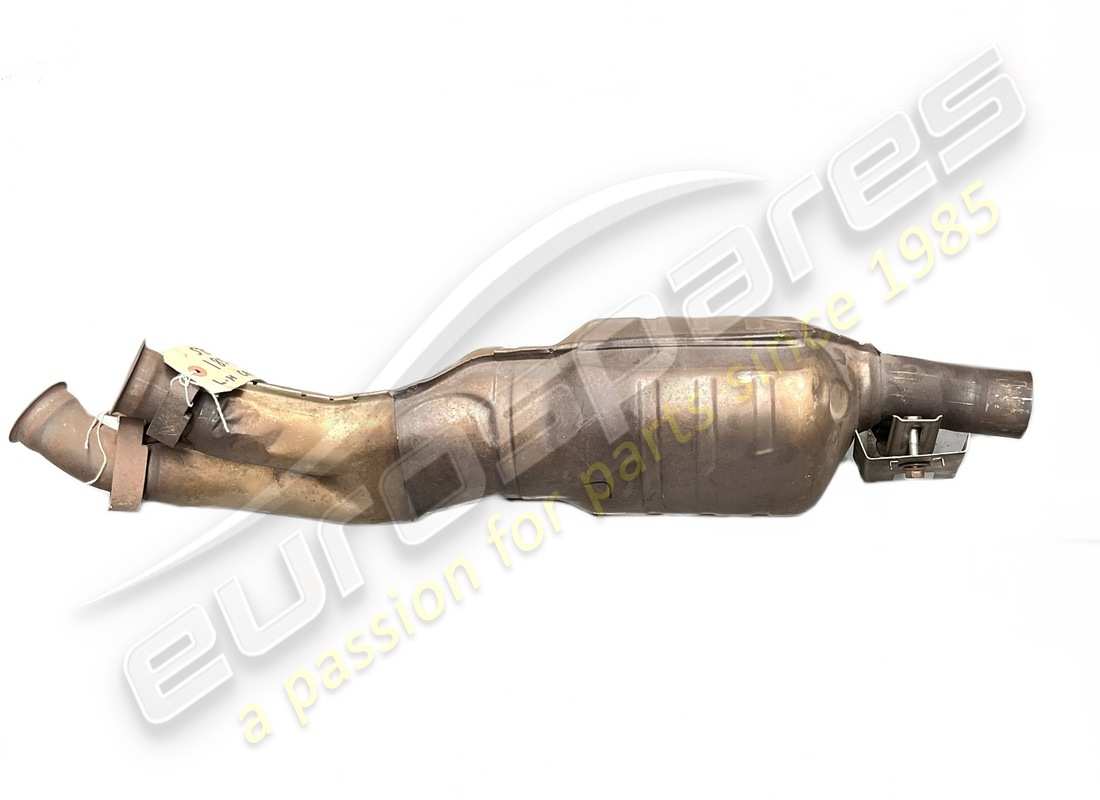

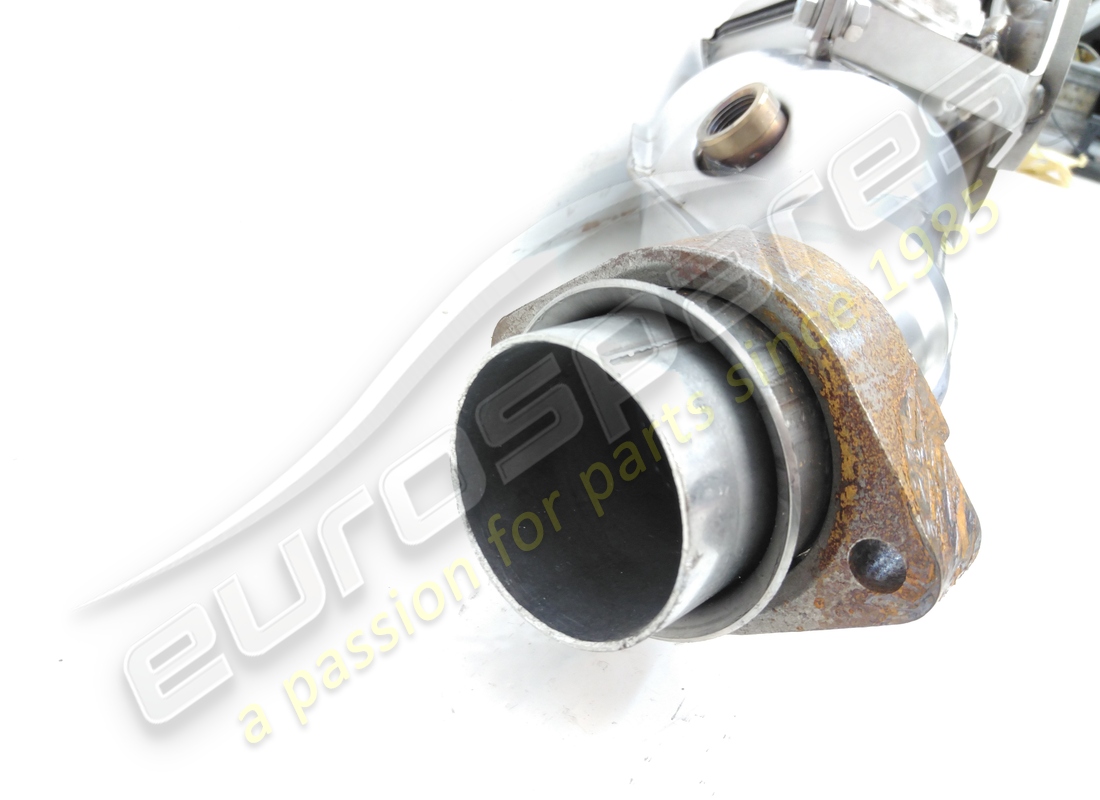

                                                            RH CATALYST
                                                            from £1,543.11
                                                            from £1,543.11
                                                            # 023
                                                            MPN: 185648
                                                            LH CATALYST
                                                            from £2,413.25
                                                            from £2,413.25
                                                            # 024
                                                            MPN: 16045121

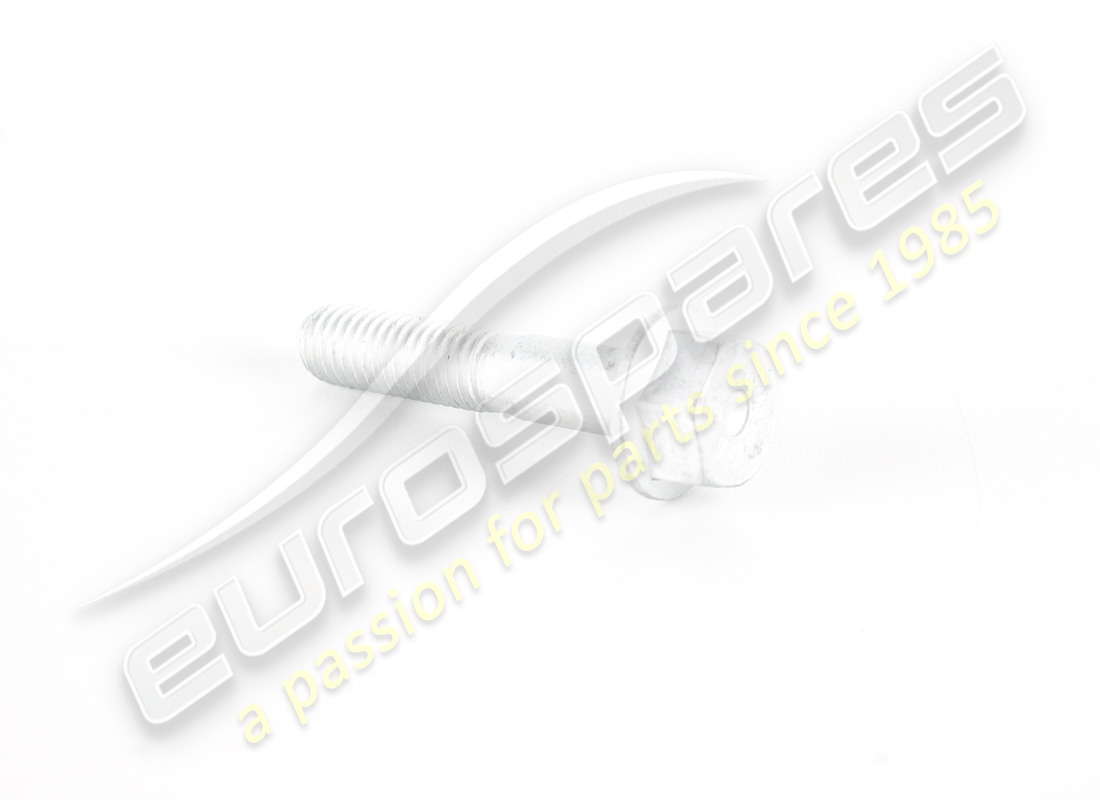

                                                            SCREW
                                                            from £10.73
                                                            from £10.73
                                                            # 025
                                                            MPN: 14058519
                                                            NUT
                                                            from £0.47
                                                            from £0.47
                                                            # 026
                                                            MPN: 174674

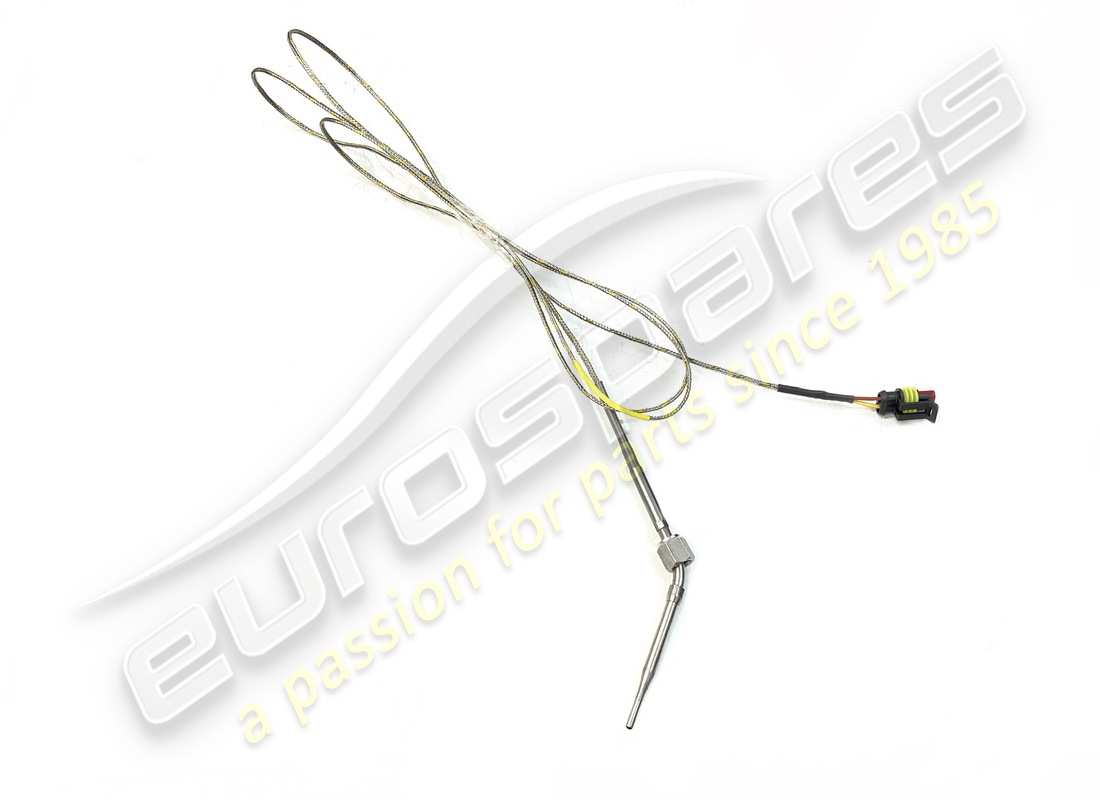

                                                            THERMOCOUPLE
                                                            from £130.15
                                                            from £130.15
                                                            This part replaces part number 168661
                                                            # 027
                                                            MPN: 179278
                                                            CONTROL STATION
                                                            from £176.34
                                                            from £176.34
                                                            This part replaces part number 173533 - and 1 more. Click to view details
                                                            # 028
                                                            MPN: 62790300
                                                            NUT
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 12574011 - and 1 more. Click to view details
                                                            # 029
                                                            MPN: 10519224
                                                            WASHER
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 10519201
                                                            # 030
                                                            MPN: 170023
                                                            R. H. PAD PROTECTION
                                                            from £4.91
                                                            from £4.91
                                                            # 030
                                                            MPN: 170024
                                                            L. H. PAD PROTECTION
                                                            from £4.91
                                                            from £4.91
                                                            # 031
                                                            MPN: 154016
                                                            SPACER
                                                            from £9.10
                                                            from £9.10
                                                            # 032
                                                            MPN: 154564
                                                            PAD
                                                            from £77.13
                                                            from £77.13
                                                            # 033
                                                            MPN: 16287524
                                                            SCREW
                                                            from £0.74
                                                            from £0.74
                                                            This part replaces part number 16287521
                                                            # 034
                                                            MPN: 12642078
                                                            WASHER
                                                            from £0.51
                                                            from £0.51
                                                            This part replaces part number 12642006
                                                            # 035
                                                            MPN: 14058519
                                                            NUT
                                                            from £0.47
                                                            from £0.47
                                                            # 036
                                                            MPN: 168149
                                                            CENTRAL SHIELD SUPPORTING CATALYSTS
                                                            from £17.02
                                                            from £17.02
                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
