019 - AIR INTAKE

Ferrari 575M Maranello Air Intake Parts Diagram

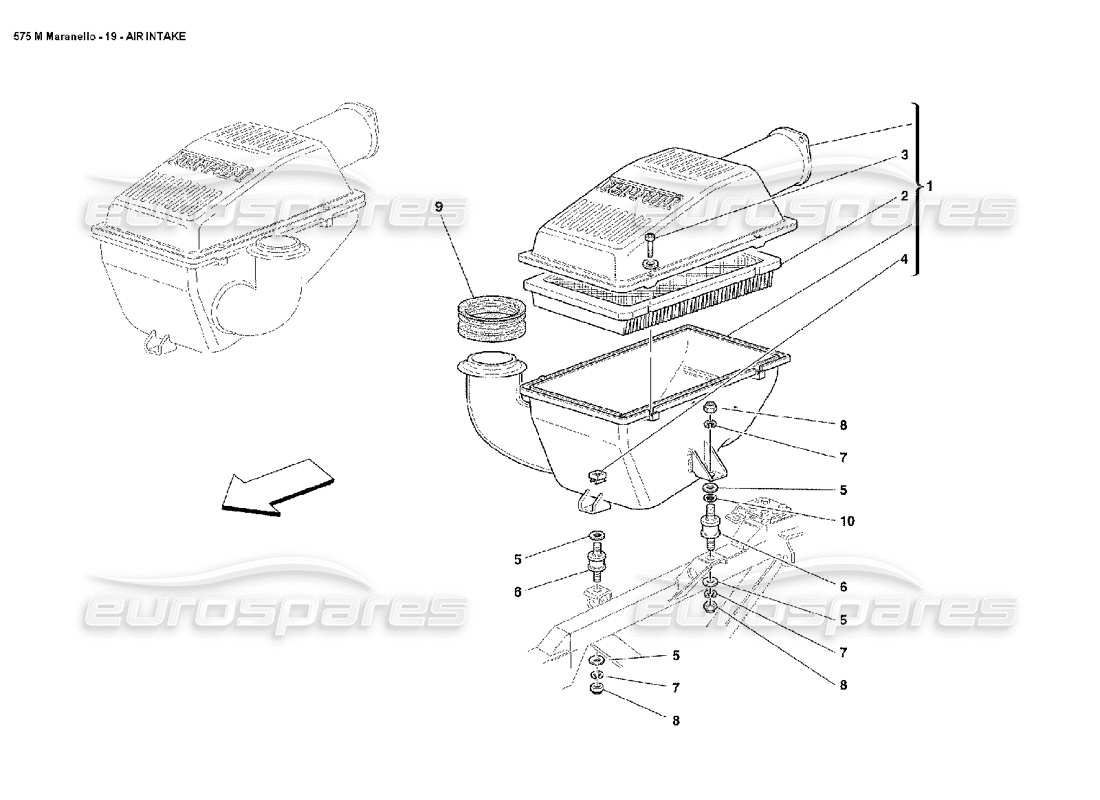

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 183874
                  COMPLETE RH AIR INTAKE
                  from £1,044.75
                  from £1,044.75
                  # 001
                  MPN: 183875
                  COMPLETE LH AIR INTAKE
                  from £1,012.00
                  from £1,012.00
                  # 002
                  MPN: 180935

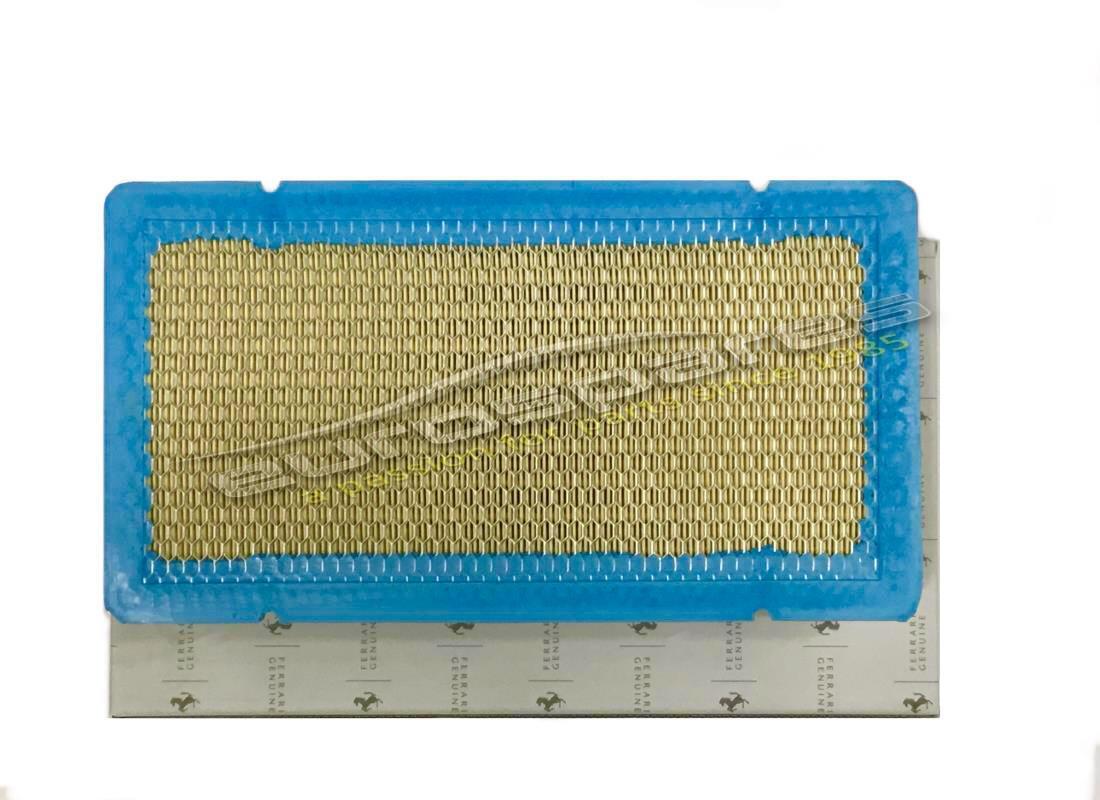

                  AIR FILTER (BLUE FILTER)
                  (34cm x 19cm)
                  from £41.77
                  from £41.77
                  This part replaces part number 217641
                  # 003
                  MPN: 157757/A
                  SCREW
                  from £8.99
                  from £8.99
                  # 004
                  MPN: 14074790
                  NUT
                  from £1.35
                  from £1.35
                  # 005
                  MPN: 12643724
                  WASHER
                  from £0.47
                  from £0.47
                  This part replaces part number 109684 - and 4 more. Click to view details
                  # 006
                  MPN: 142202
                  ANTI
                  from £14.62
                  from £14.62
                  # 007
                  MPN: 127494
                  WASHER
                  (minimum order quantity = 20)
                  from £0.51
                  from £0.51
                  This part replaces part number 10516470 - and 4 more. Click to view details
                  # 008
                  MPN: 15896214
                  NUT
                  from £0.53
                  from £0.53
                  This part replaces part number 15896211
                  # 009
                  MPN: 165855
                  CONVEYOR BELLOWS
                  from £24.59
                  from £24.59
                  # 010
                  MPN: 12640624
                  WASHER
                  from £0.47
                  from £0.47
                  This part replaces part number 12640601 - and 1 more. Click to view details
