ferrari 575m maranello air intake manifolds parts diagram

018 - Air Intake Manifolds

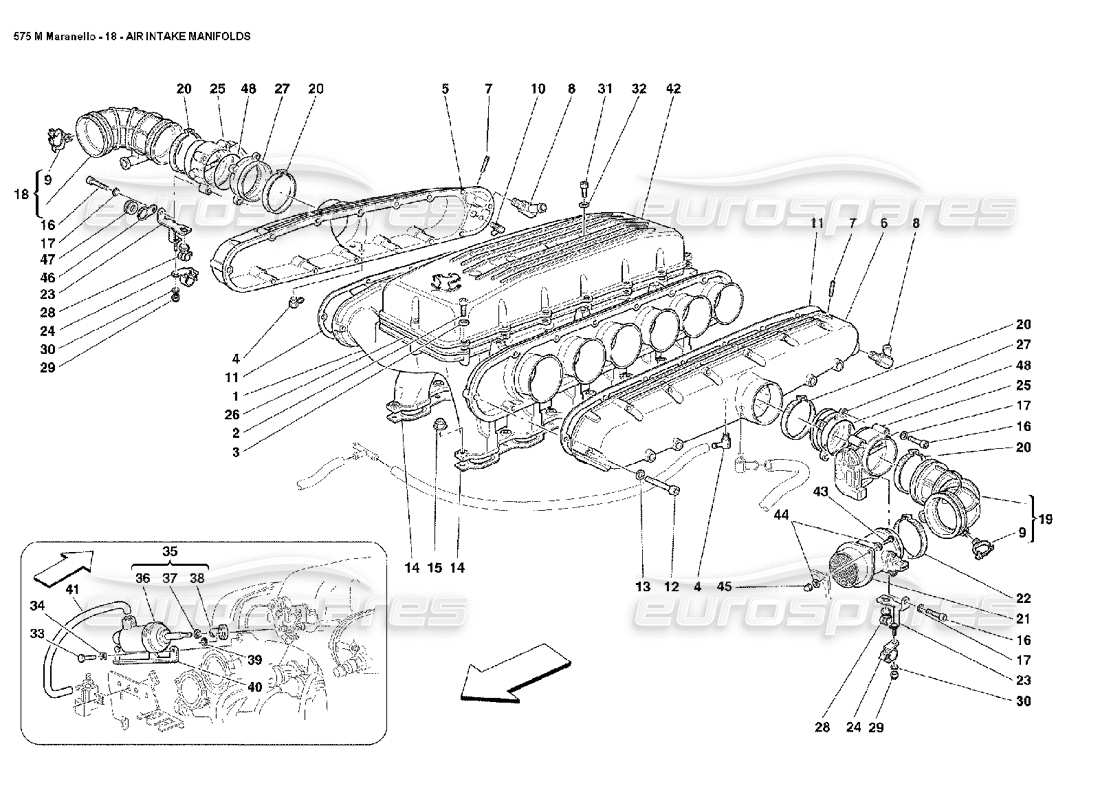

Ferrari 575M Maranello Air Intake Manifolds Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Price
                                                                                            # 001
                                                                                            MPN: 181061
                                                                                            SUCTION MANIFOLD
                                                                                            from £2,517.31
                                                                                            from £2,517.31
                                                                                            # 002
                                                                                            MPN: 14305424
                                                                                            SCREW
                                                                                            from £0.48
                                                                                            from £0.48
                                                                                            This part replaces part number 14305421 - and 2 more. Click to view details
                                                                                            # 003
                                                                                            MPN: 12601274
                                                                                            WASHER
                                                                                            from £0.48
                                                                                            from £0.48
                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                            # 004
                                                                                            MPN: 128016
                                                                                            UNION
                                                                                            from £6.74
                                                                                            from £6.74
                                                                                            # 005
                                                                                            MPN: 181062
                                                                                            RH SUCTION MANIFOLDS COVER
                                                                                            from £949.07
                                                                                            from £949.07
                                                                                            This part replaces part number 194343
                                                                                            # 006
                                                                                            MPN: 181063
                                                                                            LH SUCTION MANIFOLDS COVER
                                                                                            from £248.43
                                                                                            from £248.43
                                                                                            This part replaces part number 194344
                                                                                            # 007
                                                                                            MPN: 11500024
                                                                                            STUD
                                                                                            from £1.54
                                                                                            from £1.54
                                                                                            This part replaces part number 11500011 which we have in stock - and 1 more. Click to view details
                                                                                            # 008
                                                                                            MPN: 193146
                                                                                            UNION
                                                                                            # 009
                                                                                            MPN: 189710
                                                                                            CLIP
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            # 010
                                                                                            MPN: 128016
                                                                                            UNION
                                                                                            from £6.74
                                                                                            from £6.74
                                                                                            # 011
                                                                                            MPN: 181064

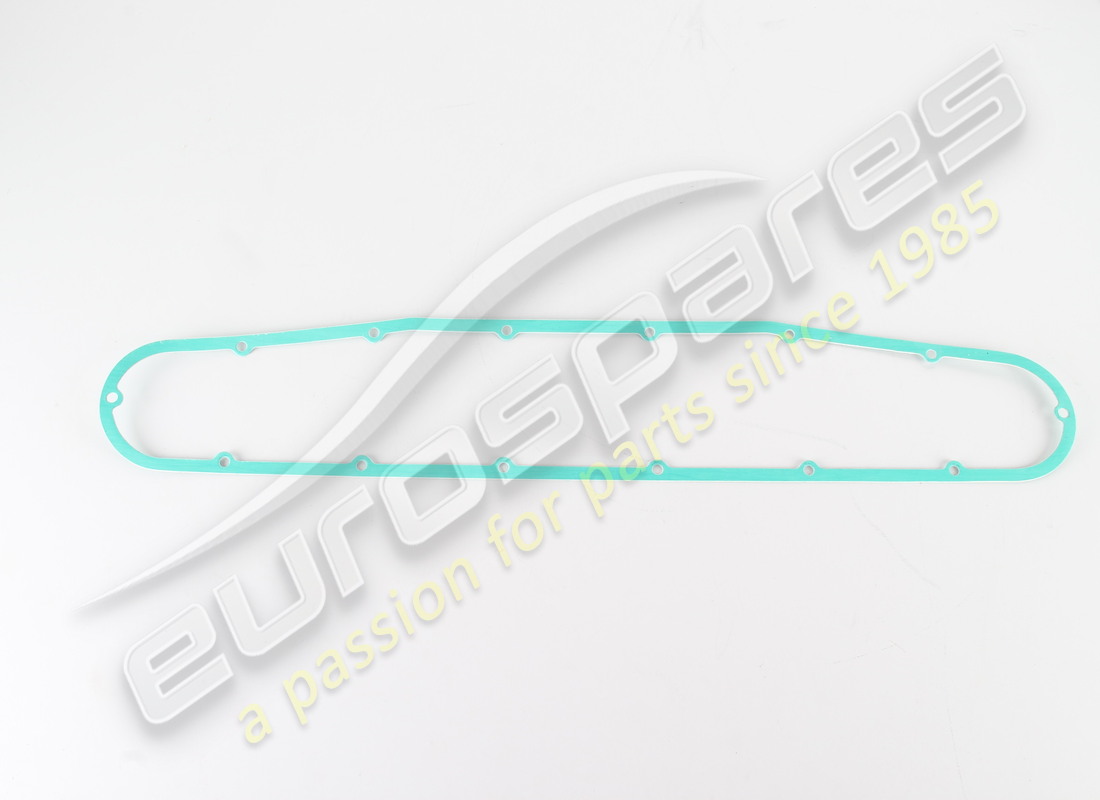

                                                                                            GASKET
                                                                                            from £18.00
                                                                                            from £18.00
                                                                                            # 012
                                                                                            MPN: 156828
                                                                                            SCREW
                                                                                            from £2.13
                                                                                            from £2.13
                                                                                            This part replaces part number 14306024
                                                                                            # 013
                                                                                            MPN: 12601274
                                                                                            WASHER
                                                                                            from £0.49
                                                                                            from £0.49
                                                                                            This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                            # 014
                                                                                            MPN: 324050

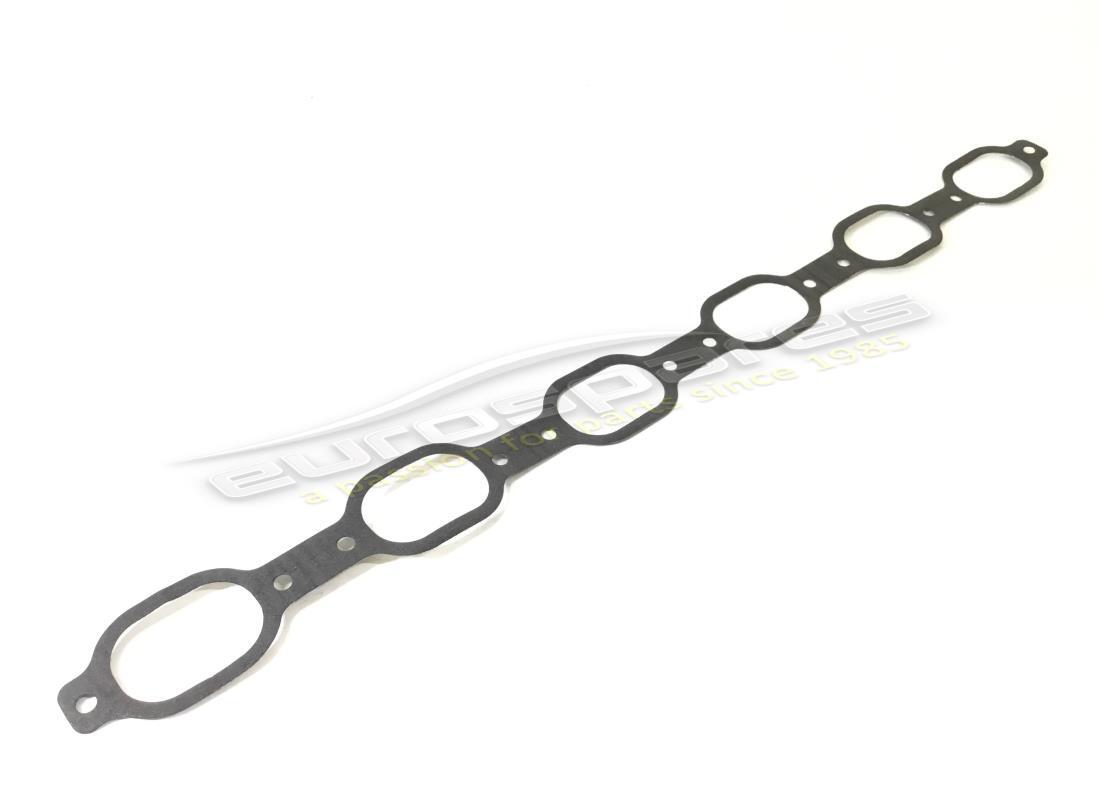

                                                                                            INLET GASKET
                                                                                            from £5.88
                                                                                            from £5.88
                                                                                            This part replaces part number 225462 which we have in stock
                                                                                            # 015
                                                                                            MPN: 159601

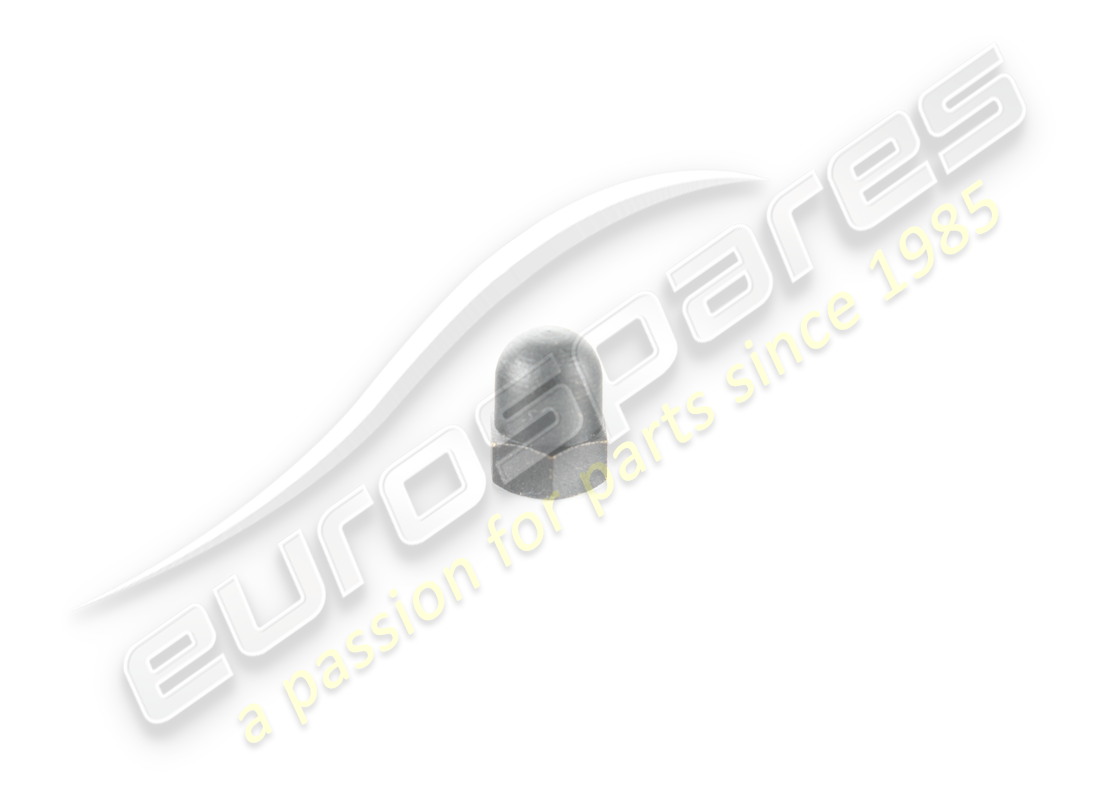

                                                                                            NUT
                                                                                            from £0.51
                                                                                            from £0.51
                                                                                            This part replaces part number 12578121
                                                                                            # 016
                                                                                            MPN: 14305924
                                                                                            SCREW
                                                                                            from £0.48
                                                                                            from £0.48
                                                                                            # 017
                                                                                            MPN: 12639724
                                                                                            WASHER
                                                                                            from £0.52
                                                                                            from £0.52
                                                                                            This part replaces part number 12639725 - and 1 more. Click to view details
                                                                                            # 018
                                                                                            MPN: 181167
                                                                                            RH SLEEVE
                                                                                            from £26.50
                                                                                            from £26.50
                                                                                            # 019
                                                                                            MPN: 181169
                                                                                            LH SLEEVE
                                                                                            from £36.40
                                                                                            from £36.40
                                                                                            # 020
                                                                                            MPN: 190151
                                                                                            CLAMP
                                                                                            from £1.96
                                                                                            from £1.96
                                                                                            This part replaces part number 204436
                                                                                            # 021
                                                                                            MPN: 181120

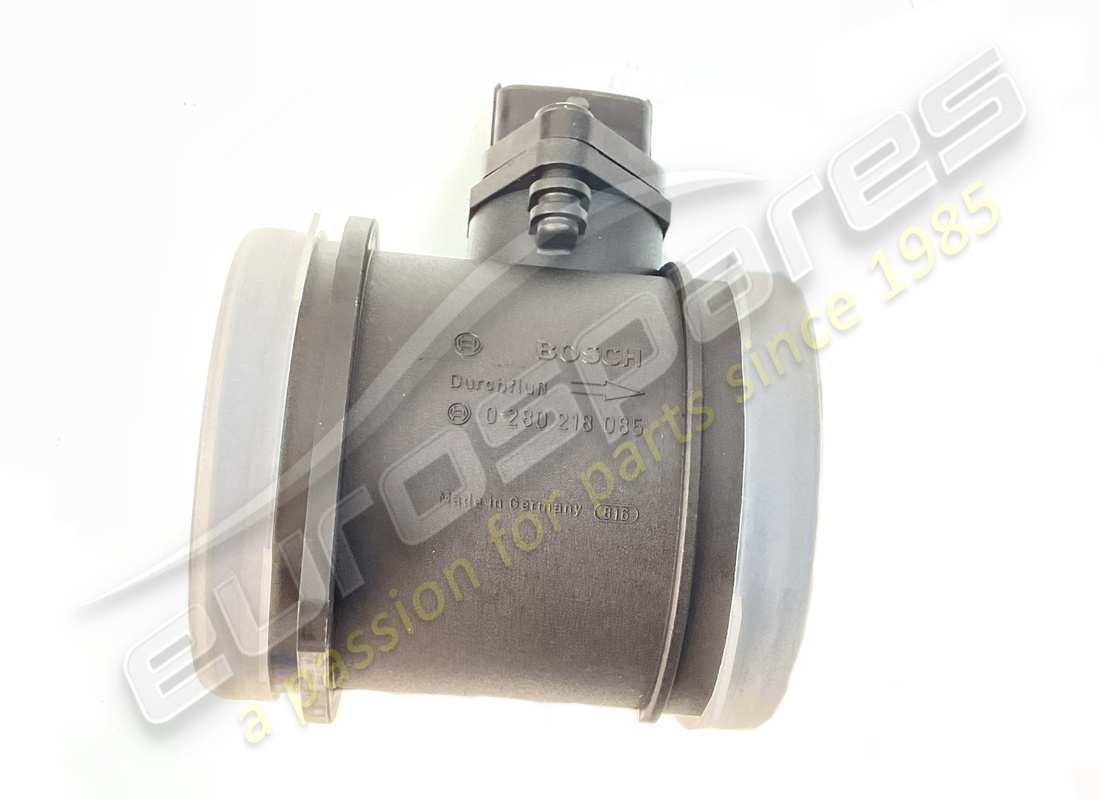

                                                                                            AIR FLOW METER
                                                                                            from £128.50
                                                                                            from £128.50
                                                                                            # 022
                                                                                            MPN: 196715
                                                                                            CLAMP
                                                                                            from £2.94
                                                                                            from £2.94
                                                                                            # 023
                                                                                            MPN: 188614
                                                                                            BRACKET RETAINIG CABLES
                                                                                            from £9.54
                                                                                            from £9.54
                                                                                            # 024
                                                                                            MPN: 160888
                                                                                            FIXING CLIP
                                                                                            from £2.13
                                                                                            from £2.13
                                                                                            # 026
                                                                                            MPN: 180979
                                                                                            GASKET
                                                                                            from £19.32
                                                                                            from £19.32
                                                                                            # 027
                                                                                            MPN: 179671
                                                                                            SPACER FOR THROTTLE HOLDER
                                                                                            - Valid till stock exhaustion - Replace with spacer 195206 + gasket 150302 ref. 48
                                                                                            from £136.98
                                                                                            from £136.98
                                                                                            # 027
                                                                                            MPN: 240262
                                                                                            SPACER FOR THROTTLE HOLDER
                                                                                            from £61.82
                                                                                            from £61.82
                                                                                            This part replaces part number 195206 which we have in stock
                                                                                            # 028
                                                                                            MPN: 178430
                                                                                            FIXING CLIP
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            # 029
                                                                                            MPN: 102741
                                                                                            NUT
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                            # 030
                                                                                            MPN: 14499324
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 14499301 which we have in stock
                                                                                            # 031
                                                                                            MPN: 163774
                                                                                            SCREW
                                                                                            from £3.14
                                                                                            from £3.14
                                                                                            # 032
                                                                                            MPN: 12601174
                                                                                            WASHER
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
                                                                                            # 033
                                                                                            MPN: 173599
                                                                                            SCREW
                                                                                            from £2.20
                                                                                            from £2.20
                                                                                            # 034
                                                                                            MPN: 173600
                                                                                            WASHER
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 035
                                                                                            MPN: 173602
                                                                                            COMPLETE ACTUATOR
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 173594
                                                                                            # 036
                                                                                            MPN: 173594
                                                                                            ACTUATOR
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 037
                                                                                            MPN: 173601
                                                                                            NUT
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            # 038
                                                                                            MPN: 173596
                                                                                            BALL JOINT
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 039
                                                                                            MPN: 173598
                                                                                            SEEGER RING
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 040
                                                                                            MPN: 173595
                                                                                            SUPPORT
                                                                                            from £21.48
                                                                                            from £21.48
                                                                                            # 041
                                                                                            MPN: 168248

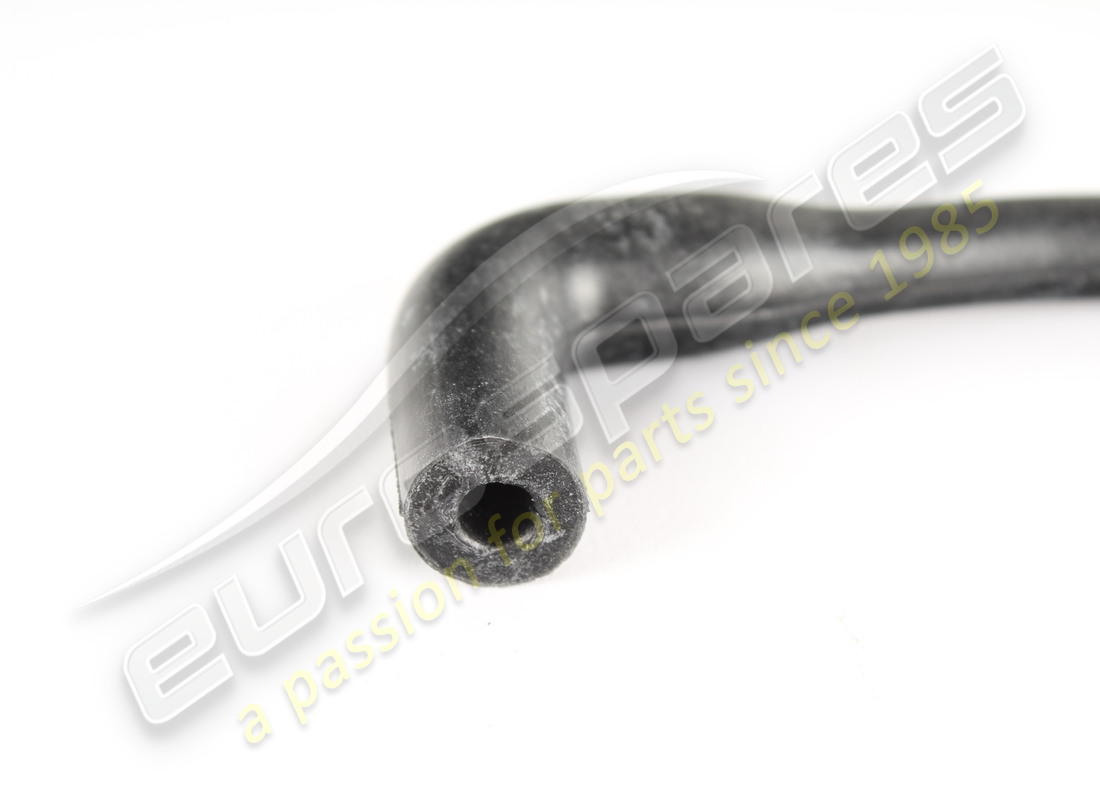

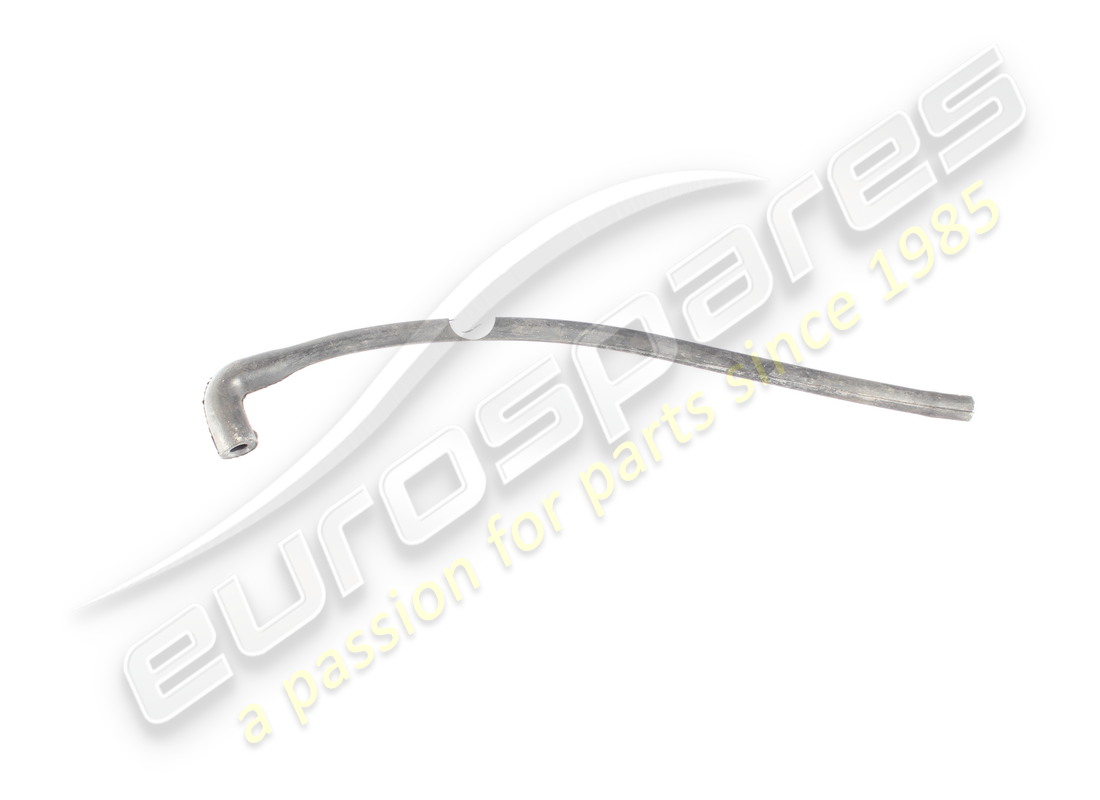

                                                                                            RUBBER PIPE
                                                                                            from £10.43
                                                                                            from £10.43
                                                                                            # 042
                                                                                            MPN: 180978
                                                                                            COVER
                                                                                            from £750.37
                                                                                            from £750.37
                                                                                            # 043
                                                                                            MPN: 16285127
                                                                                            SCREW
                                                                                            (minimum order quantity = 10)
                                                                                            from £0.51
                                                                                            from £0.51
                                                                                            # 044
                                                                                            MPN: 12638178
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
                                                                                            # 045
                                                                                            MPN: 168698
                                                                                            NUT
                                                                                            from £1.03
                                                                                            from £1.03
                                                                                            This part replaces part number 14054048 which we have in stock
                                                                                            # 046
                                                                                            MPN: 165792
                                                                                            BRACKET FOR SECONDARY AIR PIPE
                                                                                            from £2.45
                                                                                            from £2.45
                                                                                            # 047
                                                                                            MPN: 10396780
                                                                                            INSULATING RING
                                                                                            from £1.07
                                                                                            from £1.07
                                                                                            # 048
                                                                                            MPN: 150302
                                                                                            GASKET
                                                                                            - For spacer 195206 ref.27
                                                                                            from £1.60
                                                                                            from £1.60
