017 - Secondary Air Pump

Ferrari 575M Maranello Secondary Air Pump Parts Diagram

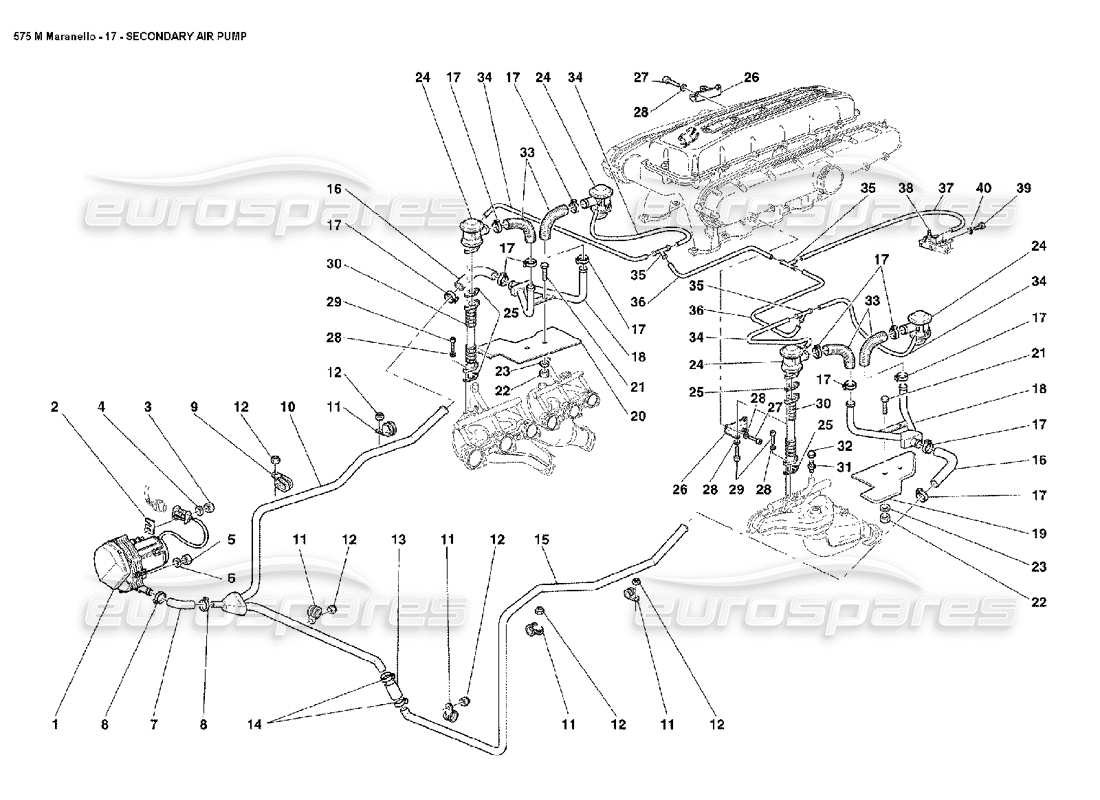

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 002
                                                                              MPN: 156198
                                                                              CLIP
                                                                              from £10.41
                                                                              from £10.41
                                                                              # 003
                                                                              MPN: 169180
                                                                              NUT
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 12574121
                                                                              # 004
                                                                              MPN: 12637824
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
                                                                              # 005
                                                                              MPN: 15896214
                                                                              NUT
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 15896211
                                                                              # 006
                                                                              MPN: 12601274
                                                                              WASHER
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                                              # 007
                                                                              MPN: 186497
                                                                              SLEEVE
                                                                              from £21.15
                                                                              from £21.15
                                                                              # 008
                                                                              MPN: 178054
                                                                              CLAMP
                                                                              from £0.53
                                                                              from £0.53
                                                                              # 009
                                                                              MPN: 61712500
                                                                              BRACKET WITH SHEATH
                                                                              from £1.04
                                                                              from £1.04
                                                                              # 010
                                                                              MPN: 186165
                                                                              RIGID PIPE FOR RH SIDE AIR VALVE
                                                                              from £91.70
                                                                              from £91.70
                                                                              # 011
                                                                              MPN: 10441790
                                                                              BRACKET WITH SHEATH
                                                                              from £0.52
                                                                              from £0.52
                                                                              # 012
                                                                              MPN: 102948
                                                                              NUT
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 12574211 - and 3 more. Click to view details
                                                                              # 014
                                                                              MPN: 178054
                                                                              CLAMP
                                                                              from £0.53
                                                                              from £0.53
                                                                              # 015
                                                                              MPN: 182554
                                                                              RIGID PIPE FOR LH SIDE AIR VALVE
                                                                              from £53.61
                                                                              from £53.61
                                                                              # 016
                                                                              MPN: 154652
                                                                              CURVED SLEEVE
                                                                              from £33.51
                                                                              from £33.51
                                                                              # 017
                                                                              MPN: 178054
                                                                              CLAMP
                                                                              from £0.50
                                                                              from £0.50
                                                                              # 018
                                                                              MPN: 186164
                                                                              3 WAY RIGID PIPE
                                                                              from £124.70
                                                                              from £124.70
                                                                              # 019
                                                                              MPN: 183727
                                                                              RH PROTECTION SHIELD
                                                                              Valid till stock exhaustion
                                                                              Supersession
                                                                              Supersession
                                                                              # 019
                                                                              MPN: 195095
                                                                              RH PROTECTION SHIELD
                                                                              Valid after stock exhaustion of 183727
                                                                              from £42.25
                                                                              from £42.25
                                                                              This part replaces part number 183727 - and 2 more. Click to view details
                                                                              # 020
                                                                              MPN: 183728
                                                                              LH PROTECTION SHIELD
                                                                              Valid till stock exhaustion
                                                                              Supersession
                                                                              Supersession
                                                                              # 020
                                                                              MPN: 195096
                                                                              LH PROTECTION SHIELD
                                                                              Valid after stock exhaustion of 183728
                                                                              from £43.19
                                                                              from £43.19
                                                                              This part replaces part number 183728 - and 2 more. Click to view details
                                                                              # 021
                                                                              MPN: 10902124
                                                                              SCREW
                                                                              from £0.51
                                                                              from £0.51
                                                                              This part replaces part number 10902111 - and 1 more. Click to view details
                                                                              # 022
                                                                              MPN: 14058411
                                                                              NUT
                                                                              from £0.53
                                                                              from £0.53
                                                                              # 023
                                                                              MPN: 12643724
                                                                              WASHER
                                                                              from £0.51
                                                                              from £0.51
                                                                              This part replaces part number 109684 - and 3 more. Click to view details
                                                                              # 024
                                                                              MPN: 171175
                                                                              SECONDARY AIR VALVE
                                                                              from £102.75
                                                                              from £102.75
                                                                              # 025
                                                                              MPN: 186781
                                                                              GASKET FOR PIPE
                                                                              from £2.89
                                                                              from £2.89
                                                                              # 026
                                                                              MPN: 185893
                                                                              VALVE SUPPORT BRACKET
                                                                              from £40.17
                                                                              from £40.17
                                                                              # 027
                                                                              MPN: 14305724
                                                                              SCREW
                                                                              from £0.51
                                                                              from £0.51
                                                                              This part replaces part number 11567624 - and 2 more. Click to view details
                                                                              # 028
                                                                              MPN: 12601274
                                                                              WASHER
                                                                              from £0.50
                                                                              from £0.50
                                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                                              # 029
                                                                              MPN: 14305224
                                                                              SCREW
                                                                              from £0.48
                                                                              from £0.48
                                                                              # 030
                                                                              MPN: 185892
                                                                              TUBE FOR VALVE
                                                                              from £298.40
                                                                              from £298.40
                                                                              # 031
                                                                              MPN: 152630
                                                                              UNION
                                                                              from £44.00
                                                                              from £44.00
                                                                              # 032
                                                                              MPN: 150595
                                                                              CAP NUT
                                                                              from £0.58
                                                                              from £0.58
                                                                              This part replaces part number 16109642
                                                                              # 033
                                                                              MPN: 183717
                                                                              SLEEVE
                                                                              from £101.75
                                                                              from £101.75
                                                                              # 034
                                                                              MPN: 118901
                                                                              RUBBER HOSE
                                                                              from £3.36
                                                                              from £3.36
                                                                              # 035
                                                                              MPN: 146972
                                                                              3 WAY UNION
                                                                              from £2.76
                                                                              from £2.76
                                                                              # 036
                                                                              MPN: 131042
                                                                              RUBBER HOSE
                                                                              Supersession
                                                                              Supersession
                                                                              # 037
                                                                              MPN: 122126
                                                                              RUBBER HOSE
                                                                              from £4.89
                                                                              from £4.89
                                                                              This part replaces part number 258946
                                                                              # 038
                                                                              MPN: 315769
                                                                              SOLENOID VALVE ON/OFF
                                                                              from £28.93
                                                                              from £28.93
                                                                              This part replaces part number 184363
                                                                              # 039
                                                                              MPN: 14304124
                                                                              SCREW
                                                                              from £0.53
                                                                              from £0.53
                                                                              # 040
                                                                              MPN: 12601174
                                                                              WASHER
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
