Ferrari 575M Maranello Injection Ignition Device Parts Diagram

015 - Injection Ignition Device

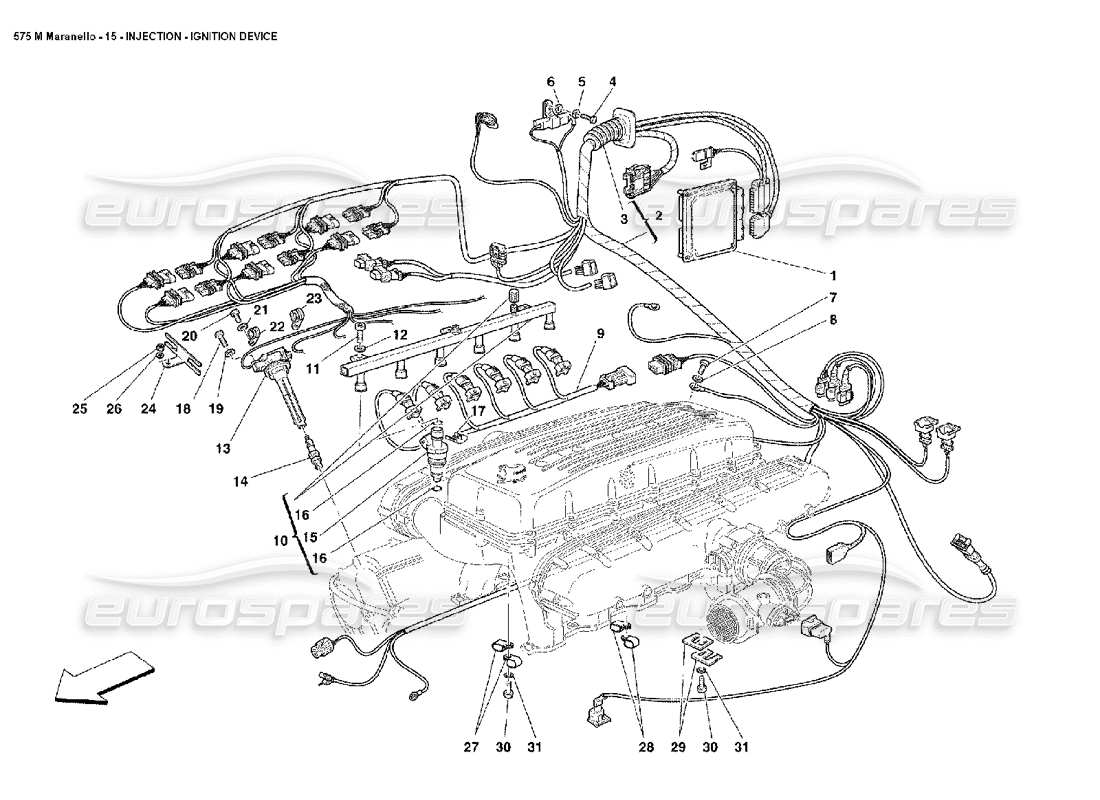

Ferrari 575M Maranello Injection Ignition Device Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 181165

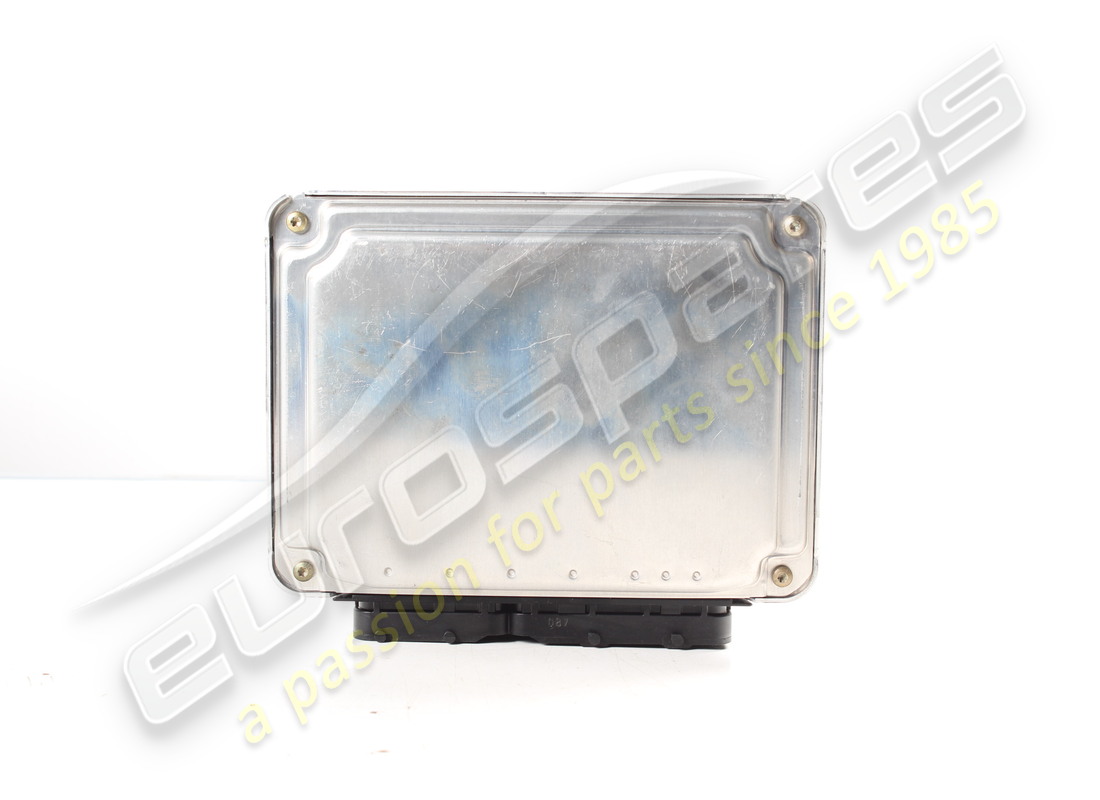

CONTROL UNIT IGNITION
- Not for F1 - Valid till Ass. Nr. 49202 - Not as spare part - Replaced by 198456
Supersession
Supersession
# 001
MPN: 181228
CONTROL UNIT IGNITION
- Valid for F1 - Valid till Ass. Nr. 49202 - Not as spare part - Replaced by 198455
from £781.11
from £781.11
# 001
MPN: 198455
CONTROL UNIT IGNITION
- Valid for F1 - Valid till Ass. Nr. 53133 - Valid from Ass. Nr. 49203 till Ass. Nr. 52555
from £1,477.57
from £1,477.57
This part replaces part number 181228 which we have in stock
# 001
MPN: 198456
CONTROL UNIT IGNITION
- Not for F1 - Valid from Ass. Nr. 49203 till Ass. Nr. 52555
from £1,615.25
from £1,615.25
This part replaces part number 181165
# 001
MPN: 202756
CONTROL UNIT IGNITION
- Not for F1 - Valid from Ass. Nr. 52556 - Valid till Ass. Nr.55768
from £1,477.61
from £1,477.61
# 001
MPN: 202757
CONTROL UNIT IGNITION
- Valid for F1 - Valid from Ass. Nr. 52556 - Valid till Ass. Nr.55768
from £1,477.61
from £1,477.61
# 001
MPN: 211422
CONTROL UNIT IGNITION
- Not for F1 - Valid for USA and CDN - Valid from Ass. Nr. 55769
from £1,354.55
from £1,354.55
# 001
MPN: 211423
CONTROL UNIT IGNITION
- Valid for F1 - Valid for USA and CDN - Valid from Ass. Nr. 55769
from £1,422.28
from £1,422.28
# 001
MPN: 211503
CONTROL UNIT IGNITION
- Not for F1 - Not for USA and CDN - Valid from Ass. Nr. 55769
from £1,422.28
from £1,422.28
# 001
MPN: 211504
CONTROL UNIT IGNITION
- Valid for F1 - Not for USA and CDN - Valid from Ass. Nr. 55769
from £1,422.28
from £1,422.28
# 002
MPN: 187764
RH SIDE ENGINE CONNECTING CABLES
- Not for GD - Valid till engine Nr. 72330
from £764.95
from £764.95
# 002
MPN: 187765
LH SIDE ENGINE CONNECTING CABLES
- Not for GD
from £764.95
from £764.95
# 002
MPN: 189489
RH SIDE ENGINE CONNECTING CABLES
- Valid for GD - Valid till engine Nr. 72330
from £549.49
from £549.49
# 002
MPN: 189490
LH SIDE ENGINE CONNECTING CABLES
- Valid for GD
from £549.49
from £549.49
# 002
MPN: 196495
RH SIDE ENGINE CONNECTING CABLES
- Not for GD - Valid from engine Nr. 72331
from £710.97
from £710.97
# 002
MPN: 196496
RH SIDE ENGINE CONNECTING CABLES
- Valid for GD - Valid from engine Nr. 72331
from £959.93
from £959.93
# 003
MPN: 183318
RUBBER BOOT
from £6.45
from £6.45
# 004
MPN: 10902124
SCREW
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 005
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 006
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 4 more. Click to view details
# 007
MPN: 10977524
SCREW
from £0.53
from £0.53
# 008
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 009
MPN: 182192
INJECTORS CONNECTING CABLES
from £73.38
from £73.38
# 010
MPN: 180563
PIPE FOR INJECTORS
from £1,081.83
from £1,081.83
# 011
MPN: 14306224
SCREW
from £0.50
from £0.50
This part replaces part number 14306221 - and 1 more. Click to view details
# 012
MPN: 12601374
WASHER
from £0.29
from £0.29
This part replaces part number 10615474 - and 13 more. Click to view details
# 013
MPN: 186914
IGNITION COIL
from £59.80
from £59.80
# 014
MPN: 174954
SPARK PLUG
NGK Iridium
from £11.34
from £11.34
# 015
MPN: 180552
ELECTRO INJECTOR
from £186.35
from £186.35
# 016
MPN: 133902
O.R. GASKET
from £3.29
from £3.29
# 017
MPN: 144730
INJECTORS RETAINING CLIP
from £2.19
from £2.19
# 018
MPN: 10902534
SCREW
- Valid till engine Nr. 79585
from £0.50
from £0.50
# 018
MPN: 14432224
SCREW
- Valid from engine Nr. 79586
from £0.48
from £0.48
This part replaces part number 14432221
# 019
MPN: 12601274
WASHER
from £0.50
from £0.50
This part replaces part number 12601221 - and 5 more. Click to view details
# 020
MPN: 10979434
SCREW
from £0.69
from £0.69
# 021
MPN: 12601274
WASHER
from £0.51
from £0.51
This part replaces part number 12601221 - and 5 more. Click to view details
# 022
MPN: 10441190
BRACKET WITH SHEATH
from £0.53
from £0.53
# 023
MPN: 10441390
BRACKET WITH SHEATH
from £0.50
from £0.50
# 024
MPN: 188586
CONNECTOR FIXING BRACKET
from £3.20
from £3.20
# 025
MPN: 102741
NUT
from £0.50
from £0.50
This part replaces part number 12575411 - and 1 more. Click to view details
# 026
MPN: 10519424
WASHER
from £0.53
from £0.53
This part replaces part number 10519401 - and 3 more. Click to view details
# 027
MPN: 10441290
BRACKET
from £0.51
from £0.51
# 028
MPN: 10441490
BRACKET
from £0.51
from £0.51
# 029
MPN: 156198
CLIP
from £10.59
from £10.59
# 030
MPN: 10977524
SCREW
from £0.52
from £0.52
# 031
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
