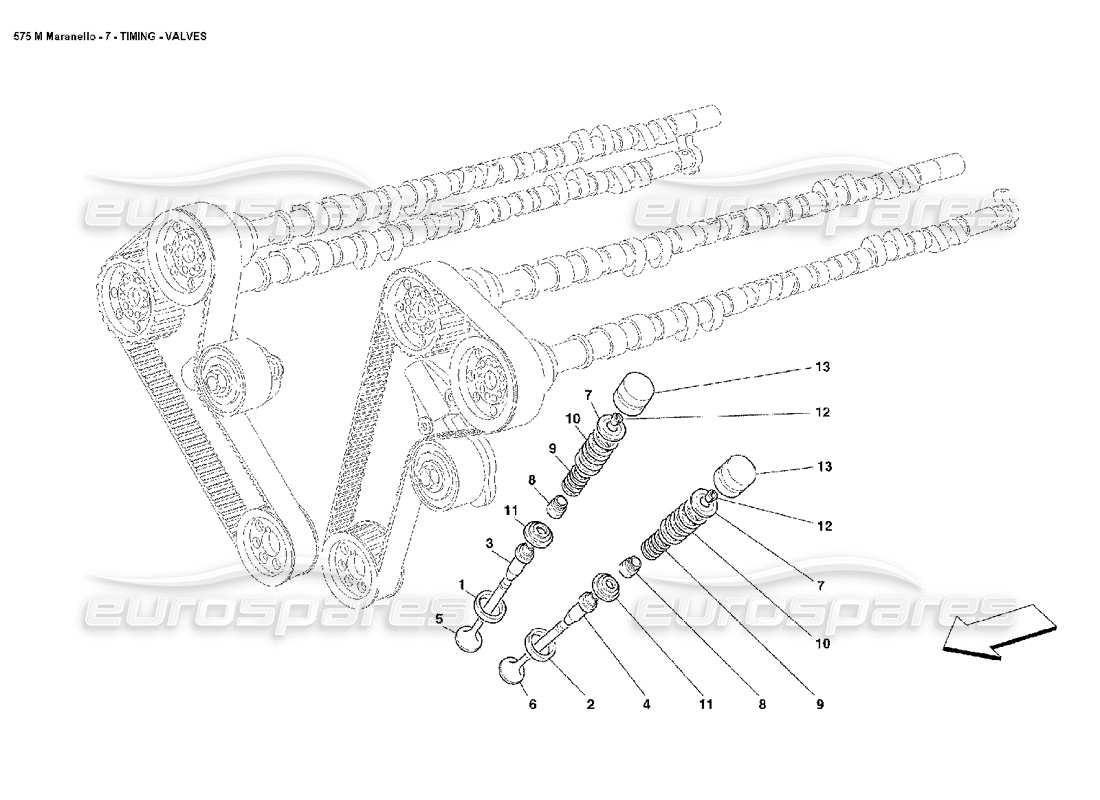

Ferrari 575M Maranello Timing Valves Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 6174122
                          INTAKE VALVE SEAT
                          from £6.70
                          from £6.70
                          This part replaces part number 174122
                          # 002
                          MPN: 6174121
                          EXHAUST VALVE SEAT
                          from £7.26
                          from £7.26
                          This part replaces part number 174121
                          # 003
                          MPN: 183781
                          INTAKE VALVE GUIDE OVERSIZED
                          from £49.32
                          from £49.32
                          This part replaces part number 168904 - and 1 more. Click to view details
                          # 003
                          MPN: 188630
                          SUCTION VALVE GUIDE
                          from £32.27
                          from £32.27
                          This part replaces part number 178588 - and 1 more. Click to view details
                          # 004
                          MPN: 176194
                          EXHAUST VALVE GUIDE OVERSIZE
                          from £36.45
                          from £36.45
                          This part replaces part number 168906 - and 1 more. Click to view details
                          # 004
                          MPN: 188631
                          EXHAUST VALVE GUIDE
                          from £33.42
                          from £33.42
                          This part replaces part number 168905 which we have in stock - and 2 more. Click to view details
                          # 005
                          MPN: 167157
                          INTAKE VALVE
                          from £14.93
                          from £14.93
                          # 006
                          MPN: 167158
                          EXHAUST VALVE
                          from £30.11
                          from £30.11
                          # 007
                          MPN: 191232
                          UPPER SPACER
                          from £40.88
                          from £40.88
                          # 008
                          MPN: 145785
                          OIL RING FOR VALVE GUIDE
                          (rubber material in red)
                          from £4.69
                          from £4.69
                          # 009
                          MPN: 191252
                          INNER SPRING
                          from £2.88
                          from £2.88
                          # 010
                          MPN: 191251
                          OUTER SPRING
                          from £5.94
                          from £5.94
                          # 011
                          MPN: 183779
                          LOWER SPACER
                          from £52.19
                          from £52.19
                          # 011
                          MPN: 188651
                          OVERSIZED LOWER CUP
                          from £29.83
                          from £29.83
                          # 012
                          MPN: 167170
                          COTTER FOR VALVE SPRING CUP
                          from £0.32
                          from £0.32
                          # 013
                          MPN: 166572
                          HYDRAULIC TAPPET FOR VALVE CONTROL
                          from £18.98
                          from £18.98
